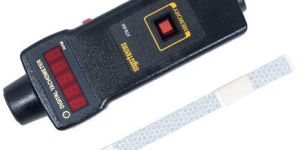

Digital Non-Contact Tachometer
Get Price Quote
Micro-controller based design with world class Indian software.
Non-contact sensing through reflected light beam on reflective sticker.
LCD display.
Hand held.
Input sensing indication through LED.
Memory facility to retain measured value.
Accuracy: 1RPM up to 5,000 RPM and 0.05% of the reading above 5,000 RPM.
Resolution: 0.1RPM up to 5,999 RPM and 1RPM at and above 6,000RPM.
Calibration certificate provided along with tachometer - traceable to national and international standards.
Source voltage : 6VDC ( 4 x 1.5V “AA” size batteries).
Range : 1 to 99999 RPM (with one reflecting mark).
Portable, lightweight, strong and elegant ABS enclosure.
