Rotolinear systems are the leading supplier of
FLANK LOCKINGS PRECISION LOCKNUTS based at bangalore.
MF Series - 30° locknuts- FLANK LOCKING/ ANGULAR TYPE OF LOCKNUTS
The lock screws intersect a 30°angle with axis company with special threading design which makes the braking copper perfectly attached to threading surface to secure high stability and precision.
ØTypes starting from 12x1.0p to 200x3.0p
ØMaterial - SCM440
ØHardness - HRC 28-32
ØPrecision – ISO 4H
The MFZ & MF-T type locknuts are with thread to face squareness 0.005mm.
The MF type locknuts are with thread to face squareness 0.002mm.

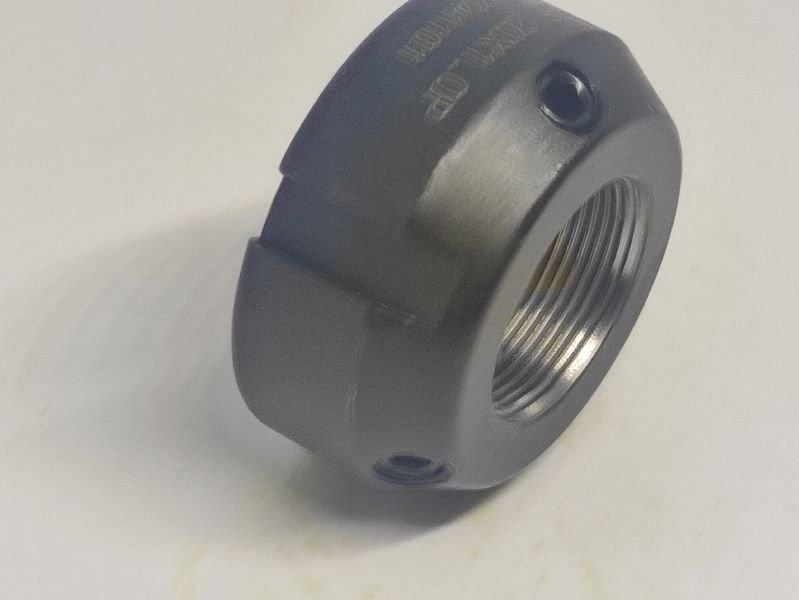

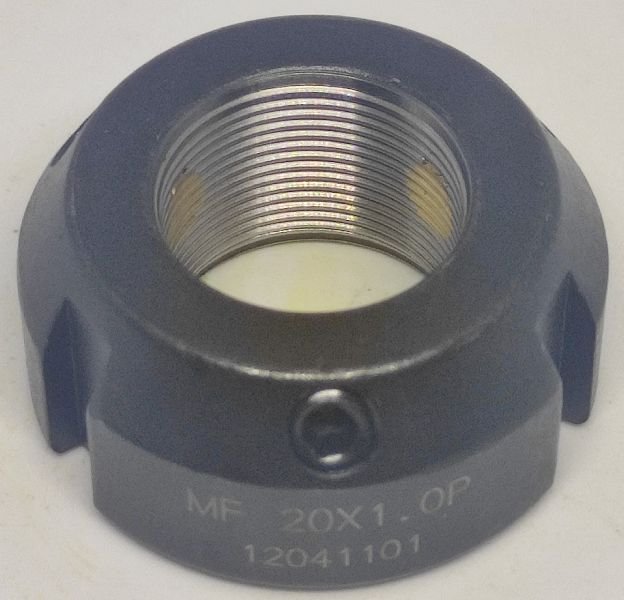

The locknuts shown in the picture is flank type locknut MFZ 20X1.0P. All the size of MFZ or MF-T type locknuts are available in STOCK at Bangalore.
rotolinear systems are the leading supplier of nikki precision locknuts in India and most of the models are available in STOCK and can be supplied immediatly .
Rotolinear systems is the leading supplier of CNC machinery parts in Bangalore. Rotolinear systems are the leading supplier of CNC machine parts like Ground ballscrews, Linear guideways , precision locknuts, metal bellow couplings, flexible disc couplings, servo couplings, torque limiter, safety couplings, servo insert couplings, planetary gearhead, linear actuator ect.
Rotolinear systems are the leading supplier of checknuts in india.
The specifically designed lock screws intersect at an angle of 30 Degrees with the axis accompanying along with a specific threading design. This builds a perfect attachment between the braking copper and the threading surface and results in securing a very high stability and precision.
The MF Model is available in a size range from M12 X 1.0 P to M200 X 3.0 P by grinding the sizes i.e. the internal treads. This model has a thread to face squaring of 0.0002mm.
The TMF Model is available in a size range from M25 X 1.5 P to M200 X 3.0 P by grinding the sizes i.e. the internal treads. This model has a thread to face squaring of 0.0002mm
The MF Model is also available in a size range from M12 X 1.0 P to M200 X 3.0 P by turning the sizes i.e. the internal treads. This model has a thread to face squaring of 0.0005mm.
The SMF Model is available in a size range (internal threads) from M10 X 0.75 P to M110 X 2.0. This model has a thread to face squaring of 0.0005mm.
