PUF Panel Dealers in Bangalore

PU/PIR metal-face sandwich panels can be manufactured with the PU/PIR reaction mix is first laid down on one metal facing. During the expansion process, rigid polyurethane foam passes through a tacky phase, which enables it to form a strong bond with the facings. The insulating effect of PU/PIR foams is much better than that of mineral wool, for example, a layer of PU/PIR ten centimeters thick has a heat transfer coefficient of around 0.25 W/m2K. A rough estimate of what this difference means in terms of energy consumption can be made based on the example of a factory building. Assuming the building has a floor area of 40X20 square meters and 10 meters high, the annual amount of heating oil saved could be roughly 3,000 litres if both the walls and the roof are insulated with PU/PIR metal-faced sandwich panels rather than panels of the same thickness based on mineral wool. Low energy consumption also results in an equivalent reduction in carbon dioxide emissions.   Industrial Construction of PUF Panels   Metal-faced polyurethane sandwich panels are the system of choice today for large industrial buildings, refrigerated warehouses, office blocks, exhibition halls, fair pavilions, schools and sports halls. The aluminum or steel facings themselves are surface coated and can be manufactured with profiles of various depths leading to a higher load bearing. Polyurethane sandwich panels come complete with specially formed tongue-and-groove joints ensuring a fit and maximum integrity. Assembly is fast, easy and cost effective. The resultant sandwich panel has a load-bearing capability many times greater than that achieved by adding together the load-bearing capacities of the individual layers. As a result, these thin, relatively lightweight sandwich panels can safely bridge wide spans. For example, a panel just 100mm thick can easily bridge a clear span of some 6 meters.   Energy efficiency With 80mm thick sandwich panels with polyurethane rigid foam, the U value is 0.297 W/(m2 K). In comparison, a solid wall with 24cm thick masonry and 2 cm plaster walls has U value of 1.85 W/(m2 K). Rigid polyurethane foam combines excellent thermal insulation properties with good mechanical strength, making it an outstanding construction material that does not rot, mold-resistant, odorless and non-toxic for all conceivable applications. The foam is resistant to the chemicals typically used in construction and is compatible with most solvent containing durable and can be installed easily and securely, ensuring cost-effective, efficient construction.

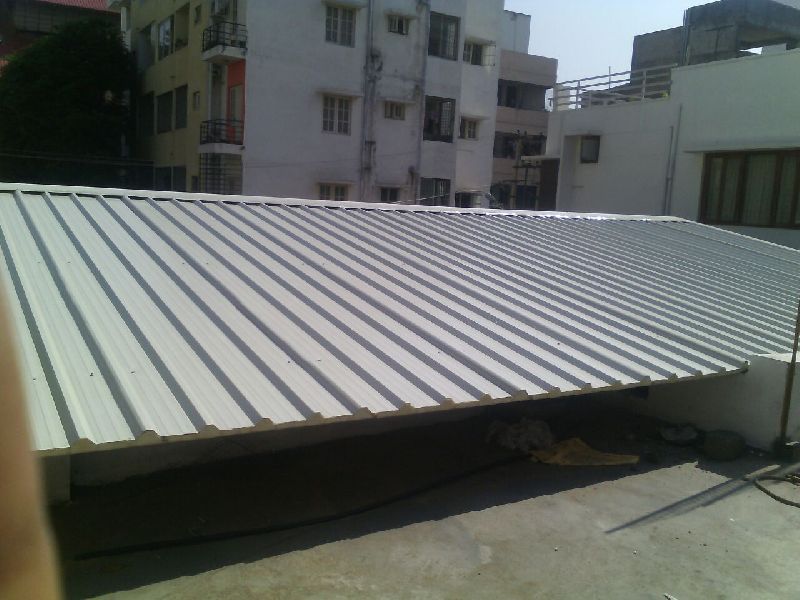

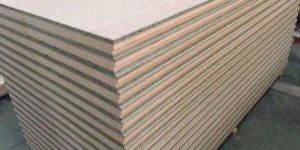

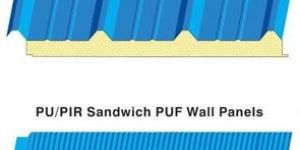

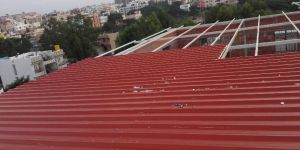

We are putting forth a moderate scope of sandwich puf wall panel for roofing, divider cladding and cold room walling. These boards involves two facings of generally thin metal sheet profiled of high quality encasing a center, which is moderately thick and light with obliged solidness.

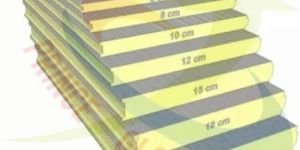

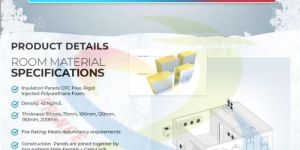

Kralomoc offer wide range of PUF insulated panels with Cam-lock systems for various applications such as cold storages, walk in cold room, Freezer room,Chiller room , prefabricated shelters, prefab houses and various industrial application ro roofing , partitions walls . These Puf panels comes with density of Puf range of 40 +/- 2 Kg/ M3 to 200 +/- 2 Kg/ M3 cladding are of PPGI both side, SS both side , PPGI/SS Kralomoc offer the rang of thickness of panels as follows with various application option 1. Portable cabins and partitions need of ( 30 MM to 50 MM thickness Puf panels , cabin temperature is suitable upt to 25 Deg C to 15 Deg C) 2. Flower , Fruits and vegetables storage room and processing units need of ( 60 MM thickenss panels, Storage or processing unit temperature is suitable upto 2 Deg C to 22 Deg C) 3. Dairy product storage room need of (80 MM thickness panels to 100 MM thickness, Storage temperature – 10 Deg C to 0 Deg C) 4. Frozen product storage need of ( 120 MM thickness panels , Storage temperature -11 Deg C to -25 deg C) 5. Blast freezer chamber need of ( 150 MM thickenss panels , storage temperature – 25 Deg C to – 40 deg C)

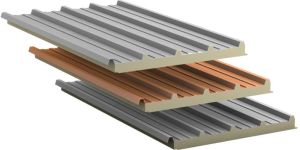

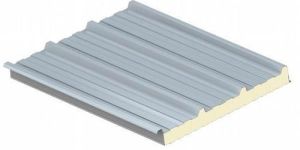

PUF is a composite panel, they consist of an Insulating Layer of Rigid Polyurehene Foam sandwiched between two layers of metal sheets Thickness available : 30 mm – 100 mm Applications: Malls, Buildings, offices, Auditoriums etc. Cold Storages. Refrigerated Rooms. Pharmaceutical Buildings. Structural Insulations(Roofs, Walls). Features Sandwich Panels with PUF insulations have longer life as compared to other insulation materials. PUF Sandwich Panels are rigid and sturdy with higher mechanical strengths. Has a high fire resistance rating. High load bearing capacity at low weight Excellent and durable thermal insulation absolute water and vapour barrier Excellent air tightness and free of thermal bridges which results in considerable energy savings. Capacity for rapid erection without lifting equipments; easier installation in hostile weather conditions Easy repair and replacement in case of damage Long life and very low maintenance cost Good sound resistance

Puf Insulated Panel, Cold Storage Doors, Polyurethane Foam Sandwich Pane

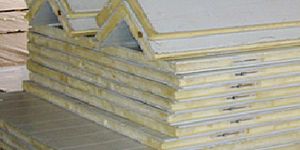

Prefabricated PUF Panel, Cold Storage Insulated Pane

Sandwich Puf Pane

Prefabricated PUF Panel, Foot over Bridg

Air Handling Unit, Air Distribution Products, CleanRoom Doors, LT Pane

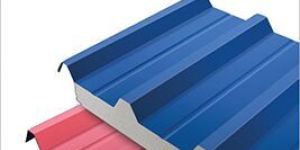

Puf Insulated Panel

Puf Sandwich Pane

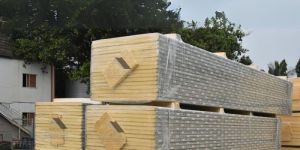

PUF Wall Pane
