Radius Engineering Solutions Pvt. Ltd. Peenya, Bangalore, Karnataka

Material : Mild Steel

Radius has developed special purpose CNC gundrilling for manufacturing pellet extruding dies. The machine can drill diameter in the range of 2.5mm to 12mm and drill depths of upto 100mm.These machines can be used for dies diameter ranging from 500mm outer diameter to 1000mm diameter. These machines is manufactured in variants of 4 to 8 spindles and drills upto 15000 holes in a single workpiece for pellet die industry.

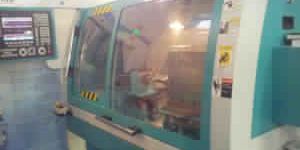

Radius has a full fledged job shop with multispindle gundrilling machines, micro gundrilling machines and universal 3 axis CNC gundrilling machines. The job shop is located in Bangalore and Delhi. The machines can handle drilling from diameter 4mm to diameter 30mm and lengths of 2000mm for a variety of components like fixture plate, die and molds, shafts with PCD hole drilling .Also, the machines can handle small diameters from 1mm to 3 mm for lengths of upto 200mm. This microgundrilling machine also has counter rotation spindles for getting better straightness.

Features : High quality, Reliable

Automatic Grade : Automatic

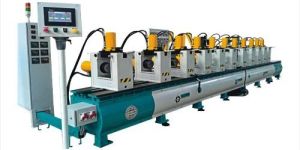

Radius has developed coil spreading machines in both hydraulic and pneumatic variants for coil loops ranging from 500mm to 3000mm and for coil section of maximum upto 20x60mm. The machines offers easy interface through HMI and PLC. The setting of machine as per coil data is made easy with reference scales. Excellent fixturing for knuckle holders ensure firm clamping and easy removal of coil.

Brand Name : RADIUS

Country of Origin : Made in India

Automatic Grade : Semi-Automatic

Automatic Grade : Automatic

Radius has developed special purpose CNC gundrilling for manufacturing pellet extruding dies. The machine can drill diameter in the range of 2.5mm to 12mm and drill depths of upto 100mm.These machines can be used for dies diameter ranging from 500mm outer diameter to 1000mm diameter. These machines is manufactured in variants of 4 to 8 spindles and drills upto 15000 holes in a single workpiece for pellet die industry.

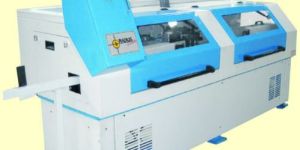

Radius offers CNC machine designed to remove insulation from copper conductor and to cut to preset length and straighten the conductor. The straightening unit draws the conductor from the drum and then buffing unit removes the insulation. The machine can handle Copper conductor size maximum from 4x1mm to 18x4mm.

Automatic Grade : Semi-Automatic
