Rotolinear Systems Yeshwanthpur, Bangalore, Karnataka

Rotolinear systems offer X-Y of slides. Stroke up to 4000mm, Available in Single axis and multi axis, Supplied with ground Ballscrews of accuracy C3, C5, etc. and LM Guideways of accuracy P, H, or C ect.

The TwinSpin (TS) bearing reducers are highprecision reducers based on a new reduction mechanism and a new design of a redial-axial output bearing.As a result, they represent a new generation of power

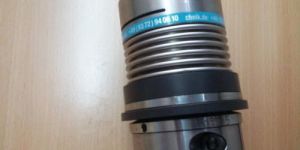

roto linear systems can supply safety couplings or torque limiter with metal bellows integrated. the model shown in the picture is kbk/bkk

Brand Name : Rotolinear Systems

Material : Stainless Seel, SS

Finishing : Polished

Condition : New

Application : Industrial Use,Industrial

Storage Condition : UNIVERSAL

Feature : Long Life

Material : STEEL

Material : SS

Brand Name : KBK-Germany

Material : Mild Steel

Outer Diameter : 47mm

Inner Diameter : 25mm

Length : 24mm

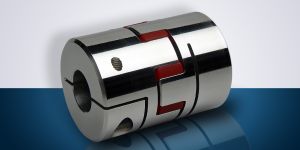

We are offering servo insert couplings.rotolinear systems offer servo insert couplings . These servo insert couplings are with features like , pluggable, damp vibration, compensation of misalignment & backlash-free etc. servo insert couplings are available from 0.5nm upto torques of 525nm . Different models like studset screws clamping, collet clamping, outer conical hub, split hubs, compact version, expanding clamps etc are available. some of the applications include linear slide, machine spindle, screw jack units, servo drive, printing machines, packaging machines ect. rotolinear systems 72, ground floor 1st main road, 19th cross myakal muniswamappa layout, near chowdeswari bus stand lic colony, yeswanthpur bangalore-560022 tel.no. 080-23572855, fax.no.080-23379749 mobile no.9845196751 www.rotolinearindia.com email: rotolinearindia@vsnl.net

here are specialized lock screws which intersect at a right angle with the axis. This is specifically designated for a restricted space. The sizes for the internal treads range from M6 X 0.5P to M200X 3.0P. The MR Model with the thread is designed to face a squaring of 0.002 mm by the process of grinding. The MRZ or the MR Model is designed to face squaring of 0.005mm by turning the thread. The SR Model comes with a lesser thickness as well as a lesser outer diameter as compared to the MR series. However, it is at par with the ZM model.

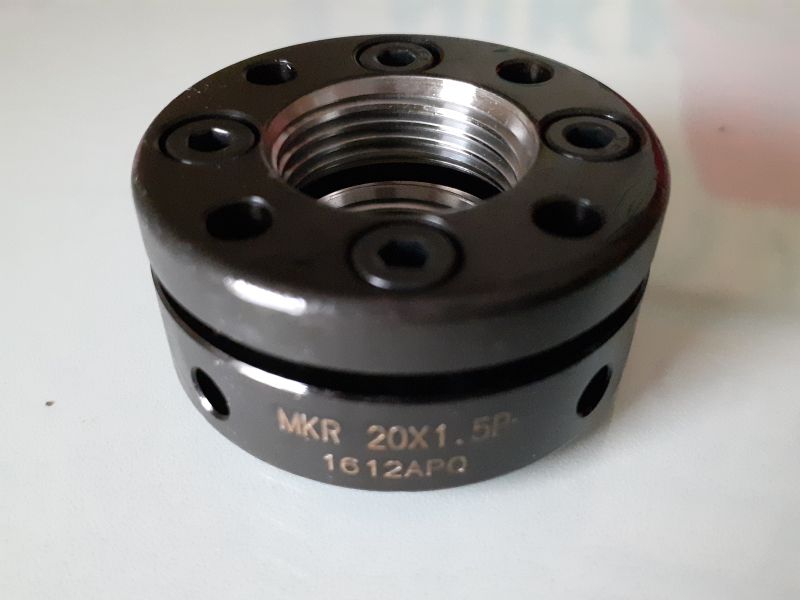

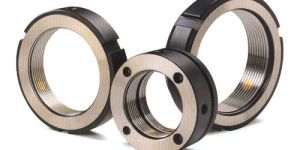

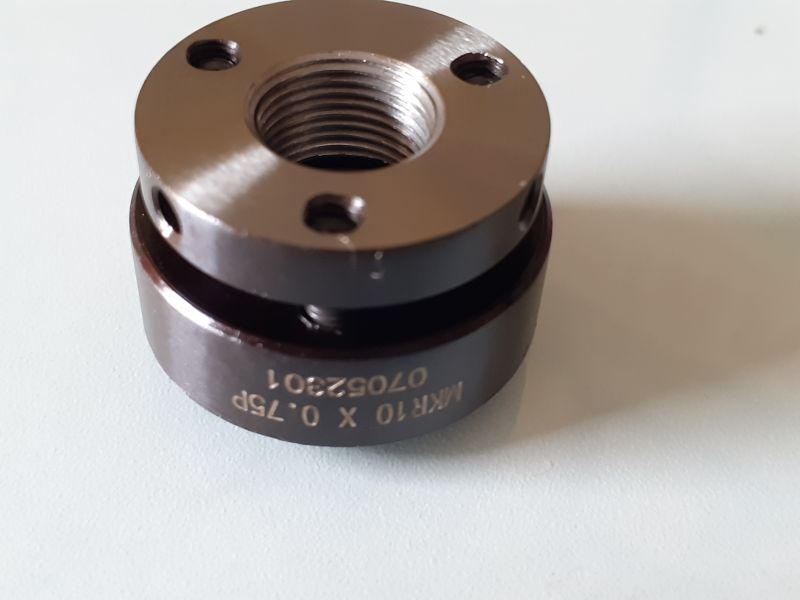

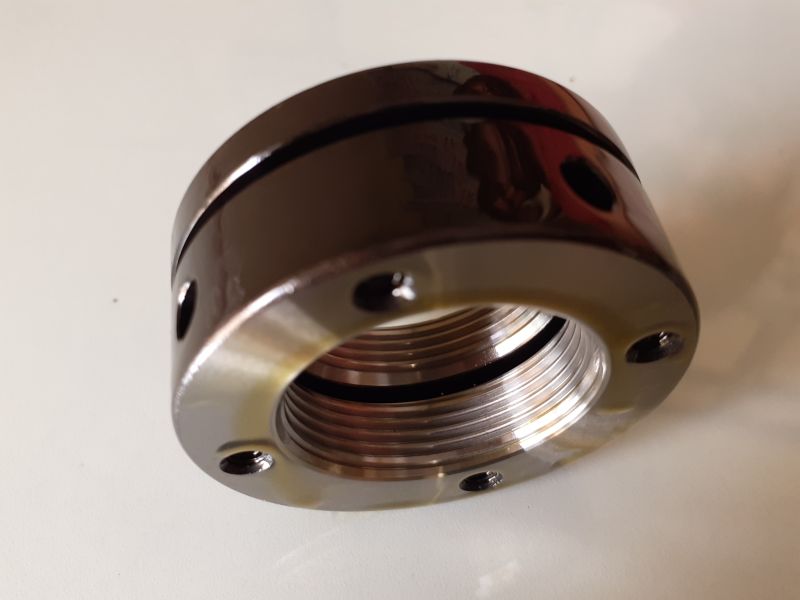

Rotolinear offers Precision locknut of NIKKI and It is available in internal thread from M6 X 0.5 to M200 x 3. NIKKI Locknuts are used for ballscrews, Spindles etc. NIKKI locknut is an economical highly reliable locknut with wide range of variety and is interchangeable with     rotolinear systems are the leading supplier of FACE LOCKING TYPE PRECISION  TYPE LOCKNUTS based at bangalore.   The locknuts shown in the picture is axial type locknut MKR 20 X1.0P (thread 20x 1.0P, OD: 40mm and thickness 18mm) which are available in STOCK at Bangalore. All the size of MKR type locknuts are available in STOCK at Bangalore.     AXIAL LOCK TYPE LOCKNUTS MKR 20X1.0P   The series specially designed to generate powerful braking capacity due deformation of lock nuts itself, which makes the male and female threads contact tightly together         Types starting from 10 x 0.75p to 200 x 3.0p       Material - SCM440       Hardness - HRC 28-32       Precision – ISO 4H   The MKR type locknuts are with thread to face squareness 0.005mm. The sizes available in STOCK are MKR 10X0.75P, MKR 10X1.0P, MKR 12X1.0P, MKR 12X1.5P, MKR 14X1.5P MKR 15X1.0P, MKR 16X1.5P MKR 17X1.0P, MKR 18X1.5P MKR 20X1.0P, MKR 20X1.5P, MKR 22X1.5P , MKR 24X1.5P, MKR 25X1.5P MKR 26X1.5P, MKR 28X1.5P , MKR 30X1.5P , MKR 32X1.5P, MKR 35X1.5P, MKR 38X1.5P, MKR 40X1.5P , MKR 42X1.5P , MKR 45X1.5P , MKR 48X1.5P , MKR 50X1.5P , MKR 52X1.5P , MKR 55X1.5P , MKR 55X2.0P , MKR 58X1.5P , MKR 60X1.5P , MKR 60X2.0P , MKR 62X1.5P , MKR 65X1.5P ,MKR 65X2.0P , MKR 68X1.5P , MKR 70X1.5P ,MKR 75X2.0P , MKR 75X1.5P , MKR 80X2.0P , MKR 85X2.0P , MKR 90X2.0P , MKR 95X2.0P , MKR 100X2.0P , MKR 105X2.0P , MKR 110X2.0P , MKR 115X2.0P , MKR 120X2.0P , MKR 125X2.0P ,MKR 130X3.0P , MKR 140X3.0P MKR 150X3.0P MKR 160X3.0P MKR 170X3.0P MKR 180X3.0P MKR 190X3.0P, MKR200X3.0P.       rotolinear systems is the distributor for NIKKI precision locknuts in India and most of the models are available in STOCK and can be supplied within a day .   rotolinear systems deal with all CNC parts   Rotolinear systems

Brand Name : NIKKI

Material : Iron

Surface Finishing : Power Coated

Head Shape : Round Head

Usage : CNC MACHINER

Size : 15-30mm

Certification : ISO 9001:2008 Certified

Brand Name : Rotolinear

Material : SS, MS

Hardness : 80-98 Shore A

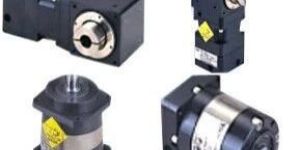

Rotolinear systems offer planetary gearhead. A Planetary design that provides upto 3 times the torque capacity than that of conventional spur gearhead

Material : SS, MS, Copper

Gear Type : Planetary

Material : MS, SS

Orientation : Horizontal

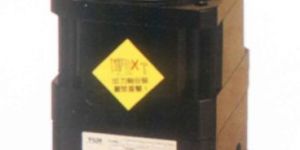

The Rotolinear Systems offer to its clients VGM Planetary Gear heads & the features of this product are enumerated as bellows:   The standard models of this product are -MF70/MF90/MF90S/MF120S/MF150S/MF180S There are other economical models like PG60/PG90/PG120. The models like WS70F/ WS90F/WS120F/ WS150F/WS180F have a right angled planetary gear head. A Planetary design of the VGM which provides up to three times the capacity of the torque when compared to a traditional spur gear head The torque transmitted via the sun gear is distributed in an equal manner across the planet gear and each of the planet gear carries 1/3 of torque. Also, the consequential forces cancel upon each other and yield a resultant load which is equal to zero i.e. a durable life. The product is a cake walk for installation & is compatible with 50W-4000W of famous servomotors. The standard gear reduces with a tiny backlash within a span of 10 minutes & the special gear reduces with a 3 arc minute frame of time. The design of this product is totally enclosed and it doesn’t require a refilling of lubrication. The gear head comes along with grease installed at the factory which is circulated on a continuous basis during the entire operation. It can be easily mounted directly with any servomotors and an integral gear ratio ranging from 3 to 1000. It is very compact and is of a light weight (1.5 kg to 24 kg). It even has a lower decibel resulting in less of noise pollution It has a high power to weight/size ratio. It has a high rating torque (3 to 45 kgf-m) along with a low inertia (0.306 to 35 kgcm2). It has high torsion stiffness and is highly resistant to wear and tear.

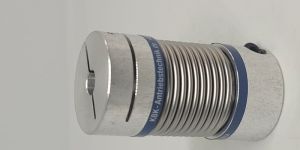

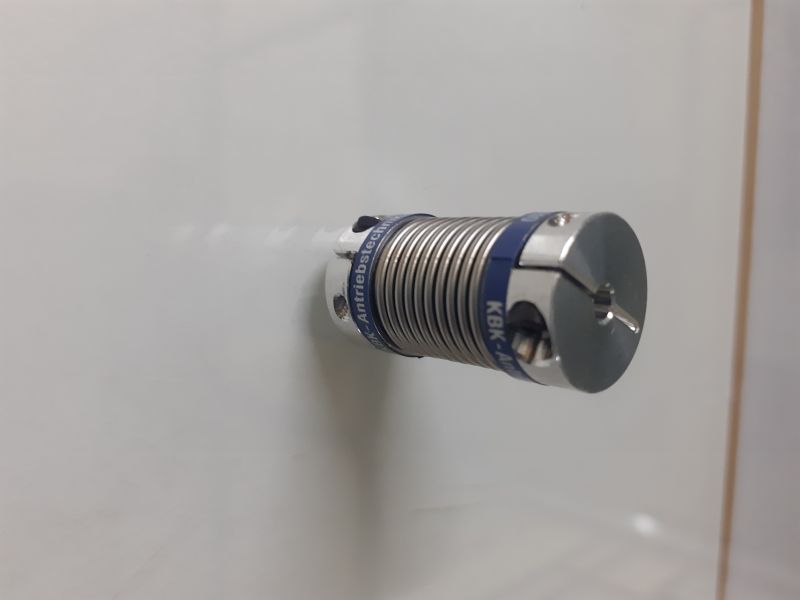

Rotolinear systems bangalore can supply KB2 type metal bellow couplings with collet clamp from our STOCK at Bangalore.   The detailed catalouge page will be available in our website rotolinearindia.com . The basic construction of the bellows will be stainless steel and hub will be aluminium( the hub can be supplied in stainless steel also).   rotolinear systems can supply miniature type model KB2 from the stock at bangalore. The leading distributor of metal bellow couplings in india. The couplings shown in the photo is KB2/20-42(  torque: 2 Nm, OD 40.5mm, length : 42mm) which are available in STOCK and can be supplied with maximum bore size of 25mm. Metal Bellows Couplings KB2 Backlash-free miniature metal bellows couplings with clamping hubs For shaft diameters from 1 - 25mm Torque range: 0.1 - 10Nm High torsional stiffness, good compensation of shaft misalignment, low restoring forces Designed for easy assembly / disassembly APPLICATIONS FOR METAL BELLOWS COUPLINGS   ·                   Encoder ·                   Servo Drives ·                   Stepping motors ·                   Machine tools ·                   Wood Working Machines ·                   Packing Machines ·                   Factory Automation Machinery ·                   Positioning Applications     Rotolinear systems are the leading supplier of metal bellow couplings in Bangalore. All the size of KB2 metal bellow couplings are available in STOCK at Bangalore.   Rotolinear systems  www.rotolinearindia.com is the leading supplier of CNC machinery parts in Bangalore. Rotolinear systems are the leading supplier of CNC machine parts like Ground ballscrews, Linear guideways , precision locknuts, metal bellow couplings, taper bush , clamping element, shrink disc, rigid couplings, keyless clampings, locking device, flexible disc couplings, servo couplings, torque limiter, safety couplings, servo insert couplings, planetary gearhead, linear actuator ect.

Brand Name : KBK GERMANY,KBK

Application : ENCODER

Number Of Flower : KB2

Holding Torque : 2 NM

Country of Origin : GERMANY

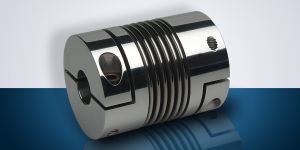

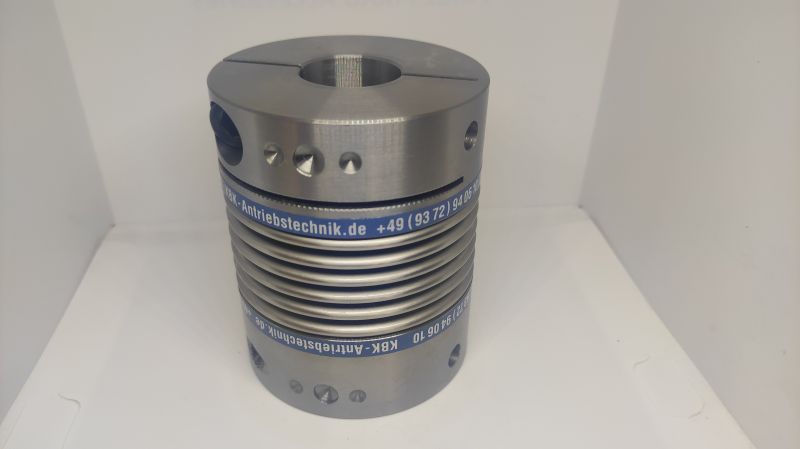

The Rotolinear systems offer their clients with a Metal bellow couplings along with a servo insert couplings of KBK, originating from Germany.   Some of the key characteristics of this KBK Metal bellow couplings are enumerated below: The brand is a veteran in the field with an experience of more than 20 years in offering Metal bellow couplings. The product is free of a backlash and has very high torsion stiffness. The bellow is entirely made out of stainless steel. The hubs of this product are made out of AlCuMgPb as well as steel for the big size products. The product has been equipped with a precise transmission of the rotational angle. The product is absolutely maintenance free and comes with a lower inertia. There is a feature of compensation of the radial, axial along with an angular misalignment. The bellow couplings are made available up to torque’s of 5000 Nm. The miniature metal bellow couplings are available with models up to 10 Nm. The various models which are available are: Collet clamping/ Conical hub/ Outer conical hub/ Flange mounting/ Set screws / Expanding clamps etc/ There is a faster delivery of this product within the committed time frame. The set standard is up to 10,000 RPM & above 10,000 RPM is dynamically balanced. The temperature ranges from 300 C to 1200 CC. There is an optional stainless steel product and is soldered/ welded.   MINIATURE METAL BELLOW COUPLINGS (Range from 0.1 – 10 Nm Torque) The available models are: KB1 with: set screws Torque 0.1 -10 Nm. KB2 with: Collet clamp Torque 0.1 -10 Nm. KB3 with: expanding collet Torque 0.1- 10 Nm   METAL BELLOWS COUPLINGS (Range from 12 – 5000 Nm Torque) The available models are: KB4 with: collet clamp Torque 12 Nm – 500 Nm. The hubs which are > sixe 60 are made of steel   KB5 with: Conical Hub Torque 12-5000Nm KB6 with outer Conical Hub Torque 12-5000Nm The hubs are made of steel. The product has a high concentricity It is equipped with high clamping forces.   KB7 with Flange mounting Torque 12-5000Nm The hubs are made of steel. The product is of smaller dimensions   SERVO INSERT COUPLINGS The general characteristics of the KBK Servo Insert Couplings are enumerated below: These couplings are pluggable. They have a compensating misalignment They are free from backlash issues There are damping vibrations The inserts in the product are made out of Polyurethane The hub is made out of an alloy of aluminium & of steel for the bigger sizes.

Country of Origin : GERMANY

Number Of Flower : METAL BELLOW COUPLINGS

Brand Name : KBK GERMANY

Material : Metal

Shape : Round

Certification : ISO 9001:2008

Finishing : Polished

Packaging Type : Carton Boxes

Grade : ss bellows and aluminium hubs

Media : cnc machines

Corrosion Resistance : Yes

Usage : servo motor

Rotolinear offer Metal Bellow couplings, Safety couplings (Torque limiters), Servo insert couplings of KBK (GERMANY) with features like backlash-free, high torsional stiffness, precise transmission of rotational angle, Maintenance free, low inertia, compensation of radial, axial and angular   All size of metal bellow couplings are available in STOCK.

Material : STAINLESS STEEL

Finishing : Polished

Shape : ROUND

Speciality : Corrosion Proof

Usage : CNC MACHINE

Certification : DISTRIBUTORS

We are offering locknuts locknuts (precision) rotolinear systems offer the precision locknut which are used for ballscrews, spindles and other applications like cnc machinetools, robotics, spm, factory automation etc. Nikki locknut is an economical highly reliable locknut with wide range of variety and is interchangeable with most of the brands. It is available in internal thread from m6 x 0.5 to m200 x 3. Different models like mrz series (radial locking), mkr series (axial locking), mf series (30-degree locking), mr series (radial locking), sr, sfz & tmf series (30-degree locking) are available. The material used in lock nut is scm440, the hardness is hrc 28-32,precision iso 4h. These lock nuts are used by lot of oems in japan, taiwan, europe, china, india etc. nikki has got two types of precision grades one is precision turning and precision grinding. The precision turned lock nut thread to face squareness is under 0.005mm and precision ground locknut is under 0.002mm. these lock-nuts are compatiable with all other major brands/makes and is available in ex-stock at bangalore.

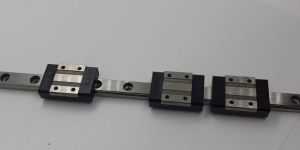

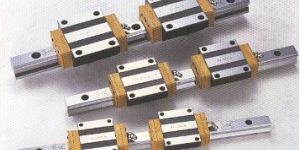

Rotolinear offers Linear motion guideways and the size ranges from 15 to 45mm. It is available in accuracies of C, H, P, SP,UP etc. and LSK lmguideways are high rigidity 4-way equal load rating, low center of gravity and compact design. Low friction, high speed

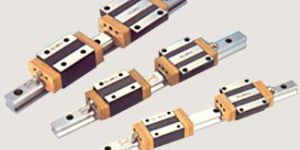

We are offering linear guideways rotolinear systems offer the worldclass linearmotion guideways of leadchin slidek inc(deans group who are having accumulated 25 years experience in precision ballscrews manufacturing). Lsk lmguideways are used mainly in cnc machinetools, robotics, spm, factory automation etc. It is available in accuracy,s of c, h, p, sp, up etc. And the size ranges from 15 to 45mm of different types of blocks. Lsk lmguideways are the right solution for economical, high quality linearmotionguideways for cnc machine tools and cnc spm,s. Lsk lmguideways have the characteristics of high rigidity 4-way equal load rating, low friction, low center of gravity and compact design, low-noise & smooth running, interchangeability, integral all-round sealing, international standard dimension, long life. The lsk lmguideways can be provided with self-lubricant blocks which add the advantages of free maintenance, no need of extra lubricant system or equipment, large increase in maintenance intervals, saves grease cost, clean and environmental protection etc.

This also included making the entire linear guide ways which even includes the material selection processdesigning the profile heat treatment profile grinding of the blocks and the rail and finally assembly& the testing process takes place. Dedicated focus and ownership to adhere by the quality guidelines makes LSK to come up with the best of the Lm Guide ways and that too at a competitive price. The self lubricant features related to this product are such that they provide additional benefits like a free maintenance product increase in the intervals between maintenances extra lubricant equipments or systems are just not required. Also, the grease cost is saved and the environment is protected and healthy.

The Rotolinear systems is known for offering its esteemed clients with the international level Linear guide ways of the LEADCHIN SLIDEK Inc ( Deans Group).A veteran in the field, we have more than 25 silver years of a manufacturing experience in the field of ball screws. Our products are precise, well tested and we make use of the latest technology available for making screws.   This also included making the entire linear guide ways which even includes the material selection process/designing the profile/ heat treatment/ profile grinding of the blocks and the rail and finally assembly& the testing process takes place. Dedicated focus and ownership to adhere by the quality guidelines makes LSK to come up with the best of the Lm Guide ways and that too at a competitive price.   Below is a list of the key characteristics of the LSK manufactured Lm Guide ways: It has a four-way equal loading capacities (4-row)) The products have been manufactures with a very high accuracy level which also results in a lower maintenance. The centre of gravity has been kept low. The product has a very compact design incorporating all the essentials. The product has a robust running speed along with a lower noise pollution. The product has a very low friction, comes at an economical price and offers interchange ability. The product is durable, highly rigid and has an integral overall seal. The rails as well as the blocks are available for top as well as bottom fixing. The self lubricant features related to this product are such that they provide additional benefits like a free maintenance product/ increase in the intervals between maintenance/ extra lubricant equipments or systems are just not required. Also, the grease cost is saved and the environment is protected and healthy. The Accuracy /Preload/Sizes of the available products are mentioned below: I. Accuracy C –Commercial H- High P- Precision SP- Super Precision P- Ultra Precision   II. Preload (primarily depends upon the application)ZF/Z0/Z1/Z2/Z3/Z4 III. Size Range15 to 45 mm.

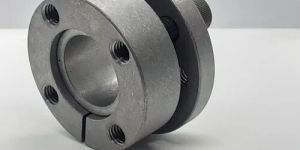

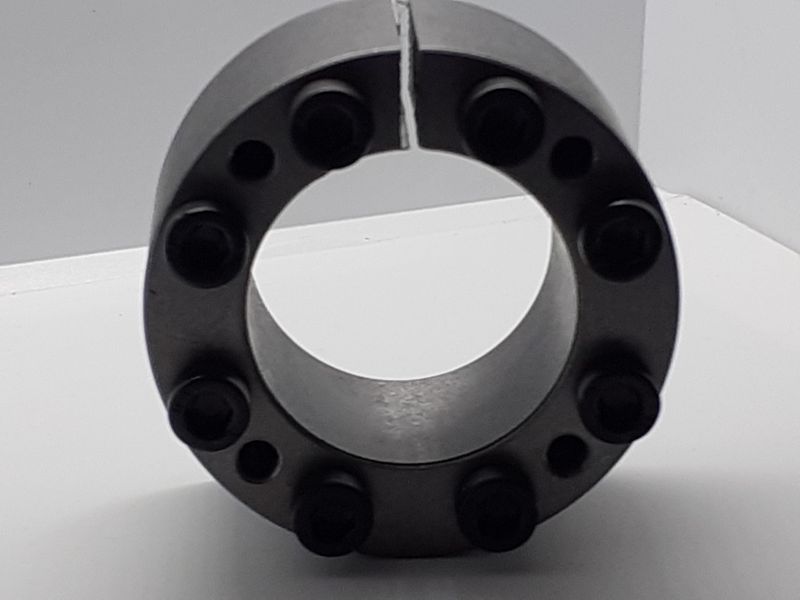

Inner Diameter : 25

Length : 39mm

Outer Diameter : 55mm

Finishing : ZINC PLATING

Material : Mild Steel

Shape : Cylindrical

Usage : Industrial

Capacity : 640Nm

Size (Inches) : 25mm
