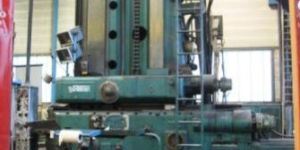

Travels x 6500 mm y 3000 mm
Boring Spindle diameter 150 mm
Milling spindle diameter 204 mm
Spindle taper SA 50
Spindle speed 2,6 - 640 rpm
Spindle travel 1500 mm
Ram travel 750 mm
Total Ram + Spindle 2250 mm
Spindle motor 30/40 HP
Distance between Spindle-Floor
Plate mini/maxi 870/3870mm
Ram Type Floor Boring
Accessories:
4 Axis DRO
Face plate
1 milling heads
Rotary table 2000 x 2000 mm / 15 tons load cap.
Floor plates 2500 x 8000 mm
Travels x 6500 mm y 3000 mm
Boring Spindle diameter 150 mm
Milling spindle diameter 204 mm
Spindle taper SA 50
Spindle speed 2,6 - 640 rpm
Spindle travel 1500 mm
Ram travel 750 mm
Total Ram + Spindle 2250 mm
Spindle motor 30/40 HP
Distance between Spindle-Floor
Plate mini/maxi 870/3870mm
Ram Type Floor Boring
Accessories:
4 Axis DRO
Face plate
1 milling heads
Rotary table 2000 x 2000 mm / 15 tons load cap.
Floor plates 2500 x 8000 mm
Number Of FlowerCNC Bed Type Milling Machine-KNC-U1000
Country of OriginKorea
ManufacturerKIHEUNG
ModelKNC-U1000
Stock-no.S2018010801
Description:-
1)U1000 is designed for heavy machining and variety sized parts!
2)it can support work piece up to 13,000kg and milling performances, power 42kw and torque 1636Nm.
3)For the high accuracy, cross Y-axis ball screw has the internal oil cooling system.
4)For the perfect movement cross Y-axis, there is the box way saddle with anti-friction material(turcite or biplast).
5)For the no "Ram drooping" of Y-axis 1250mm, there are the combination of box way design, INA steel way on the column and INA roller shoes on the saddle.
6)For the smooth movement of vertical Z-axis, there are the hydraulic cylinder weight balance with French Olaer accumulator and anti-friction material(turcite or biplast).
7)LM ball screw support system with the ball screw vibration absorber can make vibration-free running, noise reduction and also the no accuracy deformation.
7)Together with the wide choice of heads(vertical, A2, A4 and orthogonal etc..) and accessories(4th axis rotary table, sub angle table and special head change station etc..) available, makes this machine reliable and suitable for a variety of applications.
Description:-
1)U1000 is designed for heavy machining and variety sized parts!
2)it can support work piece up to 13,000kg and milling performances, power 42kw and torque 1636Nm.
3)For the high accuracy, cross Y-axis ball screw has the internal oil cooling system.
4)For the perfect movement cross Y-axis, there is the box way saddle with anti-friction material(turcite or biplast).
5)For the no "Ram drooping" of Y-axis 1250mm, there are the combination of box way design, INA steel way on the column and INA roller shoes on the saddle.
6)For the smooth movement of vertical Z-axis, there are the hydraulic cylinder weight balance with French Olaer accumulator and anti-friction material(turcite or biplast).
7)LM ball screw support system with the ball screw vibration absorber can make vibration-free running, noise reduction and also the no accuracy deformation.
7)Together with the wide choice of heads(vertical, A2, A4 and orthogonal etc..) and accessories(4th axis rotary table, sub angle table and special head change station etc..) available, makes this machine reliable and suitable for a variety of applications.
Number Of Flower : CNC Bed Type Milling Machine-KNC-U1000
