Secon Technological Solutions Inc. HMT Main Road, Bangalore, Karnataka

The accuracy of spindle is strictly under 0.003mm, this unit allows to perform all types of machining applications such as drilling, peck drilling, threading, tapping, chamfering, reaming and countersinking. This is one of the best implementation machine tools for automation. @ Standard 3-phase AC motor 0.75kW is included, optional motor up to 1.5kW @ Belt driven at fixed speed and incorporate with a timing, V or Poly-V belt @ Feed rate is programmable and driven by preferable servo motor @ Feeding is driven by HIWIN or PMI Grade C5 ball screw @ Spindle tappers ER25, JT6 and HSK40 are available @ Available for servo driven at variable speeds @ OMRON proximity switch sensors and stand are furnished

NCT tables are designed with axial – radial bearings to provide excellent load and thrust capabilites. The hydraulic clamp produces a massive holding power and the housings withstand any twisting or flexing. The large center bore series provides for added flexibility when adding work holding devices.

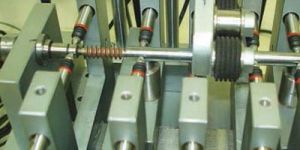

Keeping an Eye on Future & Responding to the needs of Industry for greater Precision, greater speed & labour saving solution with precision measuring technology, MGPL has successfully entered Air gauging, Air Electronic gauging, Auto gauging & Multigauging. MGPL Executed Many projects for multiparameter checking of variety of components, MGPL developed one of the most advanced interface unit which can be used with specially designed relay output for marking or can use for sorting. MGPL has successfully completed many multigauging projects for various components below which are running trouble free to our customer premises. Some of them are as below. CRANKSHAFT 2 & 4 WHLR VARIOUS SHAFT DIFFERENTIAL CASE CAMSHAFT CON ROD ENGINE VALVE CYLINDER BLOCK CRANK PIN BRAKE DISC/DRUM TURBINE HOUSING CENTER HOUSING HOUSING COMPRESSOR RING NOZZLE BACK/SEAL PLATE BUSH/BEARINGS BEARING CAP HUB PISTON CONTROL VALVE MANIFOLD METAL INJECTION MOLDING COMPONENTS : FASTER FACE, SPACER, VANE ETC.

Grinding capacity about 3kg workpiece. Grinding container sizes Ø 350x160mm. Two kinds of grinding programmed, set speed, time, direction, set the various needs of grinding process. Grind setting display, running the display, parameter setting.

Patented triple spindle structure, multi-grinding mode selection, up to the mass production, most convenient, effort. Triple spindle, independent three machines easily operate by one person Multi functional to change different grinding method Grinding and separting magnetic pins and workpiece in one machine Grinding capacity about 3kg workpieces. 3 barrel is approximately 9KG Grinding container sizes Ø350x250mm. The weight and operation is suit for one person The machine is suitable for production of many small parts, with the automation of the production Process planning,reaching optimum production model

Patented triple spindle structure, multi-grinding mode selection, up to the mass production, most convenient, effort. Triple spindle, independent three machines easily operate by one person Multi functional to change different grinding method Grinding and separting magnetic pins and workpiece in one machine Grinding capacity about 3kg workpieces. 3 barrel is approximately 9KG Grinding container sizes Ø350x250mm. The weight and operation is suit for one person The machine is suitable for production of many small parts, with the automation of the production Process planning,reaching optimum production model

MBT series tables are designed with a 2 piece Hirth coupling for manually rotating in multiples of either 1° or 5° increments to an accuracy of +/- 2 seconds of arc. The tables are clamped pneumatically or hydraulically depending upon model, by a simple actuation lever or hand-held pendant. A vernier scale and pointer offers a reference during rotation, however, a digital scale is available on the larger tables (on reguest) These heavy duty, but simple and self contained tables are ideal for Jobs Shops or for applications where the indexing table needs to be frequently removed and re-installed to accommodate machine tool utility.

HC/CNC Vertical / Horizontal Indexing Table, Hirth Gear – Hydraulic clamping

ERT series of Rotary Tilting Tables enables accurate and productive machining. These tables are designed so that the surface of the table top is on the center line of the tilting axis, for a greater piece part capacity, easier programming and less interference in the work zone.

NCT tables are designed with axial – radial bearings to provide excellent load and thrust capabilities. The Hydraulic clamp produces a massive holding power and the housings withstand any twisting or flexing.

1.Carbide Plug Gauges are normally supplied with GO in Carbide & NOGO in Stabilised Steel. 2.Both can be supplied in carbide as per requirement. 3.MGPL gauges have excellent wall thickness to give desired results. Range 0.5 to 8 mm Reversible type design 8 to 40 mm Taper shank design 40 to 60 mm Trilock Design 60 400 mm Plate tyhpe Plug Gauge 4.Extra lenght up to 100 mm can be supplied as per requirement.

With vast technological improvements, surface grinding machines are now used for a wide range of applications. To ensure consistent and reliable grinding performance, high precision spindles with stable operations are needed. With large investments in research and development our latest CNC surface grinding spindles do just that. Kenturn offers three different series of machine tool spindle, to cater for the growing demands of surface grinding. These high performance CNC surface grinding machine spindles feature a floating anti-gripping device that helps to extend bearing life and reduces the impact of thermal displacement, thereby increasing spindle accuracy. With a 1/5 tapered nose design and low spindle runout tolerances, these specialized spindles are well suited for the grinding of computer components and mold carving. All of the specialized surface grinding machine spindles operate at a spindle standard speed of 2000rpm, and are available in outer diameters ranging from 105 to 170mm. All of these high precision grinding machine spindles are built with exacting precision, and tested using leading international equipment to make sure that every spindle delivers the highest performance.

We offer two types of high precision spindles for CNC machining centers; belt drive spindles and direct drive spindles for a versatile range of machining options. The five series of CNC machining center spindles are all very rigid and feature very low runout tolerances, with speeds up to 12,000rpm. These high precision, high speed spindles are available in a range of sizes and are guaranteed to offer smooth operations and a long service life.
