Softrosys Technologies Laggere, Bangalore, Karnataka

FEATURES   A fully Indigenous Product. Low maintanance cost and spares cost, timely service and ready availablity of spares.  Ideal for Indian Conditions Adjustable frequency and vibration time. Power ON and active indication. Service and spares at affordable rates. Splash proof cabinet design. (Water or milk if spilled over the body, will not penetrate inside the cabinet. This keeps the electronic and its sensitive components safe and intact.)  Cabinet made out of mild steel and powder coated to prevent from corrosion. Vibration gun made with mild steel and chromium plate to prevent from corrosion.                 Specifications: Model : ST-200 Function: Remove air bubbles from fresh raw milk.  Type :Table Top  Heavy Duty Transformer  Input Frequency- 26 Hz ± 2% Timer Frequency 5- 20 Sec  Ultrasonic Frequency as per requirement  Power Consumption Max. 40 W  Temperature 0-50 0 C.  Main Body MS with powder coated  Housing Vibrating part – Steel  Easy to use, Fast and Accurate  Suitable for all types of milk. ·        Power supply AC: 230 Volts AC (± 5%) / 12 Volts DC. Sample cup volume: 20ml Weight: 3kg

Brand Name : SOFTROSYS

Application : MILK STIRRER

Weight : 4KG

Color : GREY

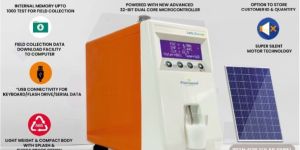

solar powered ultrasonic milk analyzer with stirrer and battery backup   features:   ·        fully indigenous and fastest milk analyzer having measurement time of ·        25 seconds with inbuilt stirrer,and solar panel. ·        all the materials including sensors, microprocessor integrated board, ·        pump etc. are made in-house. ·        inbuilt stirrer with adjustable time and frequency (vibration ) function. ·        fully indigenous manufacturing enabling easy availability of spare parts, proper service and maintenance. ·        compatible to software’s of any branded milk analyzers. ·        facility to backup/copy/save and restore calibration and settings in system memory and also in computer. ·        manual cleaning option by using plunger. ·        high contrast blue/green backlight 4-line large character lcd display ·       3 hours & 6 hours optional lifepo4 battery backup. ·       integrated solar charge controller unit.                   specifications   ø  functional   ·        direct measuring parameters:  fat: 0.5% to 12% accuracy +/- 0.1% &               12% to 15% accuracy +/- 0.2%  snf: 6% to 15% accuracy +/- 0.15%  temperature : 10c to 400c, clr 15-40   ·        calculated parameters:              clr: 15 to 40 accuracy +/-1              protein: 2% to 7% accuracy +/-0.1              lactose : 0.01% to 6% accuracy +/-0.2              added water in milk : 0% to 99% accuracty+/-3%   ·        resolution: fat, snf, lactose, protein, salts : 0.01%                      temperature : 10c ,clr:0.5, added water:1%   ·        repeatability: fat: +/- 0.07%                           snf: +/-0.1%                           clr: +/- 0.5                                       added water :+-3%   ø  technical milk temperature :             1 to 400c measurement time:            25 sec @300c sample valume:                15ml number of calibrations:    3 operation time limit :       continuous display :                           high contrast blue backlight 4 line 20 character lcd display cleaning modes:               daily, weekly (manual cleaning also done) computer interface:         rs232 environmental :               ambient temperature 100c to 400c conditions:                      relative humidity 30 to 80%   ø  electrical   power input :                  solar panel 50/40w average power :               50w peak power :                    140w battery :                          12v-12ah lifo4 battery/12v- 6ah lifo4 battery   ø  mechanical size (l x b x h) :            21.5 x 28.5 x 32 cm weight:                          7 kg material:                        gi power coated splash proof cabin

Driven Type : Battery, Electric

Condition : New

Automation Grade : Automatic

Application : MILK TESTER

Type : Ekomilk Milk Analyzer

Weight : 0-5kg

Country of Origin : India

Voltge : 9-12VDC

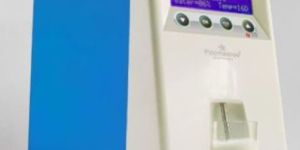

solar powered ultrasonic milk analyzer with battery backup   features • first in this class powered by solar energy with in-built battery. • provision for connecting stirrer also. • high efficient inbuilt solar charger controller. • easy to connect solar panel. • protection for short circuit, surge and minor lightning. • compatible to softwares of any branded milk analyzers. • 8 hours / 1000 tests battery backup. • excellent repeatability. • cabinet made out of abs plastic. • silent motor technology.         specifications   ø  functional   ·        direct measuring parameters:  fat: 0.5% to 12% accuracy +/- 0.1% &               12% to 15% accuracy +/- 0.2%  snf: 6% to 15% accuracy +/- 0.15%  temperature : 10c to 400c, clr 15-40   ·        calculated parameters:              clr: 15 to 40 accuracy +/-1              protein: 2% to 7% accuracy +/-0.1              lactose : 0.01% to 6% accuracy +/-0.2              added water in milk : 0% to 99% accuracty+/-3%   ·        resolution: fat, snf, lactose, protein, salts : 0.01%                      temperature : 10c ,clr:0.5, added water:1%   ·        repeatability: fat: +/- 0.07%                           snf: +/-0.1%                           clr: +/- 0.5                                       added water :+-3%     ø  technical milk temperature :             1 to 400c measurement time:            25 sec @300c sample valume:                15ml number of calibrations:    3 operation time limit :       continuous display :                           high contrast blue backlight 4 line 20 character lcd display cleaning modes:               daily, weekly (manual cleaning also done) computer interface:         rs232 environmental :               ambient temperature 100c to 400c conditions:                      relative humidity 30 to 80%   ø  electrical   power input :                  solar panel 30/40w average power :               30w peak power :                    120w battery :                          12v/ 6ah   ø  mechanical size :                             (l x b x h) 28.5 x 11.7 x 24 cm weight:                          2.4 kg material:                        abs plastic body

Brand Name : LACTOSURE

Voltage : 220V

Type : Solar Powered Water Pump

Country of Origin : India

solar powered ultrasonic milk analyzer                        with stirrer, dps, thermal printer and battery backup   features:   •      fully indigenous and fastest milk analyzer having measurement time of 25 seconds with inbuilt stirrer,data processing system (dps), thermal printer, external keyboard and solar panel. ·        all the materials including sensors, microprocessor integrated board, pump etc. are made in-house. ·        cloud connectivity - remote access to devices and centralized monitoring. •      multiple weighing scale selection and manual settings entry option. •      various reports like collection, customer and collection summary. •      provision for entering various types of bonuses. •      sms alert - collections and shift summary. •      low voltage battery cut off for extended battery life. •      rs232/usb port for computer interfacing •      optional features : gsm module & rfid module. •      manual cleaning option by using plunger. •      3 hours & 6 hours optional lifepo4 (lithium ferrophosphate) battery backup.       specifications   ø  functional   ·        direct measuring parameters:  fat: 0.5% to 12% accuracy +/- 0.1% &               12% to 15% accuracy +/- 0.2%  snf: 6% to 15% accuracy +/- 0.15%  temperature : 10c to 400c, clr 15-40   ·        calculated parameters:              clr: 15 to 40 accuracy +/-1              protein: 2% to 7% accuracy +/-0.1              lactose : 0.01% to 6% accuracy +/-0.2              added water in milk : 0% to 99% accuracty+/-3%   ·        resolution: fat, snf, lactose, protein, salts : 0.01%                      temperature : 10c ,clr:0.5, added water:1%   ·        repeatability: fat: +/- 0.07%                           snf: +/-0.1%                           clr: +/- 0.5                                       added water :+-3%   ø  technical milk temperature :             1 to 400c measurement time:            25 sec @300c sample valume:                15ml average speed:                  120 samples/ hr number of calibrations:    3 operation time limit :       continuous cleaning modes:               daily, weekly (manual & auto mode) display :                           high contrast blue backlight 128 x64 graphical display processor :                   arm cortex-m4, 32bit mcu+fpu,up to 1 mb flash / 192+4kb ram inbuilt memory :              16 gb keypad :                           5x4 matrix keypad printer :                            thermal receipt printer, resolution: 8 dots/mm 384 dots/line;                 paper width : 58mm. rtc :                               12c real-time clock/calendar with sram com port :                       rs232 serial port rf id reader :                   available (optional) gsm / gprs :                   available (optional) pen drive connectivity :      available external key board connectivity : available environmental ambient temperature 100c to 400c conditions : relative humidity 30% to 80%   ø  electrical   power input:        solar panel 50w / 40w average power :   50w peak power :       140w battery:              12ah lifepo4 battery / 6ah lifepo4 optional   ø  mechanical size (lxbxh):       35.5 x 11.5 x 25 cm weight :               13.6 kg material:              gi powder coated splash proof cabin

Driven Type : Battery, Electric

Condition : New

Automation Grade : Automatic

Application : MILK TESTER

Type : Ekomilk Milk Analyzer

Weight : 10-20kg

Country of Origin : India

Voltge : 9-12VDC

we offer all types of milking solutions designed to give excellent milking hygiene, improve udder health, reduce labour costs, meet other current needs and allows you get good quality milk. our milking machines are easy to use and with the help of these machines any person can do the milking of cattle both cow and buffalo. through this milking machine the milk quantity is increased as complete milk is removed from udder of cattle which is not possible during manual milking process. product details: ·        product name                     cow milking machine (220 v) ·        category                             dairy equipment, ·        sub category                     milk machine & equipment(dairy equipment),   specifications: ·        design type:                      portable fixed type milking machine ·        vacuum pump                   oil type ·        cluster type:                     single cluster (single bucket) / double bucket ·        output capacity                10 - 12 cows per hour ·        electric motor                    220v, 50hz, 3/4hp monophase ·        power input                       220 v ·        pulsate                              60/40 ·        milking claw                      240 cc ·        storage capacity                30l ss bucket ·        vacuum tank                    hot- dip galvanization ·        materials                           stainless steel ·        automation grade             fully automatic

Power : 220V

Power Source : ELECTRIC

Application : MILKING MACHINE

Voltage : 220V

Type : Dairy Milking Machine

Weight : 50KG

Warranty : 1 Year

Country of Origin : India

Automation Grade : Automatic

Application : Laboratory Use

ultrasonic milk analyzer   features: • fully indigeneous milk analyzer with 25 second testing time. • fast and accurate measurement in wide temperature range of 10c to 400c • all the materials including sensors, microprocessor integrated board, pump etc. are made in-house & new design. • excellent repeatability. • fully indigenous manufacturing enabling easy availability of spare parts, proper service and maintenance. • compatible to softwares of any branded milk analyzers. • facility to backup/copy/save and restore calibration and settings in system memory and also in computer. • cabinet made out of abs plastic is free from corrosion. • high contrast blue/green backlight 4-line large character lcd display. • silent motor technology.   specifications   ø  functional   ·        direct measuring parameters:  fat: 0.5% to 12% accuracy +/- 0.1% &               12% to 15% accuracy +/- 0.2%  snf: 6% to 15% accuracy +/- 0.15%  temperature : 10c to 400c, clr 15-40   ·        calculated parameters:              clr: 15 to 40 accuracy +/-1              protein: 2% to 7% accuracy +/-0.1              lactose : 0.01% to 6% accuracy +/-0.2              added water in milk : 0% to 99% accuracty+/-3%   ·        resolution: fat, snf, lactose, protein, salts : 0.01%                      temperature : 10c ,clr:0.5, added water:1%   ·        repeatability: fat: +/- 0.07%                           snf: +/-0.1%                           clr: +/- 0.5                                       added water :+-3%     ø  technical milk temperature :             1 to 400c measurement time:            25 sec @300c sample valume:                15ml average speed:                  120 samples/hr number of calibrations:    3 operation time limit :       continuous display :                           high contrast blue backlight 4 line 20 character lcd display cleaning modes:               daily, weekly (manual cleaning also done) computer interface:         rs232 environmental  conditions:   ambient temperature 100c to 400c,relative humidity30 to 80%   ø  electrical   power input:                     160-240v ac, 50hz                                         voltage 12 +/- 0.05v dc / 10a (max) output:                            average power 30w peak power                       120w   ø  mechanical size (l x b x h):                27.5 x 11.7 x 24 cm weight :                           1.5 kg. material:                          abs plastic body

Color : White

Condition : New

Automation Grade : Automatic

Application : MILK TESTER

Type : Ekomilk Milk Analyzer, Milk Analyzer

Weight : 3KG

Country of Origin : India

we are offering our clients with the best weighing scales in the industry. we strive to be a market leader by providing innovative designs, premium products quality, competitive prices, on-time delivery and excellent customer service. with an extensive industry experience of providing high quality services for multiple industries. our company has developed and refined our capabilities to cater to specific requirements of our esteemed clients. we also have the capability to serve our clients of any specifications and requirements.   capacity  : 60kg, 100 kg, 200kg, 300 kg platform size: 400*400, 600*600       standard features: model : ds215n scale type : platform kg  and liter mode display : bright led red display ·        tare function    metal fabrication  stainless steel platter  ms/ abs indicator  high accuracy and stability  low battery indication  overload protection  triple accuracy ·        powered by :both ac and rechargeable battery ·          ·        power consumption: 13 w ·          battery type : 6v/4ah rechargeable battery   ·        power requirement: 230v, 50hz ac ·           battery bckup : 6hrs approximately when fully charged   low battery indicator: yes

Weighing Capacity : 100kg

Type : Electronic Weighing Scales

Weight : 10-20kg

Country of Origin : India

Place of Origin : INDIA

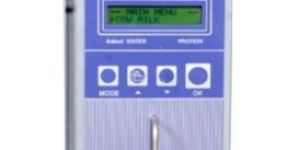

eko milk ultra ultrasonic milk analyzers are designed for fast & cost effective analysis of the fat contents, milk solids non fat (snf), density & added water of the raw milk.   features ·        simultaneous fat and snf analysis. ·        simple, easy to use, economical. ·        fast and accurate. ·        no acid or other chemical required. ·        built in secure calibration procedure. ·        facility to monitor calibration changes. ·        easy to clean, single cell. ·        measurement time: 40 seconds. ·        suitable for cow/buffalo/mixed milk.

Driven Type : Electric

Condition : New

Automation Grade : Automatic

Application : MILK TESTER

Type : Ekomilk Milk Analyzer

Weight : 0-5kg

Country of Origin : India

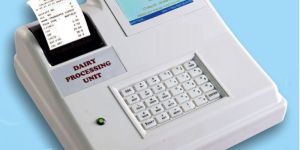

Softrosys DPU is developed as a complete system that can generate receipts to farmers for the milk collected based on FAT / FAT&SNF / TS and weight along with maintaining the ledger of collections and payments of the members. It can be deployed by Government diaries, Private diaries or independent milk collection centres. With options like GPRS, SMS, language printing, External printer support etc., Softrosys DPU provides you with a cost effective and feature rich system.   Specifications ·        16 GB Memory LCD Graphics display  2 inch thermal printer  Regional language Printing support  Auto and Manual Entry Indication in collection slip and shift summary report.  48 key soft touch keyboard and supports external IBM PC PS2 keyboard  Direct USB pen drive can be attached to Import and Export data.  Supports external 40 Col / 80 Col dot matrix printer.  Inbuilt battery with 16 hours idle time and 1000 bill operation time.  Inbuilt battery charger.  4 level password protection for setup and reports.   Reports Shift summary report Member wise periodic report Payment registers and Bonus register Local sale report.  Rate chart report and Members List.  Individual password for field personnel. Bonus Reports Features  Real time clock.  Paper feed setting to reduce the Milk collection slip length.  3 Programmable font sizes.  PC connectivity through Serial port to Connect Milk Analysers and weighing Scales.  Free software to upload / download data from PC to machine.  Light weight and attractive ABS plastic body.  Separate rate charts for cow and Buffalo. ·        Rate chart types: FAT, FAT Vs SNF Total Solids (TS) ·        For All Type of rate charts Import and Export option is available for easy operation.  Can copy Members names, Rate charts and all the reports data to USB pen drive in MS EXCEL readable format  Milk Collection slip can be printed in local language.  All 80 Column reports can also be printed in any local language.  Programmable header footer messages.  Support for bar code scanners  Send SMS to farmers at very minimal cost (Optional). ·        Milk Collection details will be sent to Farmer Mobile number at the time of Milk collection ·        Milk Collection data will be sent to Centralized Server through GPRS without any data Loss. ·        Export Account Information from Central Server to DPU ·        Export Rate Chart  from Central Server to DPU ·        Automatic and manual Data synchronization modes. ·        Shift summary /Member wise/ payment reports will be generated in the Excel format.               GPRS/GSM Requirements and Advantages Requirements GPRS and GSM Board is required in the DPU SIM card with GPRS and SMS Pack Internet Connection with Static IP address for central server (Regular internet connection l IP address will be changing very frequently) to establish communication between DPU and SERVER. One PC with Windows 7 or Windows XP with Service pack3 operating system (for Server) SQL Server and DPU data Collection Software will be running in the Back end (Software will be provided at free of cost) Advantages Milk Collection data will reach the SERVER before the Milk reaches to the CC/Dairy. Data manipulation will not be possible in the DPU at VLCC end. No need to visit VLCC’s every time to get Milk collection data No need to Visit VLCC’s for changing rate chart every time. A copy of VLCC’s data will be available in the Server all the time for ready reference This feature can be implemented in the existing DPU’s also. Email We can send email to the preferred mail addresses Email with Collection report as an attachment in Excel format.

Brand Name : SOFTROSYS

Material : ABS

Driven Type : Electric

Condition : New

Country of Origin : India
