Star Electronics Rajajinagar, Bangalore, Karnataka

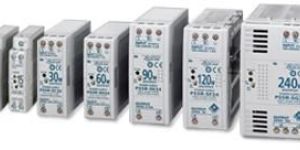

We offer Ps5r Slim Line Power Supplies. These new PS5R Slim Line models give you all the power of a traditional power supply in only half the space. The NEW 10W and 15W are only 22.5mm wide, and the 30W and 60W are 36mm wide, while the 90W is 46mm wide. The 120W unit has a width of only 50mm while the 240W is 80mm wide. They also come with all the convenient features you've come to expect from IDEC. Utilize them in tight spaces or save valuable DIN Rail space while still filling your requirements for power. In addition to the new 120W and 240W, there are also 10W, 15W, 30W, 60W and 90W models available. With all these choices, you can choose the model that is exactly right for you! The PS5R Slim Line series are all UL508 listed and approved for Class I Div 2 hazardous locations. The 10W, 15W, 30W and 60W models are NEC Class 2 rated. The 120W and 240W comply with SEMI F47 sag immunity requirements and bear the F47 Approval mark.

We offer Programmable Logic Controllers (plcs). MicroSmart FC4A Series IDEC MicroSmart series PLC is the next generation of programmable logic controller. These flexible, adaptable PLCs are as compact as they are powerful, so you can create the system you need without increasing your space requirements or your budget. MicroSmart CPUs are available with built-in 10, 16, and 24 IO All-In-One units, and 20 and 40 IO slim style models. Each MicroSmart CPU is designed in a compact and rugged housing. Every MicroSmart module meets IDEC strict quality standards and complies with all major international standards; cULus, CE, TUV, and Lloyds. Each CPU is equipped with a standard power supply circuit, four high-speed counters, analog potentiometer, and password protection.

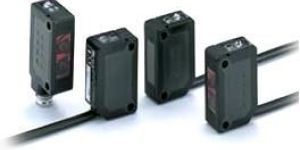

We offer Photoelectric Sensors Sa1e. High reliability and precision High-speed response time Subminiature design Six sensing methods: background suppression, through-beam, polarized retro-reflective, diffuse-reflective, small-beam reflective and convergent reflective. Cable and M8 connector types available Degree of protection: IP67 (IEC60529) ULc-UL listed, CE marked

We offer Operator Interfaces. Touch Screens HG2F-5.7inch There are four available models, with a monochrome or 256-color screen, each in a compact and lightweight housing with the same great features. The HG2F has an amazing 192 touch regions and a replaceable backlight. But what really makes the HG2F stand out is the UL-1604 listing, making it IDEC's first touchscreen approved for use in hazardous locations. Complete user configuration is easy with new WindOI-NV2 software. The HG2F is compatible with IDEC PLCs and includes drivers for other major PLC brands as well. HG2F-C models feature IDEC's patented CC CLICK technology. A plastic overlay with four distinct buttons covers the bottom of the screen. These buttons provide the tactile and audio feedback you can't get with other touchscreens, without sacrificing programming flexibility. This technology is ideal for gloved operators and frequent tasks.

We offer Multi-function Gt3 Series Timers. There are several available styles of GT3 Series Timers. GT3A Analog Timers, GT3D Digital Timers, GT3F True Power OFF Delay Timers, GT3S (Star-Delta) and GT3W Dual Time Range Timers offer several different options for your multi-function requirements. There are also multiple models in each GT3 style, with different pin configurations and time ranges. There are four selectable operation modes on each model of GT3A timers. GT3D timers have 6 time ranges, 16 timing functions and time delays up to 99.9 hours with precision time setting. GT3W timers also have 8 selectable operation modes, time ranges up to 300 hours, and sequential start and independent ONOFF timing functions. Each one has a corresponding IDEC socket.

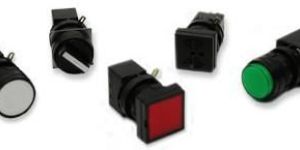

We offer Lw Series Flush Silhouette. Overview Combining the 22mm size of a typical industrial pushbutton with low-level double throw contacts usually found on miniature 16mm switches, the LW Series offers a unique solution to your control applications. IDEC's exclusive, light touch mechanism is ergonomically designed to require minimal force and reduce repetitive strain injuries. A choice of three terminal types from PC board, to .110" solder-tab quick-connect, to screw terminals, the LW series has an answer for almost any application. A locking lever removable contact assembly makes wiring harnesses and PCB designs a breeze. All switches mount on 1.0" centers. Models include illuminated and non-illuminated pushbuttons, pilot lights, selectors, and key switches. Contacts are available in SPDT, DPDT, or 3PDT with either pure silver or gold plated contacts.

We offer Interlock Switches Hs1e. 104x40x129 mm lightweight plastic housing Solenoid locking (power to unlock) to prevent access to hazardous areas Manual unlock key type also available Direct opening action (on main circuit NC contacts) Available with or without a LED indicator (red or green) Choose from 4 circuit configurations Flexible installation: the key can be accessed from two directs Keys compliant with ISO14119 and EN1088 IP67 degree of protection (watertight)

We offer General Purpose Relays. General Purpose Relays RJ Series RJ relays, the newest addition to our relay family, were designed with the same attention-to-detail IDEC is known for. One feature that exemplifies this is an optional LED. It uses a unique light guide to give you a brighter and more noticeable status indicator from multiple directions. Key features RJ Slim GP Relay ideal for space saving application Compact size: 12.7 x 27.0 x 28.8mm Long electrical life and mechanical life Electrical life: 200,000 cycles (AC Load) and 100,000 cycles (DC Load) Mechanical life: 30 million cycles (AC coil) and 50 million cycles (DC coil) Highly visible Indicator LED using IDEC's unique light guide design Green Non-polarized LED indicator complies to IEC standards RoHS Complaint (200295EC)

We offer Combination Display Lights. Combine multiple pilot lights and pushbuttons into a single panel cutout LED or Incandescent illumination 6V, 12V, or 24V ACDC; 120V or 240V AC Up to 200 windows (10 rows by 20 columns) Variety of window sizes and pushbuttons can be combined in almost any combination Multi-layer lens construction allows for several engraving options Momentary Pushbuttons, Selector Switches, or Key Switches

We offer Color Recognition Sensors Sa1c-fk. High-speed, miniature photoelectric sensor with analog (4-20 mA) and digital output Sense gradual color changes Available in both red and green LEDs Through-beam and reflected-light sensing available Ideal for color mark or simple presence and absence applications Compact size allows for DIN rail mounting Dozens of coordinating fiber optic units available to address specific application needs Simple to install and program IP66 protection rating
