Technomachines Bommanahalli, Bangalore, Karnataka

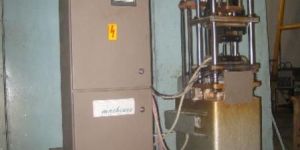

We are offering vertical pressure die casting machine suitable for casting of control cable ends. The zinc alloy is melted and injected into the die automatically on the machine to form the control cable ends of the required shape and size.

Number Of Flower : Chamber Die Casting Machine

Country of Origin : 440V

Condition : New

Automatic Grade : Automatic

Power : 3-5kw

Driven Type : Elecric, Pneumatic

Total Carbohydrate : 1year

Weight(kg) : 100-1000kg

Country of Origin : India

Brand Name : Techno

Material : Steel

Application : Control cable

Fuel : Electricity

Machine Type : Casting

Dimension : 600 x 600 1500 mm

After-Sales Service Provided : no

CNC Machining or Not : no

Material Capabilities : -

Micro Machining or Not : -

Piston die in combination with piston die casting machine can be used to cast pistons.These are manufactured to strict drawings using CAD CAM.

Country of Origin : India

Number Of Flower : Pistons

Material : Metal

Application : Automobile Industry

Size : As per drawing

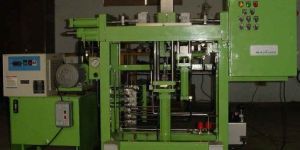

all our piston die casting machines are proven in design and are successfully working in various piston manufacturing companies. They are designed for high consistent quality piston casting. various models of piston die casting machines available are these are semi-automatic gravity die casting machines. All die parts are opened and closed automatically. Due to the hydraulic die open and close, die damage is minimum. The only manual operation is pouring of molten metal and picking out the solidified piston. all machines can accommodate 5 piece core design these machines are capable of casting pistons with ring and also as-cast crowns these machines have bed tilting facility for pistons above 70mm in diameter all these machines are hydraulically operated with in-built powerpacks the machines are controlled by touch-screen hmi with built-in plc (programmable logic controller) the machines are provided with cooling valves centralised lubrication system automatically lubricates all sliding surfaces at regular intervals

Country of Origin : India

Number Of Flower : Gravity Die Casting Machine

Availability : 1000-2000kg

Country of Origin : 440V

Condition : New

Automatic Grade : Semi Automatic

Power : 3-5kw

Driven Type : Electric, Hydraulic, Penaumatic

Warrenty : 1year

Brand Name : Techno

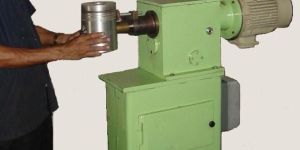

This machine is exclusively designed for cutting circlip grooves in the pinhole of pistons. The spindle head mounted on a pedestal has inner and outer spindles running eccentrically one inside another at different speeds in another stationary sleeve. When foot switch is pressed the inner spindle carrying the cutting tool makes the groove while running eccentrically. After completion of groove cutting, the drive is automatically cut-off for both spindles and the tool is brought to a stop accurately in retracted condition for piston to be taken out. The specialty of this machine is that it is provided with one pair of Electro-Magnetic clutch and brake for starting and stopping of the drive for each cycle while the motor is continuously running. Normally a brake motor is used in such an application which burns out frequently due to the high rate of on-off cycle .

Availability : 100-1000kg

Country of Origin : 440V

Condition : New

Rated Power : 1-3kw

Automatic Grade : Automatic

Warrenty : 1 Year

Country of Origin : India

Brand Name : Techno

Application : Pistons

Processing : Machining

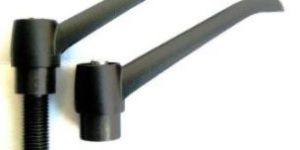

Adjustable clamp lever can be used in any machine fixture or attachment where manual clamping is provided. The lever often reaches an inconvenient position in the clamped condition making it difficult to clamp properly and effectively. In several applications the lever cannot be rotated through full circle.   The adjustable clamp lever assembly overcomes these problems since the lever and the bolt are two separate parts locked by male and female serrations. The lever can be lifted up, rotated to the desired positions and engaged just by releasing. These assemblies are made in both Nut type (N) and Screw type (S). (~) column in the table indicates the number of indexable steps. The lever is pressure die cast zinc alloy and is painted black. The bolt is of high tensile steel, blackened. These assemblies are specified by indicating the size (M), type (N or S) and the quantity as for instance : M8S -90Nos. Right to alter specifications reserved.

Application : Industrial

Feature : Rustproof

Condition : New

Finishing : Power Coated

Country of Origin : India
