Strain Measurement Module

Get Latest Price

ModelUITM 01 [Full bridge configuration]
Beam MaterialStainless Steel
Capacity1 Kg
Beam Dimension300(L) X 28(B) X2.5(T) in mm.
Strain GaugeFoil type Resistance, 350SL, Q.L:3mm
Beam MountingBeam mounted on a rigid metal. From with connection brought out to a Connector. : 3½ digit to
Indicator3½ digit to read upto ±1999 counts
Bridge BalancingPotentiometer
Bridge Excitation10 V. DC
Power Supply230V ± 10%@50Hz
AccessoriesPan to load the Beam. 100g X 10N dead weights, Necessary cables provided.

Strain Measurement Module comprises of Cantilever Beam bonded with four strain gauges,pan and weights upto 1Kg. Digital 3½ digit indicator module is supplied to read the microstrain.

...more
Strain Measurement Module

Request for Price

Strain Measurement Module comprises of Cantilever Beam bonded with four strain gauges,pan and weights upto 1Kg. Digital 3½ digit indicator module is supplied to read the microstrain.
...more
Get Best Price
Strain Measurement Equipment

Get Latest Price

Brand NameUnitech
MaterialSS
FeaturesThe fixture is mounted on a base plate rigidly, Four strain gauges are bonded on the beam and are connected in the form of whetstone bridge
Model Name/NumberUITM-01
Measuring Range300 mm Length 28 mm Width 2.8 mm Thickness
Sensitivity1 Micro Strain
Weight1 Kg
Strain Gauge350 Ohm
Connection4 Core Shielded Cable
Excitation10-12 V DC
Power Supply230 V AC 50 Hz

...more
Strain Measurement Equipment

Request for Price

Brand Name : Unitech
Material : SS

Get Best Price
Pressure to Current Measurement Trainer

Get Latest Price

ModelUITM-17
Pressure SourceAir tank fitted with pressure gauge.
Pressure TransmitterStrain gauge/piezo resistive type. : Pressure transmitter with 4-20mA output for 0 to 15 PSI.
Indicator3½ digit LED display.
Resolution0.1mA and 0.1PSI
Power Supply230V 50 Hz
Accessories SuppliedFoot air pump to build pressure.

Pressure to Current (P to I ) Trainer:This setup comprises of pressure chamber fitted on a base board. A pressure transducer and bourdon pressure gauge are fitted to the chamber. Digital pressure indicator with transmitter output is provided to display the pressure sensor by the pressure transducer. Transmitter output 4 to 20mA can be measured by a current meter. Foot air pump is provided to build the pressure.

...more
Pressure to Current Measurement Trainer

Request for Price

Pressure to Current (P to I ) Trainer:This setup comprises of pressure chamber fitted on a base board. A pressure transducer and bourdon pressure gauge are fitted to the chamber. Digital pressure indicator with transmitter output is provided to display the pressure sensor by the pressure transducer. Transmitter output 4 to 20mA can be measured by a current meter. Foot air pump is provided to build the pressure.
...more
Get Best Price

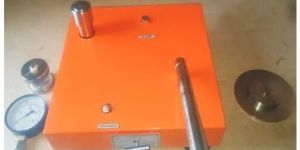

Pressure Gauge Tester

26,500 / unit

Brand NameUnitech
Accuracy0.5% of FSD
Starting Pressure1 Kg/cm2
Dimension350 x 350 x 200 mm
Plunger Diameter0.5 cm (Area: 0.196 cm )
Pressure Port3/8
Weight12 Kg
Capacity100 kg/cm2

...more
Pressure Gauge Tester

26,500 / unit

Brand Name : Unitech

Get Best Price
Milling Tool Dynamometer

Get Latest Price

Capacity500Kg in X,Y & Z direction.
Power230V 50 Hz
ModelUIM 14
Display3 independent for x,y & z force. LED display 3½ digit.
Resolution1Kg for all the 3 Components.
Recorder O/PAnalog output for connect any recorder or data logger
AccessoriesPowder coated metal box.400(L)x300(W)x100H : Self centering vise 4”-1No. : Necessary cables provid

Unitech offers tool dynamometers to measure cutting forces on various machines like lathe, drill, milling machines. All three direction forces are measured simultaneously and displayed. Tool dynamometers are useful to study, analyse the optimum feed, speed and depth of cut on different materials. The dynamometers are also available in various capacities as per customer requirement.

...more
Milling Tool Dynamometer

Request for Price

Unitech offers tool dynamometers to measure cutting forces on various machines like lathe, drill, milling machines. All three direction forces are measured simultaneously and displayed. Tool dynamometers are useful to study, analyse the optimum feed, speed and depth of cut on different materials. The dynamometers are also available in various capacities as per customer requirement.

Capacity : 500Kg in X,Y & Z direction.
Power : 230V 50 Hz
...more
Get Best Price
Hydraulic Trainer Kit

135,000 / unit

ApplicationTraining
MaterialMS
Rated Power1-2 HP
Motor Speed1400-2000 RPM
Surface FinishingColor Coated
Sump10-20 Liter Capacity (Approximate) Vane or Gear Type
Flow10-20 LPM at Working Pressure 35-50 Kg/Cm2
ValveDirection control

...more
Hydraulic Trainer Kit

135,000 / unit

Application : Training
Material : MS
Rated Power : 1-2 HP
Motor Speed : 1400-2000 RPM
...more
Get Best Price
Drill Tool Dynamometer

29,500 / unit

Brand NameUnitech
Model Name/NumberUIL-16
Display3.5 Digit LED Display
Capacity500Kg Thrust load, 20 Kg m-torque
No. Of ChannelsMultichannel
Power Supply230 V
Warranty1 Year
Accuracy1%
Enclosure250L X300(D)X100H
Drill Tool Dynamometer

29,500 / unit

Brand Name : Unitech

Get Best Price

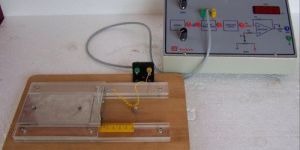

Capacitance Measurement Trainer Equipment

12,000 / Piece

Power SourceUITM-11
Brand NameUnitech
Usage/ApplicationTraining
Indicator31/2 Digit to Read +-1999 Counts
Capacitance SensorLinear-Parallel plate capacitor Angular-Gang Condenser
Displacement50 mm
Power Supply230V +-10%@50 Hz

...more
Capacitance Measurement Trainer Equipment

12,000 / Piece

Power Source : UITM-11
Brand Name : Unitech

Get Best Price
