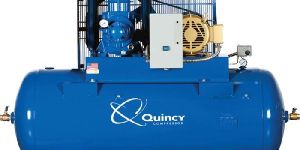

Quincy QP MAX Pressure-Lubricated Reciprocating Air Compressor 10 HP, 230 Volt/3 Phase
1,871 / Piece
qp compressor has a fully pressure-lubricated system for smooth, continuous operation
oil pump pressure-lubricates crankshaft, bearings and connecting rods up to the wrist pins
pressurized oil results in less wear on components
pressure-lubricated system provides up to 15% longer life than a splash-lubricated compressor
cast iron 2-stage pump with aluminum heads
pump life up to 60,000+ hours
spin-on filter lengthens pump life and improves reliability
low oil pressure shutdown for protection
mounted air-cooled aftercooler
electronic automatic tank drain
digital control panel with hour meter and adjustable cut-in/cut-out pressures
continuous 100% duty cycle operation
120-gallon horizontal tank
ship weight
850.0 lbs
max. Psi
175
air tank size (gal.)
120
cfm at 90 psi
35.9
cfm at max. Psi
35
air outlet size (in.)
3/4
duty cycle
100%
working pressure (psi)
175
regulator included
yes
stage
2
motor phase(s)
3
oil required
yes
low oil shutdown
yes
lubrication system
pressure lube
hp
10
volts
230
motor rpm
1,750
drain system
automatic
pump life (hrs.)
60,000+
pump material
cast iron w/aluminum head
dimensions l x w x h (in.)
78 x 28 x 55
weight (lbs.)
865
