karam Industries Batala, Punjab

After-Sales Service Provided : Engineers available to service machinery overseas

We offer vertical turning lathes. Karam technical specifications of 1200 mm vertical turret lathe machine sr no. mm 1. table diameter 1200 2. max. Turning dia 1200 3. working height under cross rail 1000 4. ram head on cross rails one no. 5. vertical travel of ram head 550 6. swivel angle of ram head +- 35 deg. 7. table speeds 6 no. 8. range of table speeds 9 to 90 rpm 9. feeds for horizontal & vertical travels 6 no. 10. range of feeds, horizontal and vertical 1.5 to 9 mmmin. 11. main motor drive 10 hp 12. motor for vertical travel of cross rail 2 hp 13. motor for rapid traverse 2 hp

We offer vertical milling machines. Model karam-1b karam-2b karam-3b karam-4b table working surface swivel t-slot nos. Size t-slot centre dist. From spindle maxmin x-longitudinal travel y-cross travel z-vertical travel 1100 x 270 ± 45° 317 60 350-0 500 180 350 1300 x 290 ± 45° 317 65 400 - 0 650 205 400 1400 x 350 ± 45° 317 80 475 - 0 775 255 475 1600 x 360 ± 45° 317 90 550 - 0 900 305 550 feeds no. Of feeds range of longitudinal feedmin range of cross feed min range of vertical feed min no. Of rapid feeds longitudinal rapid feeds min cross rapid feeds min vertical rapid feeds min 9 13-200 13-200 5-100 1 700 700 240 9 13 to 200 13 to 305 2.5 to 62 2 735, 1065 735, 1065 147, 210 18 13 to 305 13 to 305 2.5 to 62 2 735, 1065 735, 1065 147, 210 18 13 to 305 13 to 305 2.5 to 62 2 735, 1065 735, 1065 147, 210 spindle no. Of spindle speeds range of spindle speeds (rpm) spindle taper arbour diameter 9 45-1100 iso 40 25.4 9 45 to 1100 iso 40 25.4 12 45 to 1120 iso 40 25.4 12 45 to 1120 iso 40 25.4 electrical main motor feed motor coolant motor 3 h.p. 2 h.p. 0.1 h.p. 3 h.p. 2 h.p. 0.1 h.p. 5 h.p. 2 h.p. 0.1 h.p. 7.5 h.p. 2 h.p. 0.1 h.p. Dimensions (approx.) overall length overall width overall height net weight kg gross weight kg. 1600 1400 1550 2000 2200 1850 1600 1680 2600 2900 2000 1750 1800 3300 3600 2100 1950 1880 3700 4000 . .

We are specialized among manufacturers of vertical lathe machine. who use quality components to assure the long working life of these machines. our range is robust energy efficient and designed to suit the requirements of engineering and automobile industries. we have specialization in export and supply of vertical lathe machine. our vertical lathe machine is a flawless epitome of innovation. it performs its work quite efficiently even after hours by hours. the flawless performance and different distinct qualities of our vertical lathe machine provide us pace to compete successfully with the competitors. our vertical lathe machine is made up of quality raw material with proper dimensional accuracy. they are rust free and have high tolerant power. we also serve products as per customer specification with proper assemblage. our products are highly durable and available at reasonable prices.

we offer Vertical Boring Machinery. SPECIFICATIONS Size of Vertical Turning Machine 2000 MM Table Diameter 2000 MM Max Swing 2250 MM Max. Turning Dia with Side head in working position 2050 MM Max. working height under cross rail 1600 MM Vertical Travel of Ram Head 700 MM Swivel Angle of Ram Head 45 Deg. Horizontal Travel of Side Head 700 MM Max. Vertical Travel of Side Head 1250 MM Table Speeds Step-less Infinitely Variable speeds with AC Variable Frequency Drive Feeds, Horizontal & Vertical 6 Range 1 6.5 MMMin Main Motor 25 HP. STANDARD ACCESSORIES:  One tool Box.  Coolant System.  Bellows on Cross Rail.  Two Ram Head on Cross rail.  Four Jaw Chuck for working Table.  Automatic Lifting & Lowering of Cross Rail.  Variable Speed Drive for main table control.  Automatic Lubrication system on all sliding ways.  Centralized control station with electrical control panel.  Precision Bearings & Phosphor Bronze Guide ways Combination in the bed table for taking vert. & Radial loads.

Condition : New

After-Sales Service Provided : Engineers available to service machinery overseas

We are offering shaper machine. Technical specifications of karam shaping machine sr. No. particular karam-12 karam-18 karam-24 karam-32 karam-36 karam-40 1. length of stroke mm 300 455 660 780 915 1040 2. length of ram without tool slide mm 765 940 1340 1550 1750 1900 3. ram bearing in column mm 485 715 810 910 1000 1100 4. ram bearing width mm 220 260 320 320 350 421 5. tool slide traverse mm 130 152 185 200 210 226 6. length of coss slide mm 610 715 965 1070 1130 1270 7. width of cross slide mm 230 230 320 320 370 380 8. horizontal traverse of table mm 250 350 600 760 850 1015 9. no.of speed to ram mm 3 3 3 3 3 3 10. tool holder takes tool mm 20 20 25 25 30 39 11. size of the plate mm 100*400 1150*450 1630*630 1820*650 2140*650 2310*765 12. overall size of the machine mm 2440*1220 2650*1300 2800*1400 3175*1475 13. h.p. Required mm 1 2 3 3 3 5 14. t-slots mm 12 12 16 16 16 20 15. number of ram stroke per minute (motorized gear) mm 6 6 6 6 6 6 16. approxi weight mm 10q 15q 19q 22q 30q 35q

We are offering plano milling machine. Size of plano miller 20’ x 6’ x 6’ working stoke 20 ft. | 6100 mm admit in columns x job height 72” x 72” | 1828 mm x 1828 mm cross slide face 24” | 610 mm pillar face 20” | 508 mm v to v centre (in bed) 30” | 762 mm bed width 36” | 915 mm table width 42” | 1066 mm bed length 33’ | 10058 mm gross weight of machine 25 -ton approx.

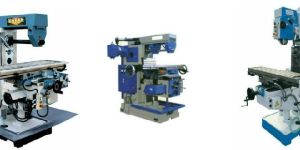

We are exporting optimal quality milling machine, which are easy to use and have sturdy construction.  we use high grade raw material for fabricating our range that gives utmost resistance to corrosion. in order to meet the bulk demands and varied specifications of our clients. we offer them customized solutions for this product range. we offer top grade of milling machines that are used to shape metals & other solid materials. these machines are available with us in following types and specifications.

We offer technical specification of `karam - 10ft `lathe machine 1. Karam planner type lathe 10 ft bed length . 2. Width of bed 20’’ 3. Height of center 18’’ 4. Spindle hallow 4 18 with steady rest. 5. complete with electric motor 3 h.p bharat bijlee. 6. weight of machine approximately 2.5 ton. 7. fallow rest, face plate, motor plate , 22 gears. 8. 20" fourjaw chuck double slot. 9. Admit between center 5 ft 2 inch.

We are offering horizontal boring machines. Sr no. mm 1. alloy steel work spindle hardened & ground diameter 110 2. morse taper number 6 3. max. Longitudinal movement of working spindle 510 4. number of spindle speeds 9 5. range of spindle speeds –r.p.m 15 to 250 6. longitudinal works spindle feeds nos. 9 7. max. Height of the spindle axis from table surface 1100 8. min. Height of the spindle axis from table surface 30 9. dimensions of rotary table 1100*1450 10. longitudinal table traverse 1925 11. long. Table traverse feeds (including one rapid) 10 12. transversal table travel feeds (including one rapid) 10 13. vertical headstock travel feeds (including one rapid) 4 14. rotary table automatic feeds (including one rapid) 10 15. max. Cross movement of the table 1300 16. max. Distance between stay bearing & facing head 2800 17. facing head diameter 600 18. weight of machine approxi. 13 ton

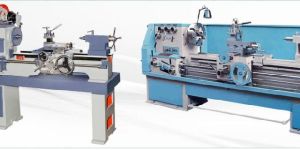

The company has made its mark as a highly efficient Supplier of lathe machines. the lathe machine offered by the our company is procured from the trusted sources of the market. the company offers the durable and efficient lathe machine to the clients at the best prices on a timely basis.the bed casting is made-up of close grained cast iron with good finishes and ground. these machinery can efficiently perform without vibrations even under high pressure and load. the principle parts and components of these machinery including spindles, saddles, gears, aprons etc. provided with sturdy and heavy designs. these give the higher rigidity of these machinery.

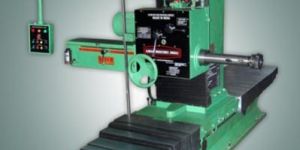

KARAM TECHNICAL SPECIFICATION OF FLOOR BORING MACHINE SR NO. DESCRIPTION MM 1. ALLOY STEEL WORK SPINDLE HARDENED & GROUND DIAMETER 100 2. MORSE TAPER NUMBER 6 3. MAX. LONGITUDINAL MOVEMENT OF WORKING SPINDLE 600 4. NUMBER OF SPINDLE SPEEDS 9 5. RANGE OF SPINDLE SPEEDS - R.P.M. 15 TO 300 6. LONGITUDINAL WORK SPINDLE FEEDS NOS. 10 7. VERTICAL HEADSTOCK TRAVEL FEEDS (INCLUDING ONE RAPID) 10 8. Y - AXIS 1250 9. Z - AXIS 2000 10. ELECTRIC MOTORS (SIEMENS MAKE) 7.5 HP & 2 HP 11. STEEL TELESCOPIC COVER 2 NOS . 12. LUBRICATION PUMP 2 NOS. 13. LIMIT SWTICHES 4 NOS. 14. PANEL BOARD (MAKE) SIEMENS

We are exporting optimal quality floor boring machines which are easy to use and have sturdy construction. further we use high grade raw material for fabricating our range that gives utmost resistance to corrosion. in order to meet the bulk demands and varied specifications of our clients. we offer them customized solutions for this product range. we are exporting optimal quality floor boring machines which are easy to use and have sturdy construction. we use high grade raw material for fabricating our range that gives utmost resistance to corrosion. in order to meet the bulk demands and varied specifications of our clients. we offer them customized solutions for this product range. the components of each machinery system like electrical items, motors, gear box, etc. are sourced from globally renowned manufacturers.

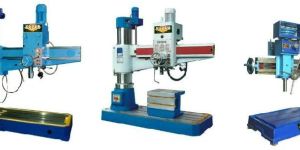

Karam Industries provides radial drilling machine  main and key components are made with high strength castings and alloy steel. heat treatment using world-class equipment modern techniques ensures durability. our radial drilling machines are made by specialized equipment to ensure basic parts with superior quality. clamping and speed changes on our radial drilling machine are achieved by hydraulics that is very reliable. radial drilling machine manufacturer radial drilling machine are necessary for industrial machining functions. radial drilling machine ensures high level of accuracy and saves a time and brings about greater efficiency. the components of each machinery system like electrical items, motors, gear box, etc. are sourced from globally renowned manufacturers.

We are among the leading Suppliers in the domain of serving international standard Double Head Boring Machine. They are extremely efficient and durable in nature. Double-Head Line Boring Machine.

Automatic Grade : Automatic

Brand Name : KARAM

We are among the most accounted Suppliers of horizontal boring machine in India. our huge range of products is widely demanded by several industries such as automobile, railway, electrical, engineering and many more. this is only due to our product"s efficiency and quality. our cnc horizontal boring machine is properly assembled and extremely durable. it has high capacity and tolerant power. the main motor drive of our product is made up of quality raw materials and is corrosion resistant. the dimensional accuracy of our high precision horizontal boring machine is widely acclaimed by our several clients. these boring machines are designed with utmost accuracy thus making sure that there remains no flaw in the functioning of these machines in the long run. acknowledged or performing efficiently even in rugged conditions, these horizontal boring machinery are in wide demand across the globe and are offered at industry leading prices. we are catering to the requirements of clients based across the Karam Industries manufacturing and exporting a precision-engineered range of horizontal boring machine. these machines are demanded for outstanding performance even in rugged conditions and are customized as per the specifications of our clients. our range is packed in properly and delivered in the shortest time frame thus assuring the maximum safety of the range before it is delivered at our client"s end.
