We have Transformer bushing which is used in many application like oil insulated transformer etc. We always believe in manufacturing quality products. Our products occupies a standard market place. And the best thing is that we offer very reasonable prices for our products.
We have Transformer bushing which is used in many application like oil insulated transformer etc. We always believe in manufacturing quality products. Our products occupies a standard market place. And the best thing is that we offer very reasonable prices for our products.
AdvantagesRobust constriction, High load capacity, Corrosion and abrasion resistant
We bring forth a wide range of Tension Clamps that is in high demand among the clients. These Tension Clamps are designed under the direction of qualified and experienced professionals. High quality components used in the manufacture of Tension Clamp provide it superior properties. Our Tension Clamps are capable of delivering high performance consistently. The Clamps have a long service life. The Tension Clamps we offer are available to the clients at market leading prices. Application
Used in conductor cables
Advantages
Robust constriction
High load capacity
Corrosion and abrasion resistant
We bring forth a wide range of Tension Clamps that is in high demand among the clients. These Tension Clamps are designed under the direction of qualified and experienced professionals. High quality components used in the manufacture of Tension Clamp provide it superior properties. Our Tension Clamps are capable of delivering high performance consistently. The Clamps have a long service life. The Tension Clamps we offer are available to the clients at market leading prices. Application
Used in conductor cables
Advantages
Robust constriction
High load capacity
Corrosion and abrasion resistant
We bring forth high quality Stay Insulators that are suitably designed to minimize strains stress. Stay Insulators provide protection in the event of a broken live conductor accidentally energizing a stay wire and remaining in contact with the live line which does not trip. In such cases, the bottom portion of the stay wire would have no voltage due to insulation of guy strain insulator which normally installed in the middle of the guy or stay wire. Application
Low Voltage
We bring forth high quality Stay Insulators that are suitably designed to minimize strains stress. Stay Insulators provide protection in the event of a broken live conductor accidentally energizing a stay wire and remaining in contact with the live line which does not trip. In such cases, the bottom portion of the stay wire would have no voltage due to insulation of guy strain insulator which normally installed in the middle of the guy or stay wire. Application
Low Voltage
ApplicationIn outdoor power stations, distribution unit and electrical equipment
AdvantagesDimensionally accurate, Robustly designed,Shock resistance,Resistive against unfavorable conditions
Temperaturefrom -40oC to + 40oC
TyeAnti-pollution insulators
The Solid Core Insulators that we offer are used in outdoor power stations, distribution unit and electrical equipment of transformer stations with frequency AC power of 126-1100kv. The Solid Core Insulators can operate in an ambient temperature from -40oC to + 40oC and part of them can be used in the areas of 4000m above sea level elevation. According to air cleanliness of operating environment, anti-pollution type insulators are divided into levels; Second level, Third level Fourth level which is used respectively in medium pollution areas, serious pollution areas and super serious pollution areas. Advantages
Dimensionally accurate
Robustly designed
Shock resistance
Resistive against unfavorable conditions like bad weather
The Solid Core Insulators that we offer are used in outdoor power stations, distribution unit and electrical equipment of transformer stations with frequency AC power of 126-1100kv. The Solid Core Insulators can operate in an ambient temperature from -40oC to + 40oC and part of them can be used in the areas of 4000m above sea level elevation. According to air cleanliness of operating environment, anti-pollution type insulators are divided into levels; Second level, Third level Fourth level which is used respectively in medium pollution areas, serious pollution areas and super serious pollution areas. Advantages
Dimensionally accurate
Robustly designed
Shock resistance
Resistive against unfavorable conditions like bad weather
Brand Name : Bhatinda Ceramics Pvt. Ltd.
Country of Origin : Bathinda
Application : In outdoor power stations, distribution unit and electrical equipment
ApplicationsUsed in low voltage distribution lines
QualityDurable & Efficient
We bring forth high quality Shackle Insulator that is used in Power distribution applications. These Shackle insulators are designed using high quality components and are manufactured under the strict supervision of industry experts. The Insulators that we offer are extremely durable and efficient. We offer our Shackle insulators at reasonable prices. Applications
Used in low voltage distribution lines
Shackle Insulators are used at the end of distribution lines or at sharp turns where there is excessive tensile load on the lines. The insulators are bolted to the cross-arm of the pole
We bring forth high quality Shackle Insulator that is used in Power distribution applications. These Shackle insulators are designed using high quality components and are manufactured under the strict supervision of industry experts. The Insulators that we offer are extremely durable and efficient. We offer our Shackle insulators at reasonable prices. Applications
Used in low voltage distribution lines
Shackle Insulators are used at the end of distribution lines or at sharp turns where there is excessive tensile load on the lines. The insulators are bolted to the cross-arm of the pole
ApplicationSub-stations, Isolators, AB Switches, Horn Gap fuse set
Ratingup to36 KV and Up to 132 KV
Mechanical strengthup to 9 KN
Applicable StandardIS, IEC, ANSI
Creepage distance of single unitup to 580 mm
Post Insulator are used in Sub-stations, Isolators, AB Switches, Horn Gap fuse set. Cap and pin type post insulators are divided into two main groups, non stacking and stacking units. Single units are available for service voltage upto 36kV and multi-unit stacks are available for service voltage upto 132 kV.
Specification :
Material - Porcelain
Rating - up to36 KV and Up to 132 KV
Mechanical strength up to 9 KN
Creepage distance of single unit up to 580 mm
Applicable Standard - IS, IEC, ANSI.
Post Insulator are used in Sub-stations, Isolators, AB Switches, Horn Gap fuse set. Cap and pin type post insulators are divided into two main groups, non stacking and stacking units. Single units are available for service voltage upto 36kV and multi-unit stacks are available for service voltage upto 132 kV.
Specification :
Material - Porcelain
Rating - up to36 KV and Up to 132 KV
Mechanical strength up to 9 KN
Creepage distance of single unit up to 580 mm
Applicable Standard - IS, IEC, ANSI.
Number Of Flower : Insulator
Brand Name : Bhatinda Ceramics Pvt. Ltd.
Material : Porcelain
Country of Origin : Bathinda
Application : Sub-stations, Isolators, AB Switches, Horn Gap fuse set

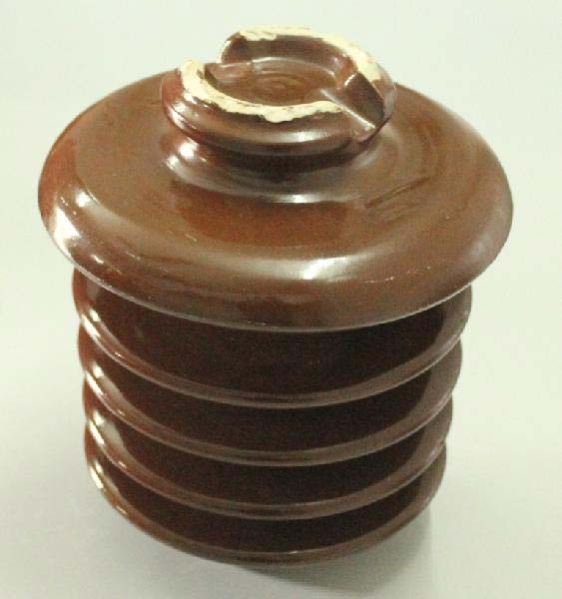

Pin insulators of one piece or multi piece construction are widely used in low cost distribution lines. Multi piece construction makes these insulators less vulnerable to damage. A multi piece insulator can normally withstand the line voltage for a considerable time without difficulty.
We manufactures full range of pin insulators for application in sub-transmission and distribution lines upto a system voltage of 36 kV. These insulators are available with creepage path to meet various requirements of pollution.
Specification :
Material - Porcelain
Range up to 36 KV
Mechanical strength - UPTO 12 KN
Creepage distance up to 1080 mm
Applicable Standard - IS, IEC, BS, ANSI
Pin insulators of one piece or multi piece construction are widely used in low cost distribution lines. Multi piece construction makes these insulators less vulnerable to damage. A multi piece insulator can normally withstand the line voltage for a considerable time without difficulty.
We manufactures full range of pin insulators for application in sub-transmission and distribution lines upto a system voltage of 36 kV. These insulators are available with creepage path to meet various requirements of pollution.
Specification :
Material - Porcelain
Range up to 36 KV
Mechanical strength - UPTO 12 KN
Creepage distance up to 1080 mm
Applicable Standard - IS, IEC, BS, ANSI
ApplicationSupport for conductors on cross-arms of transmission & distribution line poles
Mechanical Strengthupto 12 KN
Creepage Distanceup to 1116 mm
Applicable StandardIS, IEC, ANSI
Solid core Line Post Insulators can be used as support for conductors on cross-arms of transmission and distribution line poles. These insulators are recommended for polluted zones.
Specification :
Material - Porcelain
Rating up to 36 KV
Mechanical Strength - upto 12 KN
Creepage Distance - up to 1116 mm
Applicable Standard - IS, IEC, ANSI
Solid core Line Post Insulators can be used as support for conductors on cross-arms of transmission and distribution line poles. These insulators are recommended for polluted zones.
Specification :
Material - Porcelain
Rating up to 36 KV
Mechanical Strength - upto 12 KN
Creepage Distance - up to 1116 mm
Applicable Standard - IS, IEC, ANSI
Brand Name : Bhatinda Ceramics Pvt. Ltd.
Material : Porcelain
Country of Origin : Bathinda
Application : Support for conductors on cross-arms of transmission & distribution line poles
MaterialAluminum, Steel, Malleable cast iron, Galvanizing steel, Malleable iron castings
Number Of FlowerSpindle Pins
Country of OriginBathinda
Brand NameBhatinda Ceramics Pvt. Ltd.
Used inPin Insulators, from 1.1kv to 33kv
Our core expertise is the accurate design and manufacture of the range of GI Spindle Pins. These Spindle Pins are used in several applications. The high quality Pins are available in several specifications to suit the requirements from the clients. We ensure that the GI Spindle Pins we offer comply with the requisite industry standards. Our Spindle Pins are reliable and deliver excellent performance every time. Our range of GI Spindle Pins is available to the clients at market leading prices.
Used in
Pin Insulators, from 1.1kv to 33kv
Material Used
AluminumSteelMalleable cast ironGalvanizing steelMalleable iron castings
Our core expertise is the accurate design and manufacture of the range of GI Spindle Pins. These Spindle Pins are used in several applications. The high quality Pins are available in several specifications to suit the requirements from the clients. We ensure that the GI Spindle Pins we offer comply with the requisite industry standards. Our Spindle Pins are reliable and deliver excellent performance every time. Our range of GI Spindle Pins is available to the clients at market leading prices.
Used in
Pin Insulators, from 1.1kv to 33kv
Material Used
AluminumSteelMalleable cast ironGalvanizing steelMalleable iron castings
Material : Aluminum, Steel, Malleable cast iron, Galvanizing steel, Malleable iron castings
Country of Origin11 / 22 / 33 KV Outdoor triple pole three Insulator per pole tilting type
FeatureLond service life, high efficiency
Country of OriginBathinda
Suitable F Horizontal / Vertical mounting with orHorizontal / Vertical mounting with complete operating mechanism
The Gang Operated Air Break Switch that we offer is made using high quality components. This ensures that the Air Break Switches have a long service life and high efficiency. Our Gang Operated Air Break Switch performs efficiently in any kind of harsh working condition. These Switches are subjected to a series of tests that evaluate them on several parameters. Thus, we ensure that each Gang Operated Air Break Switch we offer complies with the industry norms and regulations. Specifications
11 / 22 / 33 KV Outdoor triple pole three Insulator per pole tilting type
Suitable For
Horizontal / Vertical mounting with complete operating mechanism
The Gang Operated Air Break Switch that we offer is made using high quality components. This ensures that the Air Break Switches have a long service life and high efficiency. Our Gang Operated Air Break Switch performs efficiently in any kind of harsh working condition. These Switches are subjected to a series of tests that evaluate them on several parameters. Thus, we ensure that each Gang Operated Air Break Switch we offer complies with the industry norms and regulations. Specifications
11 / 22 / 33 KV Outdoor triple pole three Insulator per pole tilting type
Suitable For
Horizontal / Vertical mounting with complete operating mechanism
Brand Name : Bhatinda Ceramics Pvt. Ltd.
Country of Origin : 11 / 22 / 33 KV Outdoor triple pole three Insulator per pole tilting type

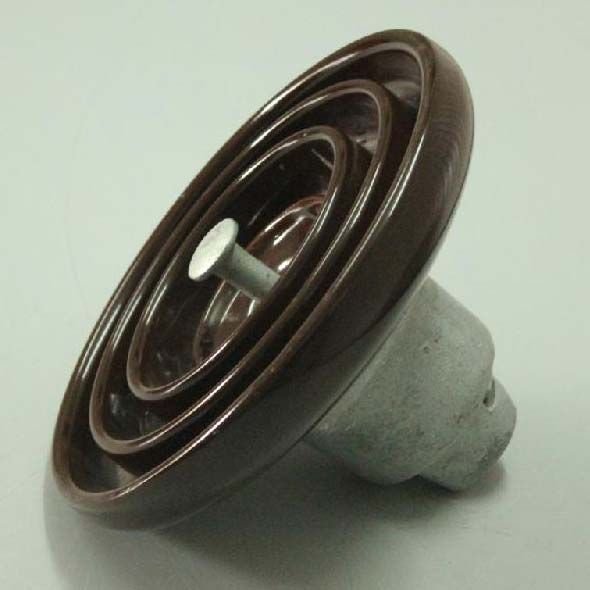

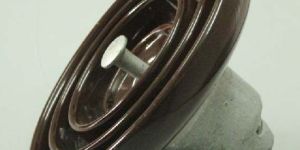

Disc insulators (Suspension porcelain Insulator) are the most widely used for transmission and distribution lines. Their design varies to suit different types of polluted zones and mechanical strength as per customer’s requirement.
Specification :
Material - Porcelain
Normal and Anti fog Type
Mechanical Strength - 45 KN to 120 KN
Applicable standard - IS, IEC, BS, ANSI
Disc insulators (Suspension porcelain Insulator) are the most widely used for transmission and distribution lines. Their design varies to suit different types of polluted zones and mechanical strength as per customer’s requirement.
Specification :
Material - Porcelain
Normal and Anti fog Type
Mechanical Strength - 45 KN to 120 KN
Applicable standard - IS, IEC, BS, ANSI
