ApplicationSub-stations, Isolators, AB Switches, Horn Gap fuse set
Ratingup to36 KV and Up to 132 KV
Mechanical strengthup to 9 KN
Applicable StandardIS, IEC, ANSI
Creepage distance of single unitup to 580 mm

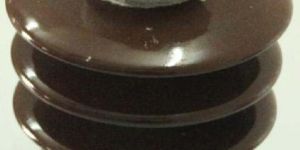

Post Insulator are used in Sub-stations, Isolators, AB Switches, Horn Gap fuse set. Cap and pin type post insulators are divided into two main groups, non stacking and stacking units. Single units are available for service voltage upto 36kV and multi-unit stacks are available for service voltage upto 132 kV.
Specification :
Material - Porcelain
Rating - up to36 KV and Up to 132 KV
Mechanical strength up to 9 KN
Creepage distance of single unit up to 580 mm
Applicable Standard - IS, IEC, ANSI.
