Prism Hydraulics Pvt. Ltd. Udyambag, Belgaum, Karnataka

Double Throttle cum check,non pressure compensated,modular construction. Can be used as Metering-in or Metering-out devices.

Designed to control the opening & closing of the cartridge valve Provision for remote control Normally used for check valve function

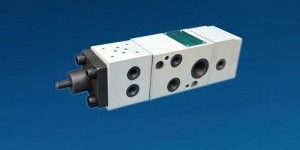

Designed for single acting cylinders which are supposed to hold pressure. Ensures smooth decompression prior to return of cylinder ram.Large return of oil passages to reduce pressure drops,allowing rams to return under low external forces.Valves can be connected in series for independent single acting cylinder operations.

Available in spring centered,spring offset,interface conforms to National and International standards Minimum pilot pressure is 5 bar.

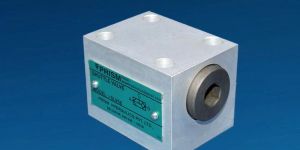

Seat type valves. Connects it’s port P to either port A or port B depending upon whichever of two is at higher pressure level. Isolates port A and B from each other. Port P gets connected to tank only if port A and port B are connected to tank. Available in both threaded and subplate type.

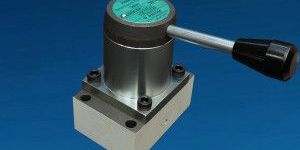

A lever operated rotary type directional control valve is generally used for high pressure applications. It works on the shear seal principle which gives good sealing and zero leakage. These valves are used where leak-free closure is required.

Designed to control the opening & closing of the cartridge valve Provision for remote control Provision for solenoid relieving(Normally open or Normally closed)

Rugged low cost pumps with all parts renewable by replacement Oil immersed type, open execution, face mounting, valve controlled, fixed delivery, bi-directional rotation of the shaft.Available with extension shaft / bracket for through drive and to couple low pressure pump. For coupling the pumps to electric motors standard bell housing assemblies are available.

Pumping Element assembly for 1RP / 2RP Fixed Delivery

Non adjustable differential type. Spring loaded, sealed piston contruction,encapsulated design for protection against dirt. Six pressure ranges which can be adjustable upto 10,50,100,200,350 & 420 bar. Transperent plug-in connector is available with LED

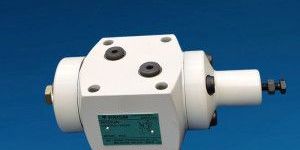

Hydraulically cushioned valves used for sequencing,relieving, unloading, or  counter-balancing applications.

Designed to control double pumps of HI-Low system. Unloads the low pressure pump when the system pressure rises above the unloader pressure Relieves the high pressure pump when the system pressure reaches the relief valve setting.

Intended for prefilling and exhausting of large hydraulic cylinders. Can be used as anticavitation check valves. Decompression feature is optional upto size 80

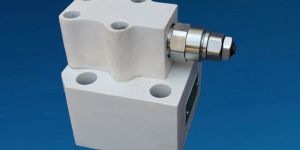

Two stage spool type relief vave.Low pressure over-ride due to larger flow area.Available in hand knob & set screw with lock nut for pressure regulation. Valves with internal drain can be converted into external drain.

Pilot operated seat type valves.Solenoid unloading,remote control,low pressure over-ride ,high flow handling are the main features. Available in both subplate mounting & threaded type.

Two stage poppet type Relief cum unloading valve with solenoid unloading as an optional feature. Available in three standard sizes 10, 20 and 30

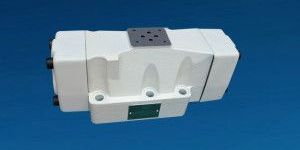

Pilot operated directional control valves are hydraulically operated spool type valves.These valves control the start, stop & the direction of the fluid flow.Available in spring offset and spring centered.

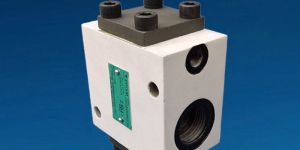

Seat type valves with internal drain. Threaded or subplate type mounting construction. Available with two piston sizes.

These modular valves are available with pilot operated check facility either on A, B or both A and B ports. The interface conforming to ISO4401-AB-03-04-A, IS10187, DIN24340. To ensure proper closure of both valve poppets,both user connections should be unloaded when the control valve is in neutral by connecting with the return line.

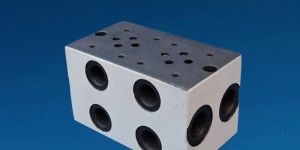

Designed specially for multistation Directional Control Valves,CETOP-RP35H size3.  Number of stations vary from 2 to maximum 10

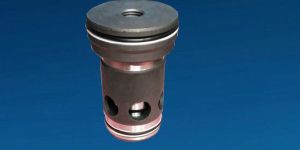

Logic Cartridge Valves are used to control oil pressure,flow or direction and are designed for insertion into cavities machined as per DIN 24342, ISO7368. These cartridges are available in two area ratios,four cracking pressures and six poppet styles. The covers are available for different functions like directional control, pressure control,unloading, flow control etc.

Designed for single acting cylinders which are supposed to hold pressure. Ensures smooth decompression prior to return of cylinder ram.Large return of oil passages to reduce pressure drops,allowing rams to return under low external forces.Valves can be connected in series for independent single acting cylinder operations.

Completely encapsulated control mechanism for protection against dirt. Five chamber design. Flexibility in rotating the operating mechanism by 90 x 4. Wide variety of spool types with spring centered, spring offset & detent arrangements.

Completely encapsulated control mechanism for protection against dirt.Five chamber design.Flexibility in rotating the operating mechanism by 90 x 4.Wide variety of spool types with spring centered, spring offset & detent arrangements.
