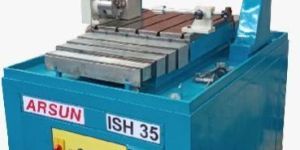

ARSUN ISH Series of CNC Engraving machines are best economic solution with powerful performance.
Features :
Economical yet powerful performance.
DSP CNC Controller : hand-held type.
Use of STANDARD G-codes & M-codes for 3D operations.
Fixed gantry-Moving table type: The machine is a ‘fixed gantry-moving table type’, comprises of a well-ribbed base with integral bed-ways, thick walled fixed gantry and a moving work-table. All these major parts are made of low vibration cast iron, and the whole machine is fixed on heavy-duty steel structure for rigidity and stability. Through its sturdy well-built construction and by using of ball-screws and linear guides a vibration-free smooth performance can be achieved while working.
Capable of 2D & 3D engraving : The machine is capable of 2D and 3D engraving and micro milling on most of the material like – Carbon Steel, (EN series, WPS), C.I., Aluminum, Copper, Brass, Bronze, Silver, Gold, Graphite, Wood, Plywood, MDF, Fiber, Acrylic, Nylon and other plastics material.Applications : Manufacturing of dies, moulds, punches, electrodes for spark erosion, printing-cutting and embossing dies & tools, vacuum forming dies, solid models, control panel plates, name plates, sign making, gift articles, mementos, engraving for rubber stereos, light milling work, etc.
Standard Equipment :
DSP CNC Controller
Machine Lamp
Coolant Pump & Tank 2 sets
Collets 5 nos.
Mounting Pad 4 nos.
Tool Kit
User Manual
Optional :
Rotary Axis
Servo Motors & Digital Servo Drives
Ground Ball Screws
520 x 620 Nos. of T-slots / size / center distance
mm 6 / 14 / 100
Table load capacity kg
500 Distance between columns
mm 630
Moving unit
Features
All major parts are made of graded cast iron – FG260 grade – duly stress relieved.
C3 class precision ground ball screws and nuts for all three axes.
Precision heavy-load-duty LMG (HIWIN/PMI or any reputed make).
Backlash-free servo couplings of NACHI/R&W/KTR make.
Yinsh make precision lock-nuts for all axes.
Precision double angular contact matched pair ball bearings at front and a single at rear of ball screws.
Automatic lubrication system of 110cc/min capacity.
X-axes (table movement) is fitted with telescopic metallic covers and Y-axes is protected with organ type bellow covers.
Accuracy & Test Chart
Following reports will be provided along with the machine:
Axis Calibration Report by LASER interferometer
Angle Deviation Measuring Report by Reinshaw
Geometrical Accuracy Report
