Drilling Equipment Dealers in Chitra, Bhavnagar

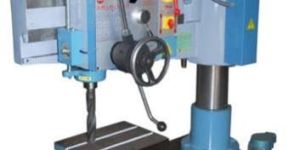

We are offering auto feed radial drilling machines. Cap. 38mm all geared radial drilling machine with auto feed and electrical. Specification in mm cap. In m.s. : 38mm cap. In c.i. : 42mm tap. In m.s. : 25mm tap. In c.i. : 30mm spindle traveling: 200mm spindle speed rang : 850-1750rpm auto feed rangspeed : 20.6-0.10

the radial drilling machine, we provide is much popular in the global market for optimum performance and higher efficiency. This model of radial drilling machine is extensively used for drilling, milling, tapping, honing, counter-boring, spot-facing, reaming, and boring and other similar utilities. features heavy duty –40mm drilling in steel8 spindle speeds and 2 auto feeds for drilling, tapping, reaming operationsauto feed, auto lift and double column and with electricalall gears are made of alloy steel, nitride hardened & lapped running in oil bath fitted with splined shaftsprecision hardened and ground spindlemachine tested as per is: 2199-1982 standardsgenerously proportional & well adequately ribbed base plates, column and arm for maximum rigidity and minimum deflectionspeeds can easily changethread tapping operations can be done in either rotation and working depth can be controlled using a positive stop gaugedouble column construction for rigidity and effortless centering.hardened and ground gears for minimum wear and tearthe high quality of this machine and its ease of operation make it suitable for use by students, amateurs' and home hobbyists, as well as skilled technicianstapper roller facility for better sliding of drill head on arm guide standard accessories electrical consisting of two motors, contractors, limit switches, control transformers, wiring etc. optional accessories (at extra price) box tablecoolant pump with fittingmachine lampdrill chuck with key & arbordrill sleevedrill vicespecial t-boltsfoundation boltservice toolwooden box packing & forwarding technical specificationsdrilling capacity in solid drilling in steel40mmdrilling in c.i.50mmtapping capacity in steel30mmboring in steel90mmdrilling in head spindle travel [manual]200mmspindle tapermt-4spindle diameter at front bearing55mmno. Of spindle speeds / range8/60 - 1760 rpmram diameter78mmno. Of auto feeds (rev./mm.)2/0.06 / 0.15rapid feeds travel of rail [vertical]750mmtravel of drilling head [horizonal]500 manualelectrical power supply415v, 3 phase, 50hzdrilling head two speed motor3 h.p., 1440/2800 rpmarm elevating motor0.5 h.p., 1440 rpmcoolant pump-working range max. Drilling radius1035distance between base plate to spindle [spindle retracted] [min/max]240/1000distance from column face to spindle min/max450/950drilling head traverse max [manual]500 mmcolumn sleeve diameter200 mmvertical traverse of arm [auto]750 mmrotation of arm [both side]0-180 deg.height1950 mmgeneral working surface of base plate [l x w]800 x 660overall size of machine1300 x 800 x 170no. Of t-slots & nominal size [base & table] 4/16weight of machine with electricals & standard accessories (approx.) net / cross900kgspace required by machine [l x w x h ] space required 1300 x 26000 x 1900 box table size box table size 390 x 300 x 300 color[s] color[s] mmt smoke gray & silver gray (special)

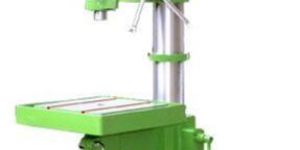

We are offering best pillar drill machine supplier company.

Radial Drilling Machine (Model II) that we export and supply is widely in demand amongst buyers owing to its flawless functionality, easy handling, and longer service life. Our Radial Drilling Machine is procured from the most reliable sources after stringent checking on all quality parameters. We thus ensure a defect-free range at buyer’s end. Obtain from us, bulk quantities of Radial Drilling Machine at the most competitive rates.

We have attained immense appreciations, owing to our Milling Cum Drilling Machines-38300, which are known for low noise and reduced vibration. These machines are used to drill holes on various surfaces such as concrete. Applications: Engineering industry Construction industry Automobile industry

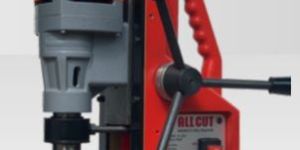

We offer magnetic drill machine. Prabhat enterprise bhavnagar gujarat offers radial & pillar drill machine with a drilling cap. 20, to 40mm back geared with fine feed. The main spindle & ram are made of en-8 steel with six slots and helical gear for lower sound and a long life. The machines are 8 speeds. these machines are suitable for auto parts, engineering, fabrication, institute and production workshop.

In order to attain maximum client satisfaction, we check the product quality on several counts at several stages. Online payment processing that we offer is secure, instant and hassle free. Apart from online payment, we also facilitate payment against purchases through offline mediums.
