Glass Lens Dealers in Vidhyanagar, Bhavnagar

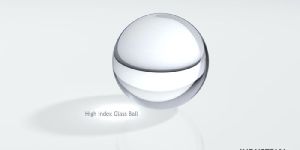

With higher coupling efficiency required for Transmitters and Receivers, the application of this High Index Glass Ball lens is becoming more and more popular. The use of High Index Glass Ball results in reduction of Back Focal Length, as a result the shorter distance simplifies fibre coupling. We manufacture High Index Glass Ball lens in diameters ranging from 0.40mm until 8.0mm They can achieve a very high level of surface finish depending on the application of the product. Our High Index Glass ball lenses can achieve a surface finish of Ra = 1.2nm In terms of visual appearance, our High Index Glass Ball can have a surface finish of No Scratch/Dig at 20x Magnification level (depending on the diameter of theHigh Index Glass Ball). All our High Index Glass Balls are cleaned and packed in Class 100 clean room area. SOME OF THE MOST COMMON HIGH INDEX GLASSES ARE AS FOLLOWS:    Sapphire nd = 1.760 K-VC89 (Sumita, Japan) nd = 1.810 S-LAH65 (Ohara, Japan) nd = 1.804   S-LAH71 (Ohara, Japan)  nd = 1.850 S-LAH79 (Ohara, Japan)  nd = 2.003   K-PsFn203 (Sumita, Japan)  nd = 2.017 L-BBH1 (Ohara, Japan) nd = 2.102

we manufacture glass ball lenses range in diameter from 0.40mm to 8.0mm. they can achieve a very high level of surface finish depending on the application of the product. Our glass ball lenses can achieve a surface finish of ra = 1.2nm. in terms of visual appearance, our glass ball lens can have a surface finish of no scratch/dig at 20x magnification level (depending on the diameter of the glass ball lens). the optical glasses used for making these glass ball lens are purchased from various renowned optical glass material makers like ohara, sumita, schott, etc. Which have a strict control on the nd and vd value of the glasses. glass ball lenses are used to improve signal coupling between emitters, fibres, transmitters, receivers and detectors depending on the application.   standard specification of our glass ball lenses:    tolerance on glass ball lens diameter +/- 0.001mm glass ball lens surface finish in ra 1.2 nm glass ball lens roundness < 0.001mm   no scratch dig on glass ball lens at 20x magnification glass ball lens cleaning class 100 clean room glass ball lens packing in waffle trays or glass bottles   each glass ball lens is checked 100% under microscope before delivery. all glass ball lenses are cleaned and packed in class 100 clean room area.

GLASS BALL LENS, Ruby Ball, SAPPHIRE BALL, CUBIC ZIRCONIA BAL
