Hadi Engineers Sihor, Bhavnagar, Gujarat

Material : Mild Steel

Surface Finishing : Polished

Shape : Round

Packaging Type : Metallic

Application : Industrial Use

Size : Standard

Grade : ND-10

Thickness : 5-10mm

Country of Origin : India

Material : Mild Steel

Shape : Round

Size : Standard

Certification : ISI Certified

Technics : Extruded, Cold Drawn

Country of Origin : India

The Slip On type flanges are attached by two fillet welds, inside as well as outside the flange. The calculated strength from a Slip On flange under internal pressure is of the order of two-thirds that of Welding Neck flanges, and their life under fatigue is about one-third that of the latter. Normally, these flanges are of forged construction and are provided with hub. Sometimes, these flanges are fabricated from plates and are not provided with the hub.The disadvantage of the flange is that a combination of flange and elbow or flange and tee is not possible because named fittings have not a straight end that complete slid in the Slip On flange.

Material : Mild Steel

Finishing : Polished

Shape : Round

Usage : Industrial

Size : Standard

Number Of Flower : Slip On

Country of Origin : India

The Screwed or Threaded flanges are used on pipe lines where welding cannot be carried out. A threaded flange or fitting is not suitable for a pipe system with thin wall thickness, because cutting thread on a pipe is not possible.Thus, thicker wall thickness must be chosen.ASME B31.3 Piping Guide says Where steel pipe is threaded and used for steam service above 250 psi or for water service above 100 psi with water temperatures above 220° F, the pipe shall be seamless and have a thickness at least equal to schedule 80 of ASME B36.10.Socket welding and threaded flanges are not recommended for service above 250°C and below -45 C.

Application : Industrial

Material : Mild Steel

Surface Finishing : Polished

Shape : Round

Packaging Type : Metallic

Application : Industrial Use

Size : Standard

Certification : ISI Certified

Number Of Flower : Screwed

Country of Origin : India

The Raised Face flange is the most common type used in process plant applications, and is easily to identify. It is referred to as a raised face because the gasket surfaces are raised above the bolting circle face. This face type allows the use of a wide combination of gasket designs, including flat ring sheet types and metallic composites such as spiral wound and double jacketed types. The purpose of a RF flange is to concentrate more pressure on a smaller gasket area and thereby increase the pressure containment capability of the joint. For 150# and 300# flanges, the raised face is of 1.6 mm (1/16 inch) and is included in the thickness specified. For higher rating, the flange thickness does not include the raised face thickness. The raised face thickness for higher rating is 6.4 mm (1/4 inch). The typical flange face finish for ASME B16.5 RF flanges is 125 to 250 μin Ra (3 to 6 μm Ra).

Application : Industrial

Material : Mild Steel

Surface Finishing : Polished

Shape : Round

Packaging Type : Metallic

Application : Industrial Use

Size : Standard

Certification : ISI Certified

Number Of Flower : Raised Face

Country of Origin : India

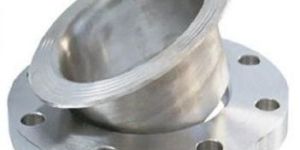

The Lap joint flanges are used with stub ends when piping is of a costly material. For example, in a stainless steel pipe system, a carbon steel flange can be applied, because flange will not come in contact with the product in the pipe. The stub ends will be butt-welded to the piping and the flanges are kept loose over the same. The inside radius of these flanges is chamfered to clear the stub end radius.These flanges are nearly identical to a Slip On flange with the exception of a radius at the intersection of the flange face and the bore to accommodate the flanged portion of the Stub End. Their pressure-holding ability is little, if any, better than that of Slip On flanges and the fatigue life for the assembly is only one tenth that of Weld Neck flanges. Thus this flange connections are applied in low-pressure and non critical applications.

Material : Mild Steel

Surface Finishing : Polished

Shape : Round

Packaging Type : Metallic

Usage : Industrial Use

Size : Standard

Certification : ISI Certified

Number Of Flower : Lap Joint

Country of Origin : India

The Flat Face flange has a gasket surface in the same plane as the bolting circle face. Applications using flat face flanges are frequently those in which the mating flange or flanged fitting is made from a casting. Flat face flanges are never to be bolted to a raised face flange. ASME B31.1 says that when connecting flat face cast iron flanges to carbon steel flanges, the raised face on the carbon steel flange must be removed, and that a full face gasket is required. This is to keep the thin, brittle cast iron flange from being sprung into the gap caused by the raised face of the carbon steel flange.

Material : Mild Steel

Surface Finishing : Polished

Shape : Round

Packaging Type : Metallic

Application : Industrial Use

Size : Standard

Certification : ISI Certified

Number Of Flower : Flat Face

Country of Origin : India

Material : Mild

Surface Finishing : Polished

Technics : Forged, Hot Rolled

Thickness : 8-30 mm

Country of Origin : India

Shape : Round

Blind Flanges are manufactured without a bore and used to blank off the ends of piping, Valves and pressure vessel openings.From the standpoint of internal pressure and bolt loading, blind flanges, particularly in the larger sizes, are the most highly stressed flange types.However, most of these stresses are bending types near the center, and since there is no standard inside diameter, these flanges are itable for higher pressure temperature applications.

Material : Mild Steel

Finishing : Polished

Shape : Round

Usage : Industrial

Size : Standard

Certification : ISI Certified

Number Of Flower : Blind

Country of Origin : India

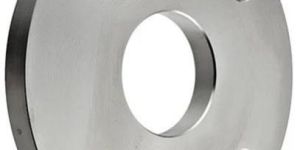

Material : Mild Steel

Surface Finishing : Polished

Shape : Round

Packaging Type : Metallic

Application : Industrial Use

Size : Standard

Certification : ISI Certified

Thickness : 5-10mm

Country of Origin : India

Material : Mild Steel

Surface Finishing : Non Polished

Shape : Round

Packaging Type : Metallic

Application : Industrial Use

Size : Standard

Certification : ISI Certified

Number Of Flower : H Type

Thickness : 5-10mm

Country of Origin : India

Application : Industrial

Material : Mild Steel

Surface Finishing : Polished

Shape : Round

Packaging Type : Metallic

Application : Industrial Use

Size : Standard

Certification : ISI Certified

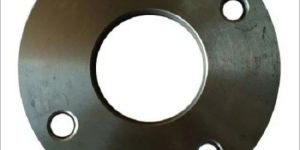

Number Of Flower : F Type

Thickness : 5-10mm

Country of Origin : India

Application : Industrial

Material : Mild Steel

Surface Finishing : Polished

Shape : Round

Packaging Type : Metallic

Application : Industrial Use

Size : Standard

Certification : ISI Certified

Number Of Flower : E Type

Thickness : 5-10mm

Country of Origin : India

Application : Industrial

Material : Mild Steel

Surface Finishing : Polished

Shape : Round

Packaging Type : Metallic

Application : Industrial Use

Size : Standard

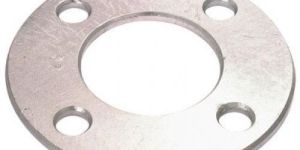

Number Of Flower : D Type

Thickness : 5-10mm

Country of Origin : India

Application : Industrial

Material : Mild Steel

Surface Finishing : Polished

Shape : Round

Packaging Type : Metallic

Application : Industrial Use

Size : Standard

Certification : ISI Certified

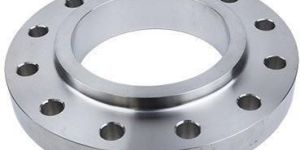

Grade : ASA 300

Thickness : 5-10mm

Country of Origin : India

Application : Industrial

Material : Mild Steel

Surface Finishing : Polished

Shape : Round

Packaging Type : Metallic

Application : Industrial Use

Size : Standard

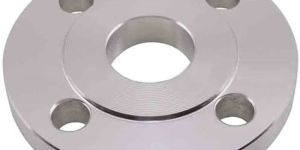

Grade : ASA 150

Thickness : 5-10mm

Country of Origin : India
