R = Radial Drill mc
* 2540 = Drill capacity(in mm)

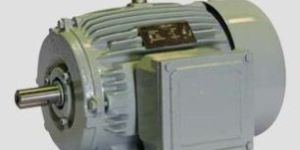

* A = Auto feed model Motor Pulley ◊ Electric Motor
◊ Tapper Drift ◊ R & F Switch
◊ Manual Book ◊ Drill Chuck
◊ Drill-bit angle gague ◊ Arbour
R = Radial Drill mc
* 2540 = Drill capacity(in mm)
* A = Auto feed model Motor Pulley ◊ Electric Motor
◊ Tapper Drift ◊ R & F Switch
◊ Manual Book ◊ Drill Chuck
◊ Drill-bit angle gague ◊ Arbour
Distance from spindle center to pillar surface790 mm ( MAX )
Auto feed speed0.04 or 0.08
Taper in spindleMT - 4
Number of speed8 Speed
Range of Speed (RPM)70 to 2000
Product Name : 40mm Radial Drilling Machine or R-40A Radial Drilling Machine We manufacture Main Spindle and pinion from EB 8-D steel by forging for robust structural strength. Column, arm, work-head & gears manufactured from finest closed grain cast iron; while we manufacture spindle Ram from Alloy steel Main spindle run out is checked for accuracy as per IS 2199, prescribed standards. For the smooth sliding movment of sliding arm over the main body, special 'slide-reliever-slots ' are given to rule-out friction and indentation
Product Name : 40mm Radial Drilling Machine or R-40A Radial Drilling Machine We manufacture Main Spindle and pinion from EB 8-D steel by forging for robust structural strength. Column, arm, work-head & gears manufactured from finest closed grain cast iron; while we manufacture spindle Ram from Alloy steel Main spindle run out is checked for accuracy as per IS 2199, prescribed standards. For the smooth sliding movment of sliding arm over the main body, special 'slide-reliever-slots ' are given to rule-out friction and indentation
Distance from spindle center to pillar surface790 mm ( MAX )
Taper in spindleMT - 4
Number of speed8 Speed
Range of Speed (RPM)70 to 2000
Table Size (in mm)290 x 290 x 375
Base size (Machined Area mm)735 x 1240 mm

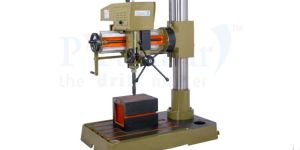

Product Name : 40mm Radial Drill Machine or R-40 Radial Drill Machine We manufacture Main Spindle and pinion from EB 8-D steel by forging for robust structural strength. Column, arm, work-head & gears manufactured from finest closed grain cast iron; while we manufacture spindle Ram from Alloy steel Main spindle run out is checked for accuracy as per IS 2199, prescribed standards. For the smooth sliding movement of sliding arm over the main body, special 'slide-reliever-slots ' are given to rule-out friction and indentation. All moving parts are fine-finished with grinding to a close tolerance, hightening the overall m/c performance
Product Name : 40mm Radial Drill Machine or R-40 Radial Drill Machine We manufacture Main Spindle and pinion from EB 8-D steel by forging for robust structural strength. Column, arm, work-head & gears manufactured from finest closed grain cast iron; while we manufacture spindle Ram from Alloy steel Main spindle run out is checked for accuracy as per IS 2199, prescribed standards. For the smooth sliding movement of sliding arm over the main body, special 'slide-reliever-slots ' are given to rule-out friction and indentation. All moving parts are fine-finished with grinding to a close tolerance, hightening the overall m/c performance
Distance from spindle center to pillar surface635 mm ( MAX )
Taper in spindleMT -3
Number of speed8 Speed
Range of Speed (RPM)130 to 2600
Table Size (in mm)200 x 200 x 255
Base size (Machined Area mm)585 x 915 mm
Overall Base Size (in mm)610 x 940 mm
Product Name :25mm Radial Drill Machine or R-25 Radial Drill Machine We manufacture Main Spindle and pinion from EB 8-D steel by forging for robust structural strength. Column, arm, work-head & gears made from fitnes closed grain cast iron; while spindle Ram is made out of Alloy steel. Main spindle run out is checked for accuracy as per IS 2199, prescribed standards. For the smooth sliding movement of sliding arm over the main body, special 'slide-reliever-slots ' are given to rule-out friction and indentation
Product Name :25mm Radial Drill Machine or R-25 Radial Drill Machine We manufacture Main Spindle and pinion from EB 8-D steel by forging for robust structural strength. Column, arm, work-head & gears made from fitnes closed grain cast iron; while spindle Ram is made out of Alloy steel. Main spindle run out is checked for accuracy as per IS 2199, prescribed standards. For the smooth sliding movement of sliding arm over the main body, special 'slide-reliever-slots ' are given to rule-out friction and indentation
Distance from spindle nose to base distance1000 mm
Auto feed speed0.04 or 0.08
Distance from spindle center to pillar surface380 mm ( MAX )
Table Travel500 mm
Taper in spindleMT – 4
Number of speed8 Speed
Range of Speed (RPM)60 to 2000

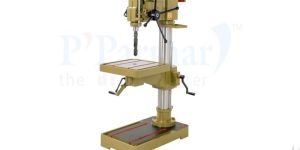

Product Name : 40MM Pillar Drill Machines or PSL-40A Pillar Drill Machines Main Spindle and pinion made from EN steel by forging. Column, arm, work-head & gears made from fitnes closed grain cast iron; while spindle Ram trim Alloy steel. Main spindle run out is checked for accuracy as per IS 2199. For the smooth sliding of sliding arms, special 'slide-reliever-slots ' are given. All moving parts are fine-finished with grinding to a close tolerance
Product Name : 40MM Pillar Drill Machines or PSL-40A Pillar Drill Machines Main Spindle and pinion made from EN steel by forging. Column, arm, work-head & gears made from fitnes closed grain cast iron; while spindle Ram trim Alloy steel. Main spindle run out is checked for accuracy as per IS 2199. For the smooth sliding of sliding arms, special 'slide-reliever-slots ' are given. All moving parts are fine-finished with grinding to a close tolerance
Distance from spindle nose to base distance1050 mm
Distance from spindle center to pillar surface320 mm ( MAX )
Table Travel480 mm
Taper in spindleMT – 4
Number of speed8 Speed
Range of Speed (RPM)70 to 2000
Product Name : 40MM Pillar Drilling Machine or PSL-40 Pillar Drill Machine Main Spindle and pinion made from EN steel by forging. Column, arm, work-head & gears made from fitnes closed grain cast iron; while spindle Ram trim Alloy steel. Main spindle run out is checked for accuracy as per IS 2199. For the smooth sliding of sliding arms, special 'slide-reliever-slots ' are given. All moving parts are fine-finished with grinding to a close tolerance. International technic of 'Taper wedge setting '. for complete slide-setting instead of normal one point setting. Quality bearings with grease bath, so for permanent oiling. Main gear and pulley are perfectly balanced. All gears are made from SGI casting
Product Name : 40MM Pillar Drilling Machine or PSL-40 Pillar Drill Machine Main Spindle and pinion made from EN steel by forging. Column, arm, work-head & gears made from fitnes closed grain cast iron; while spindle Ram trim Alloy steel. Main spindle run out is checked for accuracy as per IS 2199. For the smooth sliding of sliding arms, special 'slide-reliever-slots ' are given. All moving parts are fine-finished with grinding to a close tolerance. International technic of 'Taper wedge setting '. for complete slide-setting instead of normal one point setting. Quality bearings with grease bath, so for permanent oiling. Main gear and pulley are perfectly balanced. All gears are made from SGI casting
Distance from spindle nose to base distance1045 mm
Distance from spindle center to pillar surface250 mm ( MAX )
Table Travel480 mm
Taper in spindleMT – 3
Number of speed8 Speed
Range of Speed (RPM)130 to 2600
Table Size (in mm)330 x 330
Base size (Machined Area mm)365 x 575
Overall Base Size (in mm)370 x 580
Pillar Length1410 mm
Overall height with pulley guard1730 mm
V-Belt sectionB – 52"
Product Name : 25MM Pillar Drill Machine or PS-25 Pillar Drill Machine Main Spindle and pinion made from EN steel by forging. Column, arm, work-head & gears made from fitnes closed grain cast iron; while spindle Ram trim Alloy steel. Main spindle run out is checked for accuracy as per IS 2199. For the smooth sliding of sliding arms, special 'slide-reliever-slots ' are given. All moving parts are fine-finished with grinding to a close tolerance. International technic of 'Taper wedge setting '. for complete slide-setting instead of normal one point setting. Quality bearings with grease bath, so for permanent oiling. Main gear and pulley are perfectly balanced. All gears are made from SGI casting. Powder coated accessories for longer life and preventing of corrosion and pillage associated with usual chhrome plating
Product Name : 25MM Pillar Drill Machine or PS-25 Pillar Drill Machine Main Spindle and pinion made from EN steel by forging. Column, arm, work-head & gears made from fitnes closed grain cast iron; while spindle Ram trim Alloy steel. Main spindle run out is checked for accuracy as per IS 2199. For the smooth sliding of sliding arms, special 'slide-reliever-slots ' are given. All moving parts are fine-finished with grinding to a close tolerance. International technic of 'Taper wedge setting '. for complete slide-setting instead of normal one point setting. Quality bearings with grease bath, so for permanent oiling. Main gear and pulley are perfectly balanced. All gears are made from SGI casting. Powder coated accessories for longer life and preventing of corrosion and pillage associated with usual chhrome plating
Distance from spindle center to pillar surface200 mm ( MAX )
Table Travel200 mm
Taper in spindleMT – 2
Number of speed8 Speed
Range of Speed (RPM)80 to 3500
Table Size (in mm)260 x 260
Base size (Machined Area mm)470 x 320
Overall Base Size (in mm)490 x 310
Pillar Length1170 mm
Overall height with pulley guard1420 mm
V-Belt sectionA – 44"
Weight (Approx.)110 kg.
Motor1440 RPM 3 Phase440 volts0.5 HP
Shipping Wooden Case Inner Size LxWxH(in mm)660x380x1140 mm

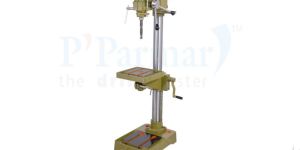

Product Name : 20MM Pillar Drill Machine or PS-20 Pillar Drill Machine Main Spindle and pinion made from EN steel by forging. Column, arm, work-head & gears made from fitnes closed grain cast iron; while spindle Ram trim Alloy steel. Main spindle run out is checked for accuracy as per IS 2199. For the smooth sliding of sliding arms, special 'slide-reliever-slots ' are given. All moving parts are fine-finished with grinding to a close tolerance. International technic of 'Taper wedge setting '. for complete slide-setting instead of normal one point setting. Quality bearings with grease bath, so for permanent oiling. Main gear and pulley are perfectly balanced. Powder coated accessories for longer life and preventing of corrosion and pillage associated with usual chhrome plating
Product Name : 20MM Pillar Drill Machine or PS-20 Pillar Drill Machine Main Spindle and pinion made from EN steel by forging. Column, arm, work-head & gears made from fitnes closed grain cast iron; while spindle Ram trim Alloy steel. Main spindle run out is checked for accuracy as per IS 2199. For the smooth sliding of sliding arms, special 'slide-reliever-slots ' are given. All moving parts are fine-finished with grinding to a close tolerance. International technic of 'Taper wedge setting '. for complete slide-setting instead of normal one point setting. Quality bearings with grease bath, so for permanent oiling. Main gear and pulley are perfectly balanced. Powder coated accessories for longer life and preventing of corrosion and pillage associated with usual chhrome plating
Distance From Spindle Center To Pillar Surface320 Mm (MAX)
Table Travel480 Mm
Taper In SpindleMT-4
Number Of Speed8 Speed
Range Of Speed (RPM)70 To 2000
Product Name : 40MM Pillar Drill Machine or PRL-40 Pillar Drill Machine Main Spindle and pinion made from EN steel by forging. Column, arm, work-head & gears made from fitnes closed grain cast iron; while spindle Ram trim Alloy steel. Main spindle run out is checked for accuracy as per IS 2199. For the smooth sliding of sliding arms, special 'slide-reliever-slots ' are given. All moving parts are fine-finished with grinding to a close tolerance. International technic of 'Taper wedge setting '. for complete slide-setting instead of normal one point setting. Quality bearings with grease bath, so for permanent oiling. Main gear and pulley are perfectly balanced. All gears are made from SGI casting. Powder coated accessories for longer life and preventing of corrosion and pillage associated with usual chhrome plating
Product Name : 40MM Pillar Drill Machine or PRL-40 Pillar Drill Machine Main Spindle and pinion made from EN steel by forging. Column, arm, work-head & gears made from fitnes closed grain cast iron; while spindle Ram trim Alloy steel. Main spindle run out is checked for accuracy as per IS 2199. For the smooth sliding of sliding arms, special 'slide-reliever-slots ' are given. All moving parts are fine-finished with grinding to a close tolerance. International technic of 'Taper wedge setting '. for complete slide-setting instead of normal one point setting. Quality bearings with grease bath, so for permanent oiling. Main gear and pulley are perfectly balanced. All gears are made from SGI casting. Powder coated accessories for longer life and preventing of corrosion and pillage associated with usual chhrome plating
Spindle Center To Pillar Surface Distance250 Mm (MAX)
Table Travel480 Mm
Taper In SpindleMT-3
Number Of Speeds8 Speed
Speed Range70 To 2000 RPM

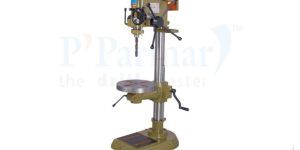

Product Name : 25MM Pillar Drilling Machine or PRL-25 Pillar Drilling Machine Main Spindle and pinion made from EN steel by forging. Column, arm, work-head & gears made from fitnes closed grain cast iron; while spindle Ram trim Alloy steel. Main spindle run out is checked for accuracy as per IS 2199. For the smooth sliding of sliding arms, special 'slide-reliever-slots ' are given. All moving parts are fine-finished with grinding to a close tolerance. International technic of 'Taper wedge setting '. for complete slide-setting instead of normal one point setting. Quality bearings with grease bath, so for permanent oiling. Main gear and pulley are perfectly balanced. All gears are made from SGI casting. Powder coated accessories for longer life and preventing of corrosion and pillage associated with usual chhrome plating.
Product Name : 25MM Pillar Drilling Machine or PRL-25 Pillar Drilling Machine Main Spindle and pinion made from EN steel by forging. Column, arm, work-head & gears made from fitnes closed grain cast iron; while spindle Ram trim Alloy steel. Main spindle run out is checked for accuracy as per IS 2199. For the smooth sliding of sliding arms, special 'slide-reliever-slots ' are given. All moving parts are fine-finished with grinding to a close tolerance. International technic of 'Taper wedge setting '. for complete slide-setting instead of normal one point setting. Quality bearings with grease bath, so for permanent oiling. Main gear and pulley are perfectly balanced. All gears are made from SGI casting. Powder coated accessories for longer life and preventing of corrosion and pillage associated with usual chhrome plating.
Secondary Business TypeManufacturer / Exporters / Wholesale Suppliers
Year of Establishment1972
No. of Employees21 - 50
Ownership TypeIndividual (Sole proprietorship)
Opening Hours
SUN : Closed
MON : 9:30 AM - 6:30 PM
TUE : 9:30 AM - 6:30 PM
WED : 9:30 AM - 6:30 PM
THU : 9:30 AM - 6:30 PM
FRI : 9:30 AM - 6:30 PM
SAT : 9:30 AM - 6:30 PM
P. Parmar machine tools is bhavnagar (gujarat) based company engaged in manufacturing of pillar drill machines & radial drill machines, also manufacturer auto feed drill machines & tapping machines since last 25 years. With our vast experience and highly skilled work force today p. Parmar is known as the drill master.
