Distance from spindle center to pillar surface200 mm ( MAX )
Table Travel200 mm
Number of speed8 Speed
Range of Speed (RPM)80 to 3500
Table Size (in mm)270 x 270
Base size (Machined Area mm)470 x 320
Overall Base Size (in mm)490 x 310
Pillar Length1170 mm
Overall height with pulley guard1420 mm
V-Belt sectionA - 44
Weight (Approx.)110 kg.
Shipping Wooden Case Inner Size LxWxH (in mm)660x380x1140 mm
We are proud to offer the Prashant 20mm Pillar Drill Machine, a versatile and powerful tool for all your drilling needs. With a drilling capacity of 20mm and a spindle travel of 130mm, this machine is perfect for precision drilling tasks. The main motor power of 1 HP ensures efficient performance, while the tilting working table allows for flexibility in your work. The sturdy pillar diameter of 74.20mm provides stability, and the ample distances from spindle nose to table, base, and pillar surface make this machine suitable for a variety of applications. Ideal for manufacturers, exporters, suppliers, retailers, and traders.

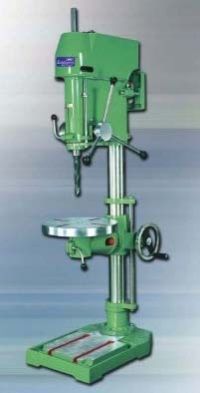

Pillar Drilling Machine SSC-P-1 Technical Specification : Model No. SSC-P-1 Drilling Cap. (in steel) 25 mm Column Dia. 87.60 mm Centre of Spindle to table 250 mm Max, Spindle to table 600 mm Max, Spindle to base 980 mm Taper in spindle M.T.3 Spindle Travel 250 mm No. of speed 8 Range of Speed 73 to 1800 RPM Table size 375 mm Dia. Base size (machined area) 350 X 325 mm Overall base size 625 X 420 mm Overall height with guard 1675 mm V-Belt selection B-52 Elec. Motor-1440 RPm 1 H.P. Wooden Case Size 650 X 500 X 1525 mm
Caution
All oil & Greese Point to be Filled Daily
Stop Machine before changing Gears & Speed
Loose the bolt & lock of the bracket then operate lifting up & down
