Piller type drilling machine.cap.20 to 40mm the size of the taper bore is mt 2,3,4. The main spindle and ram are made of heavy duty ms steel. These have a grind finish six slotes and helical gear for lower sound and long life. These machines are suitable for auto parts , engineerings, fabrication, institute, and
production workshop. We are first pioneer mfgr of radial & piller type drill machine since 1946 in the field of machine tools.
Piller type drilling machine.cap.20 to 40mm the size of the taper bore is mt 2,3,4. The main spindle and ram are made of heavy duty ms steel. These have a grind finish six slotes and helical gear for lower sound and long life. These machines are suitable for auto parts , engineerings, fabrication, institute, and
production workshop. We are first pioneer mfgr of radial & piller type drill machine since 1946 in the field of machine tools.
We offer pillar drill machine. Prabhat enterprise bhavnagar gujarat offers radial & pillar drill machine with a drilling cap. 20, to 40mm
back geared with fine feed. The main spindle & ram are made of en-8 steel with six slots and helical gear for lower
sound and a long life. The machines are 8 speeds. these machines are suitable for auto parts, engineering, fabrication, institute and production workshop.
We offer pillar drill machine. Prabhat enterprise bhavnagar gujarat offers radial & pillar drill machine with a drilling cap. 20, to 40mm
back geared with fine feed. The main spindle & ram are made of en-8 steel with six slots and helical gear for lower
sound and a long life. The machines are 8 speeds. these machines are suitable for auto parts, engineering, fabrication, institute and production workshop.
Caution
All oil & Greese Point to be Filled Daily
Stop Machine before changing Gears & Speed
Loose the bolt & lock of the bracket then operate lifting up & down
Caution
All oil & Greese Point to be Filled Daily
Stop Machine before changing Gears & Speed
Loose the bolt & lock of the bracket then operate lifting up & down
Technical Specifications :
DESCRIPTION Model No. 5 - 40 BA mm Drilling Capacity in M.S. 40 Drilling Capacity in C.I. 45 Tapping in M.S. 25 Spindle Hole Taper MT - 4 Spindle Travel 250 Spindle Speeds (RPM x Step) 80-2600 x 8 Speed Diameter of RAM 78 Max. Dist Spindle Nose to Table530 Spindle center to column345 Table Size 450 x 455Column Diameter 130 Dist. from Spindle Nose to Base 920 Motor 1440 RPM 1.5 HP HPV-Belt B 79 Weight Approx 450 KG.
Technical Specifications :
DESCRIPTION Model No. 5 - 40 BA mm Drilling Capacity in M.S. 40 Drilling Capacity in C.I. 45 Tapping in M.S. 25 Spindle Hole Taper MT - 4 Spindle Travel 250 Spindle Speeds (RPM x Step) 80-2600 x 8 Speed Diameter of RAM 78 Max. Dist Spindle Nose to Table530 Spindle center to column345 Table Size 450 x 455Column Diameter 130 Dist. from Spindle Nose to Base 920 Motor 1440 RPM 1.5 HP HPV-Belt B 79 Weight Approx 450 KG.
DescriptionNo. 40 AA mmDrilling Capacity in M.S.40Drilling Capacity in C.I.45Tapping in M.S.20Spindle Hole TaperMT-4
Spindle Travel250Spindle Speeds (RPM x Step)88-2600 x 8 SpeedDiameter of RAM78Auto feed Rage0.05 & 0.09 mmrev.Max. Dist Spindle Nose to Base850 x 250Max. Dist Spindle center to column920 x 385Box Table Size300 x 300 x 385Diameter of Column170Gear Motor1.5 HP 960 RPMElevating Motor1 HP 1440 RPMV-BeltB-47Weight Approx900 Kg.
DescriptionNo. 40 AA mmDrilling Capacity in M.S.40Drilling Capacity in C.I.45Tapping in M.S.20Spindle Hole TaperMT-4
Spindle Travel250Spindle Speeds (RPM x Step)88-2600 x 8 SpeedDiameter of RAM78Auto feed Rage0.05 & 0.09 mmrev.Max. Dist Spindle Nose to Base850 x 250Max. Dist Spindle center to column920 x 385Box Table Size300 x 300 x 385Diameter of Column170Gear Motor1.5 HP 960 RPMElevating Motor1 HP 1440 RPMV-BeltB-47Weight Approx900 Kg.

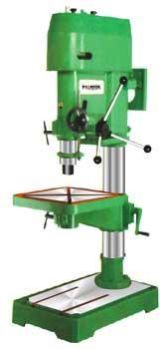

Technical Specifications :
DESCRIPTIONModel No. 4 - 38 40mm
Drilling Capacity in M.S.3840Drilling Capacity in C.I.42Tapping in M.S.20Spindle Hole TaperMT - 4 Spindle Travel250Spindle Speeds (RPM x Step)80-1800 x 8 SpeedDiameter of RAM78Max. Dist Spindle Nose to Table700Spindle center to column320
Table Size406 x 406Column Diameter120
Dist. from Spindle Nose to Base1000Motor 1440 RPM1.5 HPV-BeltB 61Weight Approx325 KG.
Technical Specifications :
DESCRIPTIONModel No. 4 - 38 40mm
Drilling Capacity in M.S.3840Drilling Capacity in C.I.42Tapping in M.S.20Spindle Hole TaperMT - 4 Spindle Travel250Spindle Speeds (RPM x Step)80-1800 x 8 SpeedDiameter of RAM78Max. Dist Spindle Nose to Table700Spindle center to column320
Table Size406 x 406Column Diameter120
Dist. from Spindle Nose to Base1000Motor 1440 RPM1.5 HPV-BeltB 61Weight Approx325 KG.

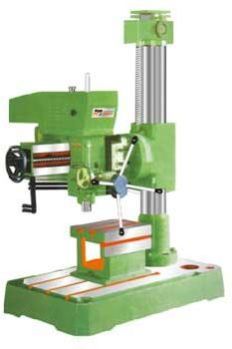

DescriptionNo. 3 - 40mmDrilling Capacity in M.S.40Drilling Capacity in C.I.35Tapping in M.S.18Spindle Hole TaperMT-4
Spindle Travel220Spindle Speeds (RPM x Step)70-2000 x 8 SpeedDiameter of RAM78Auto feed RageFine FeedMax. Dist Spindle Nose to Base914 x 300Max. Dist Spindle center to column900 x 350Box Table Size300 x 300 x 385Diameter of Column165Gear Motor1.5 HP 1440 RPMElevating Motor0.5 HP 1440 RPMV-BeltB-46 ,A-25Weight Approx850 Kg.
DescriptionNo. 3 - 40mmDrilling Capacity in M.S.40Drilling Capacity in C.I.35Tapping in M.S.18Spindle Hole TaperMT-4
Spindle Travel220Spindle Speeds (RPM x Step)70-2000 x 8 SpeedDiameter of RAM78Auto feed RageFine FeedMax. Dist Spindle Nose to Base914 x 300Max. Dist Spindle center to column900 x 350Box Table Size300 x 300 x 385Diameter of Column165Gear Motor1.5 HP 1440 RPMElevating Motor0.5 HP 1440 RPMV-BeltB-46 ,A-25Weight Approx850 Kg.
we offer milling drilling machine. prabhat enterprise bhavnagar gujarat offers
radial & pillar drill machine with a drilling cap. 20, to 40mm
back geared with fine feed. the main spindle & ram are
made of en-8 steel with six slots and helical gear for lower
sound and a long life. the machines are 8 speeds. these
machines are suitable for auto parts, engineering, fabrication,
institute and production workshop.
we offer milling drilling machine. prabhat enterprise bhavnagar gujarat offers
radial & pillar drill machine with a drilling cap. 20, to 40mm
back geared with fine feed. the main spindle & ram are
made of en-8 steel with six slots and helical gear for lower
sound and a long life. the machines are 8 speeds. these
machines are suitable for auto parts, engineering, fabrication,
institute and production workshop.
We offer magnetic drill machine. Prabhat enterprise bhavnagar gujarat offers
radial & pillar drill machine with a drilling cap. 20, to 40mm
back geared with fine feed. The main spindle & ram are
made of en-8 steel with six slots and helical gear for lower
sound and a long life. The machines are 8 speeds. these
machines are suitable for auto parts, engineering, fabrication,
institute and production workshop.
We offer magnetic drill machine. Prabhat enterprise bhavnagar gujarat offers
radial & pillar drill machine with a drilling cap. 20, to 40mm
back geared with fine feed. The main spindle & ram are
made of en-8 steel with six slots and helical gear for lower
sound and a long life. The machines are 8 speeds. these
machines are suitable for auto parts, engineering, fabrication,
institute and production workshop.
we offers radial drill machine with a drilling cap. 25, 35, 40, & 50mm back geared with fine feed & autofeed. the main spindle & ram are made of en-8 steel with six slots and helical gear for lower sound and a long life. the machines are 8 speeds. these machines are suitable for auto parts, ...
we offers radial drill machine with a drilling cap. 25, 35, 40, & 50mm back geared with fine feed & autofeed. the main spindle & ram are made of en-8 steel with six slots and helical gear for lower sound and a long life. the machines are 8 speeds. these machines are suitable for auto parts, ...
Secondary Business TypeManufacturer / Exporters / Wholesale Suppliers
Year of Establishment1985
No. of Employees6 - 20
Annual TurnoverBelow Rs. 0.5 Crore Approx.
Ownership TypeIndividual (Sole proprietorship)
Opening Hours
SUN : Closed
MON : 9:30 AM - 6:30 PM
TUE : 9:30 AM - 6:30 PM
WED : 9:30 AM - 6:30 PM
THU : 9:30 AM - 6:30 PM
FRI : 9:30 AM - 6:30 PM
SAT : 9:30 AM - 6:30 PM
Prabhat Enterprise Bhavnagar has emerged as a leading mfg of All type of Radial & Pillar Type Drilling Machine with fine feed, all geared with auto feed Cap.25,32,35,38,40,50mm. Milling cum drilling machine and Tapping machine. We take pride in introducing oversales as supreme company that specializes in the mfg of different types of Radial & Pillar Type Drill Machine incepted in 1946. The dynamic and pioneering zeal of Late. Popatlal A. Rathod saw the establishment of the firm Satya Vijay Mechanic Works in 1946 in the manufacturing of Drill Machines. Since then the company is supplying the best quality of drill machines to India. In the year of 1985 Mr. Jagdish Popatlal Rathod the son of Late. Popatal .A. Rathod has started a new firm with the experience of 60 years at present the company is manufacturing & supplying machineries like Universal Radial Drill Machine, Pillar Type Drill Machines, Tapping Machines & Milling cum drilling machines. At Prabhat Enterprise quality of the machines is the most important aspect because IT’S the quality of our machines that has help us to drive our company from last 60 years.
