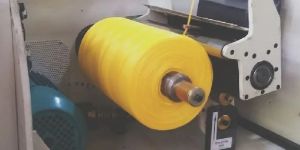

  • Two for One Twister Winder

    Two for One Twister Winder

    Get Latest Price
    • Country of Origin380V
    • Automatic GradeAutomatic
    • Total Carbohydrate1 Year
    • DrivenElectric
    • BrandShakti
    • PhaseSingle Phase
    • The main features of the machine are: Main A.C. motor with speed change by means of digital control panel. Motor with increased performances , which enables to save energy, increasing  the life of motor and bearings, with a lower noise. Digital control panel with meter-counter for automatic stopping of the twister at achievement of preselected length of the spool. Change machine twists direction S/Z through the operator panel. Inside lightening. Electrical yarn braking device complete with additional braking with 5 pulleys. Draw compensator. Electric-electronic control board. Sensor for the speed feedback, which allow to carry out a proportional/integrative control in order to increase the precision, compared to the set set-point. Moreover, it allows to further increase the machine safety by means of an interblock of the protection. Alarm signal on the digital display, so to carry out a diagnosis of the status of the machine, as for example the intervention of the protections.
    ...more
  • Two for One Twister Winder

    Two for One Twister Winder

    Request for Price

    1 Piece (MOQ)

    The main features of the machine are: Main A.C. motor with speed change by means of digital control panel. Motor with increased performances , which enables to save energy, increasing  the life of motor and bearings, with a lower noise. Digital control panel with meter-counter for automatic stopping of the twister at achievement of preselected length of the spool. Change machine twists direction S/Z through the operator panel. Inside lightening. Electrical yarn braking device complete with additional braking with 5 pulleys. Draw compensator. Electric-electronic control board. Sensor for the speed feedback, which allow to carry out a proportional/integrative control in order to increase the precision, compared to the set set-point. Moreover, it allows to further increase the machine safety by means of an interblock of the protection. Alarm signal on the digital display, so to carry out a diagnosis of the status of the machine, as for example the intervention of the protections.

    Country of Origin : 380V

    Automatic Grade : Automatic

    Total Carbohydrate : 1 Year

    Driven : Electric

     ...more
    Get Best Price
  • SV/R-8C Rope Making Machine

    SV/R-8C Rope Making Machine

    Get Latest Price
    • Take Up Capacity65 Kg ( 600 mm dia x 480 mm Tra. x 51 mm Hole)
    • ModelSV/R-8C
    • No.of Strand ( Ply )4 Strand ( 4 Ply)
    • Rope Range8 MM TO 16 MM
    • Strand Flyer Speed900 RPM (Maximum)
    • Rope Flyer Speed450 RPM
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayS & Z
    • Twist Range15 to 45 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)4 x 12 = 48 ( 250 mm Dia x 250 mm Tra x 38 mm Hole )
    • Motor20 HP A.C
    • Gear BoxStandard make
    • Rope Die SetFor getting Perfect Roundness of the Rope
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding Doors with Limit SwitchesFor Safety & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • Take Up SystemBobbin Filling
    • On/Off SwitchesProvided in different Places for Speedy & Easy operation
    • Dimension ( Approx.)Length 27'2 inch, Width 7'5 inch, Height 7'3 inch
    • Weight ( Approx.)4900 Kgs. ( Approx.)
    ...more
  • SV/R-8C Rope Making Machine

    SV/R-8C Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    Take Up Capacity : 65 Kg ( 600 mm dia x 480 mm Tra. x 51 mm Hole)
    Get Best Price

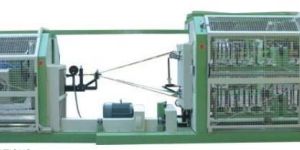

  • SV/R-8B Rope Making Machine

    SV/R-8B Rope Making Machine

    Get Latest Price
    • Take Up Capacity65 Kg ( 600 mm dia x 480 mm Tra. x 51 mm Hole)
    • ModelSV/R-8B
    • No. of Strand ( Ply )3 Strand ( 3 Ply )
    • Rope Range8 MM TO 16 MM
    • Strand Flyer Speed900 RPM (Maximum)
    • Rope Flyer Speed450 RPM
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayS & Z
    • Twist Range15 to 45 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)3 x 20 = 60 ( 250 mm Dia x 300 mm Tra x 38 mm Hole )
    • Motor20 HP A.C
    • Gear BoxStandard Make
    • Rope Die SetFor getting Perfect Roundness of the Rope
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding Doors with Limit SwitchesFor Safety & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • Take Up SystemBobbin Filling
    • On/Off SwitchesProvided in different Places for Speedy & Easy operation
    • Weight ( Approx.)5400 Kgs. ( Approx.)
    • Dimension ( Approx.)Length 27'2 inch, Width 7'5 inch, Height 7'3 inch
    ...more
  • SV/R-8B Rope Making Machine

    SV/R-8B Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    Take Up Capacity : 65 Kg ( 600 mm dia x 480 mm Tra. x 51 mm Hole)
    Get Best Price
  • SV/R-8A Rope Making Machine

    SV/R-8A Rope Making Machine

    Get Latest Price
    • Take Up Capacity65 Kg ( 600 mm dia x 480 mm Tra. x 51 mm Hole)
    • ModelSV/R-8A
    • No.of Strand ( Ply )3 Strand ( 3 Ply )
    • Rope Range8 MM TO 16 MM
    • Strand Flyer Speed900 RPM (Maximum
    • Rope Flyer Speed450 RPM
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayZ
    • Twist Range15 to 45 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)3 x 12 = 36 ( 250 mm Dia x 300 mm Tra x 38 mm Hole )
    • Motor20 HP A.C
    • Gear BoxStandard make
    • Rope Die SetFor getting Perfect Roundness of the Rope
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding Doors with Limit SwitchesFor Safety & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • Take Up SystemBobbin Filling
    • On/Off SwitchesProvided in different Places for Speedy & Easy operation
    • Dimension ( Approx.)Length 27'2 inch, Width 7'5 inch, Height 7'3 inch
    • Weight ( Approx.)4900 Kgs. ( Approx.)
    ...more
  • SV/R-8A Rope Making Machine

    SV/R-8A Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    Take Up Capacity : 65 Kg ( 600 mm dia x 480 mm Tra. x 51 mm Hole)
    Get Best Price
  • SV/R-6D Rope Making Machine

    SV/R-6D Rope Making Machine

    Get Latest Price
    • Take Up Capacity25 Kg ( 455 mm dia x 330 mm Tra. x 51 mm Hole) Smaller Bobbin can be used
    • ModelSV/R-6D
    • No.of Strand ( Ply )4 Strand ( 4 Ply )
    • Rope Range6 MM TO 12 MM
    • Strand Flyer Speed1400 RPM
    • Rope Flyer Speed700 RPM
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayZ
    • Twist Range13 to 63 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)4 x 12 = 48 as per your specification Small Bobbins also can be used
    • Motor15 HP A.C.
    • Gear BoxStandard make
    • Rope Die SetFor getting Perfect Roundness of the Rope
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding CoverFor Smooth & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • Control Panel BoardStandard Make
    • Take Up SystemBobbin Filling
    • On/Off SwitchesProvided in different Places for Speedy & Easy operation
    • Dimension ( Approx.)Length 22 inch, Width 6'-5 inch, Height 6'-7 inch
    • Weight ( Approx)4300 Kgs. ( Approx.)
    • FEATURES A/C Drive. Additional driving mechanism at pay off side to pull yarn from bobbin. Digital length counter meter DoorSensor Electric chain hoist arrangement for final bobbin removing system (Optional Feature) Electrical clutch system (Optional Feature)
    ...more
  • SV/R-6D Rope Making Machine

    SV/R-6D Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    FEATURES A/C Drive. Additional driving mechanism at pay off side to pull yarn from bobbin. Digital length counter meter DoorSensor Electric chain hoist arrangement for final bobbin removing system (Optional Feature) Electrical clutch system (Optional Feature)

    Take Up Capacity : 25 Kg ( 455 mm dia x 330 mm Tra. x 51 mm Hole) Smaller Bobbin can be used

     ...more
    Get Best Price
  • SV/R-6C Rope Making Machine

    SV/R-6C Rope Making Machine

    Get Latest Price
    • Take Up Capacity25 Kg ( 455 mm dia x 330 mm Tra. x 51 mm Hole) Small Bobbin also can be used
    • ModelSV/R-6C
    • No.of Strand ( Ply )3 Strand ( 3 Ply )
    • Rope Range6 MM TO 12 MM
    • Strand Flyer Speed1400 RPM
    • Rope Flyer Speed700 RPM
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayZ
    • Twist Range13 to 63 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)4 x 10 = 40 ( 250 mm Dia x 250 mm Tra x 38 mm Hole )
    • Motor20 HP A.C.
    • Gear BoxStandard make
    • Rope Die SetFor getting Perfect Roundness of the Rope
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding CoverFor Smooth & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • Take Up SystemBobbin Filling
    • On/Off SwitchesProvided in different Places for Speedy & Easy operation
    • Dimension ( Approx.)Length 22 INCH, Width 6'-9 inch, Height 7'-5 inch
    • Weight ( Approx.)4300 Kgs. ( Approx
    ...more
  • SV/R-6C Rope Making Machine

    SV/R-6C Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    Take Up Capacity : 25 Kg ( 455 mm dia x 330 mm Tra. x 51 mm Hole) Small Bobbin also can be used
    Get Best Price
  • SV/R-6B Rope Making Machine

    SV/R-6B Rope Making Machine

    Get Latest Price
    • Take Up Capacity25 Kg ( 455 mm dia x 330 mm Tra. x 51 mm Hole) Small Bobbin also can be used
    • ModelSV/R-6B
    • No.of Strand ( Ply )4 Strand ( 4 Ply )
    • Rope Range6 MM TO 12 MM
    • Strand Flyer Speed1400 RPM
    • Rope Flyer Speed700 RPM
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayZ
    • Twist Range13 to 63 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)4 x 10 = 40 ( 250 mm Dia x 250 mm Tra x 38 mm Hole )
    • Motor20 HP A.C.
    • Gear BoxStandard make
    • Rope Die SetFor getting Perfert Roundness of the Rope
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding CoverFor Smooth & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • Take Up SystemBobbin Filling
    • On/Off SwitchesProvided in different Places for Speedy & Easy operation
    • Dimension ( Approx.)Length 22 Inch, Width 6'-9 Inch, Height 7'-5 Inch
    • Weight ( Approx.)4300 Kgs. ( Approx.)
    ...more
  • SV/R-6B Rope Making Machine

    SV/R-6B Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    Take Up Capacity : 25 Kg ( 455 mm dia x 330 mm Tra. x 51 mm Hole) Small Bobbin also can be used
    Get Best Price

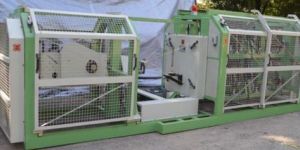

  • SV/R-6A Rope Making Machine

    SV/R-6A Rope Making Machine

    Get Latest Price
    • Take Up Capacity25 Kg ( 455 mm dia x 330 mm Tra. x 51 mm Hole)
    • ModelSV/R-6A
    • No.of Strand ( Ply )3 Strand ( 3 Ply )
    • Rope Range6 MM TO 12 MM
    • Strand Flyer Speed1400 RPM
    • Rope Flyer Speed700 RPM
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayZ
    • Twist Range13 to 63 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)3 x 10 = 30 ( 250 mm Dia x 250 mm Tra x 38 mm Hole )
    • Motor15 HP A.C
    • Gear BoxStandard make
    • Rope Die SetFor getting Perfect Roundness of the Rope
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding CoverWith Limit Switch for Safety & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • Control Panel BoardStandard Make
    • Take Up SystemBobbin Filling
    • On/Off SwitchesProvided in different Places for Speedy & Easy operation
    • Dimension ( Approx.)Length 20 inch, Width 6-9 inch, Height 7-5 inch
    • Weight ( Approx.)3700 Kgs. ( Approx.)
    ...more
  • SV/R-6A Rope Making Machine

    SV/R-6A Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    Take Up Capacity : 25 Kg ( 455 mm dia x 330 mm Tra. x 51 mm Hole)
    Get Best Price
  • SV/R-4D Rope Making Machine

    SV/R-4D Rope Making Machine

    Get Latest Price
    • Take Up Capacity15 Kg ( 350 Mm Dia X 350 Mm Tra. X 38 Mm Hole
    • ModelSV/R-4D
    • No.of Strand ( Ply )4 Strand ( 4 Ply )
    • Rope Range4 MM TO 8 MM
    • Strand Flyer Speed1600 RPM
    • Rope Flyer Speed800 RPM
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayZ
    • Twist Range30 to 90 TPM
    • Twist in StrandAdjustable
    • Drive' V
    • Pay of Packages ( Feeding Bobbin)4 x 8 = 32 ( 250 mm Dia x 250 mm Tra x 38 mm Hole )
    • Motor15 HP AC Kirloskar Make with AC Drive
    • Gear BoxStandard Make
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding DoorsFor Safety & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • Control Panel BoardStandard Make
    • Take Up SystemBobbin Filling
    • Dimension ( Approx.)Length 18'6 inch, Width 7'5 inch, Height 7'4 inch
    • Weight ( Approx.)2700 Kgs. ( Approx.)
    • Features A/C Drive. Additional driving mechanism at pay off side to pull yarn from bobbin. Digital length counter meter Door Sensor Electric chain hoist arrangement for final bobbin removing system (Optional Feature) Electrical clutch system (Optional Feature)
    ...more
  • SV/R-4D Rope Making Machine

    SV/R-4D Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    Features A/C Drive. Additional driving mechanism at pay off side to pull yarn from bobbin. Digital length counter meter Door Sensor Electric chain hoist arrangement for final bobbin removing system (Optional Feature) Electrical clutch system (Optional Feature)

    Take Up Capacity : 15 Kg ( 350 Mm Dia X 350 Mm Tra. X 38 Mm Hole

     ...more
    Get Best Price

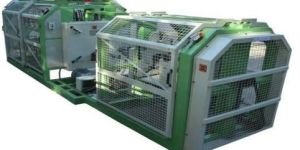

  • SV/R-4A Rope Making Machine

    SV/R-4A Rope Making Machine

    Get Latest Price
    • Take Up Capacity15 Kg ( 350 Mm Dia X 350 Mm Tra. X 38 Mm Hole)
    • ModelSV/R-4A
    • No.of Strand ( Ply )3 Strand ( 3 Ply )
    • Rope Range4 MM TO 8 MM
    • Strand Flyer Speed1600 RPM (Maximum)
    • Rope Flyer Speed800 RPM (Maximum)
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayZ
    • Twist Range30 to 90 TPM
    • Twist in StrandAdjustable
    • Drive' V
    • Pay of Packages ( Feeding Bobbin)3 x 4 = 12 ( 250 mm Dia x 250 mm Tra x 38 mm Hole )
    • Motor7.5 HP AC Kirloskar Make with AC Drive
    • Gear BoxStandard make
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding CoverFor Safety & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • Control Panel BoardStandard Make
    • Take Up SystemBobbin Filling
    • Dimension ( Approx.)Length 18'6 inch, Width 7'5 inch, Height 7'4 inch
    • Weight ( Approx.)2700 Kgs. ( Approx.)
    ...more
  • SV/R-4A Rope Making Machine

    SV/R-4A Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    Take Up Capacity : 15 Kg ( 350 Mm Dia X 350 Mm Tra. X 38 Mm Hole)
    Get Best Price
  • SV/R-32A Rope Making Machine

    SV/R-32A Rope Making Machine

    Get Latest Price
    • Take Up Capacity250 Kg ( 1000 mm dia x 650 mm Tra. x 200 mm Hole)
    • ModelSV/R-32A
    • No. of Strand ( Ply )3 Strand ( 3 Ply )
    • Rope Range32 Mm to 48 Mm
    • Strand Flyer Speed300 RPM (Maximum)
    • Rope Flyer Speed150 RPM (Maximum)
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayZ
    • Twist Range5 to 20 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)3 x 40 = 120 ( 250 mm x 250 mm x 38 mm Hole )
    • Motor30 HP AC
    • Gear BoxStandard make
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding CoverFor Safety & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • Take Up SystemBobbin Filling
    • Dimension ( Approx.)Length 46 Inch, Width 7'-2 Inch, Height 7'-3 Inch
    • Weight ( Approx.)16500 Kgs. ( Approx.)
    • FEATURES A/C Drive. Additional driving mechanism at pay off side to pull yarn from bobbin. Digital length counter meter Door Sensor Electric chain hoist arrangement for final bobbin removing system (Optional Feature) Electrical clutch system (Optional Feature)
    ...more
  • SV/R-32A Rope Making Machine

    SV/R-32A Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    FEATURES A/C Drive. Additional driving mechanism at pay off side to pull yarn from bobbin. Digital length counter meter Door Sensor Electric chain hoist arrangement for final bobbin removing system (Optional Feature) Electrical clutch system (Optional Feature)

    Take Up Capacity : 250 Kg ( 1000 mm dia x 650 mm Tra. x 200 mm Hole)

     ...more
    Get Best Price
  • SV/R-2D Rope Making Machine

    SV/R-2D Rope Making Machine

    Get Latest Price
    • Take Up Capacity7 Kg ( 300 mm dia x 300 mm Tra. x 38 mm Hole)
    • ModelSV/R-2D
    • No.of Strand ( Ply )4 Strand ( 4 Ply )
    • Rope Range2 MM TO 6 MM
    • Strand Flyer Speed1400 to 2400 RPM
    • Rope Flyer Speed900 RPM
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayS and Z
    • Twist Range40 to 150 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)4 x 1 = 4 ( 250 mm Dia x 300 mm Tra x 38 mm Hole )
    • Motor5 HP AC (With AC Drive)
    • Gear BoxStandard make
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding DoorFor Safety & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • Control Panel BoardStandard Make
    • Take Up SystemBobbin Filling
    • Dimension ( Approx.)Length 12' 2 inch, Width 4' 5 inch, Height 4' 6 inch
    • Weight ( Approx.)1750 Kgs. ( Approx.)
    • Features : A/C Drive. Additional driving mechanism at pay off side to pull yarn from bobbin. Digital length counter meter Door Sensor Electric chain hoist arrangement for final bobbin removing system (Optional Feature) Electrical clutch system (Optional Feature)
    ...more
  • SV/R-2D Rope Making Machine

    SV/R-2D Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    Features : A/C Drive. Additional driving mechanism at pay off side to pull yarn from bobbin. Digital length counter meter Door Sensor Electric chain hoist arrangement for final bobbin removing system (Optional Feature) Electrical clutch system (Optional Feature)

    Take Up Capacity : 7 Kg ( 300 mm dia x 300 mm Tra. x 38 mm Hole)

     ...more
    Get Best Price

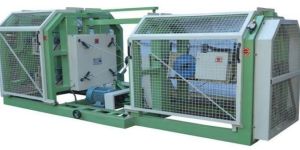

  • SV/R-2C Rope Making Machine

    SV/R-2C Rope Making Machine

    Get Latest Price
    • Take Up Capacity7 Kg ( 250 mm dia x 250 mm Tra. x 38 mm Hole)
    • ModelSV/R-2C
    • No.of Strand ( Ply )4 Strand ( 4 Ply)
    • Rope Range2 MM TO 6 MM
    • Strand Flyer Speed2000 RPM (Maximum)
    • Rope Flyer Speed1000 RPM (Maximum)
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayS and Z
    • Twist Range40 to 150 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)4 x 2 = 8 ( 250 mm Dia x 250 mm Tra x 38 mm Hole )
    • Motor5 HP AC With AC Drive
    • Gear BoxStandard Make
    • A.v.m.padsFor Vibration Free Smooth Working
    • Sliding DoorFor Safety & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • Control Panel BoardStandard Make
    • Take Up SystemBobbin Filling or Direct coiling head
    • Dimension ( Approx.)Length 14' 2 inch, Width 4' 5 inch, Height 4' 6 inch
    • Weight ( Approx.)2800 Kgs. ( Approx.)
    ...more
  • SV/R-2C Rope Making Machine

    SV/R-2C Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    Take Up Capacity : 7 Kg ( 250 mm dia x 250 mm Tra. x 38 mm Hole)
    Get Best Price
  • SV/R-2B Rope Making Machine

    SV/R-2B Rope Making Machine

    Get Latest Price
    • Take Up Capacity7 Kg ( 250 mm dia x 300 mm Tra. x 38 mm Hole)
    • ModelSV/R-2B
    • No. of Strand ( Ply )3 Strand ( 3 Ply )
    • Rope Range2 MM TO 6 MM
    • Strand Flyer Speed2000 RPM (Maximum)
    • Rope Flyer Speed1000 RPM (Maximum)
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayZ
    • Twist Range40 to 150 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)3 x 2 = 6 ( 250 mm Dia x 300 mm Tra x 38 mm Hole)
    • Motor7.5 HP AC
    • Gear BoxStandard Make
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding DoorFor Safety & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • Take Up SystemBobbin Filling
    • Dimension ( Approx.)Length 14' 2 inch, Width 4' 5 inch, Height 4'6 inch"
    • Weight ( Approx.)1800 Kgs. ( Approx.)
    ...more
  • SV/R-2B Rope Making Machine

    SV/R-2B Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    Take Up Capacity : 7 Kg ( 250 mm dia x 300 mm Tra. x 38 mm Hole)
    Get Best Price
  • SV/R-2A Rope Making Machine

    SV/R-2A Rope Making Machine

    Get Latest Price
    • Take Up Capacity12 Kg ( 300 mm dia x 300 mm Tra. x 38 mm Hole)
    • ModelSV/R-2A
    • No.of Strand ( Ply )3 Strand ( 3 Ply )
    • Rope Range2 MM TO 6 MM
    • Strand Flyer Speed2000 RPM (Maximum
    • Rope Flyer Speed1000 RPM (Maximum)
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayS and Z
    • Twist Range40 to 150 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)3 x 1 = 3 ( 250 mm Dia x 250 mm Tra x 38 mm Hole )
    • Motor20 HP AC
    • Gear BoxStandard make
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding CoverFor Safety & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • Take Up SystemBobbin Filling
    • Weight ( Approx.)1800 Kgs. ( Approx.)
    • Dimension ( Approx.)Length 12 Inch Width 4.75 Inch Height 4.25 Inch
    ...more
  • SV/R-2A Rope Making Machine

    SV/R-2A Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    Take Up Capacity : 12 Kg ( 300 mm dia x 300 mm Tra. x 38 mm Hole)
    Get Best Price

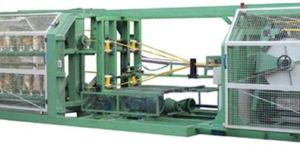

  • SV/R-16D Rope Making Machine

    SV/R-16D Rope Making Machine

    Get Latest Price
    • Take Up Capacity110 Kg ( 810 mm dia x 525 mm Tra. x 60 mm Hole)
    • ModelSV/R-16D
    • No. of Strand ( Ply )4 Strand ( 4 Ply )
    • Rope Range16 MM TO 32 MM
    • Strand Flyer Speed400 RPM (Maximum)
    • Rope Flyer Speed200 RPM (Maximum)
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayS and Z
    • Twist Range6 to 25 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)4 x 24 = 96 ( 250 mm Dia x 250 mm Tra x 38 mm Hole )
    • Motor30 HP AC
    • Gear BoxStandard Make
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding CoverFor Smooth & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • On/ Off SwitchesFitted on different places for easy & speedy operation
    • Take Up SystemBobbin Filling
    • Dimension ( Approx.)Length 34'5 Inch, Width 7'2 Inch, Height 7'3 Inch
    • Weight ( Approx.)6500 Kgs. ( Approx.)
    • FEATURES A/C Drive. Additional driving mechanism at pay off side to pull yarn from bobbin. Digital length counter meter Door Sensor Electric chain hoist arrangement for final bobbin removing system (Optional Feature) Electrical clutch system (Optional Feature)
    ...more
  • SV/R-16D Rope Making Machine

    SV/R-16D Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    FEATURES A/C Drive. Additional driving mechanism at pay off side to pull yarn from bobbin. Digital length counter meter Door Sensor Electric chain hoist arrangement for final bobbin removing system (Optional Feature) Electrical clutch system (Optional Feature)

    Take Up Capacity : 110 Kg ( 810 mm dia x 525 mm Tra. x 60 mm Hole)

     ...more
    Get Best Price
  • SV/R-16C Rope Making Machine

    SV/R-16C Rope Making Machine

    Get Latest Price
    • Take Up Capacity110 Kg ( 810 mm dia x 525 mm Tra. x 60 mm Hole)
    • ModelSV/R-16C
    • No.of Strand ( Ply )4 Strand ( 4 Ply )
    • Rope Range16 MM TO 32 MM
    • Strand Flyer Speed400 RPM (Maximum)
    • Rope Flyer Speed200 RPM (Maximum)
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayS and Z
    • Twist Range6 to 25 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)4 x 24 = 96 ( 250 mm Dia x 250 mm Tra x 38 mm Hole )
    • Motor20 HP AC
    • Gear BoxStandard make
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding CoverFor Smooth & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • On/ Off SwitchesFitted on different places for easy & speedy operation
    • Take Up SystemBobbin Filling
    • Dimension ( Approx.)Length 34' 5 Inch, Width 7' 2 Inch, Height 7' 3 Inch
    • Weight ( Approx.)7500 Kgs. ( Approx.)
    ...more
  • SV/R-16C Rope Making Machine

    SV/R-16C Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    Take Up Capacity : 110 Kg ( 810 mm dia x 525 mm Tra. x 60 mm Hole)
    Get Best Price
  • SV/R-16B Rope Making Machine

    SV/R-16B Rope Making Machine

    Get Latest Price
    • Take Up Capacity110 Kg ( 810 mm dia x 525 mm Tra. x 60 mm Hole)
    • ModelSV/R-16B
    • No.of Strand ( Ply )3 Strand ( 3 Ply )
    • Rope Range16 MM TO 32 MM
    • Strand Flyer Speed400 RPM (Maximum)
    • Rope Flyer Speed200 RPM (Maximum)
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayS and Z
    • Twist Range6 to 25 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)3 x 28 = 84 ( 250 mm Dia x 250 mm Tra x 38 mm Hole )
    • Motor20 HP AC
    • Gear BoxStandard Make
    • A.V.M.PadsFor Vibration Free Smooth Working
    • Sliding CoverFor Safety & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • On/ Off SwitchesFitted on different places for easy & speedy operation
    • Take Up SystemBobbin Filling
    • Dimension ( Approx.)Length 35' 5 inch, Width 7' 2 inch Height 7' 3 inch
    • Weight ( Approx.)7000 Kgs. ( Approx.)
    ...more
  • SV/R-16B Rope Making Machine

    SV/R-16B Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    Take Up Capacity : 110 Kg ( 810 mm dia x 525 mm Tra. x 60 mm Hole)
    Get Best Price
  • SV/R-16A Rope Making Machine

    SV/R-16A Rope Making Machine

    Get Latest Price
    • Take Up Capacity110 Kg ( 810 mm dia x 525 mm Tra. x 60 mm Hole)
    • ModelSV/R-16A
    • No.of Strand ( Ply )3 Strand ( 3 Ply )
    • Rope Range16 MM TO 32 MM
    • Strand Flyer Speed400 RPM (Maximum)
    • Rope Flyer Speed200 RPM (Maximum)
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayS and Z
    • Twist Range6 to 25 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)3 x 24 = 72 ( 250 mm Dia x 250 mm Tra x 38 mm Hole )
    • Motor20 HP AC
    • Gear BoxStandard make
    • A.V.M.PadsFor Vibration Free Smooth Working
    • Sliding CoverFor Safety & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • On/ Off SwitchesFitted on different places for easy & speedy operation
    • Take Up SystemBobbin Filling
    • Dimension ( Approx.)Length 34'5 inch, Width 7'2 inch, Height 7'3 inch
    • Weight ( Approx.)6500 Kgs. ( Approx.)
    ...more
  • SV/R-16A Rope Making Machine

    SV/R-16A Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    Take Up Capacity : 110 Kg ( 810 mm dia x 525 mm Tra. x 60 mm Hole)
    Get Best Price
  • SV/R-12D Rope Making Machine

    SV/R-12D Rope Making Machine

    Get Latest Price
    • Take Up Capacity65 Kg ( 600 mm dia x 480 mm Tra. x 51 mm Hole)
    • ModelSV/R-12D
    • No.of Strand ( Ply )4 Strand ( 4 Ply )
    • Rope Range12 MM TO 25 MM
    • Strand Flyer Speed600 RPM (Maximum)
    • Rope Flyer Speed300 RPM (Maximum)
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayZ
    • Twist Range7 to 32 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)4 x 20 = 80 ( 250 mm Dia x 300 mm Tra x 38 mm Hole )
    • Motor20 HP A.C ABB or Kirloskar Make
    • Gear BoxStandard make
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding CoverFor Smooth & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • Take Up SystemBobbin Filling
    • Weight ( Approx.)8000 Kgs. ( Approx.)
    • Dimension ( Approx.)Length 32' 6 inch, Width 7 inch, Height 7 inch
    • FEATURES A/C Drive. Additional driving mechanism at pay off side to pull yarn from bobbin. Digital length counter meter DoorSensor Electric chain hoist arrangement for final bobbin removing system (Optional Feature) Electrical clutch system (Optional Feature)
    ...more
  • SV/R-12D Rope Making Machine

    SV/R-12D Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    FEATURES A/C Drive. Additional driving mechanism at pay off side to pull yarn from bobbin. Digital length counter meter DoorSensor Electric chain hoist arrangement for final bobbin removing system (Optional Feature) Electrical clutch system (Optional Feature)

    Take Up Capacity : 65 Kg ( 600 mm dia x 480 mm Tra. x 51 mm Hole)

     ...more
    Get Best Price
  • SV/R-12C Rope Making Machine

    SV/R-12C Rope Making Machine

    Get Latest Price
    • Take Up Capacity65 Kg ( 600 mm dia x 480 mm Tra. x 51 mm Hole)
    • ModelSV/R-12C
    • No.of Strand ( Ply )4 Strand ( 4 Ply )
    • Rope Range12 MM TO 25 MM
    • Strand Flyer Speed600 RPM (Maximum)
    • Rope Flyer Speed300 RPM
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayZ
    • Twist Range7 to 32 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)4 x 18 = 72 ( 250 mm Dia x 300 mm Tra x 38 mm Hole )
    • Motor20 HP A.C ABB or Kirloskar Make
    • Gear BoxStandard Make
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding CoverFor Smooth & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • On/Off SwitchesFitted Different places for easy & speedy operation
    • Take Up SystemBobbin Filling
    • Dimension ( Approx.)Length 32'6 inch, Width 7'2 inch, Height 7'1 inch
    • Weight ( Approx.)7000 Kgs. ( Approx.)
    ...more
  • SV/R-12C Rope Making Machine

    SV/R-12C Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    Take Up Capacity : 65 Kg ( 600 mm dia x 480 mm Tra. x 51 mm Hole)
    Get Best Price
  • SV/R-12B Rope Making Machine

    SV/R-12B Rope Making Machine

    Get Latest Price
    • Take Up Capacity65 Kg ( 600 mm dia x 480 mm Tra. x 51 mm Hole)
    • ModelSV/R-12B
    • No.of Strand ( Ply )3 Strand ( 3 Ply )
    • Rope Range12 MM TO 25 MM
    • Strand Flyer Speed600 RPM (Maximum)
    • Rope Flyer Speed300 RPM (Maximum)
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayZ
    • Twist Range7 to 32 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Motor20 HP A.C ABB or Kirloskar Make
    • Gear BoxStandard Make
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding CoverFor Smooth & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • Auto Cut off SystemElectronically Balanced
    • On/Off SwitchesFitted Different Places for easy & speedy operation
    • Take Up SystemBobbin Filling
    • Dimension ( Approx.)Length 34' 6 inch, Width 7 inch, Height 7'inch
    • Weight ( Approx.)7500 Kgs. ( Approx.)
    ...more
  • SV/R-12B Rope Making Machine

    SV/R-12B Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    Take Up Capacity : 65 Kg ( 600 mm dia x 480 mm Tra. x 51 mm Hole)
    Get Best Price

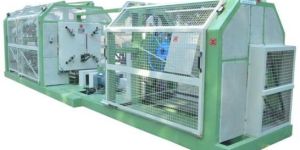

  • SV/R-12A Rope Making Machine

    SV/R-12A Rope Making Machine

    Get Latest Price
    • Take Up Capacity65 Kg ( 600 mm dia x 480 mm Tra. x 51 mm Hole)
    • ModelSV/R-12A
    • No.of Strand ( Ply)3 Strand ( 3 Ply )
    • Rope Range12 MM TO 25 MM
    • Strand Flyer Speed600 RPM (Maximum)
    • Rope Flyer Speed300 RPM
    • Twist Per MinuteTwice the Flyer Speed
    • Rope LayZ
    • Twist Range7 to 32 TPM
    • Twist in StrandAdjustable
    • Drive' V " Belt & Timing Belt
    • Pay of Packages ( Feeding Bobbin)3 x 20 = 60 ( 250 mm Dia x 300 mm Tra x 38 mm Hole )
    • Motor20 HP A.C ABB or Kirloskar Make
    • Gear BoxStandard Make
    • Rope Die SetFor Getting Perfect Roundness of the Rope
    • A.V.M.PadsFor Vibration free smooth Working
    • Sliding CoverFor Safety & Quick Operation
    • Auto Cut off SystemPreventing Raw-Material Wastage
    • BalancingElectronically Balanced
    • Take Up SystemBobbin Filling
    • Dimension ( Approx.)Length 32'6 inch, Width 7'2 inch, Height 7'1 inch
    • Weight ( Approx.)7000 Kgs. ( Approx)
    ...more
  • SV/R-12A Rope Making Machine

    SV/R-12A Rope Making Machine

    Request for Price

    1 Piece (MOQ)

    Take Up Capacity : 65 Kg ( 600 mm dia x 480 mm Tra. x 51 mm Hole)
    Get Best Price

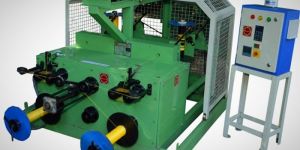

  • SV/PYT-1 Ply Yarn Twister Machine

    SV/PYT-1 Ply Yarn Twister Machine

    Get Latest Price
    • ModelSV/PYT-1
    • TPM17 to 50
    • Motor Power2 HP 440 Volts 3 Phse
    • Machine RPM2100 RPM
    • No. of Spindles (Bobbins)1 Raw x 1 Final Package
    • BalancingElectronically balanced
    • Capacity150 to 300 Kgs Per Spindle
    • Take upConstant and Uniform Take up
    • Overall Dimension4x3.25x3 Inches
    ...more
  • SV/PYT-1 Ply Yarn Twister Machine

    SV/PYT-1 Ply Yarn Twister Machine

    Request for Price

    1 Piece (MOQ)
    Get Best Price
SV/R-8D Rope Making Machine
View More

Average Customer Rating

Excellent Good
28 ratings and 3 reviews

Business Rating

5 17
4 11
3 0
2 0
1 0
Write a Review

User Satisfaction

100%
Response
100%
Quality
100%
Delivery

Choose the service or product you're reviewing for this business

How would you rate the business?

What did you like and dislike?

  • Response
  • Delivery
  • Quality

Tell us about your experience?

About the Company

  • Primary Business Retailer
  • Secondary Business Type Manufacturer / Exporters / Wholesale Suppliers
  • Year of Establishment 1988
  • No. of Employees 21 - 50
  • Annual Turnover Below Rs. 0.5 Crore Approx.
  • Ownership Type Individual (Sole proprietorship)
  • GSTIN Number 24AGIPC1440N1ZM

Opening Hours

  • SUN : Closed
  • MON : 9:30 AM - 6:30 PM
  • TUE : 9:30 AM - 6:30 PM
  • WED : 9:30 AM - 6:30 PM
  • THU : 9:30 AM - 6:30 PM
  • FRI : 9:30 AM - 6:30 PM
  • SAT : 9:30 AM - 6:30 PM
The Company is Professionally managed by a team of well experienced Engineers. The company has created a large satisfied customer base in Domestic and International markets and became the leader of Extrusion Machinery, Rope Making Machinery, High Speed Needle loom Machines and Drill Machinery Manufacturers.
Read More »

Contact Information

Shakti Vijay Machinery Company

  • Mr. Nikhil Chauhan
  • Everest Building Blocks No Delo, Plot No. 363, Near GEB Office, Chitra, Gidc, Bhavnagar, Gujarat
Back

Request Quote

Share your Correspondence Details to receive messages from Shakti Vijay Machinery Company

+91

By sending a request., you accept our Terms of Use and Privacy Policy.

Find Popular Needle Loom Dealers

Hi-Tech Engineering Ganapathy, Coimbatore
Get Best Price
Asian Global Agencies Anand Parbat, Delhi
Get Best Price
Sanvi Industries Kolkata
Get Best Price
Armstrong
Get Best Price
Trikso India Machinaries Vatva, Ahmedabad
Get Best Price

GENERAL LINK

Top Cities (India)

Bhavnagar Localities

top
