Medical imaging service providers have depended on Dunlee for high-performance, reliable, cost-effective Radiographic Replacement Tubes. Additionally, Dunlee leads the way with more selection, locations, and technical support than any other imaging components supplier. As a division of Philips Healthcare, Dunlee proudly upholds the tradition of quality, advanced technology and cost sensibility that has come to be associated with the Philips name. Select the appropriate original equipment manufacturer from the navigation bar above.
Medical imaging service providers have depended on Dunlee for high-performance, reliable, cost-effective Radiographic Replacement Tubes. Additionally, Dunlee leads the way with more selection, locations, and technical support than any other imaging components supplier. As a division of Philips Healthcare, Dunlee proudly upholds the tradition of quality, advanced technology and cost sensibility that has come to be associated with the Philips name. Select the appropriate original equipment manufacturer from the navigation bar above.
Our X-ray tubes combine the highest reliability with cutting edge technology for CT, CV, RF and Radiography.

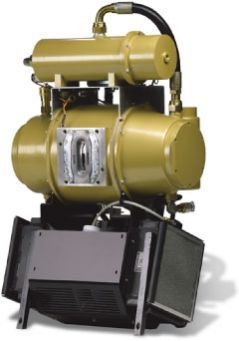

This 6.3 MHU CT tube is designed as a replacement for use in GE HiSpeed QX/i System. Note: Verify installed tube. Alternate tube is DA200 Ultra (887-04)
Tech Data
Housing Tech Data
Insert Tech Data
Product Specifications
Tube Type:
DU 6308
Target Diameter:
200 mm (7.9 in)
Target Angle:
7
Power Characteristics:
24/53 kW
Operational Characteristics:
Focal Spot:
0.7 x 0.6/0.9 x 0.9
Filament Characteristics
Volts:
4.3-6.6/7.4- 11.4
Amperes:
5.0-6.5/5.0- 6.5
Rotor Speed:
8400 RPM
Stator Resistance
Main Winding:
2.3 Ohms
Secondary Winding:
Maximum Anode Cooling Rate:
10.4 kW
Shipping Weight:
154 kg
Warranty:
Contact Dunlee
