Wellcare Oil Tools Private Limited Khushkhera, Bhiwadi, Rajasthan

Wireline Re-Entry Bottom is used as the packer bottom when an extension below a packer is not required.   NOTE: Feasible distinct sizes of all the above accessories could be provided with specific grades of material and end connections; standard or premium thread, as per the customer's requirement.

Model Number : WC-SBRB

Brand Name : Wellcare

Customization : Yes

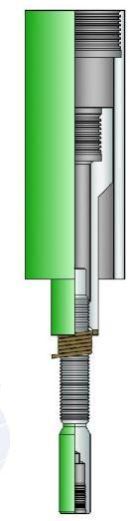

the wireline adapter kit is used to set permanent/retrievable packers and bridge plugs with the aid of appropriate wire line string or pressure setting assembly else with hydraulic setting tool as per varying requirement/operations. In its most common use with a wireline setting tool, the system allows for a substantial reduction in rig time over setting on tubing with a hydraulic setting tool. this kit is provided with release/shear stud of different shear values e.g.: 35,000lbf 55,000 lbf, 83,000 lbf etc. As per the setting mechanism and requirements.    features/benefits: • substantial rig time saving over hydraulically setting packer. • mates to size 10 or 20 wireline pressure setting assembly.   • mates to hydraulic-setting tool. • long field life & rugged design. application:• cased hole. • deviations to 65°. • wireline-set tools.

Brand Name : Wellcare

This Wireline Adapter Kit is used to set bridge plug and cement retainers (WC-WLBP or WC-WLCR) by coupling them with wireline pressure setting assembly while set thru wire line and with hydraulic setting tool while by drill pipe or tubing string in the well  bore.    Application : The Model WC-WAK Wireline Adapter Kit is used to couple an electric line or hydraulic setting, tool assembly to the WC-WMBP or WC-WMCR.

Accuracy : 99%

strip size : 3.0mm/4.0mm

Application : For the detection of multi drugs

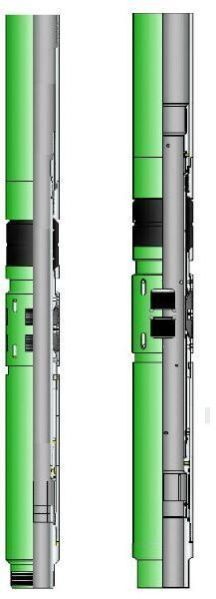

  Wire Line Set Retrievable Seal Bore Packer is a Retrievable Packer which is hydraulically set by pressure in the production tubing. It is particularly suitable for Extended Reach Drilling (ERD) Wells. These are set by using a Hydraulic Setting Tool with the combination of appropriate Wireline Adapter Kit. With the aid of exact Retrieving Tool these packer are released by shear ring mechanism. Once set does not require string weight or tension to remain anchored. Bidirectional slips prevent any movement of the tool. The packer is retrieved by a straight pull shear ring release mechanism making use of our WC-RT retrieving tool. These packers are available with dual seal bore feature for facilitating easy anchor tools as our Model: WC-WSRP-1.       Features/Benefits:   Run and set with the production tubing.  Hydraulic setting eliminates the requirements for spacing out and the use of sliding sleeves. (Opening and closing) for the displacement of fluids.  Effects on the tubing (compression and tension) are transmitted to slips-there is no shear ring which limits these stress.  Retrieval independent of tubing with a Retrieving Tool. It can be left at the bottom of the well with a Wireline plug in a nipple to isolate the formation.  Opposed slips positioned under the packing to avoid setting. Problems with retrieval due to annulus.   Available for standard, H2S or CO2 services [NACEMR 01-75].       Applications:   This Packer can be used as a simple/Single or oil production wells or in water or gas injection wells.   The stresses created on the tubing are contained by it and therefore upper joint of the tubing must be checked to see that it can stand these stresses.

Brand Name : Wellcare

Size : 5.5"- 9 5/8"

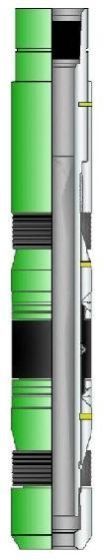

Wire Line Set Large Seal Bore Drillable Packer  is large bore version of Retainer Production Packer. They combine the features of the model “WCWSSDP with the largest bore through any drillable Packer.       Features/Benefits:   Solid, slim-line construction and a packing element system that resists swab-off. This provides a faster run-in time without fear of impact damage or premature setting, yet packs-off securely and permanently when the Packer is set. Two opposed sets of full-circle; full strength slips assure that the Packer will stay where it is set. Unique interlocked, expandable metal back-up rings contact the casing and create a positive barrier to Packing Element extrusion. The largest possible opening through a drillable Packer.

Size : 4.5"- 9 5/8"

Brand Name : Wellcare

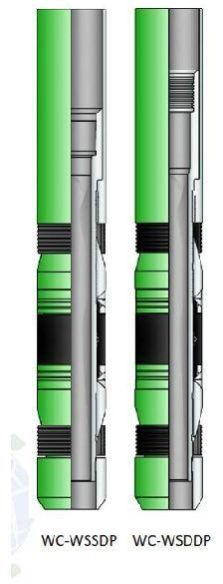

The Wire Line Set Drillable Packer is Permanent Production Packer is a high performance permanent production packer. It is frequently used as a high-performance squeeze or as a permanent or temporary bridge plug. The standard version of the Wire Line Set Drillable Permanent Production Packer has a 70 hard nitrile packing element and is rated at 10,000 psi differential pressure up to 300°F. For bottom hole temperatures between 200°F and 400°F, a 90 hard packing element should be specified.        Features/Benefits:   Proven reliability Slim-lined  Solid construction that makes possible a significant savings in rig time by providing a faster run-in without fear of impact damage or premature setting Two opposed sets of full-circle, full-strength slips A packing element that resists swab off but packs off securely when the packer is set A smooth, continuous ID sealing bore Unique Interlocked expandable metal back-up rings that contact the casing creating a positive packing element extrusion barrier

Brand Name : Wellcare

the wire line entry guide is designed to be run on the bottom of the tubing string. It will aid wire line tools that have passed out the bottom of the tubing to re-enter without hanging up.

Brand Name : Wellcare

Condition : New

Application : Oil Drilling Industry

Consists of a hinged collar radiating into bristles. Each bristle is made of hardened & tempered wire with two scratching elements. Available in the size range 4 ½ ” to 20” these scratchers improve the cement bond between the casing and porous formations while reinforcing the cement column.

Number Of Flower : Stop Collar

Material : Carbon Steel

Size : 4 1/2'' - 20''

Machine Type : Drilling Equipment

Use : Well Drilling

Feature : Secure the collars by hinged pins

Model Number : WC-SCWS

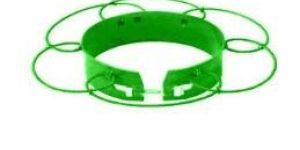

Consisting  of loop wire cables  of tempered steel laced  into a collar, these  wipers clean  the well bore  efficiently by permitting  removed filter cake to pass,  thereby  providing  excellent reinforcement to the cement column  especially under  close spacing. Available in size range 4 ½ ” to 20”.

The ‘X Line’ Selective Running Tool is designed to install subsurface control equipments using a type WC-LM-X Locking Mandrel. The selective features of the WC-X Line Running Tool allow the operator to install the down-hole device in a pre-determined WC-LNP-X Landing Nipple by adjusting the tool into the selective position. If the subsurface control is to be installed in the upper most landing nipple, the locking mandrel may be run with the keys in the control or location position. In addition to setting the WC-LM-X Locking Mandrel, the Running Tool may be used to locate WC-LNP-X Landing Nipples. The ‘R Line’ Selective Running Tool, similar in design, is also available in a wide range of sizes to install Type WC-LM-R Locking Mandrels in heavy weight tubing.

Model Number : Wc-rtx

Condition : New

Application : Industrial

Purity : Easy to Handle, Compact Design

Material : Metal

Total Carbohydrate : 1 Year

The ‘S’ Pulling Tool is a wireline service tool designed to remove retrievable subsurface devices with external fishing necks from a well. This tool utilizes a set of three dogs to engage the fishing neck.   This Pulling Tool is available in a wide range of sizes, with three reaches in each size. All tools can be supplied for standard or H2S service. By changing only the core of the ‘S’ Pulling Tool, it is possible to obtain ‘SB’, ‘SS’ or ‘SJ’ types Pulling Tools.   The “WC-S” Pulling Tool is designed to be released from the down-hole device by downward jarring. Therefore the “WC-S” Pulling Tool is particularly suited for use as a pulling tool when extensive jarring is required.   Because of the downward shear release of the “WC-S” Pulling Tool, it is particularly useful as a running tool for collar stops, pack-off anchor stops, and other subsurface devices landed against a positive no-go.

Total Carbohydrate : 1 Year

Material : Metal

Condition : New

Shape : S Shaped

Application : Industrial

The “WC-R” Pulling Tool is a wireline service tool designed to remove retrievable subsurface devices with external fishing necks from a well. This tool utilizes a set of three dogs to engage the fishing neck. The “WC-R” Pulling Tool is available in a wide range of sizes, with three reaches in each sizes. All tools can be supplied for standard or H2S service.

Condition : New

Total Carbohydrate : 1 Year

Shape : R Shaped

Application : Industrial

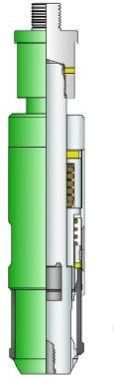

The Model : WC-GS Pulling Tool is a wireline service tool designed to retrieve flow control devices from well bore. Pulling Tool is designed to engage an internal type fishing neck. The tool is available in a wide range of sizes for standard, H2S or CO2 service well conditions. The Pulling Tool is designed to be released from the down-hole device by downward jarring.

Total Carbohydrate : 1 Year

Condition : New

Application : Industrial

Feature : Easy to use

‘N1’ shank is used in conjunction with the ‘C1’ running tool to run and land flow control equipments such as lock mandrels, blanking plugs, etc into landing nipples.

Model Number : Wc-n1

Total Carbohydrate : 1 Year

Material : Metal

Feature : Compact Design

Condition : New

Application : Industrial

Snap Set Compression Packer with & without hold down are retrievable set down packers featuring a bypass area through the packer and an integral unloaded. They are used as an upper packer in a single string two packer installation, for zone isolation, injection or production. Packers are used above either retainer production packers or retrievable packers.Benefits : Proven multiple packing element system. Operation of the packer is simple. No tubing rotation is required. A collate-type snap-latch prevents the packer from setting before landing the seal assembly or before setting a lower retrievable packer. Lower portion of the tool is rotationally locked to deliver torque in either direction through the packer. Applications : Onshore-Offshore work over. Production completion. High Pressure Water Injection. Casing integrity Testing & treating operations

Material : Metal

Total Carbohydrate : 1 Year

Usage : Industrial, Mechanical

Snap Set Compression Packer with & without hold down are retrievableset down packers featuring a bypass area through the packer and anintegral unloaded. They are used as an upper packer in a single stringtwo packer installation, for zone isolation, injection or production.Packers are used above either retainer production packers or retrievablepackers.Benefits : Proven multiple packing element system. Operation of the packer is simple. No tubing rotation is required. A collate-type snap-latch prevents the packer from setting before landing the seal assembly or before setting a lower retrievable packer. Lower portion of the tool is rotationally locked to deliver torque in either direction through the packer. Applications : Onshore-Offshore work over. Production completion. High Pressure Water Injection. Casing integrity Testing & treating operations

Material : Metal

Total Carbohydrate : 1 Year

Usage : Industrial, Mechanical

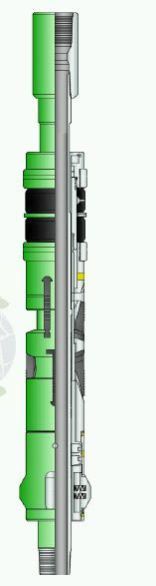

It is a general purpose packer for production, injection, zone isolation or remedial operations. It holds pressure from above or below while allowing the tubing to be placed in tension, compression or in a neutral condition. This is a Full-Bore Double-Grip Retrievable Packer with an integral un-loader. Opposed non-transferring dovetail Slips prevent movement of the Packer in either direction due to pressure differentials, while allowing landing of the tubing in tension, compression or neutral. The Lock segments serve as a releasable Lock Ring to maintain pack-off once the packer is set, and locks the un-loader in the closed position until the tool is released. The split Lock and Control Segments allow the tool to be set and released with right-hand rotation. The Retrievable Lok-Set Packers are compression set retrievable packers.   Benefits : Internal by-pass. Opposed dovetail slips positive set. Holds pressure from above or below. Can leave tubing in a tension, compression or neutral condition. Right hand rotation sets and releases the packer. Retracted dovetail slips. Converts to mechanical bridge plug with the addition of a valve. Optional packing element systems. Parts interchangeable with other manufacturers.   Applications : Production. Injection. Zone isolation operations. Note : The Model- WC-MECH-3L Lok-Set Packer is similar to the Model- WC-MECH-3 packer and is recommended when a larger than normal bore through the packer is required.

Material : Metal

Application : Industrial, Mechanical

Condition : New

Machine Type : Mechanical Packer

Total Carbohydrate : 1 Year

It is a general purpose packer for production, injection, zone isolation or remedial operations. It holds pressure from above or below while allowing the tubing to be placed in tension, compression or in a neutral condition. This is a Full-Bore Double-Grip Retrievable Packer with an integral un-loader. Opposed non-transferring dovetail Slips prevent movement of the Packer in either direction due to pressure differentials, while allowing landing of the tubing in tension, compression or neutral. The Lock segments serve as a releasable Lock Ring to maintain pack-off once the packer is set, and locks the un-loader in the closed position until the tool is released. The split Lock and Control Segments allow the tool to be set and released with right-hand rotation. The Retrievable Lok-Set Packers are compression set retrievable packers.Benefits : Internal by-pass. Opposed dovetail slips positive set. Holds pressure from above or below. Can leave tubing in a tension, compression or neutral condition. Right hand rotation sets and releases the packer. Retracted dovetail slips. Converts to mechanical bridge plug with the addition of a valve. Optional packing element systems. Parts interchangeable with other manufacturers. Applications : Production. Injection. Zone isolation operations. Note: The Model: WC-MECH-3L Lok-Set Packer is similar to the Model: WC-MECH-3 packer and is recommended when a larger than normal bore through the packer is required.

Material : Metal

Application : Industrial, Mechanical

Condition : New

Machine Type : Mechanical Packer

Total Carbohydrate : 1 Year

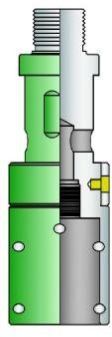

The model ‘WC-C1’ running tool runs flow Control devices into the well those have external fishing neck locks. A thread protector, which has the same OD as the tool body, makes selective setting possible. A seal bore locating ring provides Top No go setting. The ‘C1’ running tool has box-down connection to make up with ‘A’ or ‘N1’ type shanks as required.

Model Number : Wc-c1

Total Carbohydrate : 1 Year

Material : Metal

Application : Industrial

Condition : New

Purity : High Performance, Easy Handling

‘A’ shank is used with the ‘C1’ running tool to run lock mandrels into the well (keeping dogs retracted during running in). It can also be used as a probe carrier when probes are required during running in operations.

Model Number : Wc-a

Total Carbohydrate : 1 Year

Condition : New

Application : Industrial

Material : Metal

Feature : Smooth Performance

Warning : Run sufficient weight above the jars to prevent premature tool release when unloading pressure from below. If high differential pressure from below is expected, retrieval should not be attempted on wireline or sand line. An Emergency Release is also provided for use when retrieving the tool on sand line or wireline in the event the tool will not release in the normal manner. Continued upward jarring will shear 50,000 lb Shear sub and allow retrieval of the tool string and retrieving head.

Number Of Flower : Crimping Tools

Application : Wire Stripper

The Wellcare Washover Safety Joint is manufactured to provide safe and easy release and makeup whenever disengagement from the washover string becomes necessary. This dependable, field tough tool is designed to transmit torque in either direction when placed in the washover string.Construction : The Wellcare Washover Safety Joint consists of a pin section, a box section, and a friction ring. The internal connection of the safety joint is a coarse acme thread used to facilitate easy packoff and reengagement. A knurled release ring between the box and pin sections maintain torsion integrity until back off procedure is initiated. An Oring seal contains pressure while the safety joint is made up.Assembly : To assemble, install the safety joint in the drill string and make up the service connection to a torque of approximately 60 to 75% of the string connections. In washover strings, the safety joint should be located between the drill pipe and the washover pipe. Wellcare Washover Safety Joints are provided with a tool joint box thread up and a washover pipe pin thread down. To disengage the safety joint while down hole, place pipe in tension and apply left hand torque. Hold torque while slowly lowering pipe until safety joint breaks. Continue to unscrew safety joint to the left. To reengage the safety joint, lower pipe until pin section of safety joint lands on box section. Apply one point of weight. Rotate to the left one or two turns. Then rotate to the right until torque builds up, indicating safety joint is made up.

Condition : New

Material : Stainless Steel

Application : Industrial

  Guides are threaded bottom subs for Seal Bore Packers, and can be ordered separately or as an integral part of the Packer. They are available as box thread down to accommodate Mill out Extensions or  Seal Bore Extensions or pin thread down to make up with tail-pipe or  other accessories down the line. Mill out Extensions are furnished with the standard API tapered thread connections. Other threads are available on request.       For Packers that will eventually be milled out using the Packer Milling Tool, the Mill out Extension  is used to provide the length and inside diameter necessary to accommodate the Mandrel and Catch sleeve of a standard Milling Tool.

Brand Name : Wellcare

  Guide   Guides are threaded bottom subs for Seal Bore Packers, and can be ordered separately or as an integral part of the Packer. They are available as box thread down to accommodate Mill out Extensions or Seal Bore Extensions or, as pin thread down to Crossover to other tailpipe.       Mill-out Extension   For Packers that will eventually be milled out using the Packer Milling Tool, the Mill-out Extension  is used to provide the length and inside diameter necessary to accommodate the Mandrel and Catch sleeve of a standard Milling Tool.

Brand Name : Wellcare

Customization : Yes
