Calibration Equipment Dealers in Bhopal

(2 products available)
  • Premium
    SUD-600 Hot Dry Block Temperature Calibrator +3

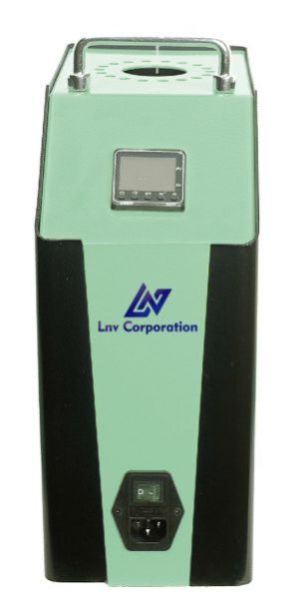

    SUD-600 Hot Dry Block Temperature Calibrator

    Get Price Quote

    • MOQ1 Piece
    • ModelSUD-600
    • Control Range50 to 600 °C @ 25°C
    • Resolution1°C
    • Control Accuracy+ 0.5°C
    • Thermal Stability+0.02°C at 50°C, +0.04°C at 300°C, +0.08°C at 600°C
    • Thermal Uniformity (Radial)+0.05°C at 50°C, +0.09°C at 300°C, + 0.10°C at 600°C
    • Hysteresis0.05 °C
    • Stabilization Time/settling time20 minutes after set point is achieved.
    • Cooling Time60 Min ( 600 °C to 50°C) @25°C
    • Heating Time15 Min (50°C to 600 °C ) @25°C
    • Power Supply230 V(AC), (50 Hz)
    • Power Consumption500 Watt
    • DisplayLCD, °C or °F user-selectable
    • Construction Size (H x W x D)320(H) x 145(W) x 290(D) mm
    • Instrument Weight5.3 Kg
    • EnvironEnvironmental operating conditionsmental operating conditions0 °C to 50 °C, 0 % to 90 % RH (non-condensing)
    • Immersion (Well) Depth150 mm
    • Insert Length145 mm
    • Insert OD35mm
    • Method of ControlSelf tunned PID controller
    • Specifications valid in environmental conditions5°C ... 25°C
    ...more
    www
  • Calibration Equipments

    Calibration Equipments

    Get Price Quote

    Calibration Equipments, Test & measuring Instruments, Environmental Chamber
