"sma connectors are high-performance sub miniature connectors for microwave frequencies. The threaded coupling insures uniform contact of the outer conductors, which enables the sma to minimize reflections and attenuation at higher frequencies while providing a high degree of mechanical strength and durability.

"this is the antenna for gsm modems. A small, high-quality, quad-band, standard sma terminated, cellular antenna. Has a length of 2 inches. specifications of our offered gsm antenna are : 90 degree connector gsm850e : 824 to 894mhz gsm : 880 to 960mhz dcs : 1710 to 1880mhz pcs : 1850 to 1990mhz

Rg8 coax cable that is flexible. rg8 flexible coax cable is 50 ohm and has a pe (ld) dielectric. Our rg8 coax is constructed with a 0.405 jacket made of pvc (nc). Rg8 coax has a shield count of 1 and the maximum frequency for this cable is 1,000 mhz. Rg8 coax cable has an attenuation at 1 ghz of 8 db and a maximum power of 190 watts at 1 ghz. Rg8 coax cables are part of over 40,000 rf, microwave and millimeter wave components. Rg8 cables and our other rf parts are available for same day shipping worldwide. Custom rf cable assemblies using rg8 or other coax can be built and shipped same day as well.

"Cable Construction Material Diameter 1.Inner conductor Copper Clad Steel or Bare Copper 1.29mm 2.Insulation Layer Foam Polyethylene (FPE) 5.72mm 3.Outer Conductor Single-sided Aluminum Tape and Tinned Copper 5.20mm Wire or Aluminum Magnesium Alloy Braiding 4.Jacket Polyvinyl Chloride(PVC ) 8.10mm ".

We are the main supplier of this product.

Thickness : 1.5-2mm

Certification : ISI Certified

Length : 10-20mtr

Application : Industrial

Conductor Material : Copper

Insulation Material : Rubber

Feature : Crack Free, Durable, High Ductility

"rg58 coax its n male to bnc male cable using rg58 coax.these n male to bnc male cable assembly uses a 50 ohm n for connector 1 and a 50 ohm bnc for connector 2. our male n to male bnc cable assembly uses a flexible cable type that is 50 ohm. "

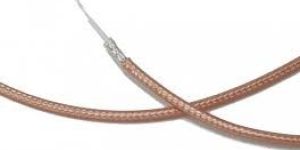

"rg316 coax its sma male to n male cable using rg316 coax. Its cable assembly uses a 50 ohm sma for connector 1 and a 50 ohm n for connector 2. our male sma to male n cable assembly uses a flexible cable type that is 50 ohm. Cable assembly is constructed with rg316 coax and the maximum vswr is 1.4:1." "connector series 1 : sma connector gender 1 : male connector polarity 1 : standard connector angle 1 : straight connector mount method 1 : none connector impedance 1 : 50 connector series 2 : n connector gender 2 : male connector polarity 2 : standard connector angle 2 : straight connector mount method 2 : none connector impedance 2 : 50 rf cable type : rg316 rf cable impedance : 50

"rg217 coax its n male to n female cable using rg217 coax. This cable assembly uses a 50 ohm n for connector 1 and a 50 ohm n for connector 2. our male n to female n cable assembly uses a flexible cable type that is 50 ohm. Cable assembly is constructed with rg217 coax." "connector series 1 : n connector gender 1 : male connector polarity 1 : standard connector angle 1 : straight connector mount method 1 : none connector impedance 1 : 50 connector series 2 : n connector gender 2 : female connector polarity 2 : standard connector angle 2 : straight connector mount method 2 : none connector impedance 2 : 50 rf cable type : rg217 rf cable impedance : 50

"rg213 coax its n male to n female cable using rg213 coax. This cable assembly uses a 50 ohm n for connector 1 and a 50 ohm n for connector 2. Our male n to female n cable assembly uses a flexible cable type that is 50 ohm. " "connector series 1 : n connector gender 1: male connector polarity 1 : standard connector angle 1 : straight connector mount method 1 : none connector impedance 1 : 50 connector series 2 : n connector gender 2 : female connector polarity 2 : standard connector angle 2 : straight connector mount method 2 : none connector impedance 2 : 50 rf cable type : rg213 rf cable impedance : 50

"rg174 coax cable single shielded with black pvc jacket rg174 coax cable that is flexible. These rg174 flexible coax cable is 50 ohm and has a pe (ld) dielectric. Our rg174 coax is constructed with a 0.1 jacket made of pvc. Rg174 coax has a shield count of 1 and the maximum frequency for this cable is 1 ghz. Rg174 coax cable has an attenuation at 1 ghz of 32 db and a maximum power of 16 watts at 1 ghz. rg174 coax cables are part of over 40,000 rf, microwave and millimeter wave components. "

"we offer patch panel antenna to our clients. These patch panel antenna are extensively demanded amongst our customers due to their various uses in suitable applications such as indoors for floor-to-floor connectivity or to provide a narrow beam. Besides this, we ensure to satisfy the entire requirements of customers. 2.4ghz, 8dbi panel mount indoor antenna:- freq. Range 2400-2483.5mhzgain 8dbiv.s.w.r

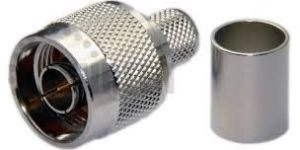

"n type connectors are very robust, reliable classical connectors with screw-locking system in medium dimensions. N connectors are characterized by high degree of protection, weatherprofaneness and excellent intermediation. Type n connectors have a miniature classification; however, it is medium size in use. Properly designed type n connectors provide low-loss interconnects to 11 ghz; optimized precision versions are available up to 18 ghz.

"mcx connector has smaller size compared with some rf connectors like sma connector, smb connector. Mcx subminiature snap-on connectors offer a stable and durable connection. The subminiature design allows other electronic assemblies to be densely packaged on the pcb. The mcx uses identical inner contact and insulator dimensions as the smb,the outer diameter of the plug is 140 inches, which is 30% smaller than the smb. Mcx provides broadband capability though 6 ghz with a snap on connector design. A range of connectors are available, including printed circuit board and cable connectors.

A loop antenna is a radio antenna consisting of a loop or coil of wire, tubing, or other electrical conductor with its ends connected to a balanced transmission line (possibly via a balun).

"lmr-600 coax lmr-600 coax. This n male to n male cable assembly uses a 50 ohm n for connector 1 and a 50 ohm n for connector 2. "connector series 1 : n connector gender 1 : male connector polarity 1 : standard connector angle 1 : straight connector mount method 1 : none connector impedance 1 : 50 connector series 2 : n connector gender 2 : male connector polarity 2 : standard connector angle 2 : straight connector mount method 2 : none connector impedance 2 : 50 rf cable type : lmr-600 rf cable impedance : 50

"lmr-400 is designed for flexibility, low loss, rf shielding, and weatherability. lmr-400's cable design enables the tightest bend radius for any cable of similar size and performance. the cable has the lowest loss of any comparable cable. With 90 db of rf shielding this cable is suitable for applications with a large amount of emi. Lmr-400 can be installed both in and outdoors. use times microwave brand lmr-400 cable for any application (e.g. Wll, gps, lmr, wlan, wisp, wimax, scada, mobile antennas) requiring an easily routed, low loss rf cable. Lmr-400 is a drop-in replacement for rg-8. Select your cable length and specify the required connector during checkout. cable type: lmr-400 impedance: 50 ohm center conductor: bare copper covered aluminum (bccai) jacket: polyethylene (pe) outer diameter: .405 inch indooroutdoor rated drop-in replacement for rg-8 attenuation @ 900 mhz100 ft: 3.9db100ft attenuation @ 2.4 ghz100 ft: 6.65db100ft any application (e.g. Wll, gps, lmr, wlan, wisp, wimax, scada, mobile antennas) requiring an easily routed, low loss rf cable max continuous length: 1000 ft"

"lmr 240 coax features & benefits: flexibility & bending: lmr 240 coax cable is manufactured with a flexible outer conductor, allowing for the tightest bend radius of any cable of similar size and performance. Low loss: lowest loss of any flexible cable; comparable loss to semirigid hard-line cables rf shielding: 50 db greater than typical single shielded coax (40 db) - multi-ply bonded foil outer conductor rated conservatively at 90 db weatherability: lmr 240 coax is designed for outdoor exposure and is uv resistant. Lmr 240 is built to be long-lasting and offers a life expectancy of over 20 years."

"low loss flexible lmr-200 outdoor rated coax cable double shielded with black pe jacket lmr-200 coax cable that is flexible.its is 50 ohm and has a pe (f) dielectric. Our lmr-200 coax is constructed with a 0.195 jacket made of pe. Lmr-200 coax has a shield count of 2, a rf shielding of 90 db and the maximum frequency for this cable is 5.8 ghz. Lmr-200 coax cable has an attenuation at 1 ghz of 10.5 db. lmr-200 coax cables are part of over 40,000 rf, microwave and millimeter wave components.

Number Of Flower : Lmr Cables

Application : Networking Use

Thickness : 2.5-3mm

Packaging Type : CE Certified

Upper Material : PVC, Rubber

Feature : Crack Free

Inner Material : Copper

"lmr-195 flexible 50 ohm coax cable with pe jacket is rated for a 5.8 ghz maximum operating frequency. This 50 ohm 0.195 inch diameter and low loss flexible coax cable is built with a shield count of 2 and rf shielding of 90 db. Fairview microwave lmr-195 coax is constructed with pe (f) dielectric and a maximum operating temperature of 85 degrees c. Times microwave lmr-195 coax cable specs for this wire properties can be found on its rf coax cable lmr-195 datasheet pdf specifications above. Lmr-195 cable is part of more than one million rf, microwave and millimeter wave parts in stock at fairview. This times microwave low loss lmr-195 coax cable is ready to buy and can be shipped worldwide. Fairview also maintains a wide selection of other radio frequency twinaxial and coaxial cable types that ship same-day from our allen, tx warehouse in the as with the rest of our other rfmicrowave and millimeter wave components."

"low loss flexible lmr-100-pvc indooroutdoor rated coax cable double shielded with black pvc jacket lmr-100-pvc coax cable that is flexible. Its flexible coax cable is 50 ohm and has a pe dielectric. Our lmr-100 coax is constructed with a 0.11 jacket made of pvc. Lmr-100 coax has a shield count of 2, a rf shielding of 90 db and the maximum frequency for this cable is 5.8 ghz. Lmr-100 coax cable has an attenuation at 1 ghz of 24 db. Lmr-100-pvc coax cables are part of over 40,000 rf, microwave and millimeter wave components. "
