GPS Antenna Dealers in Bhopal

(5 products available)

All IndiaBhopalDelhi Bangalore Meerut Mumbai Hyderabad Chennai Bhavnagar Noida Gandhinagar

Premium
+5
IRNSS L5 GNSS Screw Mount Panel Antenna

350 - 850 / Piece

MOQ100 Piece
Frequency1176.45MHz
Number Of FlowerScrew Mount Antenna
Brand NameETEILY
MaterialPlastic
Gain28db±3db
ConditionNew
ApplicationDomestic Use, Industrial Use
SKUET-L5SC-1L3-SMS
TechnologyGPS L5
ConnectorSMA Male Straight
MountingPanel/screw/Permanent
Cable TypeRG174

An IRNSS L5 GNSS screw mount panel antenna is designed for receiving signals from the Indian Regional Navigation Satellite System (IRNSS) and other GNSS (Global Navigation Satellite System) signals, specifically in the L5 band. Here’s a breakdown of what you might need to know about this type of antenna: Key Features and Specifications Frequency Band: IRNSS L5 Band: Operates in the L5 frequency band (around 1.176 GHz to 1.196 GHz). GNSS Signals: Supports other GNSS signals in addition to IRNSS, such as GPS L5, Galileo E5, and GLONASS. Mounting Type: Screw Mount: Provides a secure installation. Typically, these antennas have a flange with screw holes for mounting on panels or enclosures. Antenna Type: Panel Antenna: A flat, surface-mount design suitable for applications where the antenna needs to be mounted on a panel or inside an enclosure. Connector Type: Ensure compatibility with your GNSS receiver. Common connectors include SMA, BNC, or TNC. Check the connector type of the antenna and match it with your equipment. Gain and Performance: Look for the gain specification to understand how well the antenna will pick up signals. Higher gain generally means better performance, especially in challenging environments. Power Supply: Some GNSS antennas are active and require a power supply to amplify the signal. Verify if the antenna needs power and whether it comes with the necessary power adapter. Cable Length: Ensure the cable length is appropriate for your setup. If the antenna is mounted in a location far from the receiver, you might need a longer cable or an extension. Installation Tips Placement: For optimal performance, the antenna should have a clear line of sight to the sky. If it's inside an enclosure, make sure it doesn’t obstruct the signal too much. Orientation: Panel antennas often need to be oriented correctly to ensure proper reception. Follow the manufacturer's recommendations for orientation. Environmental Considerations: Ensure the antenna is suitable for the environmental conditions it will be exposed to, such as temperature extremes or humidity.

...more
www

Eteily Technologies India Pvt Ltd

Vidya Nagar, Bhopal

GST 9 yrs 4.8 (12)

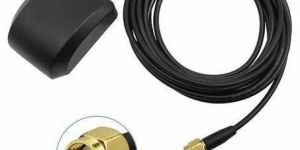

GPS Active Antenna

Get Price Quote

We are offering gps active antenna. （i） dielectric antenna center frequency 1575.http://members.indianyellowpages.com/manage-products.php42mhz±3 mhz v.s.w.r 1.5:1 band width ±5 mhz impendence 50 ohm peak gain ＞3dbic based on 7×7cm ground plane gain coverage ＞-4dbic at –90°＜0＜+90°(over 75% volume) polarization rhcp （ii） lna/filter lna gain (without cable) 28db typical noise figure 1.5db filter out band attenuation (f0=1575.42 mhz) 7db ｍin f0+/-20mhz ; 20db ｍin f0+/-50mhz; 30db ｍin f0+/-100mhz v.s.w.r ＜2.0 dc voltage 3.0v to 5.0v dc current 10ma max （iii）mechanical weight ＜120gram size 48x39x14.1mm cable rg174 3meters, connector sma male mounting magnetic base housing black （iv）environmental working temp -40℃~+85℃ storage temp. -45℃~+100℃ vibration sine sweep 1g(0-p)10~50~10hz each axis humidity humidity95%~100%rh weatherproof 100%waterproof
...more

Feye

Chunabhatti, Bhopal

14 yrs
GPS Antenna

Get Price Quote

MOQ5 Piece
Antenna TypeGPS
Country of OriginIndia
Frequency1575.42Mhz/GPS/IRNSS/GLONASS/L1/L2/L5
ConnectorSMA Male Straight/CUSTOMISED
Cable TypeRg-174
Input Power50W

...more
I Connect

Bhopal

GST 3 yrs 5.0 (1)
GPS Navigation Antenna

Get Price Quote

GPS Navigation Antenna, Car GPS Tracker, GPS Personal Tracke

Connectwide

Bagh Sewaniya, Bhopal

14 yrs
GPS Magnetic Antenna

Get Price Quote

GPS Magnetic Antenna, RF Antenna, GSM Internal Antenna, MCX Connector

Feye

Kolar Road, Bhopal

9 yrs
