PCB Connector Dealers in Bhopal

(5 products available)
  • UHF Male to Male Coaxial Cable Connector +2

    UHF Male to Male Coaxial Cable Connector

    120 / Piece
    • MOQ5 Piece(s)
    • Number Of FlowerRf Cable Assembly
    • MaterialBrass
    • ShapeRound
    • CertificationISO 9001:2008
    • ApplicationResidential
    • Upper MaterialBrass
    • FeatureQuality Assured
    • description:rf coaxial cable,rp sma,male,straight, uhf,straight,male,rg142 cable rf coaxial cable,rp sma,male,straight, uhf,straight,male,rg142 cable used for wireless communication and wireless lan; application include mobile phone, pc, gps, network storage equipment, medical, lighting, remote control, etc; pre-assemblied with different rf connectors for choice. Size and cable length can be customized; from the oem original factory, same quality with much better price.
    ...more

    3AN Telecom

    Kolar Road, Bhopal
    GST 6 yrs
  • Premium
    UFL Male PCB Mount SMT Connector +5

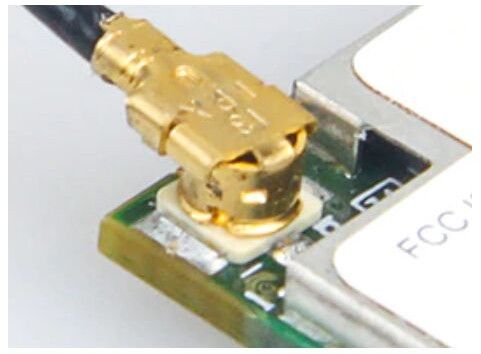

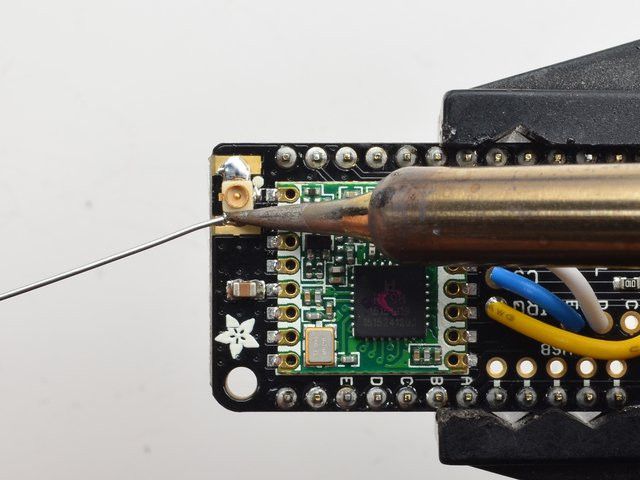

    UFL Male PCB Mount SMT Connector

    20 - 35 / Piece
    • MOQ100 Piece
    • Country of OriginIndia
    • Total Carbohydrate1year
    • Number Of FlowerPcb Connector
    • FeatureEasy To Connect, Electrical Porcelain, Proper Working, Shocked Proof, Superior Finish, Water Proof
    • GenderMale
    • CertificationCE Certified, ISI Certified
    • ApplicationElectronic Components Connecting
    • Connection TypeMale
    • ConditionNew
    • Brand NameETEILY
    • SeriesU.FL
    • Frequency6GHz
    • Mount MethodPCB Mount
    • PolarityStandard
    • Attachment MethodField Replaceable
    • PlatingGold Plated
    • A UFL Male PCB Mount SMT Connector is a specialized component used to create compact and reliable RF connections on a printed circuit board (PCB). Here’s a detailed breakdown of what you need to know about this type of connector: Key Features and Specifications Connector Type: UFL (Ultra Miniature Flexible): This is a very small coaxial connector commonly used in RF applications. The "Male" refers to the pin that protrudes from the connector, which fits into a corresponding female connector. Mounting Type: PCB Mount: Designed to be soldered directly onto a PCB. SMT (Surface-Mount Technology): This type of mounting allows the connector to be soldered on the surface of the PCB, which is typically used for automated assembly processes. Connector Design: Pin Configuration: The male pin will be soldered onto the PCB and typically fits into a female UFL connector. Body Style: UFL connectors can come in various body styles, such as straight or right-angle, depending on the design requirements. Mechanical and Electrical Specifications: Impedance: Typically 50 ohms, suitable for RF applications. Frequency Range: Ensure the connector supports the frequency range required for your application. Connector Size: UFL connectors are very compact, with a small footprint ideal for space-constrained designs. Material and Finish: Contact Material: Usually gold-plated brass or other high-conductivity materials. Insulator Material: Often made from high-dielectric materials like PTFE (Teflon) to support high-frequency signals. Housing Material: Typically metal or plastic, depending on the design requirements. How to Choose and Order Determine Your Requirements: Pin Count and Pitch: Ensure the connector's pin count and pitch match your PCB design. Orientation: Decide between straight or right-angle connectors based on your layout and space constraints. Frequency and Performance: Verify the connector’s specifications to ensure it meets the performance requirements of your RF application. Find a Supplier: Manufacturers and Distributors: Look for reliable suppliers who offer UFL connectors. Examples include companies like Amphenol, Molex, Hirose, and various electronic component distributors. Order and Testing: Request Samples: Before placing a bulk order, you may want to request samples to ensure compatibility and performance. Quantity and Pricing: Provide your specifications to get a quote based on the quantity you need. PCB Design: Ensure that your PCB design accommodates the dimensions and mounting requirements of the UFL connector. Application Tips Assembly: Proper soldering techniques are crucial to avoid damage to the connector or PCB. Ensure that your SMT process is compatible with the connector specifications. Mechanical Stress: Be mindful of mechanical stress on the connectors during and after assembly, as excessive stress can lead to connector damage or signal degradation. If you need more detailed specifications or have any particular requirements for your UFL Male PCB Mount SMT Connector, let me know!
    ...more
    www

    Eteily Technologies India Pvt Ltd

    Vidya Nagar, Bhopal
    GST 9 yrs 4.9 (7)
  • 868MHZ 3DBI RUBBER DUCK ANTENNA SMA MALE MOVABLE CONNECTOR

    868MHZ 3DBI RUBBER DUCK ANTENNA SMA MALE MOVABLE CONNECTOR

    170 / Piece
    • MOQ1 Piece(s)
    • Frequency824 - 960 MHz
    • Polarizationvertical
    • Country of OriginIndia
    • Maximum Input Power50
    • Working Humidity20
    • Connector typeSMA Male
    • We have different ranges of gsm antenna.this rubber duck antenna has gain of 3 dbi and have movable body.this gsm antenna designed primarily for use with gsm module and routers, with assisted gps. It does not require a ground-plane to connect to. It has a quality robust pc+abs housing.
    ...more

    Pantagone Satellite

    Kolar Road, Bhopal
    12 yrs
  • PCB Mount Connector

    PCB Mount Connector

    Get Price Quote
    • Frequency0-6GHz
    • Impedance50
    • Voltage Rating170Vrms
    • VSWR1.4 max
    • ConnectorMMCX Female
    ...more

    Pantagone Technologies India Pvt Ltd

    Chunabhatti, Bhopal
    9 yrs
  • Surface Mount Connectors

    Surface Mount Connectors

    1,000 / Piece
    • MOQ1 Piece(s)
    • ApplicationSurface Mount Connectors
    • UsagePower supply and Instrumentations
    • TypeHorizontal

    Hindustan Machine Automation

    Govindpura, Bhopal
    5 yrs
