Sakti Electronics Pvt. Ltd. Mancheswar, Bhubaneswar, Odisha

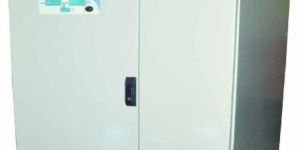

LINE INTERAVTIVE UPS The SAKTI Line Interactive UPS employs fast transfer line interavtive topology for maximum economy and reliability. During mains made, the mains voltage is filtered regulated and then fed to the board. The batteries are also charged during this mode. If a blackout or server under/ over voltge in the mains in observed, the UPS instantly starts supplying power to the load through its PWM inverter, which drawn DC power from the batteries. A high speed electronic switch completes the transfer to battery power in less than 4 mili-seconds, thus ensuring protection against even split second power interruptions.The SAKTI Line Interactive UPS is available in backup time ranging from 5 minutes to 4hours. With its easy to read display panel and sleek powder coated body, this UPS offers you both, economy & reliablility.   PROTECTIONS:   Sakti True On-Line UPS employs double conversion technology. Income mains is rectified and converted into suitable DC to charge the batteries at predefined rate and also supply power to the inverter. The inverter converts DC back into AC at precise voltage and frequency to feed the sensitive load. The conversion topologies vary depending upon the model. Each model ensures clean computer grade Sine Wave output, free from all disturbances like surges, spikes, glitches, brownouts etc. Series: Gamma series is compact full featured true On-Line UPS system. It employes phase control rectifier-cum-battery charger, which precisely controls & monitors all critical parameters ensuring optimum performance. Inverter section works in close loop with mosfet’s IGBT’s as main switching devices. Despite their considerable power supply capabilities, Gamma series has considerable small foot print for today’s computer room environments. Series: Sgma series is true On-Line UPS system, which utilizes state of the art Sine Wave pulse width modulation technology, to switch latest generation of Mosfet’s / IGBT’s. It generates Sine Wave Output with very low distortion at precise voltage and frequency. It employs an advanced auto tricle monitoring technique in its float cum boost charger and input power factor corrector circuit provides enhaced level or overall efficiency.

FEATURES :       Integrated Circuit Control without Relay     Fast Step-Less Voltage Correction     High Accuracy better than

Efficiency : :              97% (Appx.)

Frequency : :              50 Hz ±5%

APPLICATION :       .5 HP to 10HP Pumps         Motors         Compressors

With support form a team of committed professionals and modern facilities, we are engaged in manufacturing and supplying this Control Panel Board. Manufactured and designed using quality-assured components and contemporary technology, this control panel board has evolved extremely popular in markets of the day. Owing to its superior performance, precision engineering, enhanced operational efficiency, user-friendliness and easy installation, this Control Panel Board is made.  APFC: The Automatic Power Factor Controllers provides the cost effective solution for controlling the power factor in different installations. The controller protects the equipment by conserving the energy and avoiding the detrimental effects of over current. This helps in increasing the life of equipment and reducing the load of generator. The system is safe and reliable and allows automatic control of upto 12 capacitor banks.

CAPACITY : Upto 1500 KVA (III Phase)       Eliminates Stresses that come from normal electrical transients.     Meet stringent clean power requirements of the sophisticated/ sensitive equipments.     Effectively counter power line problems like Noise, Spikes, Surges, Transients and Neutral. APPLICATIONS :       CNC Machines     Bio Medical Equipments     Printing Machineries     Cell Phone Networks     Garment Equipment     Scientific Equipments     Textile Machineries     Oil & Vanaspathi Plants     Large Computer Installations

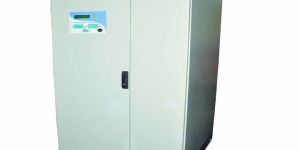

Line Interactive UPS employs fast transfer line interavtive topology for maximum economy and reliability. During mains made, the mains voltage is filtered regulated and then fed to the board. The batteries are also charged during this mode. If a blackout or server under over voltge in the mains in observed, the UPS instantly starts supplying power to the load through its PWM inverter, which drawn DC power from the batteries. A high speed electronic switch completes the transfer to battery power in less than 4 mili-seconds, thus ensuring protection against even split second power interruptions. The SAKTI Line Interactive UPS is available in backup time ranging from 5 minutes to 4hours. With its easy to read display panel and sleek powder coated body, this UPS offers you both, economy & reliablility.

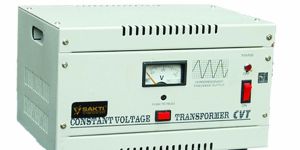

A well known name in the field of power conditioning equipments have designed & developed Constant Voltage Transformer (CVT) using Ferro-Resonant Transformer to provide instantaneous voltage correction, Sakti CVT ensures power supply free from Transients, Surges, Spikes & Other Electrical noises customary for sophisticated electronic instruments, specially computers & other microprocessor based equipments. CVT should be placed away from all magnetic display and storage devices like disketts, monitors & tapes etc, Ensure supply through 3 pin sockets with proper earth connection, Switch on the CVT first and then the attached peripherals and while switching off vice-versa. CVT should not be used for high inductive loads. Incase of supply from a generator, the frequency variation should not be beyond 50 ±1 Hz use CVT at min. 30% load. Switch off the CVT when not in use.

Sakti Electronics Pvt. Ltd. A well known name in the field of power conditioning equipments have designed & developed Constant Voltage Transformer (CVT) using Ferro-Resonant Transformer to provide instantaneous voltage correction, Sakti CVT ensures power supply free from Transients, Surges, Spikes & Other Electrical noises customary for sophisticated electronic instruments, specially computers & other microprocessor based equipments.   CAUTIONS: CVT should be placed away from all magnetic display and storage devices like disketts, monitors & tapes etc, Ensure supply through 3 pin sockets with proper earth connection, Switch on the CVT first and then the attached peripherals and while switching off vice-versa. CVT should not be used for high inductive loads. Incase of supply from a generator, the frequency variation should not be beyond 50 ±1 Hz use CVT at min. 30% load. Switch off the CVT when not in use.   APPLICATIONS :       Computers, DMPS, LPS & IP’s     FAX, ET, Telex, PCO Monitors & EPABX     Biomedical Equipments     Electronic Testing & Measuring Instruments     Telecommunication Equipments     Electronics R & D Labs     Colour Labs & Photographic Equipments     Colour TV, VCR & Home Theater

Frequency : :              50 Hz ±1%

Efficiency : :              90% (Approx.)

Frequency : :              50 Hz ±5%

Efficiency : :              85% (Appx.)

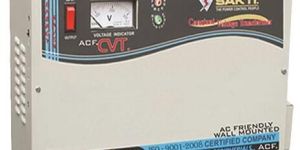

Number Of Flower : :              Automatic/ Manual Voltage Stabilizer
