FeatureFully Solid State,Low Power Consumption,No Radio Frequency Noise,Easy Flush Mounting
Storage TypeDry Place
ApplicationsControl Panels,Control Desk
Tone OptionsSingle Tone, Multitone

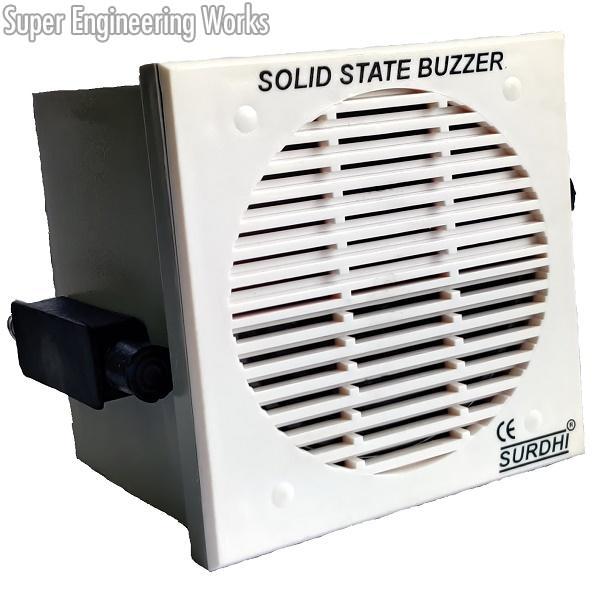

Surdhi Solid State Buzzer Offered by us comes in two categories
Single Tone : Only one tone
Multi Tone : Three different tones which can be selected with the help of rocker switch mounted on the backside of buzzer.
Our Solid state buzzer is designed to deliver maximum and clear sound with zero humming due to it's latest electronic circuit and elegant mechanical design. Specially the front mesh which spread all across the speaker inside, resulting very less obstacle for the sound to come out.
Salient Features :
Fully Solid State
Low Power Consumption
Generate no radio frequency voice
Suitable for AC & DC supply inputs.
Easy flush mounting.
Technical Specifications :
Brand : SURDHI

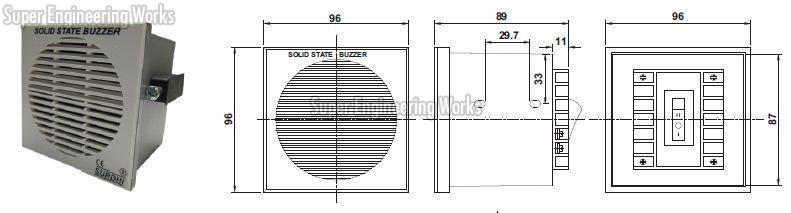

Panel Cutout Size : 92x92 Sq. mm
Mechanical Dimensions : 96x96x79mm3 (LxBxD)
Operating Range : ±10% of Rated Voltage
Sound Tone : Single Tone / Multitone
Operating Voltage Range & Cat No:
Multitone Buzzer :
60V AC/DC to 265V AC/DC-------SDV-BAM
24V DC/12V DC/or any other (Customized Voltage) ---------SDV-BDM
12V DC, 24V DC, 60V AC/DC to 265V AC/DC -----SDV-BU (all Voltages included in single model)
Single Tone :
60V AC/DC to 265V AC/DC----------SDV-BA
12V DC, 24V DC(or any other customized voltage)--------SDV-BD
Colour :
Body-Grey
Front Mesh-Off-white
Clamp-Black
Application :
Control Panels
Control Desk
