Lotus Machines ( Pvt ) Limited Ambala Chandigarh Highway

Mechanical Zooming for focusing on small area view at long distance or wide area beam spread for large area view at short distance. Easy to zoom, requires no maintenance. Additional weight increase in HHSL : 70 grams.

Operations : On / Off Range : 50, 100, 300, 500 mtrs. Can be fitted in any new/ old HHSL Can be used with all other accessories .

Utility : Detection of buried and surface laid cables in moist and moist soil conditions and in both conductive and non conductive (inductive) mode . It has many varied applications, encompassing Excavators, Plumbers, Electricians, Drainage, Irrigators, Telecoms & Energy Authorities. Transmitter which is the small box that induces a signal into the Pipe or Cable and the Receiver that picks up the signal from the Pipe or Cable. The Receiver is held by the operator and it shows him by means of an LCD screen that he is directly over the cable, he can also push a button and it will give him an electronic depth reading of the Pipe or Cable. By using this highly advanced technological product , the Buried Line Locator simplifies Underground Pipe & Cable Tracing, Locating & Fault Finding, making it easy to operate - even for the novice. The unit’s Transmitter uses low current output and a specifically tuned frequency to ensure against disturbing lines with equipment connected. The low power requirement also allows both the Transmitter and Receiver to operate on standard “AA” size batteries.     Technical Specifications:   ----------------------------------------------------------------------------------------------------------------------------------------------- Basically the locator set is made up of 2 separate units. Frequency range :    Multi-frequency ranging from  50 Hz to 85 KHz approx. Detection range  :    Length - Minimum detection of 50 meter long insulated  wire.                                     Depth – from 20 cm to 15 feet  ( above 4 meters )  in moist soil conditions Total  Weight of equipment :   less than 3 kgs Power source :  Battery Operated for  approx 11  hrs continuous operations.  Works on AA batteries. Alarm Display :  Audio(with and with out head phone), Adjustable volume, Visual  (  LED ,  LCD  )  for utmost accuracy Sensitivity settings :   Variable Power Control And Other Display  : On/off                                                                 Sensitivity display                                                                 Low Battery display                                                                 Auto diagnostic display for non-functioning of the unit. Carrying Case :    Light weight, rugged, securing the unit safe during  frequent transportation and easy to carry Operating  Temperature :  -25 degree  to  60  degree C Safety :   Compliant to  international human safety norms

    Is a  popular choice for  knowing the wind speed and direction for commercial airfield use. This rugged, stand alone comes complete with the pole, frame, windsock and windsock ties. These units are manufactured  by us in our facility reassuring only the best in quality and performance. We are India's biggest manufacturer of   Windsocks , currently  above 750 units in use by Indian Army The windsocks can be  customized to colour of socks  and its colour combination, size of socks, design of socks,  height of pole, material of pole and assembly options. It can also be available with  &  without lighting options.  We also design and manufacture Windsocks as per user requirement  &  specifications. Our windsocks are available in 2 nature  (a)  Fixed   (b)  Portable All our products assure of  extremely rugged design , conveniently screwable frame, aluminum/ SS/ MS  hoop ,   military sealed bearings  , and bail pivot on a stainless steel shaft for years of reliable and responsive action.

Is a popular choice for knowing the wind speed and direction for commercial airfield use. This rugged, stand alone comes complete with the pole, frame, windsock and windsock ties. These units are manufactured by us in our facility reassuring only the best in quality and performance. We are India's biggest manufacturer of Windsocks , currently above 750 units in use by Indian Army The windsocks can be customized to colour of socks and its colour combination, size of socks, design of socks, height of pole, material of pole and assembly options. It can also be available with & without lighting options. We also design and manufacture Windsocks as per user requirement & specifications.

4 swivel trolley wheels for free easy quick movement Heavy duty, powder coated under vehicle trolley Easy slot in front for camera to fit into by simple push Trolley rolled under a vehicle for a picture perfect view of the undercarriage. The low axis of this system makes it ideal for viewing under the smallest of vehicles. No need to bend / etc users neck. This system can also be used to view under office furniture, airplane seats and any location that can be reached with the low profile trolley.

Lotus Under Vehicle Trolley Search Mirror is an essential equipment for search / encounter operation & to locate hidden explosive devices/ suspected objects beneath Car, Jeeps, Trucks, Tables & Almirahs etc.     Standard Features ----------------------------------------------------------------------------------------------------------------------------------------------- It is fitted with a convex mirror of 11 inch. (for wide angle image.) Larger dia mirror of 14 / 16 inches also available. Fixed on the flat steel platform mounted on 4 no. poly carbonate caster wheels. Suitable foam padded protection for Mirror is also available (Optional). Wooden Shock resistant Packing box for the system (Optional).

Lotus Under Vehicle Trolley Search Mirror is an essential equipment for search encounter operation & to locate hidden explosive devices suspected objects beneath Car, Jeeps, Trucks, Tables & Almirahs etc.It is fitted with a convex mirror of 11 inch. (for wide angle image.) Larger dia mirror of 14 16 inches also available. Fixed on the flat steel platform mounted on 4 no. poly carbonate caster wheels. Suitable foam padded protection for Mirror is also available (Optional). Wooden Shock resistant Packing box for the system (Optional).

Tripod Stand for Detachable HHSL Telescopic Portable Adjustable Tripod Stand extendable upto 3 mtrs for detachable type light for 3 axis 3600 Manual Rotation.

Thermal cutter is required to make triangle shape hole in plastic ( 5 mm thick ) , Rexene, cloth etc. The aim is to melt the outer surface by employing heat on the skin of these containers thereby removing a triangular section creating and opening. Its an essential tool require to diffuse bombs etc   Technical Specifications:   ----------------------------------------------------------------------------------------------------------------------------------------------- Minimum temperature attained in 10 minutes is 500 deg c Equipment has equilateral triangle of side 4” , with thin and sharp cutting edges Inbuilt heating elemet , operatble on both AC and DC . Works on inbuilt SMF rechargeable battery with universal charger ( 70-240 V, 50-60 hz ) Comes with a wired / cordless remote of minimum distance of 25 meters, option available upto 100 metres It's light weight, portable devise Its possible to adjust the height of the equipment from 3 inches to 11 inches . Option also available till 220 cm. Self balancing tripod stand to stand on any time of hard/ soft ground It has 360 degrees horizontal movement , with locking arrangement. It has option to adjust the y axis / angle of the cutter upto 45 deg. Modular design, easy to carry , remotely operatable. Can also be mounted on any ROV . It has standard fitment . Customized design / specs / fitment also available.

Push to ON Button. TFC toggle switch (TFC=timer, flasher, continuous) Continuous mode (continuous on of light). Timer mode (On of light for fixed time period of 30 sec). Variable Auto flasher (to adjust blinking of light from 8 flashes /second upto 5 flash / minute. Variable Dimmer (to adjust light intensity from 0 to 100%). Inbuilt universal charger from 70-270 V AC, 47 - 60 HZ ( External charger option also available. )   LIGHT PROPERTIES   Beam of light Reaches approx.1 Km distance in clear weather conditions. Easily detects group of persons at 350 metres. Lux value at 350 metres distance of :           55 watt bulb: 8 lux (approx )/ 1 million c.p. at 5m.       100 Watt bulb: 16 lux (approx)/ 2million c.p. at 5m. Standard Physical Features (of all series & models)   ----------------------------------------------------------------------------------------------------------------------------------------------- Nylon Glass filled Heavy duty body with avg. wall thickness 2.5 mm. Option also available with ABS & Polycarbonate material. Halogen Bulb with Deep Parabolic reflector. Reflector front glass does not crack when droplets of water fall on it when lights is on. Standard Rechargeable Sealed Maintenance Free Lead Acid Battery. Optional Nimh, Li-on, Ni-cd battery also available. Integrated handle with Nylon Strap for shoulder resting. Integrated Electronic Circuits with inbuilt charger and programmable micro-processor controlled circuit. Water resistant, shock resistant, crack resistant body. It is ideal product for applications where high quality and intensity light is essentially required. The HHSL is light in weight, easy to carry with multiple charging options. HHSL can be customized in colours     Application ----------------------------------------------------------------------------------------------------------------------------------------------- Army/Paramilitary/Security forces (for border patrolling/checking/mounting of vehicles/special tasks/compound security). Police (for VIP security/routine checking/special searches ), Electricity Dept., (repairs & maintenance, emergency duties). Fire Brigades : (Emergency operations), Office-Factory security, Field Projects.

Lotus Telescopic manipulator us new state of the art electromechanical equipment designed for E.O.D. and similar applications. Small IED’s now can be salvaged with more flexibility and safety for the user also in areas which are difficult to access.   Fully Meeting MHA Specifications     Total equipment weight : 14.5 kgs . ( option : lesser weight also available ) Its usable with the help of a shoulder strap by a single bomb technician . Equipment offers a minimum safety distance of 4 meters. Claws are adjustable with opening distance of at least 15 cms ( 6 inches). ( option: available upto 25 cms ) The Manipulator is able to pick up a maximum weight of 10 Kg. when fully extended. DC battery pack power is above 30 minutes for continous operations. ( available upto 4 hours ) The battery is re-chargeable from AC supply. The telescopic manipulator has a break away tip arrangement, so that in case of possible explosion only the tip is damaged. The equipment is provided with various optional claws, which can be fitted and used as required depending on the shape of the object to be manipulated. Precise working grab- and telescopic functionality - Powerful grab with LED light and lock function A customized solution can also be made on request. Comes in a cushion padded suitcase

All our lights have option to be also charged from Solar Panel (of minimum capacity 8 Watt). We provide special DC charging socket with internal connections in new / old HHSL to make them Solar Power charging compatible. Inbuilt overcharging protection, 100% safe. We also sell new Solar Panels.

Security equipment, 5.55.0 inch TFT LCD ( slim line ) with audio-video colour display, conforming to ISEC standards with remote and ear phone. IR LED illuminated camera , conforming to IP 57 standards which illuminates even under 0 lux , Effective range of camera above 10 meters.

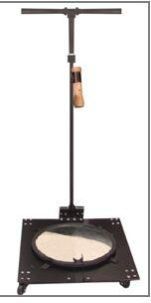

Search mirror, It is fitted with a convex mirror of 11 inch. (for wide angle image.) Larger dia mirror of 14 16 inches also available. Fixed on the flat steel platform mounted on 4 no. poly carbonate caster wheels.

All in two suitcase TOOLS for immediate major operation on an improvised Explosive Device. It is an ideal Technicians tool kit. Tools have been assembled after detailed study of all kind of requirements of Technicians when handling a . All tools high quality/ ISI marked . Cleaning kit provided.     1. Doctors Stethoscope : 01pc   2. BP Handle 6” + 1 with BP Blade set : 01pc   3. Scissors 6”, 7”, 8” : 01(each)   4. Dental Mirrors Length 6” +1, 10”+1 Mirror Dia:0.75” +0.25”  : 01(each)   5. Scalpel Length : 8” : 01   6. Artery Forceps Length: 6”, 7”, 8”, 9” : 01(each)   7. LED Torch with two pencil cells  (1 LED Spare incorporated in Torch). : 01   8. Torch medium with two cells with Krypton Lamps (1Spare Lamp incorporated in Torch), : 01   9. Hammer sledge (2 Kg), ball peen, claw Hammer : 01(each)   10. Pipe wrench 10” : 01   11. Hand vice Grip 6” : 01   12. Magnifying Glass : 01   13. Nipper cutter : 01   14. Tin cutter : 01   15. Nose pliers : 01   16. Stainless Steel Knife 80mm Blade : 01   17. C Clamp 4”, 6”, 12” : 01(each)   18. Spanner Adjustable 15+5, 30+5 mm : 01(each)   19. Hack saw 6” with Blade set. : 01   20. One Screw Driver set consisting of- : 01        a. Flat 2 +1, 4+1, 6+1, 8+1, 10+1 mm blade width : 01(each)        b. Flat offset 6+1, 7+1, 10+1 mm Blade width. : 01(each)        C. Cross point 150+5, 200+5, 250+5, 75+5 mm : 01(each)   21. Hand drill with drill bit set. : 01   22. Spanner 10 piece metric set. : 01   23. Spanner 10 piece imperial set. : 01   24. Soldering iron 6” with soldering flux & solder wire 50 gms. : 01   25. Sponge holder 10” : 01   26. Can opener 6” : 01   27. Tape Packaging 3”/50m and Electric Insulation Tape : 01   28. Duct Tape 3”/50m : 01   29. Nylon Strapping Tape 1” /50 : 01   30. Punch 5” : 01   31. Cold chisel 6” : 01   32. Cold chisel 8” : 01   33. Screw driver set (watch maker) : 01   34. Screw driver alignment : 01   35. Super glue adhesive : 01   36. Pliers cutter with grip long point nose : 01   37. Pliers cutter / grip combination : 01   38. Pliers flat jaw : 01   39. Pliers round jaw : 01   40. Cutter side 120+5, 150+5 mm : 01(each)   41. Fish line (50m) with hook (various sizes) : 01(each)   42. Tweezers 6” : 01   43. Probe (Straight & angular) : 01   44. Wire brush : 01   45. EOD multitool with crimper (Material High Strength Aluminum) : 01   46. Tape measuring 4+1 mtr. : 01   47. Non Metallic probe : 01   48. Kevlar hand gloves : 01   49. CO2 Portable Fire extinguisher 600 gm. : 01   50. Bar lever spike & cranked chisel ends 445 mm : 01   51. Bar lever cranked form & wedge ends 260 mm : 01   52. Square driver socket set. : 01   53. Pick 560 mm head : 01   54. Pry bar : 01   55. Hand Held Self Ignited Propane Gas Torch : 01   56. Plastic tweezers 6” : 01   57. Scriber double ended : 01   58. Glass Cutter : 01   59. Measuring tape spool -30m : 01   60. Brush Painting Nylon Bristles -1”,2”, 4” : 01(each)   61. Tin/sheet metal Snips / cutter – 2.5” blade : 01   62. Nylon cord 0.04” / 30m : 01   63. Plastic knife 6” blade : 01 64. Knitting needle plastic : 01

It deflates tyres and immobilize the vehicles of all types (truck, jeep, car, 2 wheelers etc.) The spikes are suitably spaced to puncture tyres of running vehicles at all speeds.Can be deployed of soft / hard / muddy /uneven surface.It comes in various length options 3 ,4, 5, 6 mtrs etc. Available with manual / motorized opening + closing system.Long product life with NIL recurring cost.Portable, easy to use , can be easily carried to remote locations.Customized size, colour, weight and design possible.It can be deployed by a single person within few seconds. It is foldable/collapsible into smaller size and can be re-packed within few seconds.Customized packing options - suitcase/metal case/soft case.     SPIKES Spikes are rust proof, mounted on heavy duty with light weight main frame in systematic way. Spikes are interchangeable & extra spikes are available on demand. Spikes are computerized designed to puncture the vehicles besides allowing fast escape of the air. MAIN FRAME The main frame is made of corrosion resistant strong light weight material for easy portability and long durability. It has heavy duty hooks and other fixtures.   How our spikes are better from other Spikes are Pyramid design to ensure that spikes dont bend due to weight of large vehicles ( car, truck, bus etc ) Special air escape gaps in the spikes to ensure air quickly escapes from the tube once gets inserted into the tyre. Spikes made from Heavy duty lead , placed on metal frame . They are rust proof, and if no crash entry happens, then its tested to last for 5-10 years in service. Criss Cross frame Designed with special location for placement on spikes on frame to ensure that spikes are not missed on crash entry by any 2 /4 6/ wheeler. Spikes are designed to pull out from frame ( without damaging the frame ) incase of crash entry and enter into the tyre and give maximum damage to the tyre repeately on every movement . Spikes are inter-repleacable easily. They can be easily replaced without any major tools. Due to spikes pull out and insertyion itno tyre, frame gets to use multiple times, since new spikes can be easily replaced with worn out spikes. Cost of spikes is minor in comparison to whole equipment. As only worn out spikes need to be replaced, its ensure the total equipment works for long time, and gives full value for money . ( Its similar to adding new buttons to shirt when old buttons are lost , and not throwing the shirt away ) . The total equipment does'nt need to be thrown incase of missing spike areas ( which can lead to security breach )

This set consists of Body Protector vest. with foam and rubber padding / inserts to protect shoulder front and back. High protection against Petrol Bombs, Water Canon, Knife, Stabs, Stone Pelting etc. Made out of Camouflage / Blue / Khaki cloth and are available in Small / Medium / Large sizes. Vest has front & back pockets with rubber inserts ( Optional Additional polycarbonate sheet of 2 / 3 / 4 mm sheet Also available with Elbows, Leg guards and Groin Guard, made from fire & water resistant cloth (Optional) Fire resistant cloth (Optional) This is not a bulletproof Jacket.

Lotus Riot Control Polycarbonate shield is very handy in providing safety to the user. They are favorite choice police, paramilitary and allied forces as their protective guards. They are light in weight, shock resistant and quite durable.It is shatter splinter proof having outstanding mechanical strength. Foam padding is provided for added protection and comfort on forearm, elbow and hand.

Its an essential tool require to cut wireS of bombs etc , insituation where the life of the person is not to be put to danger. The wire cutter is placed in appropriate position and remotely communicated to cut wire.   Technical Specifications:   ----------------------------------------------------------------------------------------------------------------------------------------------- Its able to cut electric wire upto dia 5 mm thickness remotely. (Option available till 10,15,20 & 25 mm ) Works on inbuilt SMF rechargeable battery with universal charger ( 70-240 V, 50-60 hz Comes with a wired / cordless remote of minimum distance of 25 meters, option available upto 100 metres It's light weight , portable devise. Its possible to adjust the height of the equipment from 3 inches to 11 inches. Option also avilable till 2.2 metres. Self balancing tripod stand to stand on any time of hard/ soft ground. It has 360 degrees horizontal movement , with locking arrangement. It has option to adjust the y axis / angle of the cutter upto 45 deg. Its operatable on both AC and DC Modular design, easy to carry , remotely operatable. Can also be mounted on any ROV

General:   Portable fibroscope search equipment with video monitor and endoscopic probe Endoscopic probe, Flexible , Protective and crush resistant, coiled steel sheath with PVC coating for optic fiber cable. Fuel / organic solvent / water / chemical resistant. Insulated and electric shock proof resistant. Effective length – 2 meter , Outer diameter – 8 mm Search Heads :      has miniature CCD Camera & 2 LED light source to view narrow, deep and dark cavities through the small aperture. Camera :   4.5mm , colour miniature CCD camera, housed within the search head tip with 4.84 mega pixels resolution. Lens:         FOV 100 degrees. The depth of field of view is 5 mm – 120 mm . Additional wide angle optical tip is provided with conventional optical tip. Cold light source, LED , bright enough to give clear images of objects placed in deep cavities. Battery:     12V  Lead Acid SMF  rechargeable battery.    Dimensions of control unit :   approx 300 mm x 200 mm x 125 mm Lamp life :   approx 5000 hours. , with brightness control . Additional spare lamps also provided. Display monitor:       Light weight TFT-LCD colour monitor 5 inch installed on the hand held unit. Controls Integrated with display monitor Probe Search head articulation in four directions , at 93 degrees. Optical magnification is 11X . 2 GB card capacity to store above 1100 images. It has facility of video image processing in inbuilt memory . The data card is easily removable from the control unit without using any tools Works on PAL / NTSC option Power source AC power – 160 V to 250 V; 50 Hz DC Power – Rechargeable battery ( Li-ion/ Ni-mh ) Battery of 2.5 hours operations each with one extra spare battery provided . Approx weight of battery : 300 grams Battery charging level indicator along with status of charging on the charger is indicated Push to On / Off switch for continuous operation . Membrane key pads for detailed controls Connection for image / video display in external monitor through wire. Equipment is shock / vibration proof , capable of operations at -20 deg C to + 65 deg C, Humidity : upto 95% (non-condensing) Weight of equipment :   approx 5 Kgs.       Carrying case:   Weather proof, shock proof moulded carrying case lined with protective foam. Warranty–3 years. Sufficient spares are available in stock and future availability till 7 years from date of supply after the warranty period. Training tools , Technical manual , Practical training , User’s handbook & literature on preservation / maintenance of equipment provided , along with procedure for packing, handling, transportation and storage with equipment.

Light weight and provides excellent safely.  It is shatter/ splinter proof having outstanding mechanical strength. 99% TransparencyUV stabilized, and with approx shelf life of 15-20 years.Foam padding is provided for added protection and comfort on forearm, elbow and hand.  Adjustable Nylon web forearms strap for secure and comfortable fit.  Excellent protection against brick batting, stone pelting, iron rod, knife, petrol bombs, cane attacks, as faced by police man during riot-protection and mob situation.  It come in a scratch resistant high quality carrying cum storing bag. (Optional)  .

Diameter :25 mm Length :various options of 50 / 55 / 60 / 75 / 100 / 105cm. etc. Thickness 3mm / 4mm / 5mm etc. Colour: light cream / brown / transparent / customized colour. Baton has rubber / Nylon / polycarbonate / plastic grip handle and rubber / polycarbonate base. They are virtually unbreakable.
