Unitek Power Controls Sector 45, Chandigarh

We are well-established organization successfully operating from Chandigarh(India); we are a reliable name in the sphere. To deliver the products in a safe manner at customer's end, we have exceptional warehouse management system. We have a voluminous warehouse, installed with all required facilities essential for safe storage of the orders. Features High efficiency Low footprint SNMP

We are offering Transformer-less, High efficiency and Low footprint SNMP K-1KVA-10KVA Unitek UPS to our worthy patrons. With our strong distribution network, we efficiently distribute goods to the desired place. Due to our commitment towards providing quality approved products to the clients, we source the raw materials only from the well-known and trusted vendors of the market.

We are connected with well-known transport providers to make sure the distribution of deliveries is done out without a problem and on time. We can cater to wholesale as well as retail requirements, as we are backed by a vast warehouse facility and a dependable inventory control and management system. Both enable us to maintain products' availability.

We are offering single Phase and three Phase Step down Transformer that are precision-engineered by skilled professionals. Our assurance towards providing damage-free products to the clients is achieved through our use of quality packing material. In addition, we maintain streamlined packaging system supervised by experts. We have a team of efficient personnel who sternly check the raw materials before final procurement. Thus, we ensure a qualitative array of products at customer's end.

As, our organizations is a suppliers of Silent Generator Canopy ; purchasers can place wholesale orders for it, and get them at the lowest prices. By following the international quality standards, we procure raw materials only from the trusted vendors. Thus, we make sure that our finished products are superior and flawless.   Technical Specifications Canopy Base Frame : Made from 3/4 mm thick HR sheet, duly reinforced. The Base is painted with Black Paint from aesthetic looks. Canopy Structure : Fabricated from 1.6 mm thick CRCA Sheet. The thickness of canopy will be 50/100 mm. Doors : Fabricated from 1.6 mm thick CRCA Sheet. All doors are provided with specially designed hinges and lockable handles/locks Roof/Ceiling : Fabricated from 1.6 mm thick CRCA Sheet. Insulation : P.U Foam/Rock wool of 96kg cubic meter. Conforming to IS 8183 covered by Fire resistance fiber tissue for sound absorption. Inside Cover : G.I. Perforated Sheet is used for holding the rock wool. Pre treatment : All canopy parts undergo chemical pre treatment (phosphating, degreasing etc.) before powder coating and baking thereafter. Powder Coating : The Canopy is duly powder coated with Pure Polyester powder for long life, durability and aesthetic looks. Air Inlet P&; Outlet : Specially designed louvers are provided for each of air flow inside the canopy making it efficient for the Genset to run smoothly in different load conditions. Ventilation : Natural/Forced ventilation Canopy Construction : Detachable construction for easy assembling and dismantling of canopy. Residential silencer : Specially designed roof mounted residential silencer shall be provided. Special Features : The Canopy is very compact, sleep, weather proof, sound proof and environment friendly. Totally enclosed and lockable. Special provision is made for easy accessibility. The size of doors is kept large making it very easy for maintenance and repair.

Owing to immense experience in this domain, we became efficient in providing quality Servo Voltage Stabilizer. We have high-tech and spacious storage unit that is incorporated with all required amenities vital for a safe storage of the products till the final send off. Supervised by efficient personnel, they ensure zero damage to the items to keep up the standards.

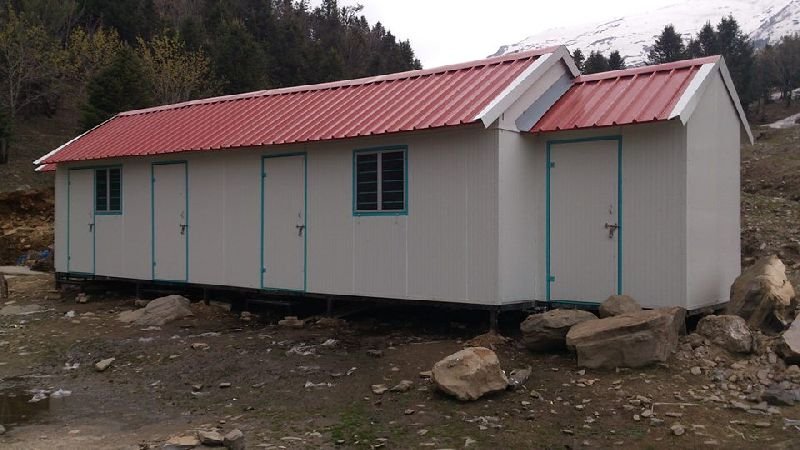

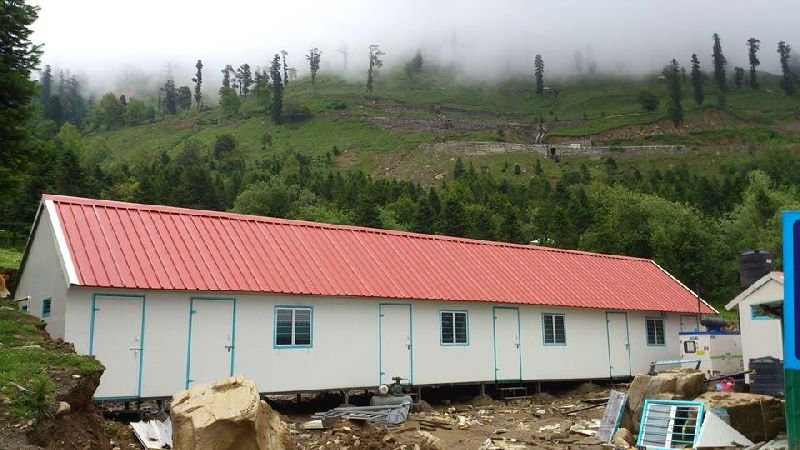

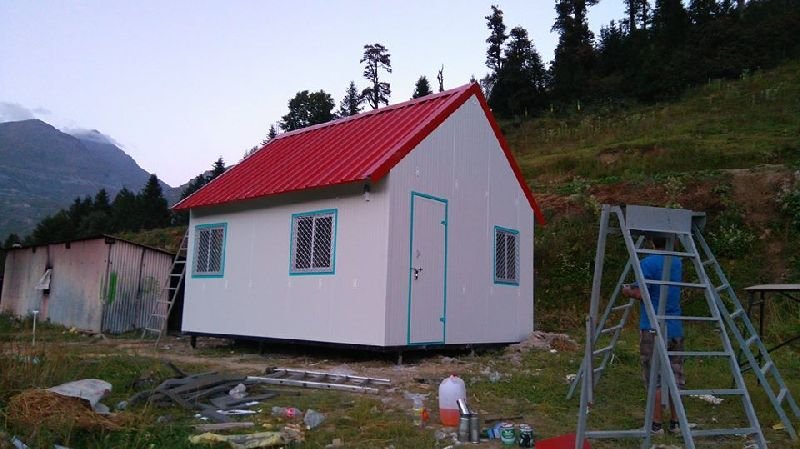

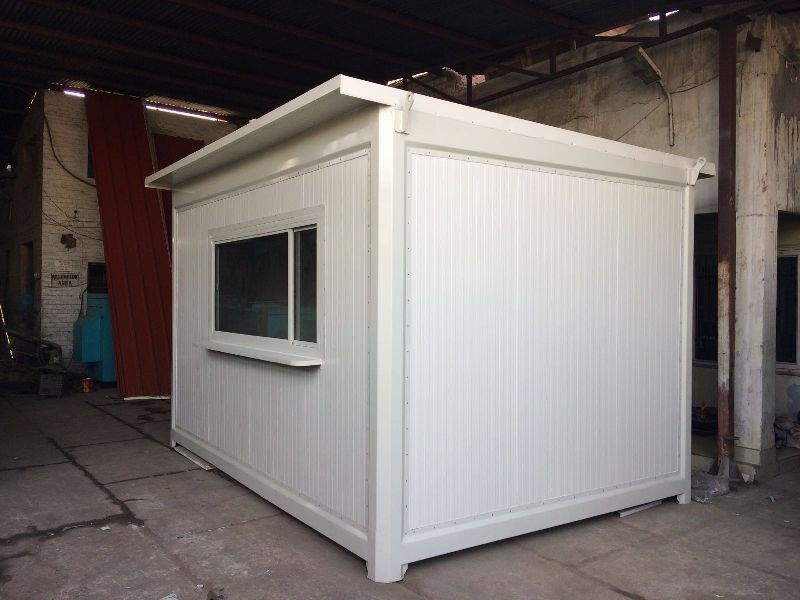

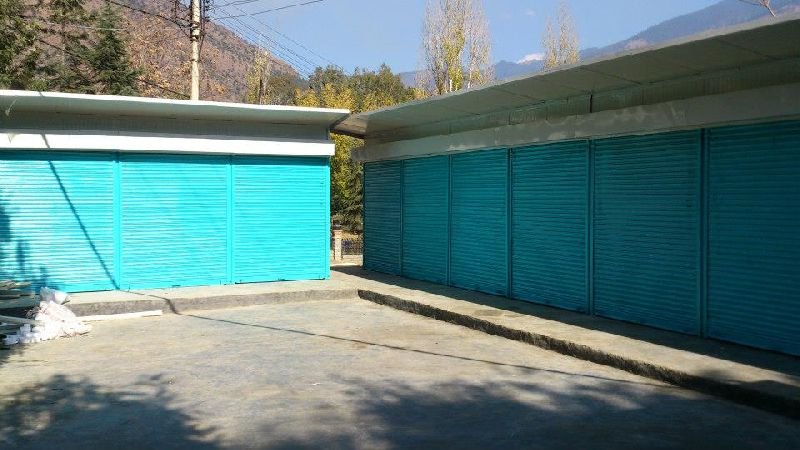

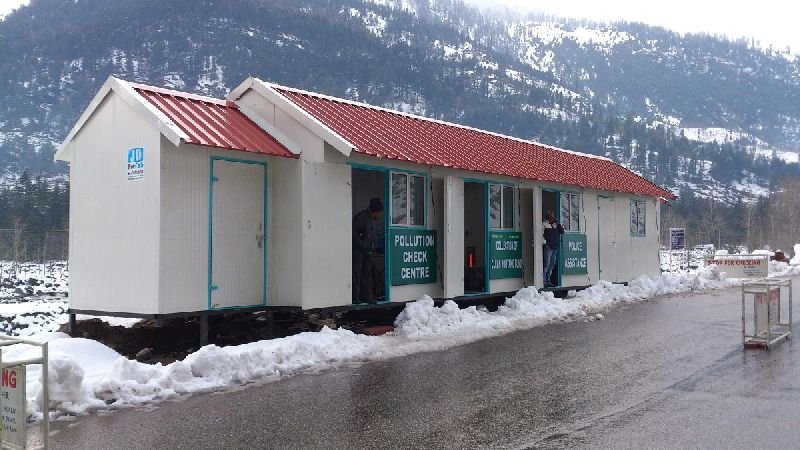

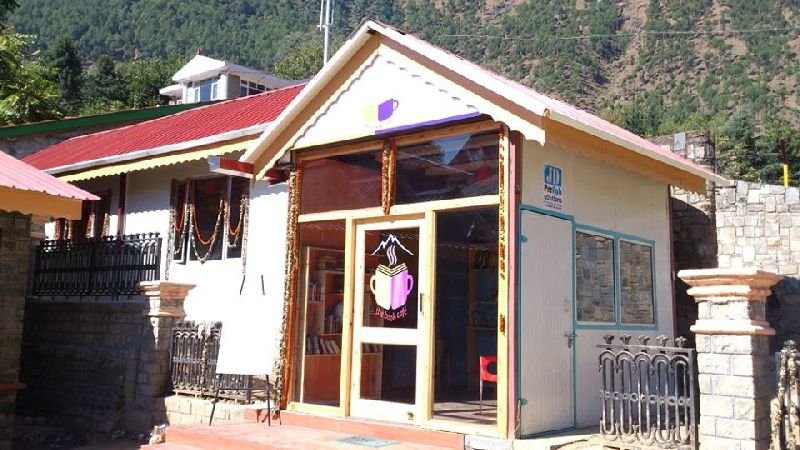

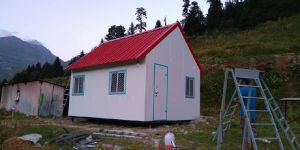

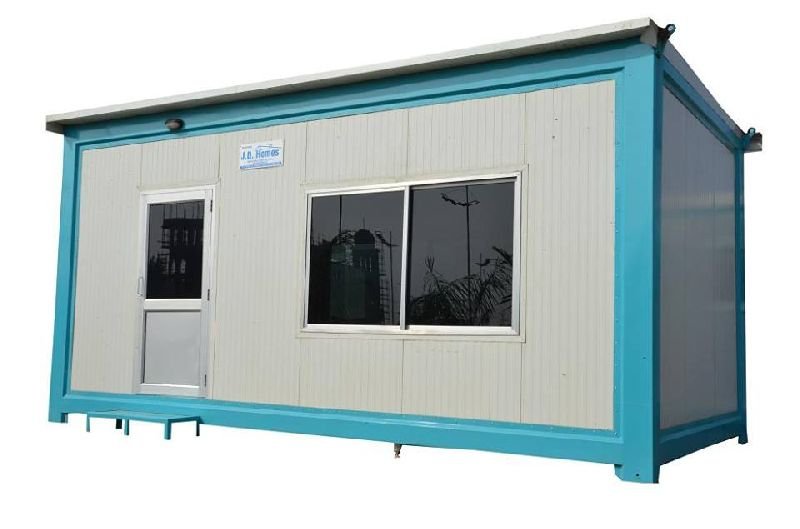

Providing and fixing of Polyurethane Foam sandwiched between Pre-painted Galvanized Steel sheets with panel thickness of 50mm short Rib configuration for extra strength with off white colour. The panel type will be tongue and groove with density of 40+-2 kg/m3. The Panels are unique tongue-n-groove joinery for air tight, effective panel to panel interlocking that is easy to install and provide effective sealing. High quality silicone sealant of white color will be applied thoroughly at each and every part of the structure in order to make it leak proof and properly sealed.Fully reinforced 75 x 75, 40 x 80 and 50 x 50 pipe structure comprising of trusses and purnals, welded with MIG welding machines shall be fabricated. The structure is duly chemically treated for thorough cleaning and thereafter painted with primer for best holding of the top coat.Supply and fixing of ‘L’ shaped pre painted Flashing of size (35x35mm), (50x50mm) and (70x90mm) as and if required for covering each and every corner complete with riveting.Supply and fixing of ‘U’ shaped (50x52x50) pre painted Flashing for covering each and every part pertaining to doors, windows and other parts wherever applicable complete with riveting.Windows : Suitable sizes Aluminum windows with metal frame and aluminum leafs shall be provided with welded bars for safety.Electricals : 1.5sq.mm wire of ISI / reputed make shall be provided with casing and capping. Tube Lights with plug and socket shall be provided as per requirements.

We are equipped with the upgraded machines and technology, thus, we are capable of making stern packaging of products. To keep the product safe from external factors, we make use of finest packaging material. We are open to receiving payment online as well as through traditional payment methods. Our terms and conditions for payment are transparent and we advise patrons to abide by them.   Technical Specifications Model : K 10   Rating : Capacity(kVA/kW) 10kVA : 10/8 15kVA : 15/12 20kVA : 20/16 25kVA : 25/20 30kVA : 20/24 40kVA : 40/32 50kVA : 50/40 60kVA : 60/48 Rectifier Technology : Thyristor BasedTechnology : 1 GBT BasedInput Nominal Voltage : 415 Vac Voltage Range : -15% to 10% from nominal Frequency : 50Hz Frequency Range : +/-3 Hz from nominal Fpower Factor : >0.92 Current Distortion (THDi) : < 5% Output Nominal Voltage : 415 Vac Frequency : 50Hz Voltage Regulation : +/-1% static, +/-5% dynamic 100% load Overload capacity : 125%for 2 minutes, 150% for 20sec Efficiency : >92% Crest Factor : 3:1 at full load Enclosure : IP 20 Static Bypass Switche : Optional Front Panel : Mimic with LED, LED/LCD indicators Environmental Operating temperature : 0°C to 40°C Altitude : <1000m Audible noise at 1 meter : < 60dB

With us, payment transactions will always remain secured, as we have adopted modern payment procedures that guarantee instant and hassle-free transactions. Headquartered in Chandigarh(India), we are acknowledged for providing excellent products domestically.   Technical Specifications : Model : K 1000 Rating : Capacity (kVA/kW) 1kVA : 1/0.8 2kVA : 2/1.6 3kVA : 3/2.4 5kVA : 5/4 Input Nominal Voltage : 230 Vac, -15% to +10% from nominal Frequency : 50Hz Frequency Range : +/-3 Hz from nomial Fpower Factor : >0.92 Current Distortion (THDi) : <6% Output Nominal Voltage : 230 Vac Frequency : 50Hz Voltage Regulation : +/-1% static, +/-5% dynamic 100% load Overload capacity : 125% for 2 minutes, 150% for 20 sec Efficiency : >92% Crest Factor : 3:1 at full load Enclosure : IP 20 Static Bypass Switche : Optional Front Panel : Mimic with LED, LED/LCD indicators Environmental Operating temperature : 0°C to 40°C Altitude : <1000m Audible noise at 1 meter : <60dB

Being a reliable name, we are focused towards delivering exceptional quality range, along with this, we follow strict guidelines and conduct regular quality examinations to ensure quality. We have hired proficient quality analysts having rich domain experience who make sure that only defect-free range will be delivered to buyers.   Specifications : The Isolation Transformer 3 maintains efficient power to operate even with the worst of power problems, providing superior dependability and realibility commercial/industrial environments in a small footprintPower Rating : 15 kVA - 500 kVA three phase output unit uses the latest DSP/PWM technology to provide the most advanced performance and reliability featuresInput : 208 or 480 VAC input 50-60HzOutput 208Y/120 or 480Y/277VAC <200 nanoseconds response time Codes : Listed to UL 924, meets NFPA 101, NFPA 70, NEC and OSHA standards.Protection : Provides overload, surge and undercurrent protection Surge protection against load and surges as defined in ANSI/IEEE C62 45 category A and B. Diagnostic And Maintenance DSP/PWM technology and DSPM Watchdog Software provides complete self diagnostic capabilities and LED monitoring Informative advanced Display and Alarms keep you in control of your emergency lighting environment 24/7 Cabinet Modular design enables flexible installation Forced air cooling for maximum reliability All systems are self contained. Installations Modular design and small footprint allow easy installation in electrical closet or other convenient locations. Phone assisted factory start-up standard for all systems Extended warranty available Special Applications DSPM offers numerous UL 924 optional devices to meet unusual or difficult application parameters ECM - Environment Circuit Module allows fixtures and lamps on the emergency circuit to be operated by normal switching and/or dimming devices in NON-emergency conditions Dimming Panel Interface allows use with emergency lights controlled by common dimmer panel. Warranty 1-Year full warranty on system electronics System 1-year on site warranty labor with pDSPM phone assisted start up 5-year power train warranty Maintenance contracts available

We are supported by a team of professionals who ensure that the offered lot is prepared using the best quality raw material. Also, they confirm that the material is sourced from the certified places. We have an in-house facility, which is used for making stocks. Laced with modern amenities, our storehouse keeps the products away from moisture, rainwater, sunlight, etc.   Technical Specifications :Aux : 415V.220AC (3/1 Phase) +/-20% /+/-10&, 50 Hz 8 Amps 20 Amps and above. Out put : 24V. DC supply and above Float Voltage : 220 VPC – 2.25 VPC Boost Volage : 230 VPC – 2.32 VPC Battery Type : Lead Acid/SMF Indications and Instruments : indications for 3/1 phase mains supply float/ Boost section AC Volt meter with selector switch DC Volt meter with selector switch and battery volt DC Amps meter for load DC Amps meter for Charging. Protection : MCB for mains incoming supply MCB for out put load Over load cut out by electronics circuit Over Voltage cut-out by electronics circuit Single phasing, under voltage for mains Housing and enclosure : Heavy duty sheet steel enclosure Finished with Power Coated paint. Mounting : Floor mounting Operation : Auto/Manual Control : CC/CV Close loop Rectifier : Full wave half controlled bridge Ordering Information : Mains supply Voltage Load voltage and current Battery type, Voltage and current Any optional equipments requird.
