Isac Enterprises Bhadravati, Chandrapur, Maharashtra

Our products include general and special purpose accelerometers, velocity sensors, eddy current probes and lvdts. They are used in a diverse range of applications, such as; automotive, aerospace, industrial processing, power stations and wind turbines.

The 4002alm-6 has been designed to perform virtually any trip amplifier function 'out of the box'. With input types including ma, volts, thermocouples and rtd's and others and a re-transmitted 4-20ma or voltage output as standard, the 4002alm-6 has every feature required built-in as standard. Functions such as latching, delay on, delay off and power on delays can all be called up from the built-in menus, no pc software or programming is required. The power supply can be anything from 16 to 30vdc.

We are offering trip amplifier. The 2002almhl is a dual setpoint trip amplifier which can accept inputs from any ma or voltage source and provides two alarm relay outputs. The setpoints are adjusted using potentiometers on the front panel and can be measured using a 0-10v signal on the setpoint terminals. The power supply can be 24vdc or 24vac and the relay outputs are mains rated.

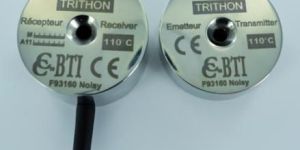

We are offering stainless steel safety switches decoding by „acotom®―2 process resists up to 110°c temperature auxiliary output for automation control or light static outputs stainless steel 316l for the food industry laser marking teflon cable technical datas : switching distance sn (closing): 9 mm switching distance sn (opening): ± 30° rotation hysteresismisalignment: + 2mm power supply: 24v dc; –15% +10%; current consumption: 30 madc safety outputs: 2 static outputs ;24v dc800ma bei 25°c auxiliary output: 1 pnpnc 250ma; oder 1 npnnc 250ma coding principle : acotom®2 temperature operation: -25°c to +110°c max. Switching frequency: 500μs resistance to vibration: 30 g 11 ms shock stress : 10-55 hz, 1,5 mm protection class: ip69k mttfddc : 430 years 94% (ac1: 600000; ac15: 350000 ) (1a30v dc) housing: stainless steel 316l connection: cable teflon 8-pin; 3612m standards: en60947-5-3, en954-1, en13849-1, en55022, en61000-6-2; 012006; en61000-6-4; 032007 electromagnetic immunity : acc. To iec 61000-6-2, acc. To ec 61000-6-4 weight emitterreceiver: 100g 300g safety classification: acc. To en iso 13849-1 : 1 switch up to ple cat.4 serie wiring possible with 30 switches on a safety relay, up to ple cat.3 certification: ce

We are offering Safety Switch Coded „acotom® easily replaces mechanical safety switches high switching capacity led status display of the correct code recognition technical datas : switching distance sn (closing): 7 mm switching distance sn (opening): 10 mm hysteresis/misalignment: +2 mm / ± 3 mm power supply: 24v ac/dc –15% / +10%, 50/60 hz current consumption: 40 ma/dc, 80 ma/ac safety outputs: 2 no outputs 48v dc, 250ma auxiliary output: nc coding principle : acotom® temperature operation: -20°c to +60°c max. Switching frequency: 2 hz resistance to vibration: 75 g / 11 ms shock stress : 10-55 hz, 1,5 mm protection class: ip67 mechanical life expectancy: 50.000.000 operations housing: star2e, yellow connection: cable 6-pin., 3m/6m/12m standards: en60947-5-1, en954-1, en13849-1 electromagnetic immunity : acc. To iec 61000-6-2, acc. To iec 61000-6-4 weight emitter/receiver: 25g / 35g safety classification: acc. To en iso 13849-1 : 1 switch up to plc cat.1 serie wiring possible with 30 switches on a safety relay, up to pl3c (pl4c if only one) certification: ce safety category = 1 b10d=2 000 000 (hop=24h, dop=360d/y, tcy=300s) in=50ma temperature=+25°c tm= 20 years checking period=1/year notice: the opto2s can not be connected to the safety relay awax26xxl with the automatic reset mode.

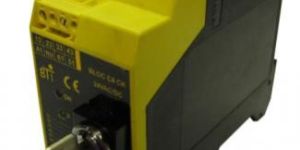

Captive key module : the key position overpasses the switch status version a key locked and turned : 4no+1nc 8a/250v key removed : 4nc+1no 8a/250v version b key locked and turned : 4nc+1no 8a/250v key removed : 4no+1nc 8a/250v versions a and b 1 line for test loop and 2 leds technical datas : power supply: 24v ac/dc; -15%/+10%, 50/60 hz current consumption: < 3,5 w (dc); < 6,5 va (ac) safety outputs: 4 no; 8a/250v ac auxiliary output: 1 nc; 4a/250v ac resistive min. Switching power : 50 mw electrical protection : surge protector temperature operation: -20°c to +60°c protection class: ip20 resistance to vibration: < 20 ms mttfd/dc : 90 years / 99.9% b10d : ac1: 860000, ac15: 300000, dc13: 300000 housing: polycarbonate, yellow connection: plug-in terminals dimensions (w x h x d) : 45 x 100 x 111 mm weight : 227 g standards: iso 13849-1 en 55022 en 60947-5-1 en 61000-6-2 : jan 2006 en 61000-6-4 : mar 2007 safety classification acc. To en iso 13849-1 : ple cat.4 certification: ce

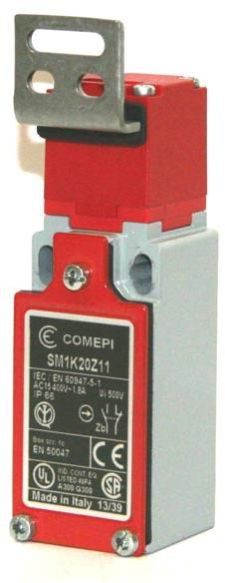

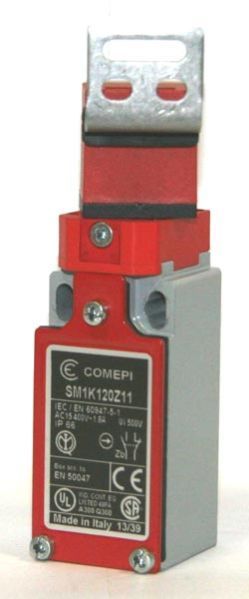

The range of comepi safety limit switches is constantly being expanded. To offer the best possible solutions to an increasingly demanding market, our research and development unit has always been attentive to the evolution of safety regulations (affecting both people and machinery), designing and creating a constantly updated range of specific devices. Comepi patented solutions allow us to be even more present in this ever-expanding field.

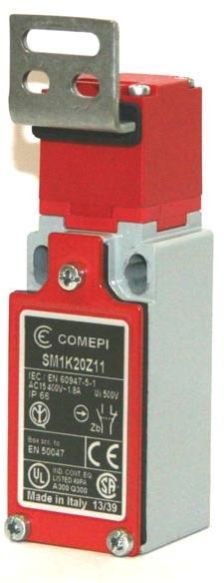

The range of comepi safety limit switches is constantly being expanded. To offer the best possible solutions to an increasingly demanding market, our research and development unit has always been attentive to the evolution of safety regulations (affecting both people and machinery), designing and creating a constantly updated range of specific devices. Comepi patented solutions allow us to be even more present in this ever-expanding field.

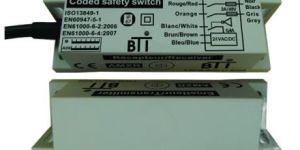

We offer rfid coded safety switches système rfid, infraudabilité totale travaille en environnement industriel métallique autocontrôle intégré (ne nécessite pas de boîtier externe) fonctionne avec boîtier awax sortie auxiliaire boîtier en pa6 téléchargement automatique du code à l’installation caractéristique : alimentation : 12 vdc-36 vdc ou 12 vac-27 vac consommation en courant : < 30ma contacts à 25°c rdc : 2no400ma-1ω et 1nf400ma-1ω courant min tension max. : 2no400ma-1ω et 1nf400ma-1ω portée décalage : suivant support 15-22mm 10-15mm débit maxi de production : 4000 codes par semaine température : -25 °c +70 °c indice de protection : ip67 taille l x p x h : emetteur : 92,5 x 17 x 25mm récepteur : 92,5 x 25 x 25mm poids (câble 3m) : emetteur : 77g récepteur : 210g courbure minimum du câble : rayon : 43 mm normes : mttfd = 40 years dc = 90 % ccf = 90 % tm= 20 years.

Portable vibration meters give you the ability and freedom to measure vibration at any point on a machine and often a simple device may be all that you need to confirm that your machinery is working within tolerance.

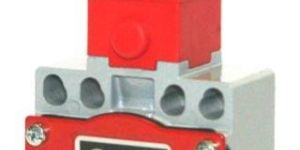

The range of comepi safety limit switches is constantly being expanded. To offer the best possible solutions to an increasingly demanding market, our research and development unit has always been attentive to the evolution of safety regulations (affecting both people and machinery), designing and creating a constantly updated range of specific devices. Comepi patented solutions allow us to be even more present in this ever-expanding field.

The range of comepi safety limit switches is constantly being expanded. To offer the best possible solutions to an increasingly demanding market, our research and development unit has always been attentive to the evolution of safety regulations (affecting both people and machinery), designing and creating a constantly updated range of specific devices. Comepi patented solutions allow us to be even more present in this ever-expanding field.

The range of comepi safety limit switches is constantly being expanded. To offer the best possible solutions to an increasingly demanding market, our research and development unit has always been attentive to the evolution of safety regulations (affecting both people and machinery), designing and creating a constantly updated range of specific devices. Comepi patented solutions allow us to be even more present in this ever-expanding field.

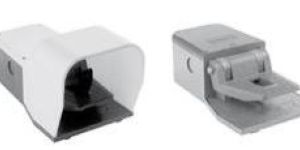

Offers the ps, pd and mp line of products. The ps and pd foot switches series, with plastic and aluminium casings, are ideal for harsher applications. The mp series of mini foot switches with plastic casings are used in situations that require small sizes. The comepi foot switches can be used on folding and shearing machines, machine tools, wrapping machines, riveting presses, etc. Different operation formats are available and include: free lever movement, lever movement subordinated to the disengagement of the safety device, and with a latch. Every application finds a solution backed up by the comepi guarantee of quality.

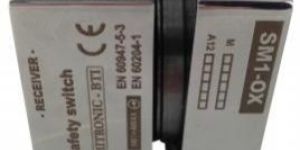

Decoding by „acotom®2 process static outputs to be monitored by the awax single (ref. Sm2 1e) or double (ref. Sm2 2e) built-in m12 connector requires a safety relay for the safety monitoring locked when un-energised technical datas : power supply: 24v dc; +10%-15% current consumption: 500ma safety outputs: 2 static output ; 40v acdc; 400ma auxiliary output: coding principle : acotom®2 holding force : 40 dan temperature : -25°c to +60°c shock stress : 30 g 11 ms max. Switching frequency: 10-55 hz, 1,5 mm protection class: ip54 mttfddc : 300 years 90% housing: stainless steel 316l electromagnets made in metal connection: built-in m12; 8-pin standards: en60947-5-3, en13849-1, en55022, iso18000-2 en61000-6-2; 012006; en61000-6-4; 032007 electromagnetic immunity : acc. To iec 61000-6-2, acc. To iec 61000-6-4 weight emitterreceiver: 800g 1200g safety classification: acc. To en iso 13849-1 : 1 switch up to ple cat.4 serie wiring possible with 30 switches on a safety relay, up to ple cat.3 certification: ce requires a safety relay for the safety monitoring locked when energised technical datas : power supply: 24v acdc; +10%-15% current consumption: 500ma safety outputs: 2 static output ; 40v acdc; 400ma auxiliary output: coding principle : acotom®2 holding force : 40 dan temperature : -25°c to +60°c shock stress : 30 g 11 ms max. Switching frequency: 10-55 hz, 1,5 mm protection class: ip54 mttfddc : 300 years 90% housing: stainless steel 316l connection: built-in m12; 8-pin standards: en60947-5-3, en13849-1, en55022, iso18000-2 en61000-6-2; 012006; en61000-6-4; 032007 electromagnetic immunity : acc. To iec 61000-6-2, acc. To iec 61000-6-4 weight emitterreceiver: 800g 1200g

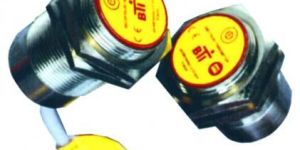

We offer coded safety switch coded „acotom® cuni housing m30x1,5 led status display of the correct code recognition cylindrical design technical datas : switching distance sn (closing): 6 mm switching distance sn (opening): nc hysteresismisalignment: +2 mm ± 30° in rotation power supply: 24v acdc –15% +10%, 5060 hz current consumption: 45 madc, 50 maac safety outputs: 2 no outputs 48v ac, 30v dc, 2 a auxiliary output: 1 pnpnc 250ma coding principle : acotom® temperature operation: -20°c to +60°c max. Switching frequency: 2 hz resistance to vibration: 10 g 11 ms shock stress : 10-55 hz, 1,5 mm protection class: ip67 mechanical life expectancy: 50.000.000 operations mttfddc : 50 years 90% housing: cuni connection: cable 8-pin., 3m6m12m standards: en60947-5-1, en954-1, en13849-1 electromagnetic immunity : acc. To iec 61000-6-2, acc. To iec 61000-6-4 weight emitterreceiver: 50g 195g safety classification: acc. To en iso 13849-1 : 1 switch up to plc cat.1 serie wiring possible with 30 switches on a safety relay, up to pl3c (pl4c if only one) certification: ce

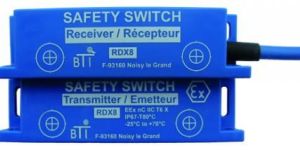

We are offering atex approved safety switches technical datas anatom 78s eex coding: acotom®2 process stromversorgung: 12v dc power consumption: 30 ma dc safety contacts: 2 no, static, insulated auxiliary output: 1 nc pnp 15 ma protection class: ip67 temperature: -20°c to +40°c switching distance: 10 mm hysteresis: 4 mm, typical dimensions emitter : 92 x2 3 x 18 mm dimensions receiver : 92 x 23 x 23 mm housing: polyamid 6 weight: receiver 120 g; emitter 80 g safety category: cat.4 acc. To en954-1 ple acc. To en iso13849-1 standards: en50014, en50020, en50039, en50284, en50281-1-1, en iso13849 -1, iso12100-1, iso14119, en13980, en60204-1

Our products include general and special purpose accelerometers, velocity sensors, eddy current probes and lvdts. They are used in a diverse range of applications, such as; automotive, aerospace, industrial processing, power stations and wind turbines.
