Agarwal Sons George Town, Chennai, Tamil Nadu

Worm drive hose clips are available in M.S.(zinc plated with yellow passivation) and in S.S. (Grade AISI 304) in the following size range:   10-13mm(5/16") to 600-625mm (25")   Bucket Bolts with big head from 1/4" x 3/4" to 3/8" x 2".       Conveyer Belt Fasteners in 10G thickness and sizes from 5/16" x 1 1/4" to 3/8" x 2 1/2"       Aluminum Rivets in Flat, Round (Snap) and CSK heads from 1/8" x 1/4" to 1/4" x 2" - 3mm x 6mm to 6mm x 50mm       Aluminium Blind (Pop) Rivets - POGO & INDIAN - 1/8" x 1/4" to 3/16" x 1"       Blind Nuts       Copper Rivets and washers - 1/8" x 1/4" to 3/8" x 2"       M Hooks - Lion - No 2 to 20       B Eyes - Lion - No 2 to 20   Cup Hooks - Nickle Plated and Brass - 3/8" to 2"       Cot Bolt - 3/8" x 6" to 1/2" x 7"       Rag Bolt set for wash basin fixing in 10mm and in 16mm available in SS also.     Cup Washers - Kiran - No 4 to 12

.Model No EVC-015B Domestic Wet and Dry Model with a capacity of 15Lts & a Rated Input Power of 1000W. .Model No EVC-015 Industrial Wet and Dry Model with a capacity of 15Lts & a Rated Input Power of 1000W. .Model No EVC-030 Industrial Wet and Dry Model with a capacity of 30Lts & a Rated Input Power of 1000W.

High Tensile Hexagonal Head fasteners are available in 8.8 and 10.9 grades for Bolts/Screws and grades 8 and 10 for nuts.       These fasteners are available in Metric, BSW, BSF, UNC and UNF threads.       Finishes: Black Phosphated, Zinc plated, Yellow Zinc Plated, Cadmium Plated, Nickel Plated, Chromium Plated and Hot Dip Galvanized.       Size Range       High Tensile Hex Bolts/Screws   M3 x 10mm to M42 x 400mm generally conforming to IS 1364 (Part 1) -2002 DIN 931 ISO 4014-1999 for Bolts & IS 1364 (Part 2) -2002 DIN 933 ISO 4017 for Screws 1/4” x 1/2” to 2” x 12” in BSW and BSF thread generally conforming to BS 1083-1965 1/4” x 1/2” to 2” x 12” in UNC & UNF threads generally conforming to BS 1768-1963   High Tensile Nuts   M4 to M52 generally conforming to IS 1364 (Part 3) -2002 1/4” to 2” in BSW and BSF thread generally conforming to BS 1083-1965 1/4” to 2” in UNC & UNF threads generally conforming to BS 1768-1963   High Tensile Washers   M12 to M48 generally conforming to IS 6649-1985   High Tensile Friction Grip Bolts (Structural Bolts)   M16 X 40 to M30 x 200 generally conforming to IS 3757 -1985 for Bolts and IS 6623-2004 for Nuts   Track Shoe Bolts with Square Nuts   5/8”UNF x 2 1/4” 3/4”UNF x 2 3/8” 7/8”UNF x 2 5/8”   Prevailing Torque Type Nuts with Nylon insert (Nyloc Nuts)   M3 to M48 generally conforming to IS 7002 - 2005 3/16” to 2” in BSW, UNC, UNF and BSF   EN-8 Threaded Rod   M10 to M24   Disk-Lock Washers M10 to M24

Fasteners made of stainless steel have become increasingly popular due to their inherent corrosion resistive properties. Their anti corrosive properties are directly attributed to the higher levels of Nickel and Chromium in the metal.   AISI Grades 202, 304 and 316 are the more commonly used material grades.   Stainless steel of grade 202 contains nickel of 5% and chromium of 18% and is the cheapest of the three grades. Fasteners of this grade are generally used for low budget uses and/or where the mating components are also not of a higher grade.    Stainless steel of grade 304 contains nickel of 8% and chromium of 18% and is the most commonly used grade for the production of fasteners. It possesses an excellent combination of strength, corrosion resistance and fabricability. Fasteners of this grade are being extensively used today in almost every industry.   Grade 316 contains Nickel of 10% and chromium of 16% added with 2% molybdenum which gives the metal very high anti corrosive properties. Fasteners of this grade are used mostly in the chemical and marine industry.   All kinds of fasteners are available in the above grades. The different types and their size range are summarized below.

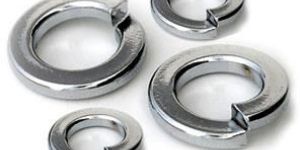

Spring washers are made out of spring steel and are hardened to HV 430 to 530 and are used along with almost every externally threaded fastener.   Flat (Rectangular) and Square sections are the generally used types of spring washers. Square section spring washers are used for use with fasteners with cylindrical heads and Flat section spring washers are used for all other types of heads. Spring washers of square section are lighter, and thereby, cheaper than the ones with a rectangular section.      These washers are normally available in Black finish. Other finishes like zinc coated (with hydrogen de-embrittlement) in Blue or Yellow passivation, Cadmium Plated, Nickle Plated, Bright Chromium plated and Phosphated are also available.   Size Range   Flat (Rectangular) Section 3 to 52 in MM series generally conforming to IS 3063-1994 and DIN 127 1/8” to 2” in inch series generally conforming to BS 1802-1951 Square Section 3 to 52 in MM series generally conforming to IS 6735-1994 din 7980 1/8” to 2” in inch series generally conforming to BS 1802-1951

Dowel pins are used to locate machine parts in a fixed position or to maintain alignment between them.They are of three types, viz. Spring dowel sleeves (hollow), Solid Dowel pins (hardened) and Taper Pins.

Size : 2 x 16mm to 12 x 100mm

Dowel pins are used to locate machine parts in a fixed position or to maintain alignment between them.   They are of three types, viz. Spring dowel sleeves (hollow), Solid Dowel pins (hardened) and Taper Pins.   We stock all the three types in the following size range; Spring Dowel Sleeve generally conforming to IS 5988-1970 hardened and tempered to 445 to 515 HV - 2 x 16mm to 12 x 100mm Solid Dowel Pins generally conforming to IS 6689-2003 with a hardness of 650 to 750 HV - 2 x 16mm to 20 x 150mm Taper Pins generally conforming to IS 6688-2005  - 2 x 16mm to 16 x 150mm Split Pins are used in a wide range of applications along with threaded and unthreaded fasteners as an additional safety locking arrangement to prevent accidental detachment of fasteners which may be caused by vibration or other such activity. Split Pins are made of low carbon steel to avoid breakage while bending and are available in Self finish and in Zinc coated finishes.   Size Range available is;  Split (Cotter) Pins in inch series with length measured from head to short length             - 1/16" x 1/2" to 1/2" x 6" Split Pins conforming to IS 549 - 2005 with length measured from neck to short length   - 1.6 x 10mm to 13 x 150mm    Flat Split Cotters conforming to IS 2638-1974, and, Bulb Type Flat Split cotters as per railway drawings are supplied against order.

Dowel pins are used to locate machine parts in a fixed position or to maintain alignment between them.They are of three types, viz. Spring dowel sleeves (hollow), Solid Dowel pins (hardened) and Taper Pins.Spring Dowel Sleeve generally conforming to IS 5988-1970 hardened and tempered to 445 to 515 HV - 2 x 16mm to 12 x 100mm.

Split Pins are used in a wide range of applications along with threaded and unthreaded fasteners as an additional safety locking arrangement to prevent accidental detachment of fasteners which may be caused by vibration or other such activity. Split Pins are made of low carbon steel to avoid breakage while bending and are available in Self finish and in Zinc coated finishes.

All types of Alloy steel Socket products are available in imported and Indian brands generally in 12.9 grade in black finish. These can be arranged in 8.8 and 10.9 grades and in other finishes also against order.   Socket products consist of;   Allen Cap Screws/Bolts M2 x 4mm to M42 x 500 generally conforming to IS 2269-2006, DIN 912 & ISO 4762 1/8” BSW x 3/8” to 1" x 12" generally conforming to BS 2470-1973 1/4” UNC x 1/2” to 1" x 12" generally conforming to BS 2470-1973 Allen CSK Screws M2 x 3mm to M24 x 150 generally conforming to IS 6761-1994, DIN 7991 & ISO 10642 1/4" BSW/UNC x 5/8" x 3" generally conforming to BS 2470-1973 Button Head Screws M3 x 4mm to M12 x 50 generally conforming to ISO 7380 & DIN 9427 Socket Set Screws (Grub Screws) M3 x 3mm to M20 x 50 generally conforming to IS 6094-2006, DIN 916 & ISO 4029 3/16" BSW x 3/16" to 5/8" x 1 1/2" generally conforming to BS 2470-1973 Low head Socket screws M4 x 8mm to M20 x 100 generally conforming to DIN 7984 & 6912   All of the above are also available in fine threads like UNF and BSF and can be provided against order.

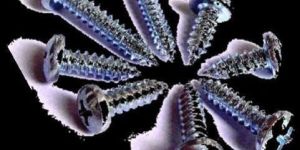

We specialize in self tapping screws of all types, shapes and sizes conforming to the relevant standards and specifications.   These screws are hardened and tempered to enable self tapping and are generally available in Bright Zinc Plated finish. Other finishes like Cadmium, Nickel, Chromium and Auto Black are supplied against order.   Screws with pointed ends (Type C) are more commonly used than the ones with a blunt end (Type F).   Self Tapping Screws are available in the following head types and generally conform to the following specifications; Slotted Pan Head to IS 7173/89, DIN 7971 AND ISO 1481/1983 Slotted CSK Head to IS 7170/89, DIN 7972 AND ISO 1482 Slotted Raised CSK Head to IS 7169/89 AND ISO 1483/1983 Slotted Round Head Pan Phillips (Cross Recessed) Head to DIN 7981 AND ISO 7049 CSK Phillips (Cross Recessed) Head to DIN 7982 AND ISO 7050 Truss Phillips (Cross Recessed) Head We stock slotted self tapping screws with Pan head, CSK head, Round head and Raised CSK head in types C & F and in type C for Cross recessed screws with Pan Phillips and CSK Phillips heads.   Brands Stocked : SECO-55, SHARP EDGE, EXPO and FIXWELL.   Size Range: No. 2 (2.2mm) x 4.5mm to No. 14 (6.3mm) x 75mm in slotted screws and upto No. 12 (5.5mm) x 60mm for Phillips head screws.   U Type Hammer Drive Rivets used mostly for number plates are also available.   Size Range: No 0 x 4.5mm to No. 6 x 13mm

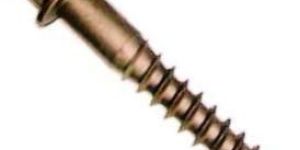

Besides the standard Nuts, Bolts, Screws, Pins, Rivets and Studs conforming to the relevant Indian Standard, our supplies to the various Railway departments have included many, specially made to order. products as per Railway drawings specially suited for use in Railway coaches and on rail tracks. We are an ICF approved source for their supply.   Some of these items are listed below; Fish Bolts & Nuts to RDSO drg nos T-1899, T-3549, T-11501, T-11502 & T- 11503. Rail Screw Split Cotters (Bulb Type) to Drg no EMU-3-2-048 & T-3-2-632 Hex Head Bolts for Centre Pivot arrangement to Drg no EMU/M-0-6-014. Hex Head Bolts for Centre Pivot arrangement to Drg no T-0-6-601 & T-0-6-614. Hex bolt assembly for Axle Box to Drg no EMU/M-0-2-008 Hex bolt assembly for Axle Box to Drg no T-0-2-608. Hex bolt assembly for Axle Box to Drg no MRB/DMC-0-2-005. Straining Bolt to Drg no. ICF/STD-3-5-009 Special Bolt to Drg no. T-1-0-628 Hex Bolts, Nuts & Washers for side buffer arrangement to Drg no. ICF/STD-2-2-009 Hex Head Screw to Drg no T-0-2-619 Special Screw to Drg no. T-0-1-616 Hex Bolt assembly to Drg no T-2-2-503 Hex Head Bolt to Drg no. SLR2-3-2-202 S.S. Worm Drive Hose Clip to Drg no. EMU/M-0-0-010 Washer to Drg No. ICF/STD-3-2-003 Stud with Washer to Drg No. Stack Screw to Drg no. QCA46970 Screw Ch. Head to Drg no QCA43970 Hex Head Cap Screw to DLW drg no TPE-13-045 Hex Head Cap Screw to DLW drg no TPE-13-044 Hexagonal Socket Head Screw to DLW drg no TPE-13-0026 Spring Washer to DLW drg. no. TPE-13-0022 Washers to Drg no SR/D/WC-38/BM Washers to Drg no SR/D/WC-4/B Tee Head Screw to CLW drg no. 4P 2081-01/BD

This Ludhiana based company prides itself in providing an entire range of screw drivers and pliers with quality comparable with the best and at easily affordable prices.   We are authorised stockists of PYE tools and carry stocks of almost their entire range of tools.   More popular among their range of tools as stocked by us are;                                                                                                 SIZE RANGE Combination (Cutting) Pliers                                         6" to 8" Long Nose Plier                                                                    6" Side (Diagonal) Cutters                                                       6" Circlip Pliers - Internal & External                                       7" Pipe Wrenches                                                               12" to 24" Wire Stripper & Cutter Nipper Cable Cutter Screw Drivers (-)                                                   2.5 x 50 to 10 x 600 Screw Drivers (-) Insulated                                3.25 x 100 to 10 x 250 Screw Drivers (+)                                                  2.5 x 50 to 10 x 200 Screw Driver Torx                                                    3 x 75 to 8 x 200 Nut Drivers                                                                          3 to 14 Screw Driver Two-in-one Screw Driver Kits Soft Faced Nylon Hammer                                        20mm to 50mm Spare Mallet for Nylon Hammer                               20mm to 50mm Hammer Ball Pein and Cross Pein                          100 to 800gms

Ball Pein Hammer with handle - GDSON - 1/4 Lb to 2 Lbs (100gms to 800 gms). Claw Hammer with Handle - GDSON - 1/2 Lb to 1 1/2 Lb. Pipe Wrench Stillson Type - GDSON & FLEX - 10"(250mm) to 24"(600mm) Screw Drivers with Flat end (-) and Star end (+) - GDSON - 1/8" x 2 1/2" to 3/8" x 12" Hacksaw Frames - GDSON - Heavy 1/4" and Tubular Handsaws with pvc handle - 12" to 24" Iron Handle Claw hammer - 1/2 Lb & 1 Lb. Pincers - 8" Plumbobs - No 3 & 4 in Folding Type and Nos 6, 8 and 10 in Plastic type. Tin cutter with spring - 8", 10" & 12" Besides the above we also stock the following items produced in other parts of the country. Augers - 1/4" to 1" Carpenter Chisels - Elephant Brand - 1/4" to 4" Mortise Chisels -Elephant Brand - 1/4" to 3/8" Chisel and File PVC Handle Cutting Pliers, Nose Pliers and side cutting pliers - GMS - 6", 7" & 8". Masonary Drill Bits (Concrete Drill Bits) - STB brand - 3/16"(5mm) to 1/2" (12mm) Hacksaw Blades Painted & oil - 1/2" x 18tpi & 24 tpi, 1" Single edge and Double edge. Plainer Patta - 1 1/4" x 6" to 2" x 6" Jumper Holders and Bits - Congo brand - No 8 to 20 Needle Files - Bonus - 10cm to 20cm Sledge Hammers without handle - 1 Lb to 20 Lbs Following are the imported items with us; SDS Drill Bits - YURI & CONGO - 5 x 110mm to  28 x 450mm Cut off wheels Single mesh and Double Mesh - CONGO - 4", 5" & 14" Marble/Concrete/Granite Cutting blade - CONGO - 4" & 5" Wood Cutting Saw - CONGO - 4", 5" & 7" Grinding Wheel - CONGO - 100 x 4mm & 100 x 6mm Sandar Disc - CONGO - GRIT 24 to 120   We also deal in; Addisson Drill Bits Imported Drill bits Wooden Drill Bits ESCON Files

Finishes: Self colour, Zinc plated (with WhiteBlueYellow passivation), Hot Dip galvanised, Cadmium Plated, Blackened, Nickle plated and Chromium Plated.Mild steel Bolts and Screws conform to grades 4.6 and 4.8 and Nuts to grade 4. Higher grades of 5.6 and 5 are also arranged against order.

Mild steel fasteners are widely used for all general purposes where high strength and corrosion resistance is not required. Their low cost makes them ideal for everyday use. Mild steel Bolts and Screws conform to grades 4.6 and 4.8 and Nuts to grade 4. Higher grades of 5.6 and 5 are also arranged against order.

Mild steel fasteners are widely used for all general purposes where high strength and corrosion resistance is not required. Their low cost makes them ideal for everyday use. Mild steel Bolts and Screws conform to grades 4.6 and 4.8 and Nuts to grade 4. Higher grades of 5.6 and 5 are also arranged against order. Finishes: Self colour, Zinc plated (with WhiteBlueYellow passivation), Hot Dip galvanised, Cadmium Plated, Blackened, Nickle plated and Chromium Plated.

Size : M3 X 6MM to M48 X 300,3/16” X 1/2” to 2” X 12”

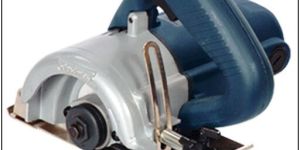

 Model No EMC-110A with Saw Disc Dia of 110mm & 1300W Rated Input Power. .Model No EMC-110P Round Body with Saw Disc Dia of 110mm & 1050W Rated Input Power. Jig Saw .Model No EJS-060 with Cutting Depth of 60mm & 600W Rated Input Power.  Electric Router .Model No EER-012 with Chuck Dia of 12mm & 1600W Rated Input Power.

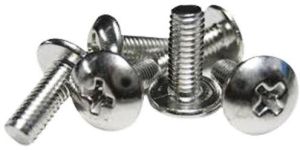

Mild Steel Machine Screws are available in CSK, Cheese, Raised CSK, Pan and Mushroom (Truss) heads in both Slotted and Phillips (Cross recessed) types.   These screws generally conform to property class 4.8 and are available in self colour and in zinc coated (blue passivation and yellow passivation) finishes. Screws with other finishes like zinc coating with trivalent finish, Nickle plating, Cadmium plating and Black phosphating are arranged against order.   Screws in property class 8.8 are also arranged against order.   SIZE RANGE and Specification   Slotted CSK head Machine Screws   1/8” x 1/4” to 1” x 6” in BSW threads to BS 450-1958. M2 x 5mm to M24 x 150mm in metric threads to IS 1365-2005, DIN 963A and ISO 2009. 10BA x 1/4” to 0BA x 3” in BA threads.   Slotted Cheese head Machine Screws 1/8” x 1/4” to 3/8” x 6” in BSW threads to BS 450-1958. M2 x 5mm to M12 x 150mm in metric threads to IS 1366-2002, DIN 84 and ISO 1207. 10BA x 1/4” to 0BA x 3” in BA threads   Slotted Round Head Machine Screws 1/8” x 1/4” to 3/8” x 2” in BSW threads to BS 450-1958. M3 x 6mm to M6 x 50mm in metric threads   Slotted Raised CSK head Machine Screws M3.5 x 12mm to M10 x 50mm to IS 8911- 2005 ISO 2010 : 1994 Slotted Mushroom (Truss) head Machine Screws 1/4” x 1/2” to 6” M6 x 12mm to 100mm to IS 8822-1978  Pan Phillips (Cross Recessed) head Machine Screws M2 x 4mm to M6 x 50mm to DIN 7985 and ISO 7045  CSK Phillips (Cross Recessed) head Machine Screws M2 x 4mm to M6 x 50mm to DIN 965A and ISO 7046  Truss Phillips (Cross Recessed) head Machine Screws  M3 x 6mm to M6 x 50mm

.Model No EID-010A with 10mm Drill Capacity, 550W Rated Input Power, Max Impact Rate of 0 - 37500 BPM, Variable Speed control and with Forward and Reverse Mode.   .Model No EID-010 Heavy duty machine with 10mm Drill Capacity, 600W Rated Input Power, Max Impact Rate of 28000 BPM, Variable Speed control and with Forward and Reverse Mode. .Model No EID-013 with 13mm Drill Capacity, 600W Rated Input Power, Max Impact Rate of 43200 BPM, Variable Speed control and with Forward and Reverse Mode.

High Tensile Hexagonal Head fasteners are available in 8.8 and 10.9 grades for BoltsScrews and grades 8 and 10 for nuts.These fasteners are available in Metric, BSW, BSF, UNC and UNF threads.Finishes: Black Phosphated, Zinc plated, Yellow Zinc Plated, Cadmium Plated, Nickel Plated, Chromium Plated and Hot Dip Galvanized.

High Tensile Hexagonal Head fasteners are available in 8.8 and 10.9 grades for BoltsScrews and grades 8 and 10 for nuts.These fasteners are available in Metric, BSW, BSF, UNC and UNF threads.Finishes: Black Phosphated, Zinc plated, Yellow Zinc Plated, Cadmium Plated, Nickel Plated, Chromium Plated and Hot Dip Galvanized.

Mild steel fasteners are widely used for all general purposes where high strength and corrosion resistance is not required. Their low cost makes them ideal for everyday use. Mild steel Bolts and Screws conform to grades 4.6 and 4.8 and Nuts to grade 4. Higher grades of 5.6 and 5 are also arranged against order.   Finishes: Self colour, Zinc plated (with White/Blue/Yellow passivation), Hot Dip galvanised, Cadmium Plated, Blackened, Nickle plated and Chromium Plated.   Products and available Size Range   Hexagonal Head Bolts and Screws  M3 X 6MM to M48 X 300 generally conforming to IS 1363(Part 1 & 2) 2002 3/16” X 1/2” to 2” X 12” in BSW threads generally conforming to BS 916 Hexagonal Full and Lock (Thin) Nuts M2 to M60 generally conforming to IS 1363(Part 3)2002 (Hex Nut) and to IS 1364(Part 4)2003 (Lock (Thin) Nut) 1/8” to 2” in BSW threadsgenerally conforming to BS 916 1/2” to 3” in BSP threadsgenerally conforming to IS 3468-1991 Left hand thread nuts 1/4" to 1" in BSW threads M6 to M24 in MM threads Square Head Bolts & Nuts M5 to M12generally conforming to IS 2585-2006 1/8” to 1/2” in BSW threads Dom Nuts M6 to M24 Flange (Collar) Bolts and nuts M6 x 12 to M10 x 25mm Eye Bolts and Eye nuts Lifting Hooks M8 to M48 Eye Bolt (Small Eye) M8 x 40 to M24 x 200 Eye Nuts M12 to M 20 Slotted and Castle Nuts M10 to M48 generally conforming to IS 2232-1967 3/8" to 2" in BSW threads Nyloc Nuts M3 to M48 generally conforming to IS7002-2005 1/4" to 1" in BSW, UNC, UNF and BSF threads. Wing Nuts (Cast Iron) M6 to M16 1/4" to 5/8" in BSW threads Studs M6 x 25mm to M20 x 100mm 1/4" x 1" to 3/4" x 4" Snap Head Rivets 6 x 12mm to 24 x 100mm generally conforming to IS 1929/1982 and IS 2155/1982 1/4" x 1/2" to 1" x 4" Carriage Bolts 1/4" x 1 1/2" to 1/2" to 12" Special C.P. Carriage bolts with Nut and Washers 1/4" x 1 1/2" to 3" (for C.P.Aldrops) Plain Washers 3mm to 64mm generally conforming to IS 2016/67 1/8" to 2" Taper Washers 12mm to 24mm U Bolts Suitable for pipe sizes of 3/4" to 12" with bolt dia of 8mm to 12mm Pipe Bolts 5/16" x 3" to 7" suitable for pipes of 1" to 2" J & L Bolts 5/16" x 3" to 7" GI Threaded Rods M6 to M20 in 1Mtr & 2Mtr length Connecter (Long) Nut M6 to M16   USEFUL FORMULAE Kilograms of Nuts required for 50 kgs of Bolt with Nut = No. of Bolts per Kg X 50 No. of Bolts per Kg + No. of Nuts per Kg  Kilograms of Bolts required for 50 kgs of Bolt with Nut = No. of Nuts per Kg X 50 No. of Bolts per Kg + No. of Nuts per Kg  Approx Weight of one plain round washer = {(OD x OD x thickness) - (ID x ID x thickness)} 160000

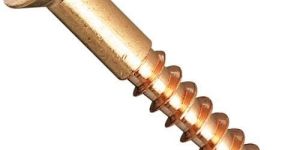

CSK Head Wood Screws are the most commonly used screws for fixing of hardware onto wooden surface including doors and windows and their frames. Their coarse thread combined with a slightly tapered shank grips very well with wood. These screws are available in Shaved Head (full gauge) and in Standard quality in self finish, oxidised finish and zinc plated finish. Round Head Wood Screws are no longer popularly used but can be supplied against order. Coach Screws are used for heavier applications like fitting of electrical appliances onto walls etc. These screws are gardually being replaced by the use of expansion fasteners.

Size : 12 x 3 to 150 x 16
