The SmartSeries LB 414 is a radiometric detector for density, concentration and solids content measurements, combining both -detector and evaluation in one single unit.
SmartSeries LB 414 densitometers can be applied on all liquids and slurries. Beside the high level of accuracy and repeatability, the easy way of detector handling is a major advantage of this density gauge. The local user interface with display and the software -focusing on the main functions make calibration and operation of the HART device very easy. Parametrization can be carried out directly at the detectors push button or using a HART communicator, via PC or infrared remote control.
SmartSeries has been designed for the harshest of process conditions and is best suited for standard density measurements in non-hazardous, non-explosive environments but tough industries like mining, cement or pulp & paper industry. Its outstanding mechanical stability and robustness is verified by the Fraunhofer Institute. SmartSeries is cost-efficient and can be used for many years without the need of maintenance and re-calibrations.
The SmartSeries LB 414 is a radiometric detector for density, concentration and solids content measurements, combining both -detector and evaluation in one single unit.
SmartSeries LB 414 densitometers can be applied on all liquids and slurries. Beside the high level of accuracy and repeatability, the easy way of detector handling is a major advantage of this density gauge. The local user interface with display and the software -focusing on the main functions make calibration and operation of the HART device very easy. Parametrization can be carried out directly at the detectors push button or using a HART communicator, via PC or infrared remote control.
SmartSeries has been designed for the harshest of process conditions and is best suited for standard density measurements in non-hazardous, non-explosive environments but tough industries like mining, cement or pulp & paper industry. Its outstanding mechanical stability and robustness is verified by the Fraunhofer Institute. SmartSeries is cost-efficient and can be used for many years without the need of maintenance and re-calibrations.
Made from lead, stainless steel or tungsten our shielding containers create an optimum shielding effect in every situation. Unless it is required for the measurement, the shielding container is closed so that radiation is completely blocked and safe handling during transport and installation is guaranteed. When opening the shielding, the radiation is directed through a narrow channel towards the detector.
All our shieldings are custom-made - with dimensions specifically adapted to the measurement requirements. They are designed according to the international standards
ANSI 43.8
ISO 7205
IEC 62598
Made from lead, stainless steel or tungsten our shielding containers create an optimum shielding effect in every situation. Unless it is required for the measurement, the shielding container is closed so that radiation is completely blocked and safe handling during transport and installation is guaranteed. When opening the shielding, the radiation is directed through a narrow channel towards the detector.
All our shieldings are custom-made - with dimensions specifically adapted to the measurement requirements. They are designed according to the international standards
ANSI 43.8
ISO 7205
IEC 62598
The Berthold moisture analyzers are used to measure the moisture in bulk materials such as
coal
sand
wood chips and pellets
clay
fertilizer
phosphate
gypsum
cereals
bagasse
The moisture measurement is carried out online during the ongoing process, providing rapid and precise real-time information on the current water content. The measurement is performed absolutely non-contacting, which lays the foundation for a long-term operation, free of wear and maintenance.
The Microwave Transmission and the Radiometric Technology are the two main principles on which our analyzers are based. Both technologies complement each other perfectly so that we are able to provide you with the best solution – even for the most challenging measurement tasks.
The Berthold moisture analyzers are used to measure the moisture in bulk materials such as
coal
sand
wood chips and pellets
clay
fertilizer
phosphate
gypsum
cereals
bagasse
The moisture measurement is carried out online during the ongoing process, providing rapid and precise real-time information on the current water content. The measurement is performed absolutely non-contacting, which lays the foundation for a long-term operation, free of wear and maintenance.
The Microwave Transmission and the Radiometric Technology are the two main principles on which our analyzers are based. Both technologies complement each other perfectly so that we are able to provide you with the best solution – even for the most challenging measurement tasks.
The interface position between two liquid phases or the height of different product layers can be easily determined with the radiometric measurement solutions from Berthold. Our products are even used to monitor emulsion layers. By measuring the density profile of the liquids, separation processes can be reliably monitored.
All measurements are carried out in a non-contacting manner - detectors and all electronic components are mounted at the vessel outside. Thus the detectors are easily accessible and not exposed to the pressure and temperature conditions inside the vessel.
The interface position between two liquid phases or the height of different product layers can be easily determined with the radiometric measurement solutions from Berthold. Our products are even used to monitor emulsion layers. By measuring the density profile of the liquids, separation processes can be reliably monitored.
All measurements are carried out in a non-contacting manner - detectors and all electronic components are mounted at the vessel outside. Thus the detectors are easily accessible and not exposed to the pressure and temperature conditions inside the vessel.

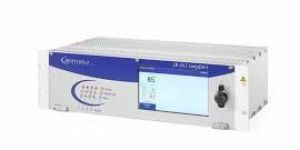

The precise measurement of mold level is indispensable for the reliable prevention of steel overflows, breakouts and not least for the production of high quality steel.
As global leader in radiometric mold level measurements we provide the experience and expertise to ideally meet the demands of the steel industry.
The precise measurement of mold level is indispensable for the reliable prevention of steel overflows, breakouts and not least for the production of high quality steel.
As global leader in radiometric mold level measurements we provide the experience and expertise to ideally meet the demands of the steel industry.
Number Of FlowerLB 4710-0XX for GM Detector LB 4710-1XX for NaI Det. or Super-Sens
The measuring system LB 471 is used for point level measurements, providing either high level or low level alarm.
The Mini-Switch LB 471 is available with proven 2-wire technology. The measuring system includes a separate evaluation unit, ensuring easy calibration and operation procedures as well as the local display of measuring results.
The Mini-Switch LB 471 can be operated with three different detector types:
Geiger-Müller tube
CrystalSENS NaI point detector
SuperSENS high-sensitive detector
As a result the perfect system configuration for each application is selected, ranging from economical to high-tech solutions.
The measuring system LB 471 is used for point level measurements, providing either high level or low level alarm.
The Mini-Switch LB 471 is available with proven 2-wire technology. The measuring system includes a separate evaluation unit, ensuring easy calibration and operation procedures as well as the local display of measuring results.
The Mini-Switch LB 471 can be operated with three different detector types:
Geiger-Müller tube
CrystalSENS NaI point detector
SuperSENS high-sensitive detector
As a result the perfect system configuration for each application is selected, ranging from economical to high-tech solutions.
Number Of Flower : LB 4710-0XX for GM Detector LB 4710-1XX for NaI Det. or Super-Sens
MaterialStainless steel 1.4571, 1.4401 or 1.4301 (for pipes with linings)
The LB 379 Inline Density Meter combines the radioactive source and the detector in one unit. The compelling advantage of the LB 379 is the extremely low dose rate, actually leading to a licence-free operation in several countries.
Due to its low radiation energy, an Am-241 source is used whose energy is comparable to that of x-rays and whose half-life time is about several hundred years. The LB 379 provides a high statistical accuracy and long-term stability by the use of highly senstitive scintillation detectors with the patented drift compensation.
The system is flanged to the pipeline. It is completely made from stainless steel and is also available with Teflon lining for a wear resistant operation for products with high viscosity and high solids content.
The LB 379 Inline Density Meter combines the radioactive source and the detector in one unit. The compelling advantage of the LB 379 is the extremely low dose rate, actually leading to a licence-free operation in several countries.
Due to its low radiation energy, an Am-241 source is used whose energy is comparable to that of x-rays and whose half-life time is about several hundred years. The LB 379 provides a high statistical accuracy and long-term stability by the use of highly senstitive scintillation detectors with the patented drift compensation.
The system is flanged to the pipeline. It is completely made from stainless steel and is also available with Teflon lining for a wear resistant operation for products with high viscosity and high solids content.
Material : Stainless steel 1.4571, 1.4401 or 1.4301 (for pipes with linings)
FeatureHighest reliability,Very robust,Applicable for all mold types
The radiometric mold level measurement is maintenance-free and applicable for different mold types. Successful applications can also be found in Beam Blank and Round casters. Although working under extreme temperatures and harsh environmental conditions, the measurement has proven to be reliable for many years of operation.
The radiometric mold level measurement is maintenance-free and applicable for different mold types. Successful applications can also be found in Beam Blank and Round casters. Although working under extreme temperatures and harsh environmental conditions, the measurement has proven to be reliable for many years of operation.
Feature : Highest reliability,Very robust,Applicable for all mold types
Power Supply100 ... 240 VAC ±10 %, 50 ... 60 Hz, 30 VA
Design19" module 3RU, 21HU, protection IP 20
DuoSeries LB 474 is the new radiometric density system from Berthold based on real 2 wire technology, succeeding and compatibleour top-selling density measurement system LB 444. Like its predecessor model, the measuring system DuoSeries stands out by a particularly excellent performance with high accuracy and repeatability of density. Due to its outstanding performance the DuoSeries is the preferred choice when processes are demanding and 2-wire based control room technology is required.
The DuoSeries density measuring system consists of a scintillation detector – CrystalSENS point detector – and a sophisticated transmitter unit for display and operation. The density transmitter is a state-of-the-art control unit with robust 3.5” TFT touch panel, powerful Dual Core CPU, up to 4 calibration curves, compensation of product temperature variations via PT100 connected to detector or analog current input and diverse operator interfaces. The calibration parameters can be exported via the USB port and can be easily imported to devices at other measuring tags. Advanced self diagnostics and monitoring features ensure a safe function of the system. Furthermore the data logging functionality allows operators to analyze their processes in depth, e.g. develop trends, track process changes etc.
DuoSeries LB 474 is the new radiometric density system from Berthold based on real 2 wire technology, succeeding and compatibleour top-selling density measurement system LB 444. Like its predecessor model, the measuring system DuoSeries stands out by a particularly excellent performance with high accuracy and repeatability of density. Due to its outstanding performance the DuoSeries is the preferred choice when processes are demanding and 2-wire based control room technology is required.
The DuoSeries density measuring system consists of a scintillation detector – CrystalSENS point detector – and a sophisticated transmitter unit for display and operation. The density transmitter is a state-of-the-art control unit with robust 3.5” TFT touch panel, powerful Dual Core CPU, up to 4 calibration curves, compensation of product temperature variations via PT100 connected to detector or analog current input and diverse operator interfaces. The calibration parameters can be exported via the USB port and can be easily imported to devices at other measuring tags. Advanced self diagnostics and monitoring features ensure a safe function of the system. Furthermore the data logging functionality allows operators to analyze their processes in depth, e.g. develop trends, track process changes etc.
Power Supply : 100 ... 240 VAC ±10 %, 50 ... 60 Hz, 30 VA
Maximum cable length3300 m (120 L)), 1600 m (250 L)), 800 m (500 L))
Wire cross section0,5 ... 1,5 mm2

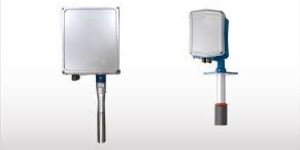

The measuring system Uni-Probe LB 491 is used for the non-contacting measurement of density and concentration on liquids, slurries or bulk materials. Connected to a velocity measurement, the Uni-Probe LB 491 can also be used for the online determination of mass flow.
The Uni-Probe LB 491 is a compact field device, combining both detector and evaluation in one single instrument. It provides interfaces for
HART
Profibus PA
Foundation Fieldbus
In addition the separate 4-20mA current output can always be used as alternative signal output.
The measuring system Uni-Probe LB 491 is used for the non-contacting measurement of density and concentration on liquids, slurries or bulk materials. Connected to a velocity measurement, the Uni-Probe LB 491 can also be used for the online determination of mass flow.
The Uni-Probe LB 491 is a compact field device, combining both detector and evaluation in one single instrument. It provides interfaces for
HART
Profibus PA
Foundation Fieldbus
In addition the separate 4-20mA current output can always be used as alternative signal output.
Our density measuring systems work absolutely non-contacting and non-intrusive. The density measurement can be carried out on all liquids and bulk materials, including highly acidic, alkali or saline solutions and suspensions.
Clamped on the outer wall of the pipeline, chute or vessel the system components do not come into contact with the measured material and are therefore not exposed to wear and tear. You will get process insight from the outside.
All our densitometers provide a maintenance-free operation and can be easily installed on existing pipelines without process down time. The density systems are adaptable to all pipelines from 25 to 1000mm.
Measuring Principle
Based on the radiometric principle, our density gauges can be operated in the most demanding and hostile of process conditions.
Learn more about our density gauges
Our density measuring systems work absolutely non-contacting and non-intrusive. The density measurement can be carried out on all liquids and bulk materials, including highly acidic, alkali or saline solutions and suspensions.
Clamped on the outer wall of the pipeline, chute or vessel the system components do not come into contact with the measured material and are therefore not exposed to wear and tear. You will get process insight from the outside.
All our densitometers provide a maintenance-free operation and can be easily installed on existing pipelines without process down time. The density systems are adaptable to all pipelines from 25 to 1000mm.
Measuring Principle
Based on the radiometric principle, our density gauges can be operated in the most demanding and hostile of process conditions.
Learn more about our density gauges
featuresMulti-frequency Technology,High Dynamics,Reference Line
MicroPolar is the latest microwave based online analyzer for the reliable measurement of
Dry substance
Water content
Density (e.g. in gl or °Bé)
MicroPolar can be used for various fluids, pastes and powders. The system is favored also for the concentration measurement of suspensions, as the sensor's robust design ensures high abrasion resistance and a reliable operation for many years. The fields of application are manifold, ranging from the food industry to the wastewater, power generating and chemical industry.
We provide sensor systems for the installation either on pipelines or on vessels and tanks. The High-Dynamic version MicroPolar++ provides an excellent measuring accuracy, even for large pipeline diameters.
MicroPolar is the latest microwave based online analyzer for the reliable measurement of
Dry substance
Water content
Density (e.g. in gl or °Bé)
MicroPolar can be used for various fluids, pastes and powders. The system is favored also for the concentration measurement of suspensions, as the sensor's robust design ensures high abrasion resistance and a reliable operation for many years. The fields of application are manifold, ranging from the food industry to the wastewater, power generating and chemical industry.
We provide sensor systems for the installation either on pipelines or on vessels and tanks. The High-Dynamic version MicroPolar++ provides an excellent measuring accuracy, even for large pipeline diameters.
The amount of carbon in fly ash is a measure for the efficiency of the combustion process. Experience has shown that the carbon content varies by as much as 20%.
Our Carbon in Fly Ash Analyzer provides real-time information on the current carbon content and allows actions to be taken immediately.
The major benefits of the online measurement are:
Optimized combustion rate
Increased boiler efficiency
Major cost-savings through optimized raw material input
Minimum contamination of exhaust gases
Reuse of fly ash in cement production
Carbon in Fly Ash Analyzer
The analyzer is typically installed on a measurement chute below the electrostatic filter. The measurement is based on the Microwave transmission principle, which is best suited for this application because of its exceptionally high representative measuring results. A measuring accuracy of < ± 0.5% weight fraction of carbon content is typically attained.
The amount of carbon in fly ash is a measure for the efficiency of the combustion process. Experience has shown that the carbon content varies by as much as 20%.
Our Carbon in Fly Ash Analyzer provides real-time information on the current carbon content and allows actions to be taken immediately.
The major benefits of the online measurement are:
Optimized combustion rate
Increased boiler efficiency
Major cost-savings through optimized raw material input
Minimum contamination of exhaust gases
Reuse of fly ash in cement production
Carbon in Fly Ash Analyzer
The analyzer is typically installed on a measurement chute below the electrostatic filter. The measurement is based on the Microwave transmission principle, which is best suited for this application because of its exceptionally high representative measuring results. A measuring accuracy of < ± 0.5% weight fraction of carbon content is typically attained.

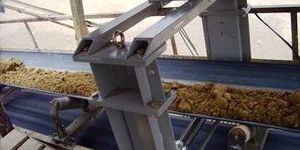

he LB 472 bulk flow system is used for the precise determination of flowrate in the bulk industry and can be performed on all kinds of conveyor systems. The non-contacting, non-intrusive radiometric belt weigher is characterized by an excellent accuracy and reliability. The DuoSeries Transmitter LB 472 is very robust with no moving parts and maintenance is not required.
The non-contacting belt scale LB 472 can be installed directly after bunkers, chute outlets or transfer systems. The belt scale LB 472 provides measuring results on the current flowrate and the totally produced mass
Intuitive operation
The DuoSeries Transmitter LB 472 provides a local display of measurement values as well as on-site operation via the integrated touch panel. Valuable diagnostic functions and self-monitoring ensure increased reliability and availability of the measurement. Users also benefit from new service features (e.g. data log), which can be accessed remotely, via Ethernet or USB interface. The menusare available in all common languages.
he LB 472 bulk flow system is used for the precise determination of flowrate in the bulk industry and can be performed on all kinds of conveyor systems. The non-contacting, non-intrusive radiometric belt weigher is characterized by an excellent accuracy and reliability. The DuoSeries Transmitter LB 472 is very robust with no moving parts and maintenance is not required.
The non-contacting belt scale LB 472 can be installed directly after bunkers, chute outlets or transfer systems. The belt scale LB 472 provides measuring results on the current flowrate and the totally produced mass
Intuitive operation
The DuoSeries Transmitter LB 472 provides a local display of measurement values as well as on-site operation via the integrated touch panel. Valuable diagnostic functions and self-monitoring ensure increased reliability and availability of the measurement. Users also benefit from new service features (e.g. data log), which can be accessed remotely, via Ethernet or USB interface. The menusare available in all common languages.
he radiometric belt scales from Berthold are used to measure flow rates and throughput on all kinds of conveying systems. The major advantage of our radiometric weighing systems is that the measurement performance is very stable over years of operation with repeatability of ±1%. Thus frequent recalibrations are not required. Due to the non-contacting nature and the lack of moving parts, encrustations, dirt, wind or changing belt tension don’t affect the bulk flow measurement.
The Berthold weighing systems can be easily retrofitted on existing conveyors without modification or process downtime. Measurement is carried out on
Belt conveyors
Screw conveyors
Drag chain conveyors
Vibrating conveyors
Besides current flow rate the systems also provide total solids mass (tonnage) and batch measurements. Applications of Berthold belt scales are found in all different bulk handling industries from mining to the building materials industry, from chemical plants and power plants to the pulp & paper industry. Customers benefit from improved control in mixing processes, compliance to delivery contracts and optimal utilization of loading capacities. Worldwide there are more than 2000 systems successfully in operation.
he radiometric belt scales from Berthold are used to measure flow rates and throughput on all kinds of conveying systems. The major advantage of our radiometric weighing systems is that the measurement performance is very stable over years of operation with repeatability of ±1%. Thus frequent recalibrations are not required. Due to the non-contacting nature and the lack of moving parts, encrustations, dirt, wind or changing belt tension don’t affect the bulk flow measurement.
The Berthold weighing systems can be easily retrofitted on existing conveyors without modification or process downtime. Measurement is carried out on
Belt conveyors
Screw conveyors
Drag chain conveyors
Vibrating conveyors
Besides current flow rate the systems also provide total solids mass (tonnage) and batch measurements. Applications of Berthold belt scales are found in all different bulk handling industries from mining to the building materials industry, from chemical plants and power plants to the pulp & paper industry. Customers benefit from improved control in mixing processes, compliance to delivery contracts and optimal utilization of loading capacities. Worldwide there are more than 2000 systems successfully in operation.
Analyzer for Brix and Dry Substance
MicroPolar Brix is specifically designed for the sugar industry. It provides online measurement of
Dry substance
Brix value
Density
Concentration
The real-time measuring results are essential in order to optimize and control the sugar quality and moreover to ensure an efficient production process. In more than thousand applications worldwide, the MicroPolar Brix has proven to work absolutely reliable and accurate.
MicroPolar Brix is available with different sensor types for the installation on vessels (e.g. crystallizer) or pipelines. The High-Dynamic version MicroPolar Brix++ provides an excellent measuring accuracy, even for large pipeline diameters.
Analyzer for Brix and Dry Substance
MicroPolar Brix is specifically designed for the sugar industry. It provides online measurement of
Dry substance
Brix value
Density
Concentration
The real-time measuring results are essential in order to optimize and control the sugar quality and moreover to ensure an efficient production process. In more than thousand applications worldwide, the MicroPolar Brix has proven to work absolutely reliable and accurate.
MicroPolar Brix is available with different sensor types for the installation on vessels (e.g. crystallizer) or pipelines. The High-Dynamic version MicroPolar Brix++ provides an excellent measuring accuracy, even for large pipeline diameters.
