Burkert Contromatic Pvt Ltd Thiruvanmiyur, Chennai, Tamil Nadu

The 0290 valve is a servo-assisted solenoid valve of the S.EV series. The valve opens without differential pressure. The opening process is supported by the fixed coupling of the diaphragm to the plunger . In the process, the integrated 'soft-kick' function opens in a manner that is gentle on the material. Various diaphragm material combinations are available depending on the application. The housing offered is rounded out by a stainless steel and grey cast iron version. The solenoid coils are moulded with a chemically resistant epoxy. 'Kick and drop' electronics are moulded into all DC variants for reduced electrical power consumption. In combination with a plug in accordance with DIN EN 175301-803 Form A, the valves satisfy protection class IP65 – in combination with a stainless steel housing NEMA 4X. Servo-assisted diaphragm with diameter of up to DN50 Hard-coupled diaphragm opens without differential pressure Vibration-proof, block screwed coil system Damped design for quiet closing Energy-saving power reduction in all DC versions

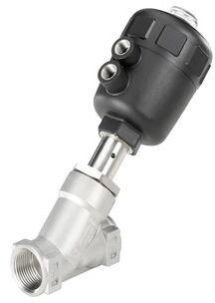

The externally piloted angle seat valve is operated with a single or double–acting piston actuator. The actuator is available in two different materials, depending on the ambient temperature. High flow rates are attained with the virtually straight flow path. The reliable self–adjusting packing gland provides high sealing integrity. These maintenance-free and robust valves can be retrofitted with a comprehensive range of accessories for position indication, stroke limitation or manual override.

The externally piloted angle seat valve is operated with a single or double–acting piston actuator. The actuator is available in two different materials, depending on the ambient temperature. High flow rates are attained with the virtually straight flow path. The reliable self–adjusting packing gland provides high sealing integrity. These maintenance-free and robust valves can be retrofitted with a comprehensive range of accessories for position indication, stroke limitation or manual override.

Three way ball valves 22- and 32-way stainless steel ball valve used to shut off and distributing medium flows. The ball valves can be connected via the mechanical interface to ISO 5211 with a pneumatic (for example, Type 2051 or 2052) or electrical rotary actuator (eg, Types 3003, 3004 or 3005).

The direct-acting plunger solenoid valve Type 0255 is also suitable for high pressures and high temperatures.   Push-over solenoid system Compact design, up to DN 6 Housing made of brass or stainless steel with threaded connection For selecting the correct product please refer to the technical data, images and notes for proper use according to the data sheet.

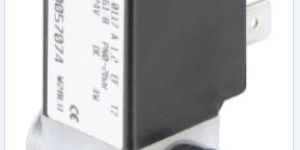

Type 117 is a normally-closed direct-actingplunger-type solenoid valve with PTFE-coated diaphragm. The diaphragm isolates the fluidfrom the solenoid system. When deenergized (in circuit function A)the valve is closed by spring action. When energized, the solenoid armature is drawnin 22-Way, G 18, UNF 14-28 FluidControl Systems against a spring to open the valve. The solenoid epoxy encapsulation efficiently dissipates the heat generated by the coil.

Plunger valve 32 way direct-acting compact valve with diameter of up to DN 2.5 Vibration-proof, bolted coil system Banjo threaded connection for direct mounting on pneumatic valves Service-friendly manual override Energy-saving pulse versions.

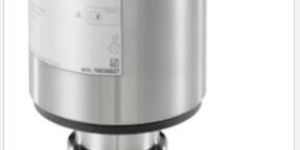

The Type 8138 is a non-contact radar level transmitter for continuous level measurement. It is particularly suitable for use in small vessels that contain beverage liquids under sanitary process conditions. Compact for level measurement up to 20 m.

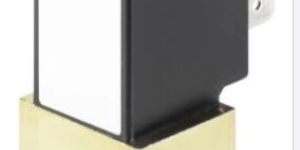

Type 2861 is an extremely compact solenoid control valve and is available with an orifice up to 2mm. It is based on the standard version of Type 2871. It is used as an actuator in closed control loops (pressure, flow, temperature, etc.). Compared with the standard version, the valve is essentially of simpler construction and assembly and testing procedures are optimized, easing high volume series production with shorter delivery times.

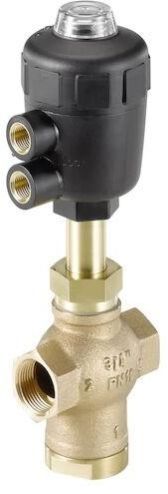

The pneumatically operated 3-way valve is operated with a piston actuator. The standard actuator material is PA. For high ambient temperatures (eg external sterilization) PPS is available on request for temperatures upto 140º. High flow rates are attained with the gunmetal 3-way body. The reliable selfadjusting packing gland provides high sealingintegrity.Various fluidic circuit functions can be obtained by a simple exchange of the pressure andservice ports.These maintenance-free and robust valves can be retro-fitted with a comprehensive range of accessories for position indication or manual override.

This positive displacement flow sensor switch with display is designed for use in slighly viscous fluid like glue, honey or oil and specially to switch a valve and to establish a monitoring system or an OnOff control loop. The switching points can be programmed with the 3-key keypad under the display or optionally from an external source over a 4-20 mA loop. The 8072 is proposed with OnOff output, or with external setpoints andorprocess value outputs.

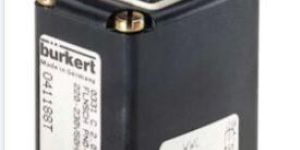

32-way-pneumatic valve Compact design in 32 and 42-way versions Extendable valve block Reduced power consumption Different pneumatic connections available.

The depiction of the products may differ from the actual specific design. Valve function HZ - normally inlet port 1 connected with outlet port 2, outlet port 4connected with exhaust port 5, exhaust port 3 closed.

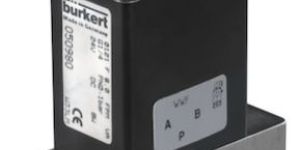

The 0331 valve is a direct-acting, media-separated pivoted armature valve. It is available in 32 and 22-way versions. As a 32-way version, it can be used as a distributor or mixing valve. Various diaphragm material combinations and methods of operation are available depending on the application. The standard brass housing satisfies all European drinking water requirements. Stainless steel (316L), PVDF, and polypropylene housing versions complete the offering. The solenoid coils are moulded with a chemically resistant epoxy. The 0331 is equipped with manual override for commissioning and testing. For reduced energy requirements all coils can be delivered with electronic power reduction or as an impulse version.

Type 8205 is in phase-out. The successor is the integral pHORP-meter type 8202. Compact, remote versions for DN15 to DN200. Fully configurable pH transmitter for all kinds of pHmeasurement tasks. Large range of process connections with various fittings.

This sensor is specially designed for measurement or batch control of highly viscous fluids like glue, honey or oil. It allows an easy connection to transmitters like types 8025 and 8619 for more functionality. The design of this low flow sensor is based on the oval rotor principle. This has proven to be a reliable and highly accurate volumetric method of measuring flow. Exceptional repeatability and high accuracy over a wide range of viscosities and flowrates are features of this design. The low pressure drop and high pressure rating make it suitable for gravity and pump (in-line) applications and many others. All sensors provide Open Collector NPN frequency output and frequency output on Reed contact via 1-meter 5-wire cable.

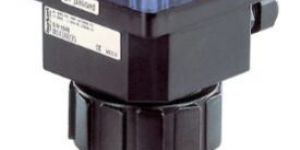

The Bürkert Type 8202 is a compact, but modular device, specially designed for measuring the pH or ORP value of fluids. Our device consists of a replaceable standard 120 mm pH or ORP probe, screwed in a sensor holder with integrated Pt1000 temperature sensor. This ensemble is plugged-in and screwed with a nut to an IP67 enclosure containing the electronic module with cover and a removable display. Bürkert expedites thus maintenance work. The pHORP transmitter can operate independent of the display, but it will be required for programming the device (i.e. selection of pH or ORP sensor type, measuring range, engineering units...) and also for visualizing continuously the measured and processed data.

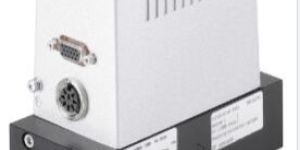

The mass flow meter (MFM) type 8006 is suited for measuring the mass flow of high gas flows. The thermal inline sensor is located directly in the gas stream and therefore reaches very fast response times. Type 8006 can optionally be calibrated for two different gases; the user can switch between these two gases. As electrical interfaces both, analog standard signals and fieldbuses are available. The MFM type 8006 is especially designed for use in harsh environments due to a low sensitivity to contamination and the high protection class.

Type 8709 is an instrument for liquid flow measurement in process technology. The actual value supplied by the sensor is transmitted through the digital electronics and over a standard signal output or a fi eld bus interface. In the device two calibration curves can be stored, which the user is able to switch between. High dynamic flow measurement. Applicable for liquid flow measurement up to 600 mlmin (36 lh). No moving parts in medium.

Type 8708 is an instrument for liquid flow control in process technology. The actual value supplied by the sensor is transmitted through the digital electronics and over a standard signal output or a fi eld bus interface. In the device two calibration curves can be stored, which the user is able to switch between.

The servo-assisted Type 2400 valve has aservo-piston with a 2-way servo-control. It is designed for high pressures. The speciality of this valve design lies in the layout of the seat and sealing element. Anadditional radial seal make very good sealing possible. The tapered sealing element of the servocontrol permits the switching of high pressureat relatively low coil power.

The 0121 valve is a direct-acting, media-separated pivoted armature valve. It is available in 3/2- and 2/2-way versions. As a 3/2-way version, it can be used as a distributor or mixing valve. Various diaphragm material combinations and methods of operation are available depending on the application. The housing offering includes stainless steel (316L), PTFE, and PVC versions. The solenoid coils are moulded with a chemically resistant epoxy. The 0121 is equipped with manual override for commissioning and testing. For reduced energy requirements, all coils can be delivered with electronic power reduction or as an impulse version. The switching status can be indicated with position feedback as a binary or NAMUR signal. In combination with a plug in accordance with DIN EN 17301-803 Form A, the valves satisfy protection class IP65/67 – in combination with a stainless steel or plastic housing NEMA 4X. Direct-acting, media-separated valve with diameter of up to DN 8 Maintenance-free pivoted armature technology Vibration-proof, block screwed coil system Suitable for aggressive alkaline and acidic solutions Service-friendly, durable manual override
