Cable Laying Machine Dealers in Chennai

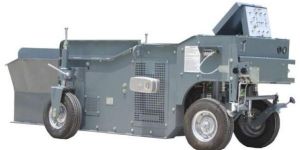

• Engine: Greaves 10 HP Air Cooled Diesel Engine
• Steering Control: Auto and Manual
• Height Control: Auto and Manual
• Hydraulic Pump: Variable displacement Axial Pump
• Drives: Main drive – Duplex Chain / Hydraulics-V Belt
• Salenoid Valves: 12V DC
• Compaction Method: By Ramming Mechanism
• Kerb Minimum Radius: 2.4 Mtrs.
• Laying Capacity (W X H): 600 x 500 mm & 300 x 600 mm
• Laying Speed: 80 mtr / hour of I Kerb (Continuous Feeding Material), 65 Mtr/ hour for L Kerb, 45 Mtr/ hour for 300 x 600 mm Kerb
• Stroke / Min: 25 Max.
• Petrol tank Capacity: 8.5 Ltrs.
• Hydraulics Tank Capacity: 6.5 Ltrs.
• Fuel (Diesel) Consumption: 1.5 Ltrs. Diesel / hour
• Weight with Mould: 915 Kgs.
• Material Feeding (Concrete): By Transit Mixer or a Flat Bed Truck (Tractor Trolley)
• Charge Hopper Capacity: 0.21 Cubic Meter

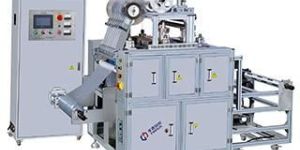

• Voltage: 380V 50HZ
• Power: 6KW (HX-AMS800-2 Power6.2KW)
• Weight: 1000Kg (HX-AMS800-2 Weight 1100Kg)
• Suitable for: 3X8, 4X8, 5X5 (Optional）
• Magnetic strip mounting precision: ± 0.15mm
• Roll film: Thickness0.04-0.18mm; Inner∮3; Outer∮ less than 20;
• Dimension: L1400 X W1200 X H1700 (HX-ASM800-2 Dimension: L2100 X W1200 X H1700)

This machine incorporating automatic magnetic strip peeling, automatic trimming & automatic collecting Through hot pressure rolling method make roll magnetic strip mounting on the film Automatic magnetic strip peeling, scrap collecting Slice film length can be set freely

Road laying machine, Road Paver Finisher, road grooving machine
