Crushing Machine Dealers in Chennai

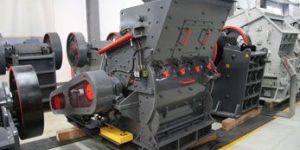

Hammer crusher is mainly suitable for crushing various soft and medium-hard ore, whose compression strength is not higher than 320MPa, such as coal, salt, chalk, gypsum, blocks, limestone, glasses, and phosphate, etc.

The crusher is suitable for crushing medium hardness limestone and similar minerals.High crushing ratio and low energy consumption. Suitable for crushing minerals mixed with viscous earth, such as clay.

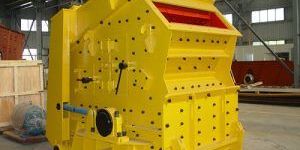

Star Trace Impactors are designed for crushing hard to soft materials like Limestone, Iron ore, Coal etc. These Impactors are available in various sizes ranging from 400mm to 1200mm diameter and width upto 2000 mm. Star Trace can offer duty impactors, specially designed for coal and similar materials.   Frame or Housing It is fabricated from M.S. Plates and rolled steel sections with adequate stiffners to give maximum strength. Location and size of doors are selected so as to provide access to the internal parts and to facilitate easy maintenance. Side walls are provided with suitable liners. Wherever material comes into contact with walls. Bottom part of housing has thick plate flanges for foundation arrangement.   Breaker Plates/Grinding gibs Breaker plates or Grinding gibs as applicable are made of M.S. steel castings or alloy steel castings and are bolted to the M.S. fabricated blocks. These blocks are hinged from the top and are adjustable with respect to blow bar tip circle. This arrangement facilitates product size control.   Rotor Rotor discs made from M.S. plates are keyed to the rotor shaft. Adequate size rotor shaft is supported in spherical roll bearings. Bearing blocks are resting on strong and sturdy bottom frame. Blow bars are fixed to the rotor with the help of wedge blocks. Rotor is statically balanced so as to minimise vibrations during crushing operations. light duty impactors, M.S. plates are welded to M.S. fabricated drum. Ms steel blow bars are bolted to the M.S. brakets.   Lubrication Generally main shaft bearings are having manual grease lubrication arrangement. However centralised lubrication system can be provided on request.   Drive Impactors are driven by Squirrel cage / Slipring motor through a set of V belts. In large impactors, fluid coupling can be provided in combination with squirrel cage motor.

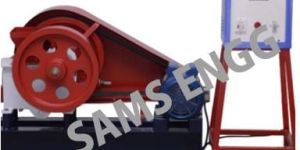

The set-up contains two Jaws of hard steel with one Jaw stationary and other moving. The movable jaw produces blows for every revolution reducing over sizing to a minimum. A combination of forward and downward strokes with a rocking action exert pressure on the coarser materials yet permits the finished materials to pass through the jaws. A hopper is provided at the top for feeding material. The smooth jaws ensure a uniform product and easy cleaning is possible   Product Code : SAMS MECH - 001

The crusher is suitable for crushing minerals of medium hardness, such as limestone,features simple structure, large feeding size, high crushing ratio and low energy consumption,The particle size of its products meets the requirements of concrete manufacturing for aggregates with flakey shapes.

Jaw Crushers, Power Spray Hose, Construction Water Hos

Lump Crusher, Quartz, Silica, Feldspa

Stone Crushing Machine, Fluidized Bed Dryer, Grinding Machin

Crushing Machine, fibre opening machine, Fiber_Opening_Machin

Shri Ramana developed coal crusher for small capacities and are running well in chp.

Crushers, Anode Furnaces, Rotary Kilns, Rotary Granulator, Rotary Dryer

Jaw Crushers, Asphalt Plants, Crushing Plants, Horizontal Shaf

Industrial Crushes, Agricultural Mixers, Industrial Mixers, Rotary Mixer
