Eco Care Technologies T. Nagar, Chennai, Tamil Nadu

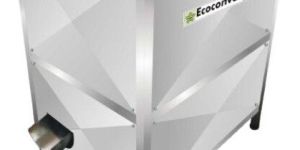

Garbodrain is an unique system electrically operated to crush & dispose food waste at source most hygienically, conveniently & safely. This simplifies segregation of bio degradable waste by eliminating them at source & provides clog free drains. Ecohouse is an unique processor where the crushed waste from garbodrain are treated to produce methane, a cheap carbon neutral fuel for cooking. This helps in providing better sanitation, hygiene & free clean fuel. Ecoconverter a rapid composting technology has been designed and developed to convert bio waste to manure. The three basic steps 1.reducing the volume of waste through crushing or shredding 2.de-watering excess moisture from the waste 3.curing the crushed and de-watered waste in containers thus making manure conversion of bio waste simpler & faster.

G-4000 - A Self Contained Commercial Model With SS Sink Can Be Used Independently. Useful For Large Hotel & Industrial Canteens, Ships, Oil Rigs, Marriage Halls Etc., Along With Biogas Plants. Over All Size (lxbxh) : 1050x650x790mm Sink Size : 900x500x200mm Out Let / In Let : 50mm / 150mm Weight : 150 Kg Motor (High Torque Three Phase Motor) (440V, 50hz, 1440rpm,Continuous Duty.) : 3hp, 5hp, 7.5hp Disposal Capacity (Kg/Hour): 250kg 450kg 600kg Operation Place G4000 at a convenient place in the kitchen. Connect the disposer cable to 440V supply through starter. The disposer is ready to use Turn on the switch & open the tap Feed in the wastes like Bones, Egg shells, Vegetable & Fruit peels, Left over Food etc. The wastes get crushed and goes down the drain

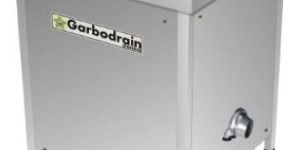

G-3000 - A Self Contained Commercial Model With SS Sink And Can Be Used Independently. Useful For Hotels, Canteens, Ships, Oil Rigs Etc Over All Size (lxbxh) : 595x595x750mm Sink Size : 500x500x280mm Out Let / In Let : 1.5" Nipple / 125mm Weight : 110 Kg Motor (High Torque Three Phase Motor) (440V, 50hz, 2800rpm,Continuous Duty.) 1hp, 2hp, 3hp Disposal Capacity (Kg/Hour): 50 Kg 150 Kg 250 Kg Operation Place G-3000 at a convenient place in the kitchen Connect the disposer cable to 440V supply through starter.

Outer body is made of FRP for corrosion free life. Grinding ring is SS 304 & machined for longer life & better grinding. As the disposer is capable of grinding wastes on both the directions the life of the crusher is double Unlike imported crushers, the motor is not directly coupled eliminating the chances of motor failure due to water seepage through crusher sealing. Electricals 440V supply with suitable 3ph starter (1/2/3hp)

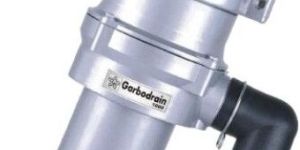

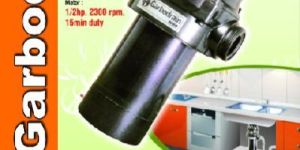

G-1000 - Domestic Model Useful For Houses, Flats & Small Offices Over All Size: Dia 150 X 325mm Sink Mounting : 90mm Out Let : 1.5" BSP at 160mm from top Weight : 4.5 Kg Motor : 1/2 hp, 2300rpm, 240V 15 mm. duty. Operation Attach to the sink & connect outlet to the drain. Connect the disposer cord to a 5A 3pin socket only. The disposer is ready to use Turn on the switch & open the tap Feed in the wastes like Bones, Egg shells, Vegetable & Fruit peels, Left over Food etc. The wastes get crushed and goes down the drain Specially designed mounting arrangement is sturdy & leak proof even after years of usage.

EC-B is a simple waste crushing and de-watering equipment that converts organic waste into natural organic compost. Over all size (lxbxh) : 1100 x 800x1200mm Sink size : 1000x700x200mm Inlet : 125mm Outlet 50mm Weight 250kg Motor (CRUSHER)(440V,50hz,2800rpm) : 1hp, 2hp, 3hp, 5hp, 7.5hp, 10hp Motor(DE-WATERING)(440V, 50hz,1440rpm Continuous duty) : 2hp, 3hp Disposal Capacity (Kg/Hour): 25kg, 100kg, 200kg, 500kg, 750kg, 1T Curing Crates: 600 X 400 X 320 HDPE Crates.

Weight : 250kg

GARBODRAIN is an unique system electrically operated to crush & dispose food waste at source most Hygienically, Conveniently & Safely. This simplifies segregation of bio degradable waste by eliminating them at source & provides clog free drains.

Certification : ISO 9001:2008

Country of Origin : 220V

Power : 1-3kw

Driven Type : Electric

Total Carbohydrate : 1year

Country of Origin : India

Brand Name : garbodrain
