Fantek Anna Nagar, Chennai, Tamil Nadu

For surface and underground mining applications, heavy duty enhancements are available, including: Conduit box roll-over protection Fabricated steel conduit boxes Heavy duty reinforced housings and wheel track protection Grease nipple protection Reinforced inlet bells Duct adapters designed for use with collapsible fabric ducting A variety of skid-mounted arrangements Our range of standard axial fans have been designed with aerofoil shaped blades, die cast in aluminum with various options for attachments as described in a detailed manner in our product brochure. The fans are designed keeping in mind the energy consumption, total weight and compactness to ensure that our customers get the best available in the market. Maximum flow rate – 96000 m3/Hr Maximum Pressure – 53 m Gc impeller components are X-rayed using real time radiography, and exa

STANDARD FEATURES Direct drive, impeller on motor shaft Fan belt drive Drive over coupling Diffuser with guide vanes

STANDARD FEATURES Direct drive, impeller on motor shaft Fan belt drive Drive over coupling

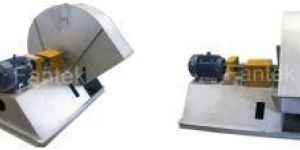

Standard centrifugal fans are designed for impeller diameters up to 1.32 meters and are built for light duty as well as heavy duty applications. All accessories available with our custom centrifugal fans are also available for standard centrifugal fans. Fantek-Centrifugal Fans,Centrifugal Fan,Industrial Centrifugal fans,Standard Centrifugal Fan, Axial Fans, Axial fan, Axial Flow fans,Id Fan,Blower fan,Blower,Dampers,Cyclone research. Making a choice of going in for any of our standard centrifugal fans comes with an added advantage of a short delivery period. Standard centrifugal fans typically come in fully assembled condition and each fan is tested at our works for all performance and mechanical parameters as per BS 848 class B. Our quality and performance certificates accompany our fans during dispatch if requested. We welcome you to come and witness the tests that we conduct at our works before taking delivery of your equipment.

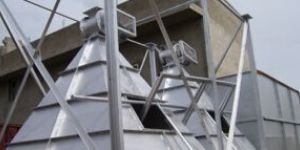

Pulse jet filters are filters used mostly for industrial purposes meant to separate dust from dust laden gases which will helps us to keep our environment clean as well as capturing useful material that can be reused. Pulse jet filters are typically constructed with a mild steel housing that houses Bag or Cartridge type filters that act as a medium separating clean and dusty gas. An air handling device, typically a centrifugal fan sucks the dirty gas through the filters and the dust gets trapped on one side of the filter. At a timely interval, powerful jets of pressurized air separate the dust from the bags/cartridges which get collected in a hopper and is dispensed from the hopper through rotary air lock valves to a silo. Our Bag Filters / Cartridge Filters are customized to suit your requirements and can be used for a wide range of applications in the following industries   Chemical Plants Cement Manufacturing Iron making and Steel Food Processing Pharmaceuticals Mining Thermal Power Maximum flow rate – 720000 m3/Hr Maximum Temperature – 250 oC Maximum dust loading – 50g/m3 Filteration Efficiency – 99.9% for particle sizes greater than or equal to 4 microns. Filteration Efficiency- 96% – 99.9% for particles varying in sizes between 0.2 microns and 4 microns. Inlet and Outlet orientations for our Pulse Jet filters can be selected based on your layout drawing and you also have the option of choosing the number of chambers, a range of accessories like manometer, pressure switch, control panel and so on.

Key Benefits These robust adjustable-pitch fans have been designed to deliver up to 1 million CFM against 14 inches total pressure. Ranging in sizes from 76 1/2″ to 148″, this fan line delivers high efficiency and reliable service. Highly reliable Easy to maintain Economical price Standard Features Structural ASTM A36 steel all welded construction. Structural steel bracing, stitch welded to housing. Bolted and gasketed splits for removal of wheel and shaft assembly on horizontally installed units and splits for field welding, as required for shipment. Designed to meet strict vibration requirements. Vertical and horizontal installations. Shaft C 1045 alloy steel shaft. Shaft designed for a minimum first critical speed ratio of 1.25. Optional Features Motor Base 4-Way adjustable base with jacking bolts. Heavy plate construction sized to suit selected motor. Fan Monitoring Equipment 100 OHM, 3 wire platinum bearing RTDs. Flow and pressure sensors. Thermocouples. Vibration transducers.

BENEFITS No ducts are required Specially designed to optimise aerodynamic performance and meet your needs of operating in very high temperatures for up to 4 hours (flame proof construction) Range capability from 300 cfm (510 cmh) to 25000 cfm (42500 cmh) and 0.2 to 2 in Wg total pressure Low and easy maintenance Standard features Silencers for noise mitigation Dual Speed for normal and emergency operation Bird Screen Bell Mouth at fan inlet Optional features Stainless Steel Impellers Clamps for horizontal / vertical mounting APPLICATIONS Car Parks Basement Ventilation Tunnel Ventilation

Blower Type : Centrifugal Blower

BENEFITS Reliability Specially designed to optimise aerodynamic performance and meet your needs of operating in very high temperatures for circulation of furnace flue gases. Range capability from 300 cfm (510 cmh) to 25000 cfm (42500 cmh) and 0.2 to 2 in Wg total pressure Standard features Fan belt drive Drive over coupling Cooling Water Jacket Insulation Optional features Hastelloy/Titanium impeller or casing Fire resistant motor Bell Mouth at fan inlet Clamps for horizontal / vertical mounting APPLICATIONS Heat and smoke ventilation Industrial process fans Furnaces

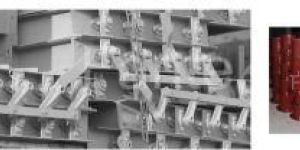

Multi Louver Damper as the name implies consists of multiple louvers placed along the cross section of duct rotating simultaneously about their own axis which cause the louvers to align themselves along the direction of flow or block the flow. They serve as a better option as compared to butterfly dampers. Dampers ‘IGVs (Inlet Guide Vanes) are designed to pre-rotate or spin the air in the direction of fan/compressor rotation. This has a flow-modifying and a resistance effect and hence allows operating a constant speed fan at different process conditions. AIGV’s (Adjustable inlet guide vanes) will allow more efficient operation than an inlet butterfly damper at reduced head requirements for a constant speed driven single stage centrifugal fan. Butterfly damper is a disk-shaped valve turning on an axis along its diameter, serving especially as a damper in a pipe or as a choke or throttle in a duct. The butterfly damper does not decrease the power consumption when throttled, in contrast to IGV.

Cyclone separators are devices that are used to separate dust from dust laden gases typically when the dust particle size is 20 microns or more. Filtration efficiencies in cyclones are not as good as Bag Filters, however the maintenance cost of cyclones is much lesser than that of Bag Filters.   Fantek cyclones are also offered with special wear liners and insulations to suit your requirements and can be used for a wide range of applications in the following industries Chemical Plants Cement Manufacturing Food Processing Mining Manufacture of Ferrous and non ferrous products Maximum flow rate – 720000 m3/Hr Maximum Temperature – 350 oC Maximum dust loading – 50g/m3 Filteration Efficiency – ranges from 91% for particle sizes greater than or equal to 20 microns to 99% for particle sizes as high as 50 micro

Cyclone separators are devices that are used to separate dust from dust laden gases typically when the dust particle size is 20 microns or more. Filtration efficiencies in cyclones are not as good as Bag Filters, however the maintenance cost of cyclones is much lesser than that of Bag Filters.

Understanding that capital budgeting for investment in our equipment depends on a number of varied factors for each of our customers, Fantek’s fans are also custom built to suit your budget, which will facilitate you to choose between a bare minimum stripped down version and a highly sophisticated version with world class designs and technology.

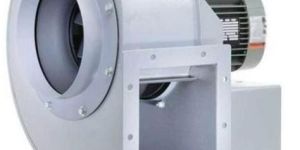

blowers are equipment that offer pressures in between a fan and a compressor for a given flow rate. There are many different types of blowers such as positive displacement, high pressure fans, submerged blowers, twin lobe blowers and so on…

Certification : CE Certified

Application : Industrial Use

Availability : 100-200kg

Total Carbohydrate : 1year

Pressure : 1900 mm Wc

Application : Pneumatic Conveying
