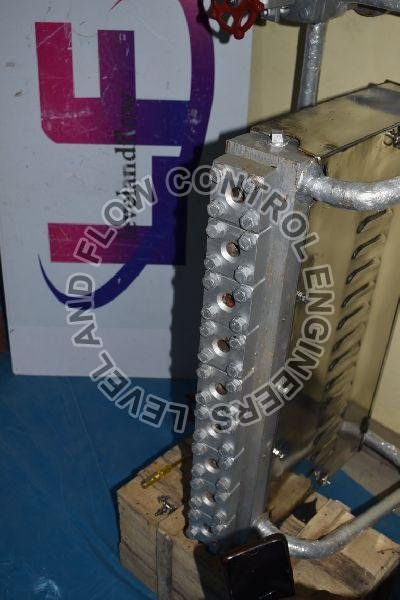

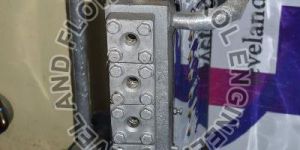

Color Port Gauge Glass Assembly for Boiler-IBR Certified
275,000 - 1,000,000 / piece
- MOQ2 Piece
- Size30-45cm, 45-60cm, 60-75cm, 75-90cm, 90-105cm, 20NB, 25NB, 40NB
- Number Of FlowerGlass Assembly
- MaterialMetal
- Diameter30-40mm
- ShapeRound
- Thickness10-15mm
- ApplicationGlass Assembling
- GradeANSI, AS, ASME, ASTM, BS, DIN, IBR, IS, JIS
- FeatureExtra Stronger, High Quality, High Tensile
- Surface FinishingPower Coated, Epoxy based Painted
- TechnicsHot Dip Galvanized
- Country of OriginIndia
- Brand NameBeekay
- CertificationISO, IBR, ATEX, SGS, BV, TUV, IRS
- Country of Origin230 V
- After-Sales Service Providedyes
- Usageto see the Water level in the High Pressure Boiler Drums Boiler Drums
- Pressure200 bar max.
- Temp600 deg C max
- Flange StandardsANSI, ASME, BS, DIN., IBR, JIS - 600, 900, 1500 lbs Ratings
- CC Distance - Length300mm to 1000mm
- No. of Ports5nos to 11nos.
- Indications of Water LevelGreen colour for water level and Red Colour for Steam Level
- CertificateIBR, ISO, BV, SGS, TUV, IRS, ATEX
- ConnectionFlanged Ends and Socket Weld Ends
- LFCE manufacturing, Supplying, Exporting Color Port Gauge Glass Assembly for very high pressure steam boiler drums. Operating pressure 200 bar and temp 600 deg C is the Maximum. No. of Ports 5nos to 11nos. available and the CC distance from 300mm to 1000mm. Color port gauge glass assembly water level shows in GREEN colour and the Steam level shows in RED colour. Proper Illuminator and mica protection are provided. We can also supply spare Color Port Repair Kits Items will be supplied with IBR Certificate
We are expecting good enquiry and orders from all over the world
