Global Valves and Instruments Poonamallee, Chennai, Tamil Nadu

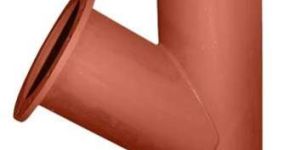

Y-Type pipe strainers manufactured by us is offered in both screwed and hanged connections and are the most effective ones in straining the impurities of your required size. We offer sound proof, no leak and no crush screen which is exactly fabricated giving you a perfect round and smooth seating surface. Features Low Pressure DropHigh Free-Flow AreaPerfect Sealing SystemRugged ConstructionAccessible For Maintenance Applications Coarse to fine filtrationHigh temperature & pressureVacuum serviceSteam

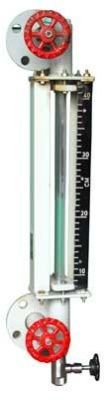

We provide you with our series of Tubular Level Gauge which is ideal for low pressure and low temperature applications. Moreover it is simple in construction and permits viewing in any directions. Features Simple constructionEnsures Safety operationsPermit viewing from any directionAvailable with level indicator for general applicationsSimple in constructionReliable in operation Applications Sugar IndustryChemical plantsRefineriesTextile mills Specifications Op.Pressure : 0-15kgcm2Op.Temperature : 0-250oC

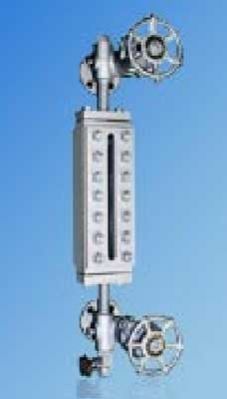

We offer you Transparent Level Gauge which is suitable for colored, adulteration liquids with suspended solid particles and is highly recommended for high pressure boilers. Our Transparent Level Gauges can be used with mica shield for high temperature. Features Resistant to chemicals, thermal & mechanical shocksChoice of designs is available in various body & materials to suit course conditionsTrouble free operationHeating cooling arrangements are availableIt is simple and reliable Applications Liquid Level measurement in Low High pressure vessels & BoilersReservoir tanksBoilers Specifications Op.Pressure : 0-150kgcm2Op.Temperature : 0-400oC

We present you our array of Top Mounted level switches operated through displacer and are specially used for level signalization in sumps and vessels. It is applicable wherever monitoring at one/two/three different levels at considerable depths is required. Applications Alarm & shutdown duties,Sump level controllarge switching differential for pump control Features Vibration ResistantPump ControlReliableSimple and proven designLong service lifeSuitable for rough environmentsSimple installationNo regular maintenance necessaryCompatible to most fluids Specifications Op.Pressure:- 0-20kg/cm²Op.Temperature:- 0-250ºC

We offer Side Mounted Level Switches which is accumulated with float and permanent Magnets. Our side mounted magnetic level switches is intended to work on magnetic coupling with snap acting contacts. Features Can be used with internal/External Units for very high pressure and temperatureAs our switches work on magnetic principle, they are glandless and leak proofNo power consumptionSimple in designRobust construction Applications Drinking fountainMachinery ElectricalChemicalMarineTest instrumentFood machineryWarmer machineryWasherAir condition Specifications Op.Pressure:- 0-100kg/cm²Op.Temperature:- 0-400ºC

We manufacture Safety Valves that are mainly used with gases which consist of air and steam. Due to their design which always include a huddling chamber which promotes the expansion forces of these gases to effect quick opening(popping)and closing actions. The limitations are carefully considered as per ASME code. Features Higher or lower rating can be set on requestLonger shelf lifeDimensional accuracyEnsures complete safetyReliableDurableSuperior quality Applications LiquidsGasesSlurriesLiquids with suspended solids

We deal in manufacturing of Safety Relief Valves which are normally used for liquid service, although safety valves may also be used. Our range of safety relief valves ensures complete safety unlike ordinary relief valves which operate with a relatively lazy motion, slowly reliving action. Features Added safetyHigher releasing capacityNo isolation valves requiredEasy maintenanceGive positive safety to the plant Applications LiquidsGasesSlurriesLiquids with suspended solids Specifications Op.Pressure : 0-100kg/cm2Op.Temperature : 0-500oC » Material of construction Body, Bonnet, CapCI/CS/SS 304/SS 316/Brass/Gun MetalInternalsSS 410/SS 304/SS 316/BrassSpringSpring SteelGasketsCAF/Neoprene/TeflonLeverSteelOther Grades of MOCAs per Customer's RequestProcess ConnectionAny International standardAccessoriesScales/Shield/illumination/Heating Chamber

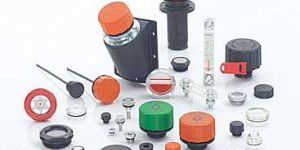

We offer you with our Round Level Indicator with round toughened glass or acrylic sheet. Available in different sizes, types and various dimensions it finds application in various industries. Features Superior qualityResistant to chemicalsLow maintenanceCustomizationDurable

Our Remote level indicator conducts the water level fluctuations in the boiler drum or in the tank to the working position of the attendant. Our Remote Level Indicator can be fitted anywhere in the control roomground floor with necessary connection pipes to the boiler drum. Features SimpleCost effectiveSophisticated designReliableRemote reading possible Applications Boiler (Steam) DrumsFeed Water HeatersCondensate Tanks Specifications Op.Pressure : 0-150kgcm2Op.Temperature : 0-400oC

Our collection of Reflex Level Gauges is endorsed for clean liquids and the observation which is required from a safe distance and on low pressure boilers and vessels. Our reflex level gauges is designed with flat glasses which are having inner surfaces of reflecting prisms due to which the liquid level behind the glass appear black and the empty (vapor)surface appear white. Features Precise designsSafe functioningAccurate reading standardsEnsures maximum safety standardsIdeal for frost shield for subzero temperature Used for Colorless liquids Specifications Op.Pressure : 0-100kgcm2Op.Temperature : -30ºC-+300oC

We provide our clients with Oil Level Indicator which is used in the Greasing/ Oil system and gear to see the lubricating oil levels in the concerned equipment. We offer you in different lengths and can be customized according to the client̢۪s requirement. Availability LBT TYPEFACE TYPEROUND TYPE Features DurableEasy installationPremium qualityEasy to maintainUser friendly Specifications Op.Pressure : 0-5kg/cm2Op.Temperature : 0-400oC

Our Full Sight Flow Indicator is designed to give flow in any direction. It is widely recommended for low pressure lines. Further for colorless tubes it can fit with diptube. Full View Sight Flow Indicator can be assembled with toughened cylindrical (tabular glass). Features Standard safety and maintenance featureEasy operationLower costFlexibleModular design Used for Corrosive chemicalsAcidsColored liquids

Our Full Sight Flow Indicator is designed to give flow in any direction. It is widely recommended for low pressure lines. Further for colorless tubes it can fit with diptube. Full View Sight Flow Indicator can be assembled with toughened cylindrical (tabular glass). Features Standard safety and maintenance featureEasy operationLower costFlexibleModular design Used for Corrosive chemicalsAcidsColored liquids Specifications Op.Pressure :- 0-10kgcm2Op.Temperature :- 0-200oC

Our range of Float and Chord Level Indicators which is designed to see the level from long distance is a simple, low cost level gauge device appropriate for all types of storage tanks. It can be used as a single instrument to see the levels up to 15 meters height. Features Easy to operateLow costCompact designAvailable in different heightsCustomization is provided Applications WaterFurnace oilChemicals Specifications Op.Pressure : 0-15kgcmOp.Temperature : 0-400oC

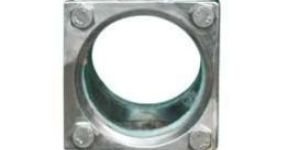

We offer you our wide range of Double Window Sight Flow Indicator which is suitable for both vertical and horizontal pipelines. Our double window sight flow indicator has an advantage of installation in any position particularly it is amended to the pipelines carrying dark opaque solution where the motion of the wheel can easily be detected. Features Easy installationCost effectiveDurableLong lifeLow maintenance Applications IndustrialsChemicalLaboratories Specifications Op.Pressure :- 0-25kg/cm2Op.Temperature :- 0-250oC

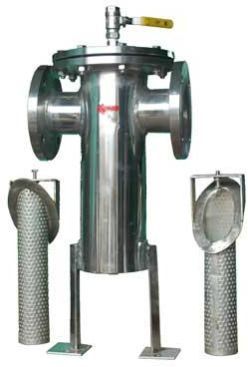

Our manufactured range of Basket Type Pipe Strainers facilitates the temporary shutdown cleaning in industries. The basket type strainers available with us can be supplied with drain as per the requirements of our customer. We can offer special design strainers to have larger straining area. Features Large-area, heavy–duty basketsEasy to cleanOption of backwashingCustom design services Applications Chemical IndustriesPower PlantProcess IndustriesCement PlantSteelPetrochemicalsFertilizersRefineriesOil & GasChemicalsTextiles
