Ideal Ozone Solutions Ayanavaram, Chennai, Tamil Nadu

Venturi injectors are differential pressure with internal mixing vanes. Superiority of injectors is due to the unique design which permits them to start suction when the outlet pressure is only 20% lower than the inlet pressure Venturi injectors create thousands of micro bubbles which greatly increases the surface area of gas (oxygen, ozone, etc.) in contact with the liquid—several micro bubbles have a greater surface area than one large bubble of the same volume. Venturi injectors size available from 0.5 inch to 4 inch diameter. Typical construction materials for Venturi injectors is S.S

Static mixer is a precision engineered device for the continuous mixing of fluid materials. Normally the fluids to be mixed are liquid, but static mixers can also be used to mix gas streams, disperse gas into liquid or blend immiscible liquids. The energy needed for mixing comes from a loss in pressure as fluids flow through the static mixer. The design of static mixer is the plate-type mixer and the other device consists of mixer elements contained in a cylindrical (tube) or squared housing. Mixer size can vary from about 1 inch to 4 inches diameter. Typical construction materials for static mixer components S.S 316.

The NewLife® Elite low power consumption concentrator delivers up to 5 LPM of oxygen at 90% ±3% Concentration. This concentrator is small, quiet, lightweight Flow lockdown and other unique features make this easy to maintain, durable concentrator of choice among today’s equipment providers. High efficiency Oxygen Generator Plant which works under Patented Advanced PSA Technique to separate 90 to 93 % pure Oxygen from the atmospheric air. the nature of oxygen preparation equipment ensures particulate and moisture-free feed-gas.

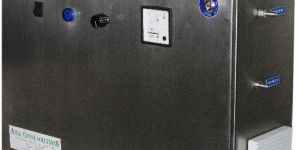

Ideal Ozone Solutions Ozonators use the method of corona discharge simulating, in fact a lightning strike which produces it naturally. Corona discharge electrodes powered with high voltage (about 5 kV and higher) produce ozone from oxygen contained in the air. Our ozonators works from external oxygen or dry air as feed gas to produce ozone gas. We also have specially designed mass transfer equipments like venturi injector, static mixer, ozone diffusers, ozone injection system, ozone mixing tank, to dissolve the ozone into the water for achieving the maximum efficiency of the equipment.. Our Ozone Generators produce high concentration of ozone, while feeding oxygen as flow gas. It has very good life on ozone cells compared with Air Feed Ozone Generators because of moisture free dry oxygen. We also supply suitable Oxygen generators and skid frames at extra cost. It builds with Stainless steel enclosure for longer durability, and withstand to harsh weather conditions. It consumes very little power and most compact size in the market. Advantages for our Ozonators Stainless Steel Ozone Electrode Precision glass dielectrics, Do not require any periodic replacement of spares High frequency operation, Compact design User friendly controls makes operation easy Efficient cooling to reduces thermal stresses Short circuit protection on high voltage electrodes Optional PLC based control for operation and monitoring Low power consumption Minimum maintenance and Low cost

We are offering ozonator. Our ozone generating units and it's accessories like venturi injector, ozone injection skid, static mixer, ozone mixing tank, ozone destructor, can be used in numerous applications such as packaged drinking water plants, waste water treatments, sewage water treatment, swimming pools filtration plants, cooling tower water treatment plants, food processing, hospitals, hotels, bars, restaurants etc

The NewLife® Elite low power consumption concentrator delivers up to 5 LPM of oxygen at 90% ±3% Concentration. This concentrator is small, quiet, lightweight Flow lockdown and other unique features make this easy to maintain, durable concentrator of choice among today’s equipment providers. High efficiency Oxygen Generator Plant which works under Patented Advanced PSA Technique to separate 90 to 93 % pure Oxygen from the atmospheric air. the nature of oxygen preparation equipment ensures particulate and moisture-free feed-gas.Specifications :Oxygen Concentration: 1–3 LPM at 95.5% - 92.0%;4 LPM at 92% ±3%; 5 LPM at 90% ±3%Dimensions: 28 “ H x 15” W x 14” DWeight: 25 kgPower Supply : 220–240 VAC, 50 Hz,Power Consumption: 350 WattsAlarms: Battery test, power failure, high and low pressure.

Usage : Industrial , Commercial
