Jaibalaji&co Ambattur, Chennai, Tamil Nadu

: : : : : : : : : : : : : : : : 0.1 second, to 99 hours T1 or T1 & T2 Seconds, Minutes, zhours Independent for T1 and T2 One count of display Independent for T1 and T2 On delay, interval, unequal cyclic on first, unequal cyclic off first UP (incrementing) or Down (decrementing) selectable Possible

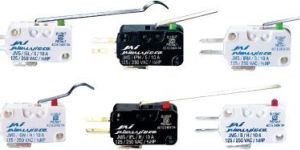

Centrally located common terminal. Wiping contact snap action, Standard temperature rating - 40 to 85 degree Celcius. Button, Straight lever short, medium and long Roller lever Short and roller lever Medium and Simulated Roller

Size : 28.9mm

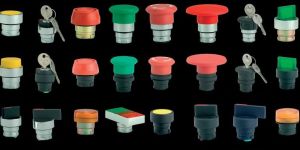

Our range.jaibalaji push button selector switches, illuminated selector switches and pilot lights are certified by bureau of indian standards and carry unique isi mark. Jaibalaji switches and pilot lights are also certified by csainternational, canadaus and also conforms to european standards ce.

The control devices ø2.5mm can be fixed in any position on panels of 1 to 6mm thickness. We recommend minimum fixing centres of 30mm x 40mm. However, the dimensions and configuration should be decided on the basis of the applications. The actuators and lenses assemblies lock on to the holding bracket, tightened equally from the rear. The screw should be tightened adequately to such an extent as to pierce through the paint on the panel from inside. These screws also ensure the earthing of the unit.

The contact mechanism incorporates a moveable contact assembly utilising two pressed leap springs to provide quick-make, quick-break action which eliminates any position of zero contact pressure and ensures non-teasing action, even with an extremely slow operation motion. The light weight berrylium-copper contact carrier with large faced silver contacts and low bounce mechanisms assure long life on high load applications. The serrated silver stationery contacts, definite wiping action and high contact pressure assure reliability on dry circuit applications. The switch is completely enclosed in a semi dust-tight moulded, phenolic case of great physical strength and high arc-resisting capacity. weight berrylium-copper contact carrier with large faced silver

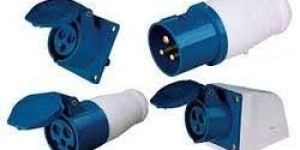

These markings are easily visible on plugs and Sockets after installation and connection and when in service as prescribed by the manufacturer: If, in addition of regulation marking, the rated operating voltage is also indicated by a colour coding, this must be in accordance with IEC 309 Rated Operating

These sensors are mainly used to differentiate Light and Dark colours. Emitter and Receiver are enclosed in a single housing. The transmitted light beam is reflected by the light colour and it returns to the receiver. When the dark colour mark enters into this light beam, the receiver senses the changes in colour by reflection.

Centrally located common terminal. Wiping contact snap action, Standard temperature rating - 40 to 85 degree Celcius.Button, Straight lever short, medium and long Roller lever, Short and roller lever Medium and Simulated Roller. Characteristics: Electrical:50 mA to 25 Amps Circuitry: SPDT, SPST, NONC Operating Force: 25 to 280 gms

Utilization Category: AC15 and DC13 as per IEC - 60947-5 & IS: 13947-5-1, Rated Insulation Voltage : 250V AC, Rated Thermal Current Ith : 5A, Contact Ratings : AC15 RATING 250V, 50Hz, 2.0A, DC13 RATING 125V, 0.1A, Mechanical Life Span : 10 x 106 Operations, Enclosure Category : IP-64, Max. Operation Speed : 120 cyclesminute, Tightening Torque of Terminal Screw : 0.8 Nm(Max), Applicable wire : Conductor size : 0.75 - 1.25 mm2 Outer Dia of Cable : 6-9.

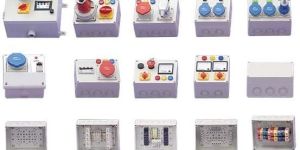

Jai balaji control gears private limited is offering a wide range of junction boxes from india.

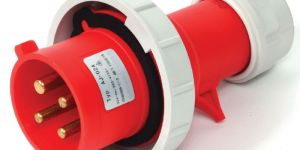

Position of ground contact with respect to major for various voltages and frequencies, designated by Clock face positions in accordance with table 104 taken EN 60309 - 2 : 1992These markings are easily visible on plugs and Sockets after installation and connection and when in service as prescribed by the manufacturer:

Reference Standards: ISIEC 60309 Part 1 and Part 2, Working temperature: -25 degree C to + 80 degree C, Insulation Voltage: 690V ACDC, Dielectric Strength: 2500V perminute, Insulation Resistance: >5 Meg. Ohm., Contact Resistance:

Position of ground contact with respect to major for various voltages and frequencies, designated by Clock face positions in accordance with table 104 taken EN 60309 - 2 : 1992 1.25 times the rated current, 1.1 times the rated Voltage, power factor 0.6lag.

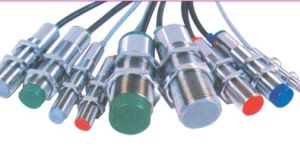

manufacturers of ISI Limit Switches has another range of high quality Inductive Proxity sensors. REF : STANDARD IEC 947-5-2, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION, OVERLOAD PROTECTION, FALSE PULSE DURING, POWER ONOFF PROTECTION, NOISE SUPPRESSION.

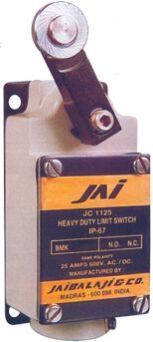

TWENTY-FIVE CIRCUIT OPTIONS, 25 A 600 V A.C. OR D.C., 70° OVERTRAVEL IN BOTH DIRECTIONS, IP 67 PROTECTION, OPERATES UP TO 107° C, IDEAL FOR APPLICATION REQUIRING EXTRA HEAVY INDUSTRIAL DUTY CONTACT RATINGS, HIGHER OPERATING AND RESET FORCES, RUGGED MECHANICAL CONSTRUCTION, WILL WITHSTAND HOT FALLING SAND UPTO 300° F, FOR ROUGH FOUNDRY APPLICATIONS AND HEAVY MACHINE TOOL , CONVEYOR, MILLS, FOUNDRIES, HEAVY BOILERS. ACTUATION MODE CONVERSION FACILITY FOR LEFT-HEND, RIGHT-HAND OR MAINTAINED CONTACT ACTION. PLUS A COMPREHENSIVE SELECTION OF OPERATING LEVERS. Model JC-1125 heavy industrial duty limit switch providing twenty five switching arrangements from eleven standard types Actuation mode conversion facility for left-hand, right-hand or maintained contact action. Rating up to 25 A lth 600 V. a.c. or d.c. plus a comprehsive selection of operating levers.

An enclosure suitable for use in hazardous atmosphere. The EPHA type is available in 2NO + 2 NC output.JAI EPHA LIMIT SWITCHES are for use either indoor or outdoor in hazardous atmospheres, as they are completely sealed explosion proof device. Mounting Holes are provided for front or rear mounting making the switch interchangeable with other hazardous location switches.

Temperature Range : - 12* C to 121* C

India’s ONLY manufacturer of ISI marked Limit Switches has another range of high quality Photo Electronic Sensors Long detecting distance Stable detection External light security Accurate sensitivity setting Short circuit protection Reverse polarity protection False pulse during power on off protection

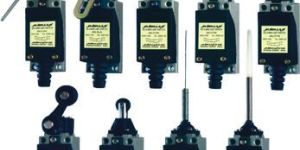

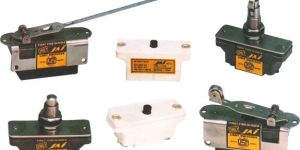

A wide range of Jai Limit switches tested to rigid quality standards. Jai switches are ISI marked as per IS 13947 Pt 5 Sec - 1. Jai Limit Switches with wide range and high quality are used for import subsitution. The range includes: STANDARD OIL TIGHT TYPE BC-9, MICRO ADJUSTABLE TYPE JW, PRECISION TYPE JO.

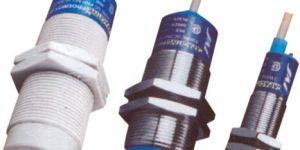

India’s ONLY manufacturer of ISI marked quality Capacitive Proximity Switches Limit Switches has another range of high Capacitive Proximity Switches. Capacitive Proximity Switches serves as a contactless sensors for positioning, monitoring and detecting all types of material. Capacitive Proximity Switch consists of an Oscillator, a Rectifier and an Amplifier. The capacitance between the sensing surface and mass increases when an object approaches active surface. When the capacitance value exceeds the preset level, oscillator generates AC signals. The Rectifier section converts this AC signal into DC and Amplifier amplifies this signal to drive a relay or a circuit.

Manufacturer of ISI marked quality Capacitive Proximity Switches Limit Switches has another range of high Capacitive Proximity Switches. Capacitive Proximity Switches serves as a contactless sensors for positioning, monitoring and detecting all types of material. Capacitive Proximity Switch consists of an Oscillator, a Rectifier and an Amplifier. The capacitance between the sensing surface and mass increases when an object approaches active surface. When the capacitance value exceeds the preset level, oscillator generates AC signals. The Rectifier section converts this AC signal into DC and Amplifier amplifies this signal to drive a relay or a circuit.

Cam Operated Rotary Switches are in Great demand owing to their sophistication and the marks of ISI, CSA and CE. Manufactured on the basis of latest concepts in switching technology, JAIBALAJI switches are guaranteed for greater reliability in performance. Made to suit various circuits of multi-pole and multi positions, switches enable easy hand operation. Cam operated Rotary switches are designed for ONLOAD switching and assembled on add-n-block system and are used for various application.

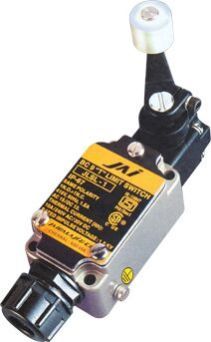

A wide range of Limit Switches tested to rigid quality standards.BC9 'T' series Limit Switches comply with IS 13947pt-5sec-1 of 1993 & IEC 947-5-1 and carry the unique ISI mark. Limit Switches are certified by CSA International Canada and U.S. They also conform to European standard CE.

Mechanical Life : 20 x 106 operations

Availability : Oil Tight Limit Switches: 300 gms approx.
