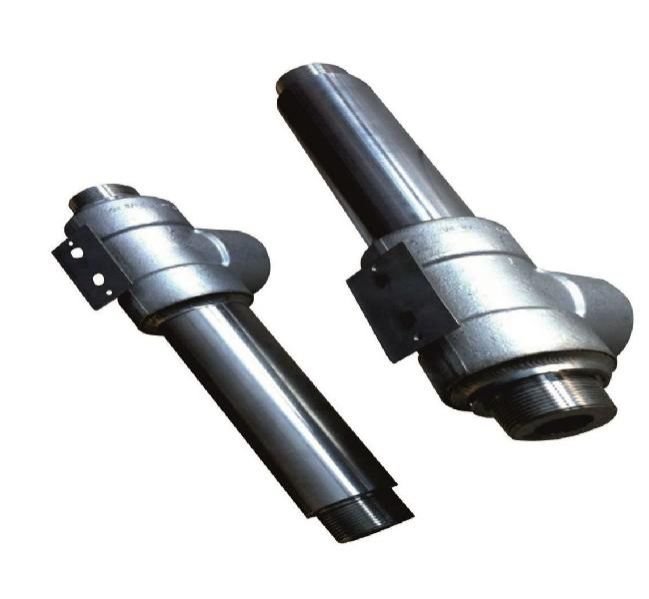

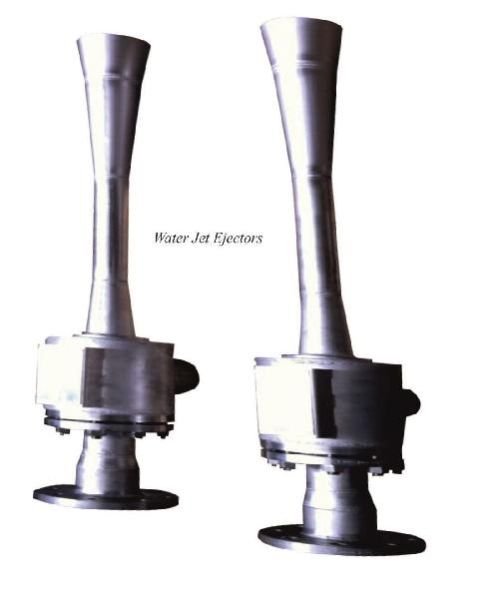

Water Jet Ejectors / Eductor :\\n\\nWater jet ejectors (Liquid Eductors) uses water as motive force. Liquid Jet Eductors use the kinetic energy of a motive liquid to entrain another liquid,completely mix the two, and then discharge the mixture against a counter pressure and are used in large numbers throughout industry for pumping and mixing operations.\\nWater Jet Eductors consist of three basic components, namely a converging nozzle, a diffuser (or venturi), and a body to hold these parts in their relative positions and to provide a suction (or mixing) chamber. In addition, they can be equipped with accessories such as regulating spindles.\\nWater Jet Eductors can also be staged with higher vacuum steam ejectors. In this case, the eductor serves both as the final pumping stage as well as a fairly good direct contact condenser, condensing the motive steam from the high vacuum steam ejectors.\\nWhen designing eductors experience is all-important to correctly design the nozzle, diffuser, and body and their relative positions as they are all highly critical and vary according to the physical properties of the liquids being handled.\\nApplications are so numerous, it is impossible to note all of them. General uses include lifting, pumping, mixing, and agitating of liquids as well as handling granular solids and slurries.\\n\\n \\nBenefits :\\n\\nLow Cost - Units are small in relation to the work they do and cost is correspondingly low.\\nSelf Priming - Eductors are self-priming. They operate equally well in continuous or intermittent service.\\nNo Moving Parts - Eductors are exceedingly simple and reliabl-e. There are no moving parts to wear or break in a basic eductor. Even when equipped with accessories such as regulating spindles snap valves, float mechanisms, they require little attention, only periodic inspection and maintenance\\nCorrosion and Erosion Resistant - Because they can be made of practically any workable material, or coated with corrosion-resistant materials eductors can be made highly resistant to the actions of the liquids handled or The environment in which located.\\n Safe - Eductors can be used in hazardous locations where electrically operated alternates would require explosion proofing at considerable cost.\\n Versatile - Various piping arrangements permit adapting to environmental conditions. Eductors of vanoustypes can handle granular solids, semi-solids, and slurries without contamination.\\nAutomatically Controlled - Units can be adapted for automatic control by means of a pressure liquid regulating spindle or a snap-valve and float arrangement.\\nEasy to Install - Connections can be made to suit your piping requirements. Little space is required to accommodate units and they are normally so light in weight they can be supported by the piping to which they are attached.\\n

Country of Origin : India

Number Of Flower : Liquid Eductor

Material : Stainless Steel

Usage : Lifting, Pumping, Mixing, Agitating Liquids, Handling Granular Solids And Slurries

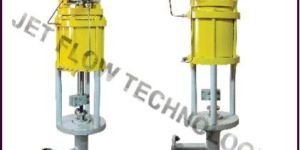

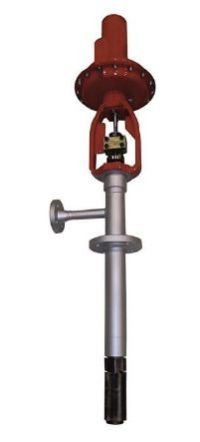

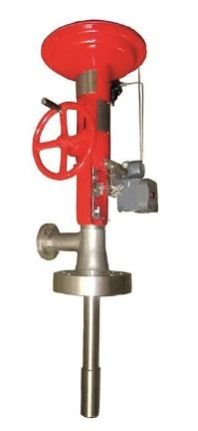

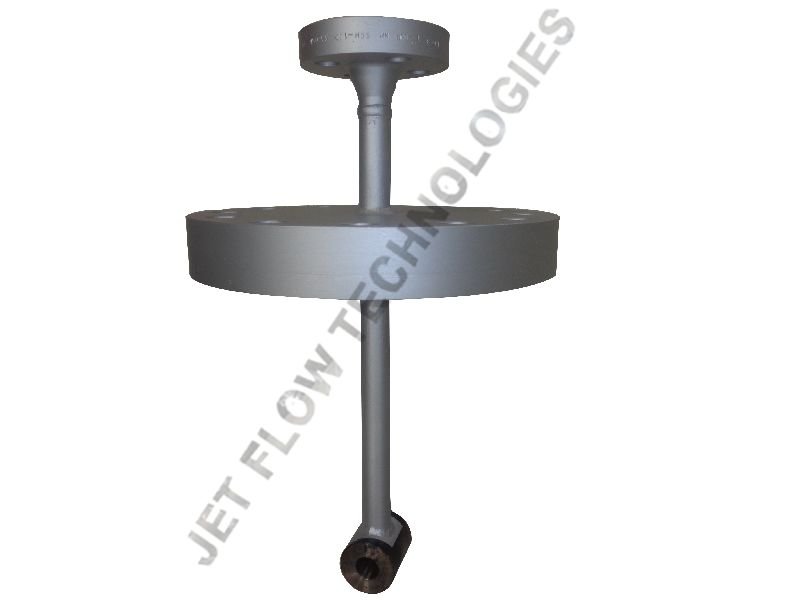

Jet Flow Variable Flow or Multi Nozzle Desuperheater; regulates the amount of injected water by varying the number of orifices during operation. The ensures that the spray water pressure remains constant at all loads and an excellent and almost uniform spray quality is achieved over the full operating range, thereby minimising the tendency of spray water to accumulate in the steam line. Opening of the orifices is regulated by the positioning of a piston operated actuator directly mounted on the desuperheater. This compact and simple design ensures no separate spray water Injection control valve is required. A high turndown of 50 : 1 is standard.

Number Of Flower : Desuperheating System / Valves

Application : Regulates Amount Of Injected Water By Varying Number Of Orifices, Maintains Constant Spray Water Pressure At All Loads, Achieves Uniform Spray Quality Over Full Operating Range, Minimizes Accumulation Of Spray Water In Steam Line

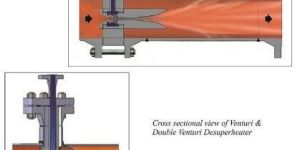

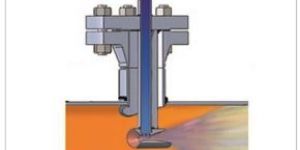

Jet Flow venturi desuperheaters consist of a Laval nozzle which utilises a part of the incoming steam flow to create a reduced pressure zone into which spray water is drawn and atomised by steam energy, and then exits in a short expanding throat which allows pressure recovery.The desuperheating performance remains constant at all loads from 100% or less, because of the atomising steam effect of the steam jet. The design is unique such that the spray water can be supplied at the same pressure as that of the steam pressure. High turndowns are possible depending uponinstallations.

Jet Flow venturi desuperheaters consist of a Laval nozzle which utilises a part of the incoming steam flow to create a reduced pressure zone into which spray water is drawn and atomised by steam energy, and then exits in a short expanding throat which allows pressure recovery. The desuperheating performance remains constant at all loads from 100% or less, because of the atomising steam effect of the steam jet. The design is unique such that the spray water can be supplied at the same pressure as that of the steam pressure. High turndowns are possible depending upon

Number Of Flower : Jet Flow Venturi Desuperheater

Application : Desuperheating Steam By Creating A Reduced Pressure Zone For Atomizing Spray Water

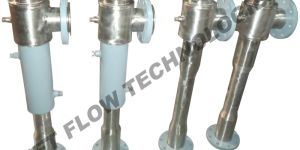

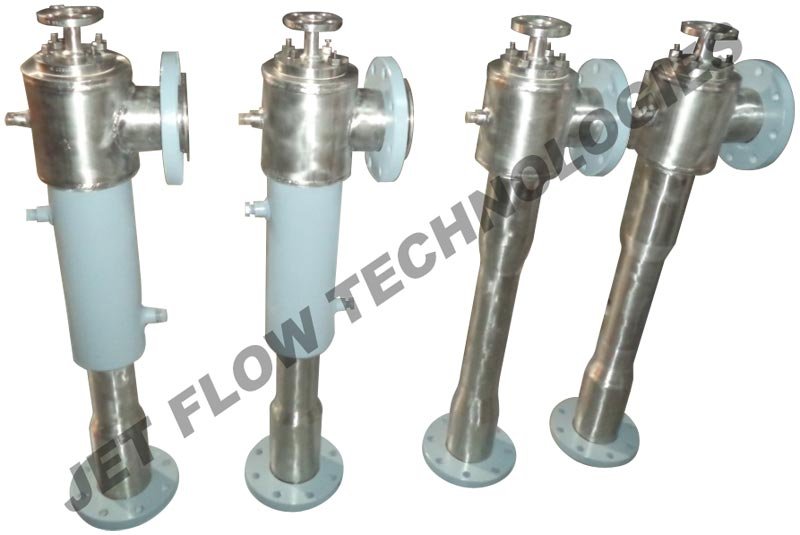

Water jet ejector uses water as motive force. Liquid Jet Eductors use the kinetic energy of a motive liquid to entrain another liquid,completely mix the two, and then discharge the mixture against a counter pressure and are used in large numbers throughout industry for pumping and mixing operations, Water Jet Eductors consist of three basic components, namely a converging nozzle, a diffuser (or venturi), and a body to hold these parts in their relative positions and to provide a suction (or mixing) chamber. In addition, they can be equipped with accessories such as regulating spindles, When designing eductors experience is all-important to correctly design the nozzle, diffuser, and body and their relative positions as they are all highly critical and vary according to the physical properties of the liquids being handled.

Number Of Flower : Water Jet Eductor

Material : Metal

Usage : Pumping And Mixing Operations

Jet Flow Technologies are one of the fastest growing and leading designer, manufacturer, and exporter of energy efficient industrial equipments for process and power sectors. We are relatively a young team of expert engineers and renowned technocrats supported by the promoters who have acquired high end technologies from the west and are in the field of handling steam for over two decades. We have three divisions namely, Vacuum Division, Heat Transfer Division and Valve Division. Combining we can supply about 30 to 40 different type of highly advanced engineering equipments and special valves solution, meeting customers’ most critical applications, improving process efficiencies and performance, and helping in energy conservation.

Number Of Flower : Industrial Equipment

Application : Industrial Vacuum Applications

Specialization : Energy Efficient Industrial Equipments

Turbine bypass valves play a very major role in Power Plant applications. Within a short period of twenty four hours, a power plant may be required to operate at minimum load, increase to maximum capacity for major part of the day, immediately lower back to minimum load and then back to maximum capacity. Bypass System permit unit start up and shutdown in a lifesaving manner for critical heavy components in boiler and turbines. Jet Flow Bypass valves are supplied with hydraulic, electric or pneumatic actuators as per the process requirements alongwith complete control systems as an option.     Functions:   To perform quick and economic start up, including cold start, warm start and hot start in a lifesaving manner for critical heavy components in boiler and turbine. To operate with the boiler shutdown. To perform warm and hot startup in a short time after a trip i.e. brings the unit back to load To run the unit down to house load. To perform real “two-shift’ operation”. To avoid condensate losses to the atmosphere and reduce the start up noise to the ambient outside the plant.   Applications:   There are two different applications:1) Bypass Systems which are occasionally in operation. Among these there are startup and shutdown conditions and emergency conditions, for example after turbine trip.2) Bypass System which are often or permanently in operation, for example for process steam or heating application.     Actuators:   Bypass valves can be supplied with Pneumatic Piston & Cylinder, Electric or Hydraulic Actuators alongwith power pack and complete control system as per the requirements of the system.   Materials:   For most sizes, casting or forgings in Carbon and Alloy Steel can be supplied. For extremely large sizes, units are fabricated. Bypass Valves are normally supplied with butt weld ends. However, if required can be supplied with flanged ends.     Multi-Stage Multi-Path Pressure Reduction via Velocity Control trim technology:   Jet Flow Jet Stack trim has stack of discs and each disc is tailor made for a particular flow path that has a variety of features: OurJet Stack trim technology uses a series of multi-stage multi-path disc stack for successful operation of our valves in severe service conditions.The passes through an extremely tortuous path at right angle turns thereby reducing the fluid velocity and therefore reduces the noise and eliminates erosion and vibration problems. The Jet Stack disc stack is tailor-made as per the requirement of our customers.The thickness of the wall of Jet Stack trim is such that it ensures maximum tortuous flow path. It ensures the fluid has a uniform velocity and as it passes through the disk it is streamlined. Its design ensures the flow to be distributed evenly throughout the disc. The open flow channel ensures even distribution. Irrespective of flow direction, multi channels are provided. Multi channels evenly distribute fluid around the plug for full stroke thereby ensuring complete control, reliability and stability.     Advantage of Jet Flow Turbine Bypass Valves with Jet Stack Velocity Control trim and laval jet nozzle -   Series of pressure reducing stages are incorporated in the valve that can go as high as 60 for severe service let down applications. This ensures complete velocity control for the full load with noise levels reduced below 85 dBA. Complete tight shut off valve maintaining class V seat leakage. High rangeability of 50:1 as a standard is provided, however, higher turn down of 100: [can also be provided upon request. Minimum wall thicknesses of the body as per the design conditions to minimize thermal stress and shock. Complete trim assembly is easy to assemble and disassemble since no welded designs are incorporated. Extremely low maintenance cost with rapid trim change over from top. The trim has a very long life on account of extremely low velocities and with proper use of selected materials. Laval jet atomizing desuperheater incorporated in the valve ensures no impingement of the water on the downstream piping and thereby no need to install expensive thermal sleeves or liners. Substantial savings from the point of installation since the downstream straight length required is extremely short and therefore transition sockets and pipes can be installed very close to the valve. Extremely installation friendly. The valve can be installed in either vertical or horizontal direction.

Number Of Flower : Turbine Valve

Three Stage Ejector is similar in construction as of Single Stage Ejector, but having intermediate condensers. Three Stage Ejector comprises of Booster Ejector, Booster condenser and a Two Stage Ejector. And Two Stage Ejector consists of a high vacuum ejector, a inter condenser and a low vacuum ejector.   This system will give higher vacuum and can handles larger quantity of condensable vapors. Gas or Gas vapor mixture is discharged from the first stage into the condenser where the operating steam is condensed and gases are cooled. The cooled gases are then entrained by the second stage and discharged into the second inter condenser. Here, the steam used in the second stage is condensed. The gases are finally entrained by the third stage and discharged to atmosphere.   Absolute Pressure Range : Vacuum from 5 MM HG Absolute to 15 MM HG Absolute

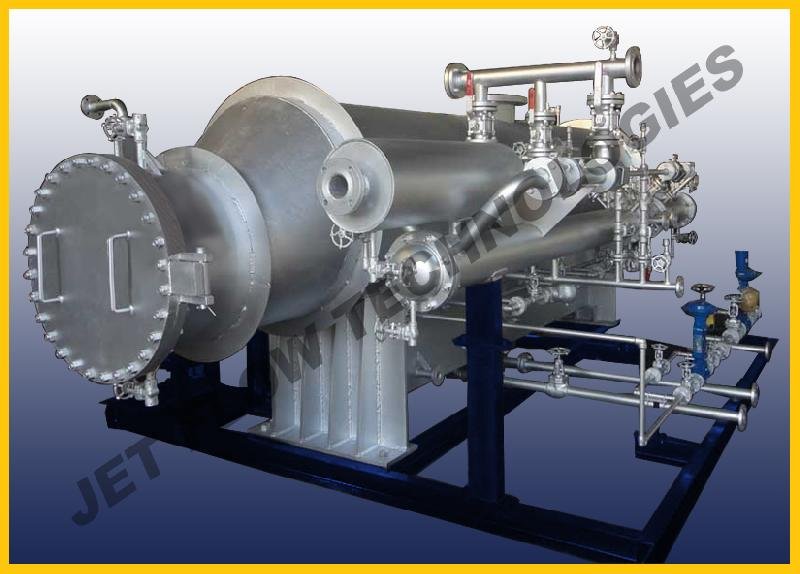

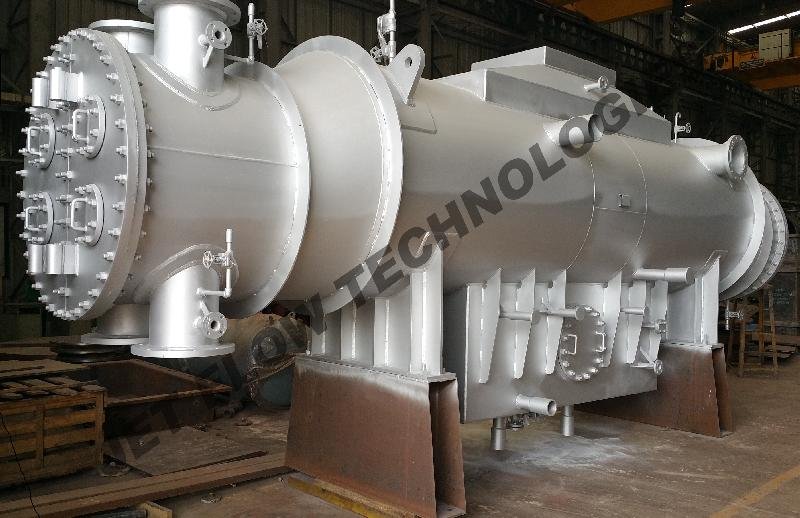

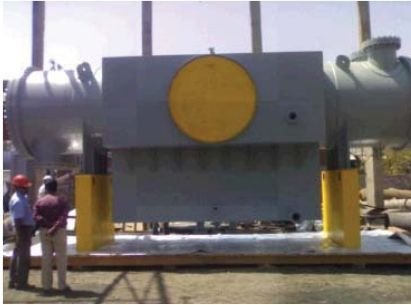

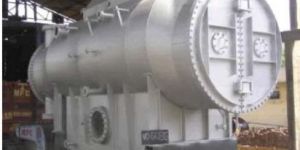

The Steam Surface condenser is a critical component of both the traditional coal fired power plant and the new generation cogeneration and combined cycle power plants. Main duties of any Surface Condenser are to convert the exhaust steam from its gaseous to its liquid state at certain under atmospheric pressure, and also, to release non-condensable presented in the steam cycle, together with vacuum unit.Jet Flow designs and economically sized condenser suitable for smaller turbine ratings under 100 MW. The circular configuration is compact for easy shipping and maintains the level of quality afforded all of our condenser designs.All of Jet Flow’s Surface Condensers are designed and built to the Heat Exchange Institute latest Standards.We also strive to meet all of our client’s project specific requirements. Our Condenser design can incorporate enhanced deaeration systems, and or a variety of turbine exhaust options including Axial and Top steam inlet design, which can assist greatly in improving plant layouts. We continually address and refine these and other considerations associated with circular designs where space is at a premium.Jet Flow Surface Condensers are fabricated in-house state of the art fabrication facilities located in Ahmedabad. All of the fabrication facilities are according toASMEcode and an impeccable reputation for quality fabrication and on time delivery. Our Surface Condensers feature high overall heat transfer coefficient (which result in smaller heat transfer areas and thus optimal use of the available space) and extremely low oxygen concentrations in the condensate. They are designed to stand up to turbine and steam generator overloads and to variations in cooling water temperature at different times of the year.Jet Flow Surface Condenser highlights: Effective steam distribution within tube nest Uniform distribution of heat loading Effective collection and removal of noncondensable gases Negligible condensate subooling Minimized condensate inundation Lower velocity fluctuation Efficient air cooling section Effective de-aeration performance One orTwo passes. Down Flow, Axial flow or side inlet design. 4 to 6 months delivery. Available for all type ofTurbines. Air cooling zone is provided in the coolest part of the condenser, which minimise the carry overof the steam to the ejector vacuum system alongwith the non condensable gases.Geothermal Steam Condensers:Jet Flow has many years of experience designing vacuum Condensers with high non-condensable loads. Since Geothermal steam is highly corrosive and contains large amounts of non-condensable gases, the design and fabrication of Geothermal Steam Condensers is radically different than conventional power plant condensers. Special attention to be given on reduced overall heat transfer rates and LMTD due to high amount of non condensable gases, pressure drop, sub-cooling, flow path for venting large volumes and material selection to prevent corrosion. Associated vacuum system is Multi stage Steam Ejectors with direct OR in-direct type inter condensers.

Number Of Flower : Steam Surface Condenser

Application : Convert Exhaust Steam To Liquid State Under Atmospheric Pressure, Release Non-condensable Gases

Material : ASME Code Compliant Fabrication Facilities, High-quality Fabrication

Purity : Effective Steam Distribution, Uniform Heat Loading, Efficient Gas Removal, Low Condensate Subcooling

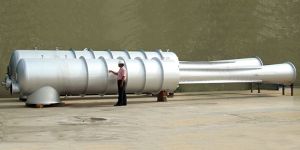

Vacuum is necessary during various steps of edible / vegetable oil processing. These steps essentially include hydrogenation, fractionation, bleaching, deodorization and de-acidification. Out of all vacuum equipments, Ejector Vacuum System has established the superiority and versatility of their use as compared to mechanical vacuum pumps. The most outstanding advantage of the Steam Jet Ejector is total absence of moving parts which eliminate mechanical breakdown, and assures constant and dependable operation with freedom from repairs. No adjustment or lubrication is required nor are any specially trained operator necessary as their operation is very simple. Over and above, Steam Jet Vacuum System convey at very high velocity which are many times the speed of sound, they are capable f handling large volume under vacuum thus making them eminently suitable for deodorization application wherein high quality of open / sparging steam has to be handled.

Country of Origin : India

Driven : Electric

Number Of Flower : Ejector Vacuum System

Large industrial plants often vent significant quantities of low-pressure steam to the atmosphere, wasting energy, water, and water-treatment chemicals. Recovery of the latent heat content of low-pressure steam reduces the boiler load, resulting in energy and fuel cost savings. Low-pressure steam's potential uses include driving evaporation and distillation processes, producing hot water, space heating, producing a vacuum, or chilling water. If the steam pressure is too low for the intended application, a steam jet thermocompressor can boost the pressure and temperature to the required level. Operating Principles - Thermocompressors and ejectors operate on the same thermodynamic and physical principle: energy contained in high-pressure steam can be transferred to a lower pressure vapor or gas to produce a mixed discharge stream of intermediate pressure. These devices are known for : Simple construction Easy installation Long useful operating lives Insensitivity to fouling Low capital and installation costs Easy maintenance with no moving parts If the objective is to recover the latent heat content of the low-pressure suction vapor for process use, the device is called a thermocompressor. If the objective is to pull a vacuum on a process vessel, the device is called an ejector. Boosting Steam Pressure and Temperature with Thermocompressors-Single- or multi-stage thermocompressors are used to boost low-pressure vent steam to a useful higher pressure and temperature. When high-pressure motive steam is available, thermocompressors can be economically used for compression ratios up to 6:1 (absolute pressure of supply steam/suction steam). High-pressure motive steam supplied to the thermocompressor expands in a converging-diverging nozzle to convert pressure energy to kinetic energy. Vent steam supplied to the suction port is entrained into this low-pressure/ high-velocity jet, where mixing occurs. The diffuser portion of the thermocompressor reconverts the kinetic energy of the mixture back into pressure. The intermediate discharge pressure is between the pressures of the motive and low-pressure suction steam. Discharge pressure is determined by the compression ratio (i.e. the ratio of the pounds per hour [1b/hr] of motive In steam supplied to the lb/hr of low-pressure suction steam entrained). Thermocompressor capacity of the device is dictated by the availability of motive steam, motive and suction steam pressure, and discharge steam pressure requirements. Applications include drying and heating, multi-effect evaporators, vulcanizers, reboilers, strippers, condensate receiver tanks, and solvent extraction processes etc. Applications : Check application of thermocompressors where significant venting of low-pressure steam occurs, higher-pressure motive steam is available, and a modest pressure boost could convert waste steam to useful steam. Examine waste recovery potential by determining. Flow rate and pressure of vented steam Flow rate and pressure for sources of motive steam Process or heating needs that can be met by boosting the pressure and temperature of vented steam Equipment size and motive to suction steam ratio Annual energy savings and installation costs of selected device

Number Of Flower : Thermocompressor

Material : Metal

Usage : Boosting Steam Pressure And Temperature

Applications : Check Application Of Thermocompressors Where Significant Venting Of Low-pressure Steam Occurs, Higher-pressure Motive Steam Is Available, And A Modest Pressure Boost Could Convert Waste Steam To Useful Steam

Purity : Boosts Low-pressure Vent Steam To A Useful Higher Pressure And Temperature, Can Be Economically Used For Compression Ratios Up To 6:1

Large industrial plants often vent significant quantities of low-pressure steam to the atmosphere, wasting energy, water, and water-treatment chemicals. Recovery of the latent heat content of low-pressure steam reduces the boiler load, resulting in energy and fuel cost savings. Low-pressure steam's potential uses include driving evaporation and distillation processes, producing hot water, space heating, producing a vacuum, or chilling water. If the steam pressure is too low for the intended application, a steam jet thermocompressor can boost the pressure and temperature to the required level. Operating Principles - Thermocompressors and ejectors operate on the same thermodynamic and physical principle: energy contained in high-pressure steam can be transferred to a lower pressure vapor or gas to produce a mixed discharge stream of intermediate pressure.

Number Of Flower : Thermocompressor

Material : Metal

Usage : Recovering Latent Heat From Low-pressure Steam, Boosting Steam Pressure And Temperature

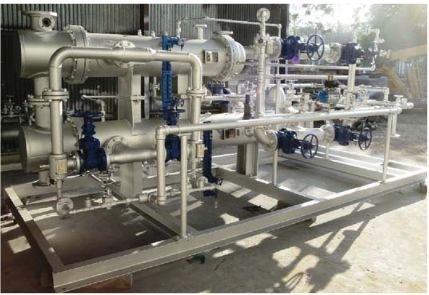

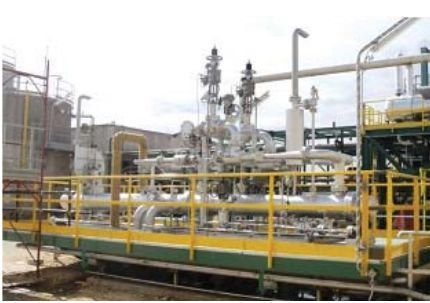

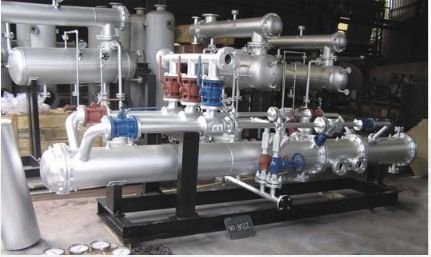

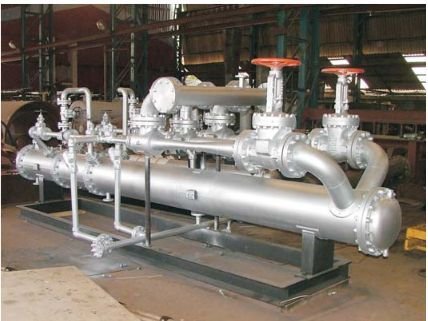

The efficiency of a Steam-turbine is mainly determined by the pressure of the steam at its outlet. The Turbine Surface Condenser is therefore maintained under vacuum. To enable this, the Steam Jet Ejector Vacuum System must be capable of removing all non condensable and associated water vapour from the Surface Condenser to produce the minimum steam condensing pressure consistent with physical dimensions and heat transfer and to provide for deaeration of the condensate.The sources of non condensables include air leakage through all system components operating below atmospheric pressure, gases released from feedwater drains and vents admitted to the condenser, gases released for make-up admitted to the condenser, condensate surge tank when utilized in a closed cycle and disassociation of feedwater into oxygen, hydrogen and non condensables.The recommended design pressure of the Steam Jet Air Ejector (SJAE) System is as follows :\\n\\nFor electric generation service : The design pressure is 0.035 ata (25.4 mm Hg (a)) or the condenser design pressure whichever is lower.\\nFor Pumps, compressors and other mechanical drives : The design pressure is that for which the condenser is designed minus 0.035 ata (25.4 mm Hg (a)).\\n\\nUsually, the SJAE system is of Twin Element type i.e. of duplex design having two identical Ejectors per stage, one of which, being in operation at any one time and the other as stand-by. The Inter and After Condensers are generally Single Element type.\\n \\nThe System also includes a Hogger / Start-up Ejector with Silencer for fast pre evacuation and which is in operation only till the desired vacuum has been achieved. Thereafter, the two stage holding ejectors take over.\\n \\nIn this field of application, combination units with Ejector and Surface Condenser coupled Liquid Ring Vacuum Pump are also becoming popular.

Country of Origin : India

Driven : Electric

Number Of Flower : Twin Element Duplex Design

Usage : Maintaining Vacuum In Turbine Surface Condenser By Removing Non-condensable Gases And Water Vapor

Feature : Combination Units With Ejector And Surface Condenser Coupled Liquid Ring Vacuum Pump

Jet Flow venturi desuperheaters consist of a Laval nozzle which utilises a part of the incoming steam flow to create a reduced pressure zone into which spray water is drawn and atomised by steam energy, and then exits in a short expanding throat which allows pressure recovery. The desuperheating performance remains constant at all loads from 100% or less, because of the atomising steam effect of the steam jet. The design is unique such that the spray water can be supplied at the same pressure as that of the steam pressure. High turndowns are possible depending upon

Number Of Flower : Jet Flow Venturi Desuperheaters

Application : Desuperheating Steam Flow By Atomizing Spray Water Using Steam Energy

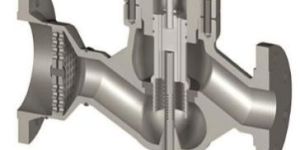

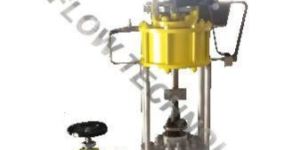

A Steam Conditioning Valve / Combined PRDS Valve is the combination of pressure reduction and temperature reduction of superheated steam to fit process needs, protect downstream equipment or allow the use of less expensive materials or schedules for downstream piping. This is done with a pressure reducing valve and a spray water addition section either as separate units or a single device. Pressure reduction is carried out with a pressure reducing trim within the valve body, usually multi stage pressure reduction. The pressure is controlled by an upstream or downstream pressure controller, signaling the valve to modulate to maintain the pressure at the required set point.Temperature is controlled by adding water to the steam in such away that it will get fully evaporated in the steam, termed as desuperheatmg. These applications are normally considered to be some of the most severe services of any valves in a modem steam plant. A Steam Conditioning Valve  Jet Flow steam conditioning valve with revolutionary multinozzle atomizer and feed forward design adds to our latest generation of quality valves. The equipment is utilised for simultaneous pressure and temperature reduction of steam. The cooling water is introduced in the highest turbulent zone of the steam. High steam velocity at this point, results in the highest coefficient of heat transfer between the steam and water. The feed forward design assures soft misty spray and instantaneous temperature control over the full range of steam flow. For high pressure let-down, pressure drop is taken across concentric flow cages rather than across seating surface, resulting in minimal seat wear. Pilot operated cage design to achieve extremely tight shut of (leakage classification ANSI# V) Balanced design with heavy duty pilot spring greatly improves throttling stability at high pet?P Larger outlet and outlet diffuser options give noise attenuation at optimum design conditions guaranteeing outlets sound pressure level to 85 dBA. Stellited trim increases its resistance to corrosion, erosion by abrasion, galling and sticking. Steam Conditioning Valve Jet Flow steam conditioning valves are available in a variety of combinations. These valves are made as per tailor made requirements of customers. The valves are manufactured in angle, Z and globe forms.  Spray water entry is from the top through hollow stem as well as from the bottom, depending upon the process parameters. Applications are but not limited to: Steam Conditioning Valves Reheater Valves Automatic Re-circulation Valves Superheater Spray Control Valves Boiler Feed Control Valves Start up Steam Vent Valves Spray Water Valves Multi-Stage Multi-Path Pressure Reduction via Velocity Control trim technology: Jet Flow Jet Stack trim has stack of discs and each disc is tailor made for a particular flow path that has a variety of features: OurJet Stack trim technology uses a series of multi-stage multi-path disc stack for successful operation of our valves in severe service conditions.The fluid passes through an extremely tortuous path at right angle turns thereby reducing the fluid velocity and therefore reduces the noise and eliminates erosion and vibration problems. The Jet Stack disc stack is tailor-made as perthe requirement of our customers.The thickness of the wall of Jet Stack trim is such that it ensures maximum tortuous flow path. It ensures the fluid has a uniform velocity and as it passes through the disk it is streamlined. Its design ensures the flow to be distributed evenly throughout the disc. The open flow channel ensures even distribution. Irrespective of flow direction, multi channels are provided. Multi channels evenly distribute fluid around the plug for full stroke thereby ensuring complete control, reliability and stability. Applications: Jet Stack trim has a wide range of applications that demand velocity control and massive pressure drops to be catered to across the valve. It assists in eliminating cavitation and erosion of the conventional type trim designs, reduces velocity, decreases noise and provides stable control over the entire ?ow range of the ?uid. Advantage of Jet Flow Steam Conditioning Valvewith Jet Stack Velocity Control trim and laval jet nozzle - Series of pressure reducing stages are incorporated in the valve that can go as high as 60 for severe service let down applications. This ensures complete velocity control for the full load with noise levels reduced below 85 dBA. Complete tight shut off valve maintaining class V seat leakage. High rangeability of 50:1 as a standard is provided, however, higher turn down of 100: [can also be provided upon request. Minimum wall thicknesses of the body as per the design conditions to minimize thermal stress and shock. Double acting spring return pneumatically operated cylinder piston actuators are provided as a standard. Electric and Hydraulic actuators can also be provided as an option. Complete trim assembly is easy to assemble and disassemble since no welded designs are incorporated. Extremely low maintenance cost with rapid trim change over from top. The trim has a very long life on account of extremely low velocities and with proper use of selected materials. Laval jet atomizing desuperheater incorporated in the valve ensures no impingement of the water on the downstream piping and thereby no need to install expensive thermal sleeves or liners. Substantial savings from the point of installation since the downstream straight length required is extremely short and therefore transition sockets and pipes can be installed very close to the valve. Extremely installation friendly. The valve can be installed in either vertical or horizontal direction. Spray Water Control Valve -It is of extreme importance that steam temperatures are maintained in utility power plant to ensure safe, reliable and ef?cient operation of the equipment. Spray water control valves are the ultimate control elements for superheaters, reheaters, etc. A ?nely balanced steam temperature control valve will ensure trouble-free maintenance of the equipment for longer runs in a utility power plant. Requirements - Gives the exact quantity of spray water as per the control demand for the entire operating range. Valve should be Class-V tight shut-off so that the downstream piping/ equipment  are not damaged. Should be suitable for higher pressure let down applications without internal damage of the trim. Reliable and consistent operation.

Number Of Flower : Combined PRDS Valve

Material : Stellited Trim

Usage : Pressure And Temperature Reduction Of Superheated Steam

Applications : Steam Conditioning Valves,Reheater Valves,Automatic Re-circulation Valves,Superheater Spray Control Valves,Boiler Feed Control Valves,Start Up Steam Vent Valves,Spray Water Valves

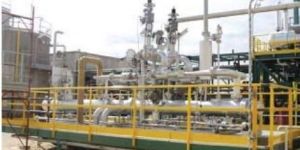

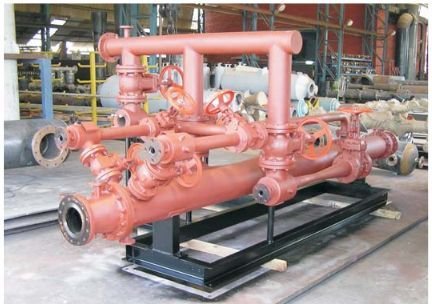

Single-Stage Steam Jet Ejectors are based on the ejector-venturi principle. In operation, steam issuing through an expanding nozzle has its pressure energy converted to velocity energy. A vacuum is created and the high velocity of steam entrains air or gas and the mixture of gas and steam enters the converging end of the venturi, passes through the diffuser where its velocity energy is converted into pressure sufficient to discharge against a predetermined back pressure. Single stage steam jet ejectors are used to create vacuum covering 40 mm Hg. Absolute.Two Stage Ejector with Condenser - The system is the assembly of two units whose construction is similar to single stage with inter condenser (direct contact type or surface type). Steam of the first stage is expanded through nozzle entrains the air or other gases and discharges them to diffusers at a higher pressure in the condenser. The discharge from the first stage will then directed to condenser which reduces volume of discharge gases. These gases turn discharged with the help of second stage ejector. The ejector is required to be placed at sufficient height to drain the ejector condenser barometrically. If barometric installation is not possible then an extraction pump is provided to drain the condenser in vacuum. The discharge or exhaust steam and entrained gases is directed to the atmosphere or can be condensed by an after condenser or lead to a water tank if required.  Absolute Pressure Range: Vacuum from 100 MM HG Absolute to 10 MM HG Absolute.

Jet Flow Safety Valve represent the most advance technology in value designed for use in intermediate power boiler and organic fluid vaporizer service. Built in conformance to section I of the ASME boiler and pressure vessel code, all capacities am certified by the national board of boiler and pressure vessel inspector at 5% over pressure. Jet Flow Designed Safety Valve with Full Nozzle & hardened disc to minimize maintenance and increase seat life Open bonnet & Close bonnet both design have maximum set pressure 75 bar in Safety Valves. Technical Details : Size Range - 15 mm TO 200 mm Moc - Cast steel,CF8,CF8M,GM End Connection - Screwed End, Flanged End, Butt weld Pressure Rating - 150 class, 300 class Trims - SS 304,SS 316 Design  : Angle Type(Lever operated / without lever) Pop Type (Lever operated / without lever) Open Discharge Type (Lever operated / without lever) Angle type CP Design Standard - API 526 ,520 & IBR Testing Standard - API 527 Flange drilling - ANSI B16.5 Leakage test - API 527 Suitable Application - Steam, Gas, Air, Water, Oil While Enquiry Please Specify : Material of Construction. Set pressure in psig or Kg/cm2 (g). Maximum inlet temperature. Allowable over-pressure. Service-Specify either the media to be handled or the following physical properties or both. Liquids-Specific gravity (Water = 1) Gases-Specific gravity (Air=1) Vapors-Molecular weight (mixture of vapors. The average molecular weight) Back pressure, if any. Required capacity. Type of End-connections. Preferred inlet size.

A Steam Conditioning Valve / Combined PRDS Valve is the combination of pressure reduction and temperature reduction of superheated steam to fit process needs, protect downstream equipment or allow the use of less expensive materials or schedules for downstream piping. This is done with a pressure reducing valve and a spray water addition section either as separate units or a single device. Pressure reduction is carried out with a pressure reducing trim within the valve body, usually multi stage pressure reduction. The pressure is controlled by an upstream or downstream pressure controller, signaling the valve to modulate to maintain the pressure at the required set point.Temperature is controlled by adding water to the steam in such away that it will get fully evaporated in the steam, termed as desuperheatmg. These applications are normally considered to be some of the most severe services of any valves in a modem steam plant. Jet Flow steam conditioning valve with revolutionary multinozzle atomizer and feed forward design adds to our latest generation of quality valves. The equipment is utilised for simultaneous pressure and temperature reduction of steam. The cooling water is introduced in the highest turbulent zone of the steam. High steam velocity at this point, results in the highest coefficient of heat transfer between the steam and water. The feed forward design assures soft misty spray and instantaneous temperature control over the full range of steam flow. #For high pressure let-down, pressure drop is taken across concentric flow cages rather than across seating surface, resulting in minimal seat wear. #Pilot operated cage design to achieve extremely tight shut of (leakage classification ANSI#V). #Balanced design with heavy duty pilot spring greatly improves throttling stability at high pressure. #Larger outlet and outlet diffuser options give noise attenuation at optimum design conditions guaranteeing outlets sound pressure level to 85 dBA. #Stellited trim increases its resistance to corrosion, erosion by abrasion, galling and sticking. Jet Flow steam conditioning valves are available in a variety of combinations. These valves are made as per tailor made requirements of customers. The valves are manufactured in angle, Z and globe forms. Spray water entry is from the top through hollow stem as well as from the bottom, depending upon the process parameters.

Country of Origin : India

Number Of Flower : Steam Conditioning Valve / Combined PRDS Valve

A Steam Conditioning Valve Combined PRDS Valve is the combination of pressure reduction and temperature reduction of superheated steam to fit process needs, protect downstream equipment or allow the use of less expensive materials or schedules for downstream piping. This is done with a pressure reducing valve and a spray water addition section either as separate units or a single device. Pressure reduction is carried out with a pressure reducing trim within the valve body, usually multi stage pressure reduction. The pressure is controlled by an upstream or downstream pressure controller, signaling the valve to modulate to maintain the pressure at the required set point.Temperature is controlled by adding water to the steam in such away that it will get fully evaporated in the steam, termed as desuperheatmg. These applications are normally considered to be some of the most severe services of any valves in a modem steam plant.

Number Of Flower : Steam Conditioning Valve

Material : Varies Based On Application

Usage : Pressure Reduction, Temperature Reduction Of Superheated Steam

Feature : Combination Of Pressure Reduction And Temperature Reduction, Multi-stage Pressure Reduction, Desuperheating Capability

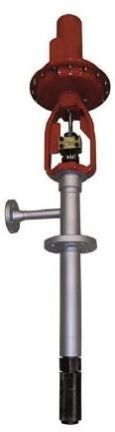

Jet Flow multi orifice desuperheater  regulates the amount of injected water by varying the number of orifices during operation.The ensures that the spray water pressure remains constant at all loads and an excellent and almost uniform spray quality is achieved over the full operating range, thereby minimising the tendency of spray water to accumulate in the steam line.Opening of the orifices is regulated by the positioning of a piston operated actuator directly mounted on the desuperheater.This compact and simple design ensures no separate spray water Injection control valve is required. A high turndown of 50 : 1 is standard.

Packaging Type : Multicolor

Number Of Flower : Desuperheater

Application : Regulates Amount Of Injected Water By Varying Number Of Orifices

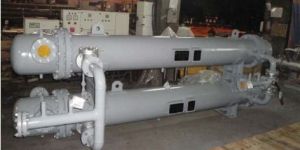

Lub oil reduces friction between moving mechanical parts and also removes heat from the components.As a result, the oil becomes hot. This heat is removed from the lube oil by a cooler to prevent both breakdown of the oil and damage to the mechanical components it serves.The lube oil temperature must be maintained within a specific operating band to ensure optimum equipment performance.Lube oil coolers are designed based on the customer specifications. Designs are available as single coolers or duplex coolers with change over valves.Duplex coolers can be supplied either in standard Horizontal design or vertical design if space is constrains.

Application : Reduce Friction And Remove Heat From Lube Oil

Material : Metal

Consistent High Performance Jet Flow Two-stage Vacuum Pumps with Their Rugged Cast Iron and Stainless Steel Components, are the Result of An Intensive Development and Testing Program. These Innovative Products Incorporate Modem Engineering Principles, Based On Nearly 25 Years of Experience in Vacuum Technology. all Vacuum Pumps are Subjected to 100% Performance Test Prior to Shipment.Very High Reliability There are No Teflon On Rubber Balls Inside the Pumps to Deteriorate Vacuum Performance, Jet Flow Pumps require very little maintenance.

Number Of Flower : Two-stage Vacuum Pump

Material : Cast Iron, Stainless Steel

Usage : Vacuum Technology

Country of Origin : India

Jet Flow Jet Venturi Fume Scrubber is a dependable device designed to entrain and scrub large volumes of gases without the use of complicated baffles or moving Parts. The motivating fluid, generally water, leaves the nozzled in a hollow cone spray, creating a draft which draws the gases and vapores into the moving stream where they are  continuously scrubbed / absorbed while subsequent separation is accomplished in units specifically designed bny, us to meet the state polution control requirement.

Number Of Flower : Fume Scrubber

Material : Steel

Application : Entrain And Scrub Large Volumes Of Gases

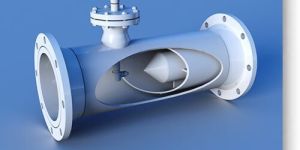

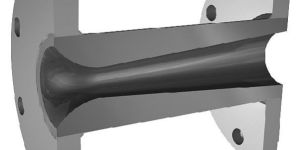

A version of single venturi desuperheater has the same operating conditions. can be mounted easily and quickly in the exisiting  pipeline. The unit can be clamped between two flanges. Sizes are  between 1 1/2” to 30”

Number Of Flower : Single Venturi Desuperheater

Application : Steam Desuperheating
