K2 Cranes & Components Private Limited Velachery, Chennai, Tamil Nadu

We are using Usha Martin make Power form & Hyflex ropes Maximum resistance to rotation Proof Load test for all ropes Test Certificate provided for load test.

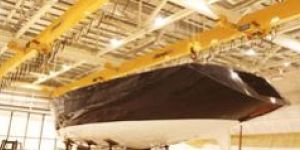

K2Cranes underhung, or underslung cranes are the ideal solution when supporting steelwork beneath the crane is not an option. We offer single span and multi-span options. As underhung cranes are supported from the roof structure, minimised loadings are usually a requirement. Consequently most underhung cranes are single girder design, although Streets are able to offer double girder options.

Material : Aluminium

Usage : Industrial

Brand Name : k2 cranes

In house load test for all Hoist. Manual load test & durability test for all the hoists. Standard load blocks to test 0.5 Ton to 50 T loads. Test report for various parameters are recorded.

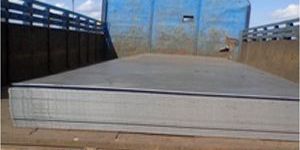

Steel plates from reputed sources, SAIL / JINDAL / ESSAR / TATA. Material will accompany steel mill test certificate. As per IS / Customer standard.

After-Sales Service Provided : Overseas service center available

Span : 7.5-31.5m

Packaging Type : Optional

Certification : ISO9001

Brand Name : k2 cranes

Application : Warehouse

Feature : Gantry Crane

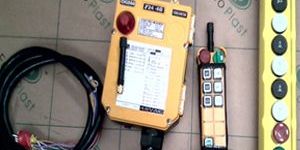

The main line On/Off lets you cut off power by pressing a button close at hand rather than the primary power source The advanced features of water-proof and dust-prevented meet IP55 improve its flexibility and durability Emergency stop as our standard specification is the added-on safe device. Radio frequency remotes ? optional Providing branded cables like Lapp / Giovenzana etc.

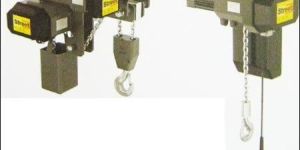

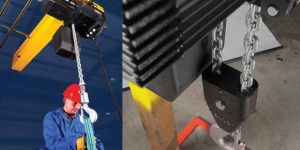

Most of our lifting and transportation solutions for light loads are powered by the Street LX electric chain hoist which provides precision lifting and durability at surprisingly attractive prices. The LX hoist is designed to meet the need for ultra efficient lifting and material handling in today?s competitive world.This new generation hoisting technology is based on a highly modular and versatile concept with a huge number of hoist and trolley constructions. The LX range is available in capacities from 125kg up to 5 tonne in almost every world supply voltage with single and dual speed options. Hoists are available in standard headroom construction or low headroom with chain diverter. LX hoists are designed for applications with eye suspension or powered, push, or hand geared trolley. All capacities are available at M5 (FEM 2m) with a wide variety of hoist speeds. All standard models are manufactured with rated capacities in metric tonnes or U.S. tons. Standard or Low headroom Construction The Street LX chain hoist is one of the most comprehensive ranges of electric chain hoist in the market with global distribution. All models and capacities are available in standard headroom construction with a range of adjustable powered or push trolleys. These are designed for monorail or single beam applications such as bridge cranes or jib cranes but twin beam solutions are also possible. Additionally eye suspension models for stationary hoist applications or applications with suspension trolley such as light crane and profile track systems are included in the range. Street LX chain hoists are designed and built to give reliability and endurance in a wide range of industrial applications such as manufacturing, service and maintenance but our customers and distributors continually surprise us with new and innovative ways to use our products. We therefore have installations in sports, entertainment, scientific and military applications. For bespoke applications with curved monorail beams, the standard LX is suitable for a min. 900mm radius.

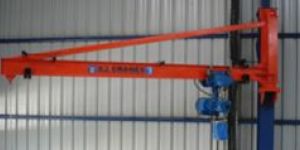

Built as free standing pillar mounted / column mounted or wall mounted versions. These offer high productivity and ideally suited for loading / unloading from trucks in Stores or individual machines. K2 Cranes build these cranes to sit individual client specifications with swivelling of 180 degree or 360 degree. Multiple Benefits of Jib Cranes Regardless of the type of the civil engineering projects, cranes are of utmost importance. There are several kinds of cranes available in the market and that can be of great help and bring more efficiency to the projects. Among the different types of cranes available, Jib cranes deserves special mention. A Jib crane can be defined as a kind of crane that utilizes a mounted arm in lifting and moving things from one location to other. Jib cranes are basically used in industrial sectors where lifting relocating and lifting heavy loaded materials are an integral part, for an instance docks and warehouses. The working principle of the jib cranes The working principle of the Jib cranes are quite simple, it works on the basis of the mechanical advantage concept. Here, mechanical advantage refers to the principle that a machine is capable of multiplying the force exerted on it by any given factor. When you will notice a crane very minutely, you will see that the crane consists of the wide numbers of simple machines which increases its weight lifting capacity in least possible time. There are many reputable jib crane manufacturers in India, where you can get the ideal crane for your perusal. The modern jib cranes manufacturers in India have come along with the distinct models of jib cranes that have metal cable incorporated around the jib strut ends, while one end of the hoist is connected to a hook and another end remains connected to a winch. You will find many jib cranes in Chennai that is not restricted to a fixed location, depending on your needs you can also move them from one place to another on the moveable chassis. You need to buy the moveable chassis separately from the jib crane manufacturers. When you have the moveable chassis, you will have the mobility and the lifting capacity as well. Different types of jib cranes . When you want to invest in the jib cranes, first you need to understand the kind of work you do. It is very important to assess your requirements and then invest in purchasing one. If you get in touch with the jib crane manufacturers in Chennai, you will see that there are certain types of cranes which include free standing, wall mounted and wall bracket. The free standing jib cranes hardly require any support in order to keep it stable in the ground. These cranes have a large foundation which keeps them fixed in the ground and this is the crucial benefit that this crane has over others. The reputable jib crane manufacturer also produces wall mount cranes, which means these cranes can be mounted on wall. This kind of jib crane is circular in shape and offers the benefits like all other kinds of jib cranes. The manufacturers of the jib cranes Chennai also offer wall bracket cranes, which is quite similar to the wall mount jib cranes.

Material : Carbon Steel

Thickness : 1.5 mm

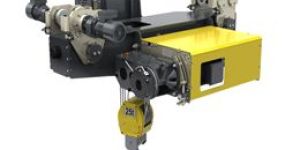

K2 Cranes offers electrically operated Single Girder wire rope hoists. These hoists are manufactured at K2?s modern manufacturing facility and offer customers the best in technology. Capacity for hoists range from 500 kg ? 30 tons and can be offered in single speed / dual speed design. Where space is a constraint hoist of Low Head Room type (LHR) can be offered to meet specific customer?s requirement. The hoist gear boxes are 3 stage helical gear box and the hoist motor is with IP 54 / 55 enclosures. The standard design incorporates DC Electro Magnet Disc brakes and the hoists come fitted with protective rope guide. Overload protection by means of limit switches and other electrical means is offered. Hoist can be operated through pendant push button or through radio remote control. For cross travel highly efficient helical gear motor fitted with DC disk brakes are offered as standard. Frequency invertor control for hoist and cross travel are generally offered. Besides the standard speed, faster lifting speeds can also be considered for specific customer applications. The open design for hoists component assures customers the ease of maintenance and easy accessibility to all hoist parts (refer figure above). The cross travel trolleys are so designed to accommodate available sizes of mono rails or standard I beams. These hoists are also suitable for fitting onto under-slung cranes. All electrical components are of reputed make and are easily available for replacement. The main operating voltages are 3 phase, 415 volts and 50 HZ.

For additional protection of operator, hoist, and load. Positive acting, momentarily reverses the hoisting motion if lower block drifts too high. Rotary type limit switches for safety purpose & control the upper limit & lower limit of Hooks.

Ranges from 250 Kg to 30 Tons, in either Box / Beam profiles, fitted with hand operated trolleys or electric trolley to suit specific customer requirements. A choice of VFD contractor control is offered as optional variants. Control is generally through Pendant & REMOTE CONTROL through Radio Remote can be offered. Single Girder Cranes up to 30 meters span can be manufactured. Hoists can be either Wire rope hoists or Electric Chain hoists depending on specific application & safe working loads. Long travel mechanisms are equipped with Helical Geared Motor & VFD as standard features.

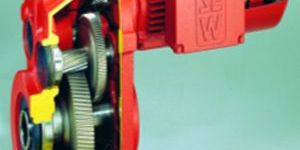

Using globally well known branded Geared motors like SEW/NORD/ROSSI etc Slim fit and easy to fit type of geared motors Using technically advanced products and highly engineered for each every customer All geared motors are service guaranteed at all locations.

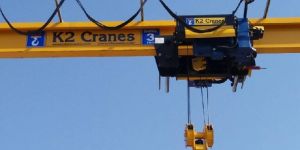

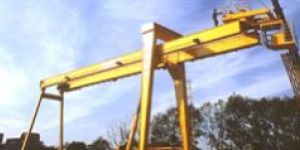

Sometimes known as goliath cranes or semi-goliath cranes, this design is available in both single and double girder format. It is ideal for outdoor applications where lifting facilities are provided without the cost of a building or any upporting steelwork. Often referred to as Gantry Cranes or Portal Cranes can be offered in both SG / DG versions. With Beam Box / or Lattice type Girders. Mostly built for outdoor applications like Granite Handling, Concrete Pre-cast yards, Ship Building, steel stock yards, Marble Quarries etc. This highly versatile K2 Gantry Crane can be provided with over hang on both / one side of Box girder especially for the Stone Industry & Building Construction verticals. Multiple uses of Gantry Cranes Gantry cranes are available in huge models as well as in small sizes to help different needs of the industries across the globe. Depending on your requirements, you can choose the type of the gantry crane- either it is of adjustable height or of fixed height. The gantry crane manufacturers generally opt for the steel or aluminum as the core metal used for manufacturing such cranes. Before you invest in buying a gantry crane, it is of utmost importance to assess the kind of work you will be doing with the machine. Most of the gantry crane manufacturers in Chennai designs the machine with two upright beams and then a cross beam along with it. The designs and the function of the gantry cranes The crane is designed in such a way that makes it quite worthy to carry on with the industrial works. The crane has two legs that are shaped in an A-frame design that comes along with wheels at the bottom which further adds flexibility to the crane. The smaller gantry crane Chennai is generally used for the basic manufacturing jobs, such as moving large containers or moulds from one location to other so that it becomes easy for the workers to execute the work within least possible time. Most of the warehouse professionals prefer gantry cranes to move the heavy materials from one location to other. The gantry cranes may appear smaller in sizes, but they can eventually lift and move heavy materials quite much with ease. Things you should remember before buying gantry cranes There are certain things that you need to keep in mind before you buy the gantry cranes. The first and foremost thing that you should understand is, not all cranes are well built, and therefore you should always buy cranes from the reputed gantry crane manufacturers in India. It is always wise to trust a company that has a great track record of building equipments and tools that has longevity of years. The cranes are not really much expensive, but whenever you are investing in gantry cranes, ensure that you are investing in the right options. If you have any kind of confusion regarding the cranes, you can talk to the reputed manufactures of gantry crane in Chennai. Only the reputed manufactures can provide you with lifetime warranty on the crane. There are two kinds of warranty available on the cranes- either it is general defect warranty or replacement warranty. There is a time frame for both the warranty and that varies from one manufacturer to others.

The ZX6 hoist is available in capacities 0-5 tonnes whilst the ZX8 hoist has capacities 0-25 tonnes. The new ZX10 hoist extends the range further with models available up to 50 tonnes.All popular capacities are available with M5 (FEM 2m) duty rating and in most capacities duty ratings of M6 (FEM 3m) or M7 (FEM 4m) available. The design features three basic frame sizes each having multiple options for motor power, gearbox ratio, drum length and the number of falls of rope. This gives users maximum flexibility in selecting hoist speeds, duty classifications and lifting heights.

After-Sales Service Provided : Overseas service center available

Power Source : Electric

Total Carbohydrate : 2 Years

Sling Type : Chain

Lift Speed : Depends

Packaging Type : Customised

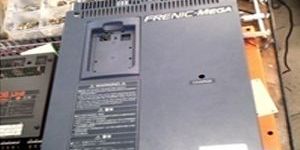

High quality regulation through sensor less ISD current vector regulation Using Global Brand Schneider / Fuji / Yaskawa Programmable DC-braking Programmable delay time for digital input Simple to operate and handle.

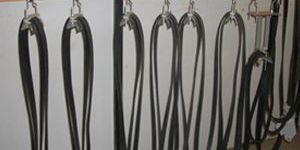

Copper flexible flat cables used. Galvanized folded type C-Track for flexibility & reliability. Anti-frictional ball bearings are used as trolley wheel for smooth movement & long life. Reputed make festoon system only used like Giovenzana ,Lapp etc.

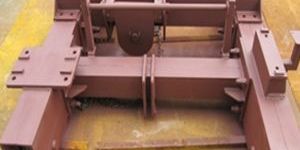

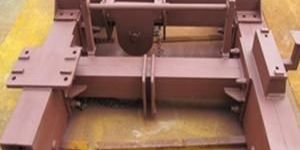

Provides a combination of lower headroom, higher hook lift, and closer end approaches. Maximizes hook coverage within existing facility, without costly remodelling. All structural members Materials are meeting IS 2062 grade E250. Travel carriages with proven wheel assembly.

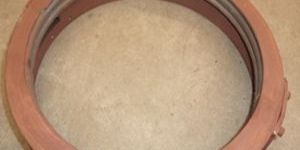

Rope guides reduces wear on the rope and rope drum to enhance the safety and durability. Cast Iron rope guides are used for long life and high durability. Tested with various parameters working conditions.

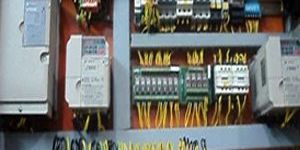

Magnet contactor is operated through push button switch or remote controller and electric parts and cable are clearly labelled for easy repair and maintenance Control box have good water-proof, dust-proof and the enclosure meets IP54 specifications. Standard main voltages are 3Ph/415V/50Hz and standard control voltage is 48/110V. Omran make Signal relays for VFD command. Reputed electrical parts are from SCHNEIDER & YASKAWA.

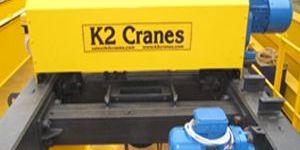

Pre preparation by sauntering /shot plasting process. One coating of primary painting and surface leveling. Two coating enamel spray painting. Standard Pantone shade color for uniformity.
