Basic Dynamic Load Range: 5.23kN - 29.8 kN The WE series features equal load ratings in the radial, reverse radial and the lateral direction with contact points at 45 degrees. This along with the wide rail, allows the guideway to be rated for high loads, moments and rigidity. By design, it has a self-aligning capability that can absorb most installation errors and can meet high accuracy standards. The ability to use a single rail and to have the low profile with a low center of gravity is ideal where space is limited andor high moments are required.

When there are shaft deflection or Vibration to worry about, this shaft support rail Composes ‘Slide Rail Unit’ by support the tapping machined shaft together with opened type ball bush blocks.

These support blocks can support the ends of the ends of Linear Motion Shafts without special machining .There are ‘WK’ for plane and ‘WKF’ & ‘SF’ for a wall.

The SE is a metallic end cap option for the linear guideway that increases temperature resistance. This option enables service temperatures up to 150°C and instance temperatures up to 200°C. For situations where a standard block is unable to operate due to the high working temperatures, the SE option is available for use.

The Support Unit comes in six types: models EK, FK, EF, and FF, which are standardised for standard Ball Screw assembly provided with finished shaft ends, and models BK and BF, which are standardised for ball screws in general. The Support Unit on the fixed side contains a JIS Class 5-compliant angular bearing provided with an adjusted preload

Basic Dynamic Load Range: 11.3 kN - 275.3 kN The RG series features a roller as the rolling element instead of steel balls. The RG series is designed with a 45-degree angle of contact. Elastic deformation of the linear contact surface, during loading, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions. The RG series linear guideway offers high performance for high-precision manufacturing and can achieve a longer service life than traditional ball bearing linear guideways.

The RC Reinforced Cap consists of a piece of hard plastic and a piece of an elastic O-ring. The hard plastic is made of synthetic resin which is characterized by oil resistance and abrasion resistance; the O-ring is made of rubber which is characterized by oil resistance and elasticity.

Basic Dynamic Load Range: 16 kN - 36.8 kN The QW series linear guideway with SynchMotion� Technology possesses all the advantages of the WE series, which features high moment rigidity and is suitable for single rail or space saving applications. With the SynchMotion� technology it also provides quieter and smoother movement, superior lubrication, and longer service life. The QW series is interchangeable with the WE series.

Basic Dynamic Load Range: 26.3 kN - 150.8 kN QR series offers super high rigidity and very high load capacities. The QR series with SynchMotion™ Technology offers low friction, smooth movement, quieter operation and longer running life. In the industry where high accuracy, low noise and high rigidity is required the QR series is the ideal guideway choice. The QR series is interchangeable with the RG series.

Basic Dynamic Load Range: 13.88kN - 108.72 kN The development of QH linear guideway is based on a four-row circular-arc contact. The QH series linear guideway with SynchMotion™ Technology offers smooth movement, superior lubrication, quieter operation and longer running life. Therefore the QH linear guideway has broad industrial applicability in the high-tech industry where high speed, low noise, and reduced dust generation is required. The QH series is interchangeable with the HG series.

Basic Dynamic Load Range: 8.56 kN - 51.18 kN The development of the QE linear guideway is based on a four-row circular-arc contact. The QE series linear guideway with SynchMotion� Technology offers smooth movement, superior lubrication, quieter operation and longer running life. Therefore the QE linear guideway has broad industrial applicability in the high-tech industry where high speed, low noise, and reduced dust generation is required. The QE series is interchangeable with the EG series.

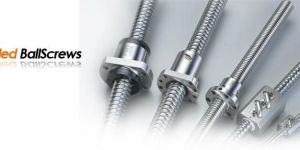

The production of the rolled ballscrews has adopted a manufacturing process and equipment unlike other manufacturers. Combining advanced skills and the Bad Düben digital electric screw thread rolling machine, we adhere to a strict quality control policy at every stage of production, from the selection of ballscrew material and rolled processing to induction hardening heat treatment and post production. We are committed to providing clients with products of the best quality. The combination of rolled ballscrews and ground nuts has replaced the traditional ACME screws and trapezoidal screws. This makes for a smoother operation while lowering friction and backlash. Moreover, the new technology has the advantage of faster production speed and lower prices. Besides differences in the definition of lead deviation and geometric tolerance, rolled and ground ballscrews can both eliminate axial play by preloading. Please contact us for related technical information.

Feature : ‧Nuts are Interchangeable,‧High Precision Rolled Nuts Etc.

positioning guideway system integrates a linear guideway with a magnetic encoder. This solution offers the high stiffness and rigidity of a guideway while obtaining high precision from the magnetic encoder. The encoder is a non-contact measuring sensor and the magnetic strip is embedded to prevent possible damage caused from external materials, these features ensure a longer service life.

End cap series use the through hold which crosses both end of nut to consist a close loop. End cap and wiper are one-piece make the shortest length of nut. Application in high-lead and multiple thread grooves of ball screws.

Basic Dynamic Load Range: 0.68 kN - 8.93 kN The MG series is a miniature linear guideway that comes in a compact size with a Gothic arch contact design that offers high stiffness and high rigidity against moment loads in all directions. The MG series also offers anti-corrosion protection which all material is in a special grade of stainless steel for compatibility in various working environments. The MG series is available in a narrow block type (MGN) and also with an enlarged width (MGW).

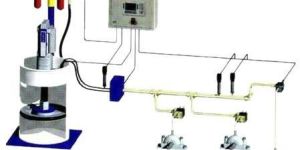

We are the growing manufacturer, supplier, distributor, wholesaler, trader and retailer of Lubrication System. This product is duly tested by the quality inspectors before the delivery. Lubrication System Our company is highly rated in offering Lubrication System to the clients. Lubrication System (Lean Automation Solutions Solution Lubrication System) is manufactured using optimal grade raw material with the set industry standards. This product is exceptionally valued by customers owing to its quality characteristics. Offered range is tested on various quality parameters. Features:   Precisely engineeredLong service lifeMaintenance free

The nut is integrated with a flange. This enables this model to be directly mounted onto the housing with bolts, thus achieving easy installation.

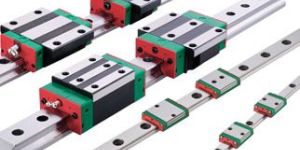

Linear guideways provide a type of linear motion that utilizes re-circulating rolling elements between a profiled rail and a bearing block. The coefficient of friction on a linear guideway is only 150 compared to a traditional slide and are able to take loads in all directions. With these features, a linear guideway can achieve high precision and greatly enhanced moving accuracy. We offers multiple linear guideway series and each series features different options for sizes, loading capabilities, accuracies, and more.

Since the small, lightweight aluminum casing contains one unit of model LM and two units of model SL, it can easily be mounted simply by securing it with the table using bolts.

A light aluminum support used for securing an LM shaft. Since the LM shaft mounting section has a slit, the support is capable of firmly securing an LM shaft using bolts.

A light aluminum support used for securing an LM shaft. Since the LM shaft mounting section has a slit, the support is capable of firmly securing an LM shaft using bolts.

LEANis leading the way in technologies that make automation easier, smoother and more efficient. With our line of electric linear actuators, we are able to meet specific design requirements for countless manufacturing industries. We specialize in linear actuation systems that make life easier for consumers and industry alike. See our full product listing below, and read more about how LEANproducts are revolutionizing how manufacturers create high-quality end products.

The advantage of internal ball circulation nut is that the outer diameter is smaller than that of external ball circulation nut. Hence it is suitable for the machine with limit space for ballscrew installation. It is strictly required that there is at least one end of screw shaft with complete threads. Also the rest area next to this complete thread must be with smaller diameter than the nominal diameter of the screw shaft. Above are required for easy assembling the ballnut onto the screw shaft.

The specially designed pathway makes a ball circle diameter (BCD) into the return tube by tangency direction to match the direction of lead angle. Offer smooth ball circulation to improve lifetime and reduce noise level.

We are providing Installation Service. This service is rendered by experienced professionals who hold vast knowledge and experience of this domain.Installation Service Our company has achieved widespread recognition in providing Installation Service to the clients. Installation Service is cherished amongst clients for work perfection and hassle free management. This service is rendered by a team of skilled professionals with the help of latest tools and machines keeping in mind defined industry norms.
