Micromeasures Metrology Pvt Ltd Ambattur, Chennai, Tamil Nadu

Indigenous design & manufacturing wireless signal comfimation ideal combination of accuracy, ergonomics, strudy construction and cost. Adjustable, Present type Industrial grade construction Wireless confirmation signal to receiver */-4% accuracy Ratchet head Upto 20 meter coverage

EASY TO USE QUALITY AUDIT TOOLS: BDS Dial Measuring Torque Wrenches are constructed from lightweight, robust materials. This combined with an overload protection feature guarantees years of accurate and dependable service All models are fitted with double ended ratcheting square drive, allowing torque to be measured or applied in clockwise or anticlockwise directions BDS signal wrenches are fitted with an audio visual warning device, which alerts the operator when the user set torque has been reached Designed for ease of repair and recalibration, therefore increasing tool life A durable storage case (see image below) is supplied with all BDS wrenches, further protecting the tool from damage These tools are designed and manufactured to exceed the requirements of ISO 6789:2003 Accuracy +/- 3% of reading ISO 6789:2003 classification 1B Accessories available (special extension spanners) ROBUST TOOLS IDEAL FOR QUALITY AUDIT: ADS Dial Measuring Torque Wrenches are constructed from lightweight, robust materials. This combined with an overload protection feature guarantees years of accurate and dependable service All models are fitted with double ended ratcheting square drive, allowing torque to be measured or applied in clockwise or anticlockwise directions ADS signal wrenches are fitted with an optional audio visual warning device, which alerts the operator when the user set torque has been reached A durable storage case is supplied with all ADS wrenches, protecting the tool from damage EPA compliant for use in electrostatically sensitive applications Designed for ease of repair and recalibration, therefore increasing tool life These tools are designed and manufactured to exceed the requirements of ISO 6789:2003 Accuracy +/- 3% of reading ISO 6789:2003 classification 1B Accessories available (end fittings, adaptors, sockets & special extension spanners)

AWS Testers are  with +/-0.5% of the Reading accuracy to meet your calibration requirements.  You can digitaly zero the tester as it has the most advanced electronics in it.Machined Aluminium bodyconstruction gives the required stability to the tester Simple to use with data transfer facility and Battery back up. available from mNm  to KNm range. Please send your requirement to us for detailed specifications.

Adjustable Type Reversible Ratchet Torque Wrenches: Entorquer Adjustable Torque Wrenches are designed for the industrail usage with an ideal combination of Accuracy Ergonomics, Sturdy constructiion, Performance and price. 48 tooth reversible ratchet Micrometer adjustable easily readable scale ISO 6789:2003 calibrated to +-4% accuracy Industrial grade construction Positive locking mechanism prevent accidental adjustment of the wrench Easy socket release by push botton Moulded grip for operator comfort supplied in moulded box

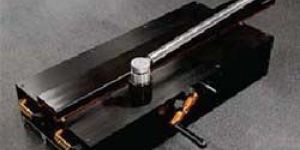

The AWS-1002 Torque Loader is designed to facilitate the testing of manual torque wrenches. Shown above is the mechanical version with the standard 4 speed hand crank. Some of the highlighted features include: Dual input shafts allow for quick positioning of the wrench rotation while optimizing the operator input torque. Dual Hand Crank mounting holes allow for a high speed and low torque settings on the handle reducing testing cycles. All aluminum frame construction keeping weight to a minimum Compatible with all AWS IL series torque Transducers Easily upgraded to a motorized version in the field. Rotation of the transducer NOT the wrench handle ensures accurate torque readings. Adjustable Wrench Reaction Post ensures proper tool alignment. Unique Channel slide allows for a wide variety of tool lengths to be calibrated without the need for extra extension bars.

DMF Serie: Erase your torque reaction until 300 Nm. Confort: Easy to install on moving assembly line (mountable on existing standard rail). Require little space and doesn't disrupt flow production. Erase orque reaction of power tools Economy: Maintenance free thanks to the carbon fiber (no greasing) Long last of living thanks to the durable carbon fiber Productivity: Easy and quick operator handling thanks to the light weight carbon fiber

Involute spline allows various applications including multiple spindle configuration and mounting on an assisting arm The flanged spindle is provided with the high torque model. Customization includes Multi-spindle, Assisting arm, Socket Changer and Ball plunger

SLIPPING TOOLS THAT ENSURE JOINT INTEGRITY: The TSN and TSP Torque Wrenches slip free when predetermined torque setting is reached, completely eliminating overtightening Ratchet design ensures smooth positive torque control The TSN and TSP wrenches are non length dependent, giving accurate repeatability regardless of where the tool is held Robust construction, built to withstand industrial environments, guaranteeing long service life TSN and TSP wrenches are available with Electrical Switch (Sw) transceiver options to interface with a PLC etc. EPA compliant for use in electrostatically sensitive applications Designed and manufactured to exceed the requirements of ISO 6789:2003 Repeatability +/- 4% of setting for tools above 10 N.m and +/- 6% of setting for tools below 10 N.m ISO 6789:2003 classification 2C Accessories available (end fittings, adaptors & sockets)

FOR GREATER CONTROL OVER THE PRODUCTION PROCESS: Signal Transmission Options The Torqueleader range of TBN, TSN, TSP and STB Production tools can be supplied with a choice of two options for transmitting a signal when a tightening event has taken place. Each time the operator uses the tool a signal is sent or can be recorded, offering greater control over the production process Switch and Cable Tools use a mechanical switch which is operated each time the wrench achieves its set torque. The switch is connected via cable to the Production Line Control System. This option is a cost effective system for Production environments as well as offering guaranteed torque control DESIGNED TO PROVIDE FAIL SAFE TIGHTENING: The TBN, STB and TSN Switch Tools send a signal to a remote monitoring device when the preset torque has been applied, providing greater control over the production process The TBN, STB and TSN Switch tools are based on the well established Torqueleader technology and bring all the benefits of reducing the risk of overtightening Switch tools can be integrated into most Production Line Control Systems, as well as operate counters and gate switches Torqueleader Switch tools come complete with a 6m cable featuring a cable strain relief system A Signal Delay Unit (SDU) is available as an optional interface between the Switch tool and Production Line Control Systems. Its function is to prolong the signal duration to guarantee communication For General Instructions on the TSP and TSN please see the downloads on the TSN & TSP Production Slipping

Shut-off pistol type with brushless motor and speed control Powerful Lithium-ion Battery for longer operating time and life duration Efficient brushless motor for optimized durability (no maintenance required – less spare parts cost) Studied ergonomy to improve the comfort of the operator with soft grip reducing vibration Smart reverse button for quick operation LED lights to work even in dark area for better comfort OK/NOK level of charge LED feedback signal for the operator Automatic stop before the battery is too much discharged Color ring to clearly identify the tools Reliable Sliding battery system easy to handle increasing the productivity Adjustable rotation speed through speed programmer (delivered in option) Each tool is delivered with one torque adjusting screwdriver, one suspension bail and 1 set of color rings. BTA SERIES: Shut-off angle nutrunners with brushless motor Powerful Lithium-ion Battery for longer operating time and life duration Efficient brushless motor for optimized durability (no maintenance required – less spare parts cost) Studied ergonomy to improve the comfort of the operator – zero gravity Smart reverse button for quick operation LED lights to work even in dark area for better comfort OK/NOK level of charge LED feedback signal for the operator Automatic stop before the battery is too much discharged Color ring to clearly identify the tools Reliable Sliding battery system easy to handle increasing the productivity.

SLIPPING TECHNOLOGY IN COMPACT ERGONOMIC TOOLS: The Ergo Quickset Calibrated Screwdrivers range incorporates slipping technology, eliminating overtightening A specially designed ergonomic grip combined with a smooth reset action reduces operator fatigue Once the tool is set, the adjustment lock prevents accidental tool adjustment, therefore ensuring the correct torque is applied EPA compliant for use in electrostatically sensitive applications These tools are designed and manufactured to exceed the requirements of ISO 6789:2003 Calibrated in clockwise direction Anticlockwise calibration on request Accuracy +/- 6% of setting ISO 6789:2003 classification 2D Accessories available (end fittings, adaptors, sockets & screwdriver accessories)

Entorquer present wrenches are designed and made for the assembly plant, where they need to perform repetitive torque application to a present value. */-4% accuracy Classified to ISO 6789:2003 Present adjustable with special tool 52 tooth ratchet Industrial grade construction Molded grip for operator comfort Light weight

Positioning Arm is the Torque Arm which reduces the load to the operator due to Reaction Force and the Weight of the Tool. But this is not only a Torque Arm but also has a function for detecting positioning exclusively designed for Handheld Nutrunner. This Positioning  Arm enable to realize high level traceability by syncronizing and relating Fastening Torque and the Position, which will eliminate wrong process job by human error and achieve high productivity. Features: Simple and Compact design. Easy to install, easy to transfer Horizontal (X, Y) and vertical (Z) positioning detection enabled. Detect positioning of the tool, and give appropriate (programmed) instruction to the operator Controller and Positioning Arm Controller. External PLC is not required Progammable LED indicator for warning operator Easy teaching. Just clench start trigger Searching the origin point not required when turn on the switch Absolute resolver adopted as position detecting sensor Gas spring is selectable according to the type of tools Touch panel, Barcode reader, Socket tray, etc are expandable through Tool controller as a standard functions Where you can use this system: For the application fastening needs to be done in sequence such as the application which has gasket, rubber materials are in between For the simple application operator might make mistakes to fasten twice To reduce the load for operators from reaction force and the weight of the tool Easy setup for changing running model To establish a high traceability to record positioning and fastening results together

Optional Involute spline allows various applications including multiple spindle configuration and mounting on an assisting arm Rail guide is used for various applications such as hanging fixture to mount easily and securely Compact tool with high speed exceeding 1000rpm results in high productivity An omnidirectional confirmation window with excelleent visibility is used to make the operating condition visible at any time The tool has also a hanging fixture (EH2-PH02) mounted The pistol type grip is used for operators to easily grip and prevent fatigue during long period operation

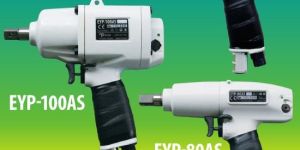

A series of EYP model pulse wrench presents highest efficiency with simple mechanism of pulse. Oil is filled everywhere inside of the Cage which is combined with built-in Shank-anvil. Shank-anvil has two Pistons that are located 180? opposite. Each Piston is fitted on with a Roller which is always contacting inside wall of the Cage. There are two mounted portions that are protruded from inside wall of the Cage. Those two mounts are located 180? opposite, also. Shank-anvil is not directly connected with the airmotor, but the Cage is dirctly connected with it. When Shank-anvil is under no load ie., free running, it is rotating together with the Cage. Once Shank-anvil is on load, it begins to stop rotating but the Cage keeps rotating. Then, two mounted portions in the Cage begin to push a pair of Rollers together with the Pistons towards the center of the Cage and then, this movement of pistons forms a pair of sealed chambers in the Shank-anvil where oil flow will be intercepted. After oil flow is intercepted, oil in the chambers where a pair of Pistons are moving will be compressed and will generate pulse in a moment to transfer energy from the Cage to the Shank-anvil. PULSE MECHANISM New EYP model pulse unit recently developed has a pair of pistons. Oil is filled in the cage and shall be efficiently compressed in the sealed chambers in the shank-anvil. A pair of pistons and a pair of balls-steel will form a pair of sealed chambers in the shank-anvil. (Patented) This simple mechanism helps to lower the number of parts required, and makes it easy to perform repair work. EYP model pulse unit simply generates single pulse per single rotation without using any mechanical cams. Shank-anvil has a pair of pistons, and each piston is located 180? opposite. There are two mounted portions in the cage that are protruded from inside wall of the cage. These protruded mounts in the cage are corresponding with a pair of pistons. (Patented) DIRECT AIR SHUTOFF Shut off mechanism to intercept supply-air is directly related to main valve. After reaching pre-set torque, supply-air shall be automatically shut off. (Patent Pending) Shut off mechanism provides most reliable and stable performance in terms of torque accuracy even if the suppy-air pressure should be 0.4MPa. MOST DURABLE OIL SEAL Oil seals are to intercept lower pressure oil. This mechanism helps to extend life of seals much longer than the case as oil seals are to intercept higher pressure oil. Relief valve to adjust range of torque is positioned in the center bore of shank-anvil, which provides easiest handling for torque adjustment. RELEEF VALVE Shank-anvil has two-pieces structure consisting of the cap-anvil which forms square end and the body which forms substance to generate pulse. (Patent Pending) CHANGEABLE SQUARE END This structure is adopted on the EYP-80AS, EYP-300AS and EYP-380AS models. In case of the EYP-80AS, for example, the square end can be selected among 3/8 inch, 1/2 inch and the one to accept bit-driver. Changing cap-anvils can be easily executed on the job site without using any special tools. ERGONOMIC GRIP HANDLE Ergonomic requirements like less vibration or less reaction force are realized on the EYP model pulse wrenches. To enhance these features, the grip-handle is covered with the same rubber that is used on the tennis racket. This rubber grip is supplied as a standard equipment to help to reduce burden on wrist, arm and shoulder of the operator.

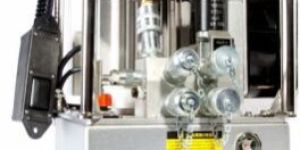

IBT-CoolMulti-Port Power Pack: Runs up to 2 hydraulic torque wrenches at one time Three speed high performance pump External adjustable pressure regulator Heavy duty roll cage Remote control assembly State of the art central cooling system

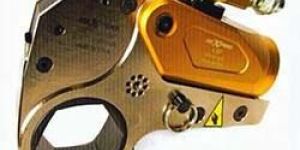

orsionX HEXPRO series low profile wrenches are essential tools for limited clearance applications. The versatile HEXPRO series support an extensive range of interchangeable hexagon ratchet links that deliver a torque range of 162 ft lbs to 30,500 ft lbs.

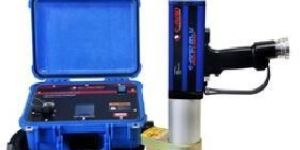

ERAD BLU is the Best available Electric Servo motor Nutrunner available in the market.It is Lighter in weight, Faster and Accurate . You can store the data under different bolting category or part numbers. Torque,Torque and angle settings are possible through touch screen pannen on the controller Controller is available in strong pelican box for protection and easy handling Available in 135 - 950Nm, 300-2000Nm,340-3400Nm,675-4000Nm,2000-8000Nm and 10,000 Nm capacity models.

Various field needs including visibility, operability, expandability, and space saving are provided Product Highlights: Optional Involute spline allows various applications including multiple spindle configuration and mounting on an assisting arm 8" Display touch screen Compact tool with high speed exceeding 1000rpm results in high productivity confirmation window with excellent visibility is used to make the operating condition visible at any time The tool has also a hanging fixture  The pistol type grip is used for operators to easily grip and prevent fatigue during long period operation

DPC-990: Secure your assembly process (detect screw omission, cross thread,...) Improve your staff flexibility (good job whoever the operator is) Enable your standard air and electric screwdrivers to comply with your most demanding process monitoring requirements The driver or controller must be able to give : Motor rotation - Shut off - Motor lock signals. The DOGA DPC 990 is the ideal Sequencing, Error proofing and Positioning unit. Suitable with your Air, Electric and DC Tools, your Assembly process remains under control whoever the operator is ! Technical Features: 9 programs including 3 parameters set : Position X,Y – Mini Maxi time for Error proofing, torque select (for DC Tools & Hybrid Tools) 99 memory points Accuracy : 0,09 Programmable positioning Tolerance Programmable Mini-Maxi time for Poka Yoke control (automatic or manual) Self teaching of the positioning Sequencing Mode enable / disable Program lock through password RS232C output for upgrade (firmware) 25 P SUB-D Input / Output (Torque reached, Motor lock, Torque selection, Position Ok, Cycle reset....)

Key Features: Easy to use-Menu Driven Accuracy of better than 1% Viewing Angle of 170 degrees Battery Life of 180+Hours Option to customise

BA..R Series are equipped with a rotating articulation enabling a Swivelling and folding up like a human arm, they are particularly recommended for spaceless working places . Optimum ratio performance / dimensions (ideal for spaceless location!) Economical and versatile: possibility to use on the same arm every kind of tools (straight, pistol, angle drivers) thanks to the large choice of clamps Higher comfort for the operator thanks to the articulated arm (less movement inertia and better positionning accuracy) Maximum workstation coverage (R maxi) (recommended maximum workstation coverage withan arm inclination of 22.5° and an arm angle of 120°) BA 5 R : 435 mm   BA 40 R : 630 mm BA 12 / 25 R : 445 mm BA 100 R : 715 mm

The angle head is made of titanium featuring light weight and high tensile reduces the operator’s load during fastening and provides high durability. Lightweight is used to reduce the burden to the operator from the tool weight during operation. The high speed motor is used to improve the productivity. Customization includes - Crow foot gear, Flush socket, Long switch lever and short switch lever
